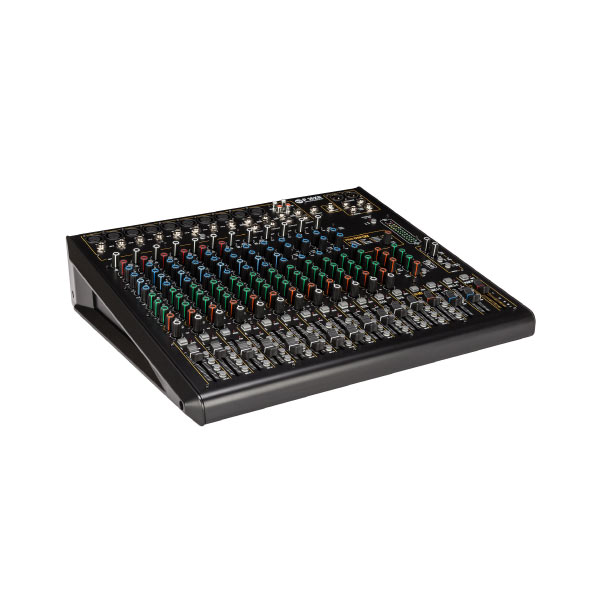

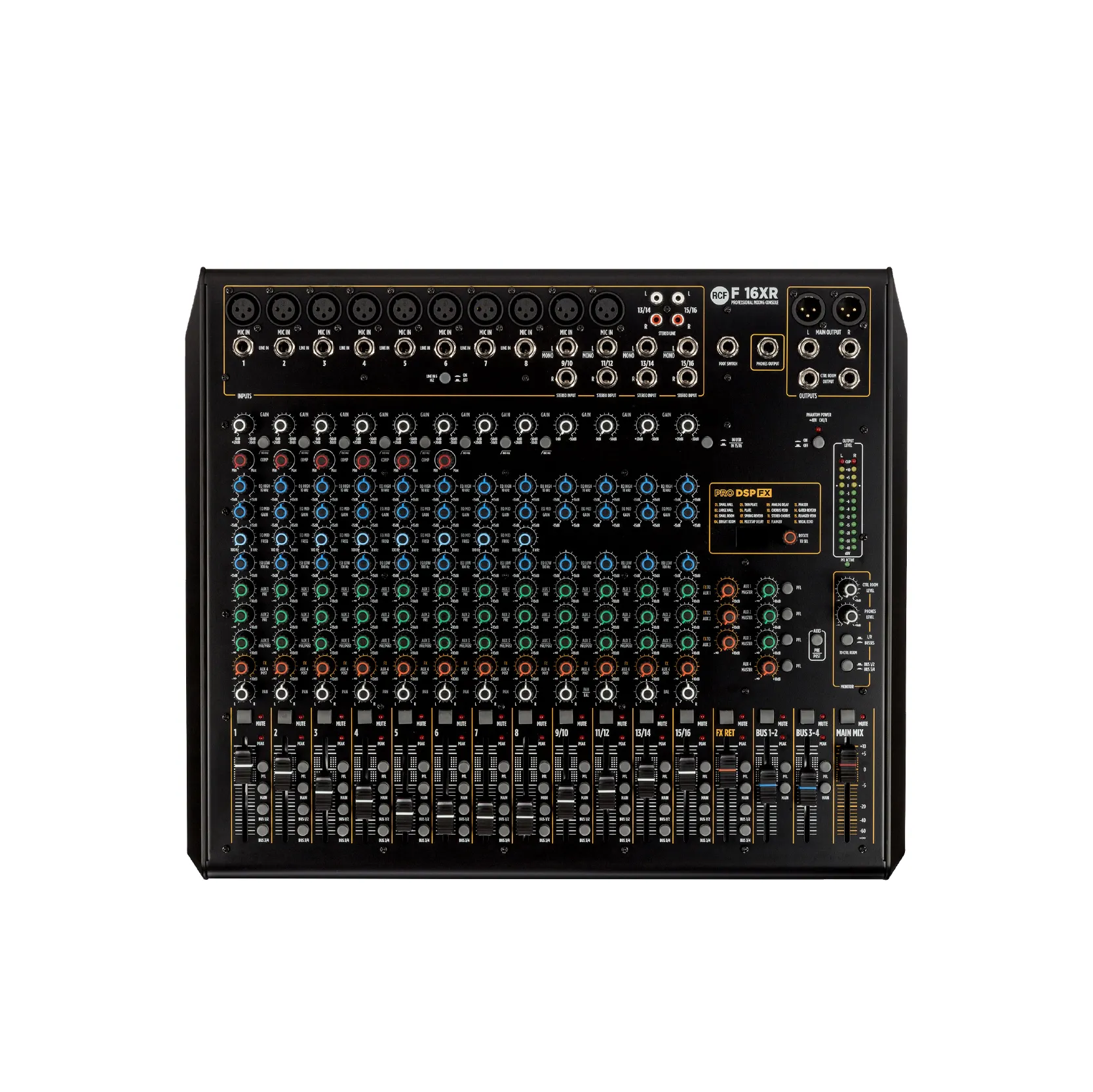

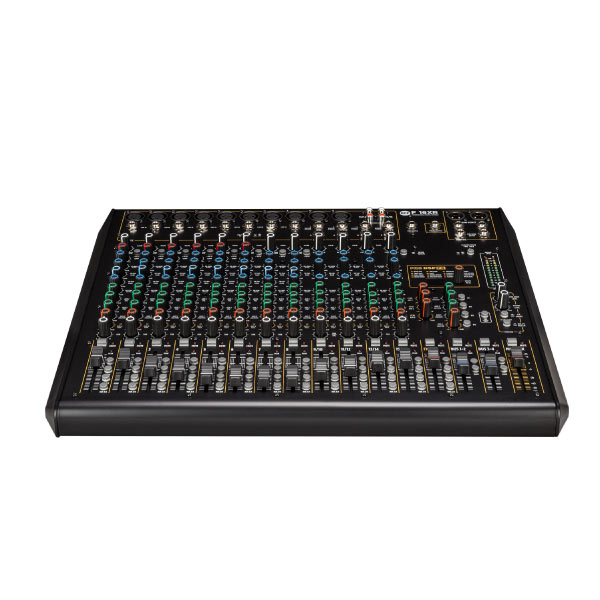

RCF F 16XR เครื่องผสมสัญญาณเสียง อนาล็อก16 ชาแนล RCF F 16XR MIXING CONSOLES จากแบรนด์ RCF
RCF F 16XR 16-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
ENHANCED ANALOG MIXING FLEXIBILITY
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
STATE OF THE ART EQ
State-of-the-art 3 band EQ on mono channels,
2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.
HIGH QUALITY PREAMPLIFIERS
High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.
- 10 Mic preamp inputs, 4 mono line inputs 4 Stereo line inputs
- PRO DSP FX onboard with 16 presets
- Stereo recording and playback via USB port
- 6 single control compressors Balanced main output +28 dB (Stereo XLR + TRS)
- Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
- 60 mm faders
- Internal universal power supply
- Designed and engineered in Italy
The F 16XR features 10 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and Recording via USB port, with balanced main output (Stereo XLR + TRS) and 6 single control compressors. The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.
Electrical specifications
- FREQUENCY RESPONSE : 20 Hz ÷ 20 kHz
- THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED) : <0,02% A-Weighted
- POWER SUPPLY : Internal
- VOLTAGE REQUIREMENTS : 100 V – 240 V
- POWER CONSUMPTION (W) : 30 W
Inputs
- GAIN RANGE : 0 dB ÷ -50 dB
- GAIN SELECTION : 20 dB ÷ -30 dB
- HI-Z LINE INPUTS IMPEDANCE (MOHM) : 1 Mohm
- HI-Z LINE INPUTS : 1
-
INPUT NOISE LEVEL (DBU A-WEIGHTED) : -124 dBu A-Weighted
- MIC INPUTS IMPEDANCE (KOHM ): 14 kohm
- LINE : 8
- LINE INPUT IMPEDANCE (KOHM) : 21 kohm
- LOW CUT : 80 Hz
- MIC : 10
- PHANTOM POWER +48V : Yes
- STEREO LINE : 4
- STEREO LINE GAIN SELECTION : 20 dB ÷ -30 dB
- STEREO LINE INPUT IMPEDANCE : 14 kohm
Outputs
- MAIN MIX : 1
-
CONTROL ROOM : Yes
- FX SEND : 1
-
AUX SEND : 3
- AUX OUTPUT : 4
- GROUP OUT : 4
- PHONES : 1
Outputs specifications
- MAIN OUT LEVEL (DBU) : 28 dBu
- AUX OUT LEVEL (DBU) : 28 dBu
-
GROUP OUT LEVEL (DBU) : 28 dBu
- PHONES OUT IMPEDANCE (OHM) : 150 ohm
-
PHONES OUT LEVEL (DBM) : 10 dBm
Compressors
- RCF COMPRESSORS : n°6 Single Control Compressors on Channels 1 to 6
EQ
- INPUT CHANNELS EQ : 1 Semi Parametric / 2 Shelving
- DESCRIPTION : High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz – Bell Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends
-
AUX : 2 PRE / 1 PRE/POST
- FX POST : 1
Internal Effects
- SEND EFFECTS : 1
USB audio
- TYPE : B
- PLAY TRK : 2
- REC TRK : 2
- SUPPORTED SAMPLE RATE (KHZ) : 44.1, 48.0 kHz
Other features
- FOOTSWITCH : Yes
Standard compliance
- CE MARKING : Yes
Physical specifications
- CABINET/CASE MATERIAL : Metal
-
COLOR : Black
Size
- DEPTH : 406 mm / 15.98 inches
- HEIGHT : 107 mm / 4.21 inches
- WEIGHT : 6.4 kg / 14.11 lbs
- WIDTH : 479 mm / 18.86 inches
Shipping informations
- PACKAGE DEPTH : 523 mm / 20.59 inches
- PACKAGE HEIGHT : 150 mm / 5.91 inches
- PACKAGE WEIGHT : 7.4 kg / 16.31 lbs
- PACKAGE WIDTH : 453 mm / 17.83 inches
