• FREQUENCY RESPONSE:
  20 Hz ÷ 20 kHz

• THD+N, 0DB GAIN, 0DBU OUT:
  < 0.02% A-Weighted

• DYNAMC RANGE, ANALOG TO ANALOG:
  109 dB A-Weighted

• RESIDUAL NOISE LEVEL, MAIN OUT, MUTED:
  -85 dBu A-Weighted

• GAIN RANGE:
  0 dB ÷ 60 dB

• MIC INPUT IMPEDANCE:
  3.3 kohm

• MAXIMUM INPUT LEVEL:
  18 dBu

• PHANTOM POWER +48V:
  Ye

• MIC/LINE (XLR/TRS COMBO):
  8

• REMOTE CONTROLLED STORABLE GAIN:
  Yes

• GAIN RANGE:
  0 dB ÷ 60 dB

• GAIN RANGE:
  0 dB ÷ 60 dB

• GAIN RANGE:
  0 dB ÷ 60 dB

• GAIN RANGE:
  0 dB ÷ 60 dB

• GAIN RANGE:
  0 dB ÷ 60 dB

• GAIN RANGE:
  0 dB ÷ 60 d

• GAIN RANGE:
  0 dB ÷ 60 d

• GAIN RANGE:
  0 dB ÷ 60 dB

• GAIN RANGE:
  0 dB ÷ 60 dB

• GAIN RANGE:
  0 dB ÷ 60 dB

• GAIN RANGE:
  0 dB ÷ 60 dB

• MIC INPUTS IMPEDANCE (XLR):
  3.3 koh

• LINE INPUTS IMPEDANCE (TRS):
  12.8 koh

• MAXIMUM INPUT LEVEL (XLR):
  18 dBu

• MAXIMUM INPUT LEVEL (TRS):
  29 dBu

• PHANTOM POWER +48V:
  Yes

• BALANCED LINE (1/4 TRS):
  2

• GAIN RANGE:
  0 dB ÷ dB

• LINE INPUTS IMPEDANCE (TRS):
  18 koh

• MAXIMUM INPUT LEVEL (TRS):
  18 dBu

• STEREO LINE (3,5MM JACK):
  1

• GAIN RANGE:
  0 dB ÷ dB

• LINE INPUTS IMPEDANCE (TRS):
  15 koh

• MAXIMUM INPUT LEVEL (TRS):
  18 dBu

• MAIN OUT (BALANCED XLR):
  2

• OUTPUT IMPEDANCE:
  50 ohm

• MAXIMUM OUTPUT LEVEL:
  24 dBu

• MIX OUT (BALANCED XLR):
  8

• MIX OUT (1/4 TRS):
  2

• OUTPUT IMPEDANCE:
  150 ohm

• MAXIMUM OUTPUT LEVEL:
  24 dBu

• PHONES (6,8MM JACK STEREO LINE):
  1

• OUTPUT IMPEDANCE:
  50 ohm

• MAXIMUM OUTPUT LEVEL:
  18 dBu

• AES3 (XLR):
  1

• SIGNAL PROCESSING:
  32 Bit Floating Point

• HEADROOM:
  20 dB

• A/D-D/A CONVERSION:
  24 Bit @ 48.0 kHz

• BUSS:
  16

• SOURCE SELECTOR:
  Yes

• POLARITY:
  Yes

• HIGH PASS FILTER:
  Yes

• DELAY:
  100 ms

• GATE:
  with Gain Reduction meter

• PEQ:
  4 Band

• COMPRESSOR / DE-ESSER ON INPUTS:
  1 ÷ 16 (with Gain Reduction meter)

• DELAY:
  250 ms

• GEQ:
  30 Band

• PEQ:
  8 Band

• MIX OUT:
  [1 ÷ 8]

• DELAY:
  250 ms

• PEQ:
  8 Band

• REAL TIME ANALYZER:
  Yes

• DELAY:
  250 ms

• INTERNAL FX:
  4

• FX1:
  Reverb (Hall, Room, Plate, Ambience)

• FX2:
  Reverb (Hall, Room, Plate, Ambience)

• FX3:
  Delay (Stereo, Modern, Vintage, Dual, ER)

• FX4:
  Modulation (Chorus, Flanger, Tremolo)

• SD MULTITRACK FORMAT:
  WAV, 24Bit, 48.0kHz

• NUMBER OF TRACKS:
  20

• A/D-D/A CONVERSION:
  24 Bit @ 48.0 kHz

• RECORDING:
  20 Channels

• PLAYBACK:
  20 Channels

• USB AUDIO INTERFACE FORMAT:
  WAV, 24Bit, 48.0kHz

• A/D-D/A CONVERSION:
  24 Bit @ 48.0 kHz

• UPSTREAM:
  24 Channels

DOWNSTREAM:

• 24 Channels
  USB drive play/rec

• USB DRIVE RECORDING:
  2 Channels @ WAV, 24Bit, 48.0kHz

• A/D-D/A CONVERSION:
  24 Bit @ 48.0 kHz

• A/D-D/A CONVERSION:
  16 Bit @ 44.1, 48.0, 88.2, 96.0 kHz

• USB DRIVE PLAYBACK:
  2 Channels @ WAV/MP3/AIFF, 16Bit, 44.1, 48.0, 88.2, 96.0kHz

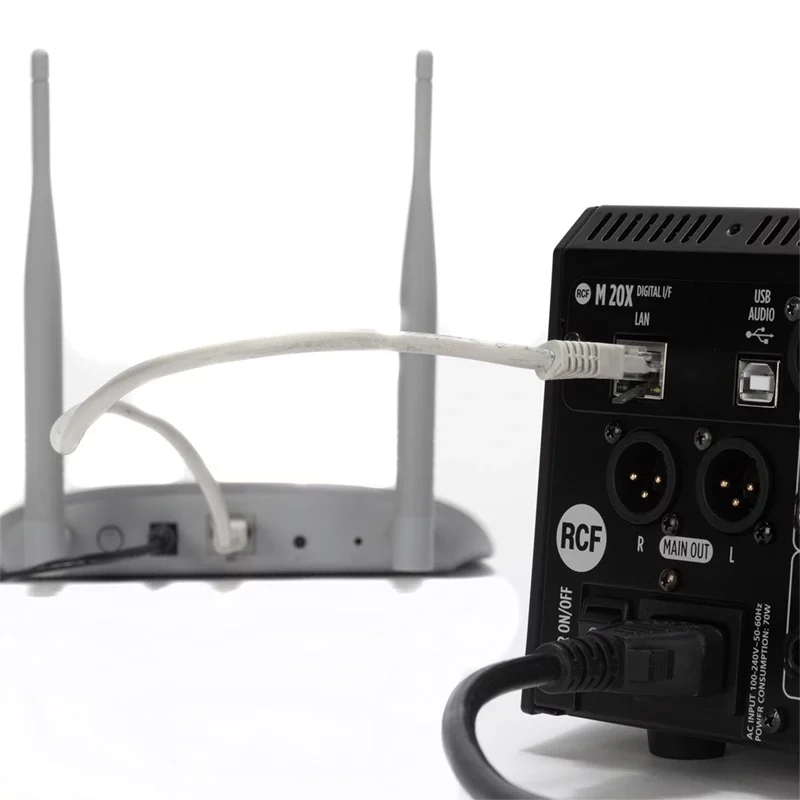

• LAN PORT:
  1000-BaseTX for remote control

• DESCRIPTION:
  MIDI interface, WiFi dongle (must be en

• USB PORTS:
  2 Type A

• POWER SUPPLY:
  Internal

• VOLTAGE REQUIREMENTS:
  100 V – 240 V

• POWER CONSUMPTION (MAX) (W):
  70 W

• CE MARKING:
  Yes

• Metal
  Size

• WEIGHT:
  7.9 kg / 17.42 lbs

• WIDTH:
  388 mm / 15.28 inches

• HEIGHT:
  131 mm / 5.16 inches

• DEPTH:
  428 mm / 16.85 inches

• PACKAGE HEIGHT:
  215 mm / 8.46 inches

• PACKAGE WEIGHT:
  9 kg / 19.84 lbs

• PACKAGE DEPTH:
  506 mm / 19.92 inches

• PACKAGE WIDTH:
  580 mm / 22.83 inches
