RCF NXL 24-A ตู้ลำโพงคอลัมน์ 2 ทาง 4 x 6 นิ้ว 1,400 วัตต์ มีแอมป์ในตัว

•  1400 Watt
•  131 dB max SPL
•  65 Hz 20 kHz frequency response
•  4 x 6″ Woofers

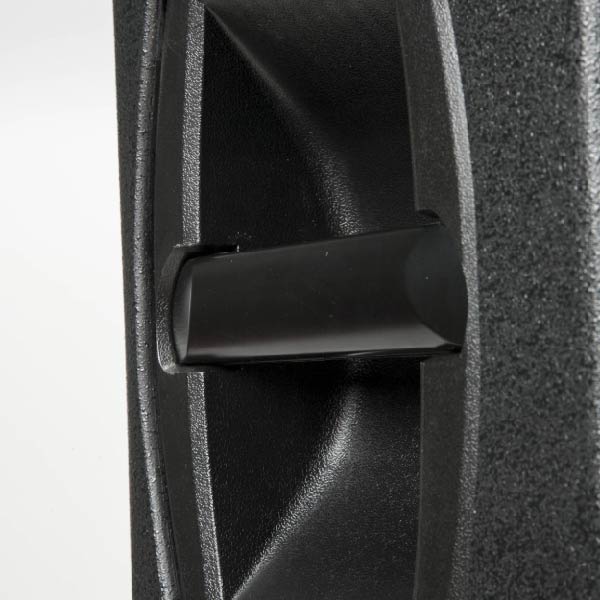

•  2.5″ voice coil RCF Precision C. Driver on waveguide
•  100° x 30° slightly tilted pattern control
•  DSP controlled Input section with single or dual eq. preset

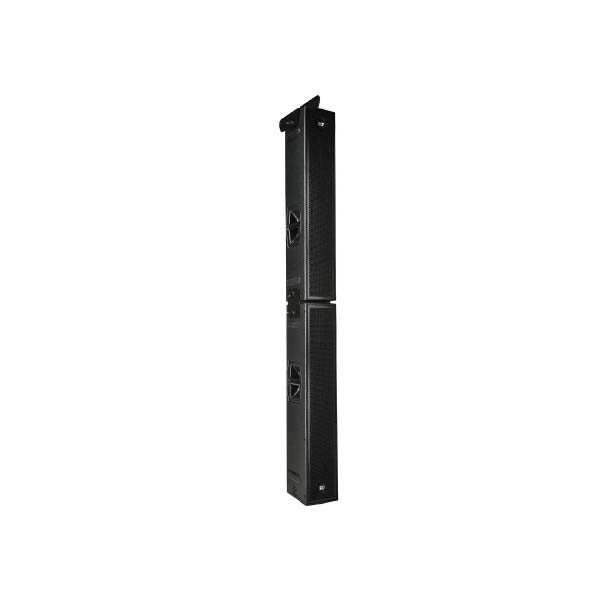

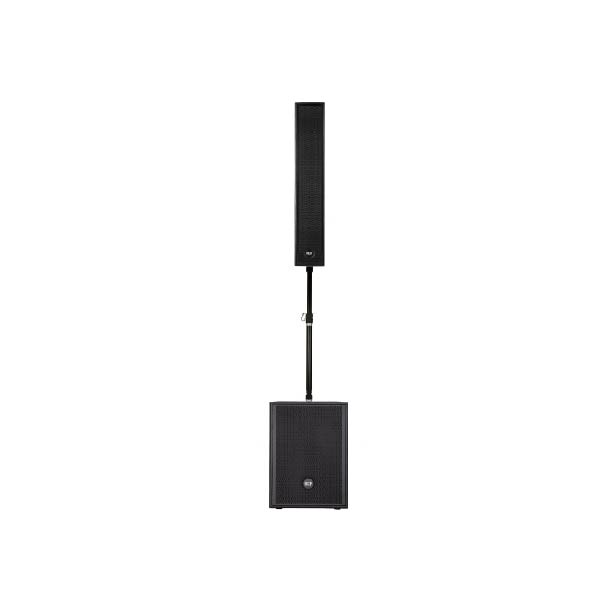

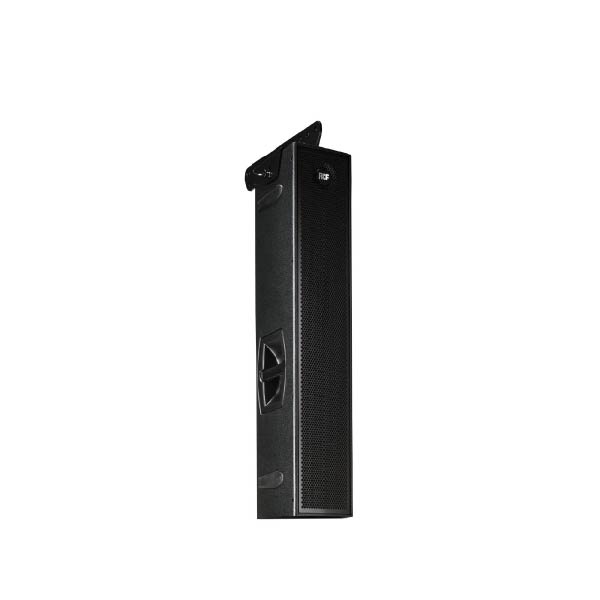

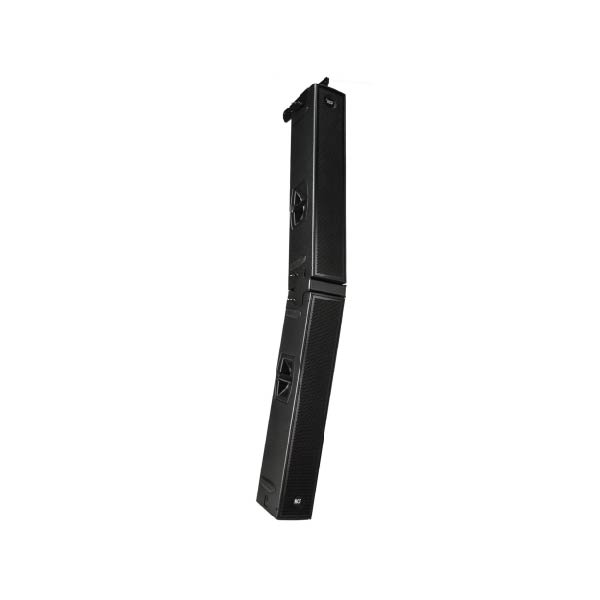

•  Pole mountable, Stackable, Flyable
•  Baltic Birch Plywood enclosure with internal structural metal bracings

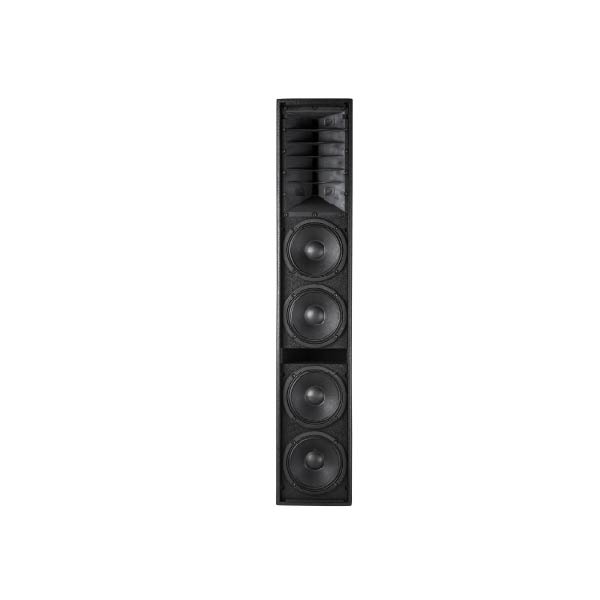

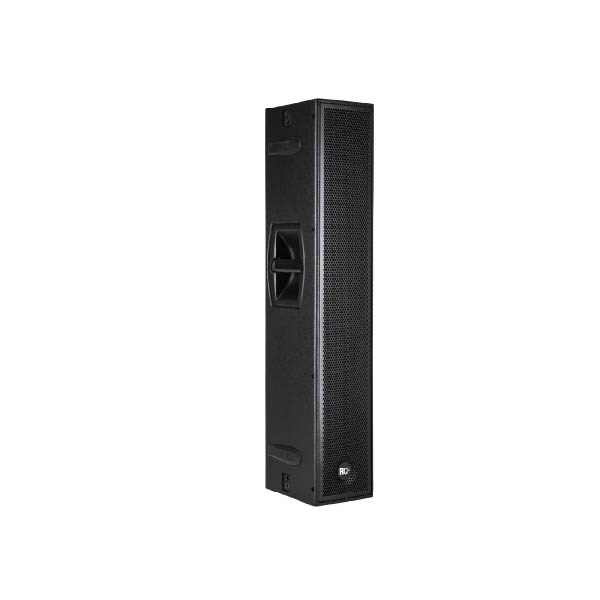

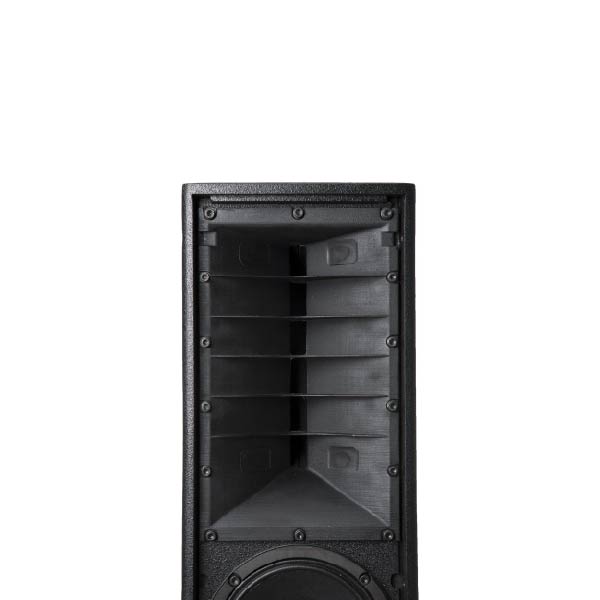

The NXL 24-A is an active column speaker array system composed by 4 x 6” high power woofers and a 2.5” voice coil compression driver loaded from a waveguide on a 100° x 30° constant directivity horn. The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalisation, phase alignment, soft limiting and speaker protections. Equalisations are available to operate with a single column or in pairs.

Acoustical specifications

• FREQUENCY RESPONSE : 65 Hz ÷ 20000 Hz
• MAX SPL @ 1M : 131 dB
• HORIZONTAL COVERAGE ANGLE : 100°
• VERTICAL COVERAGE ANGLE : 30°

Transducers

• COMPRESSION DRIVER : 1.4”, 2.5” v.c
• WOOFER : 4 x 6.0”, 1.5” v.c

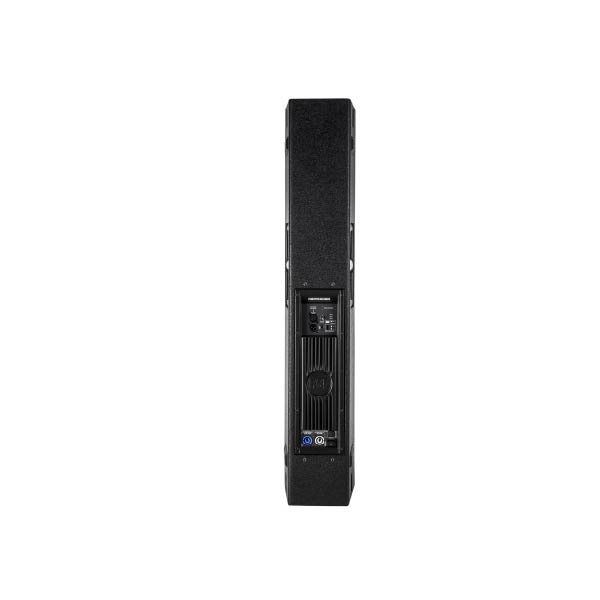

Input/Output section

• INPUT SIGNAL : bal/unbal
• INPUT CONNECTORS : XRL, Jack
• OUTPUT CONNECTORS : XLR
• INPUT SENSITIVITY : -2 dBu/+4 dBu

Processor section

• CROSSOVER FREQUENCIES : 800 Hz
• PROTECTIONS : Thermal, RMS
• LIMITER : Soft Limiter
• CONTROLS : Volume, EQ Shape, MIc/Line

Power section

• TOTAL POWER : 1400 W Peak, 700 W RMS
• LOW FREQUENCIES : 1000 W Peak, 500 W RMS
• COOLING : Convection
• CONNECTIONS : Powercon IN/OUT

Standard compliance

• CE MARKING : Yes

Physical specifications

• CABINET/CASE MATERIAL : Baltic birch plywood

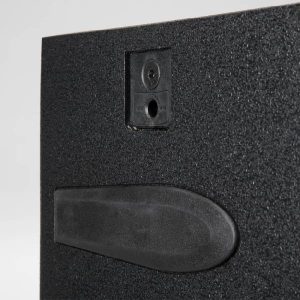

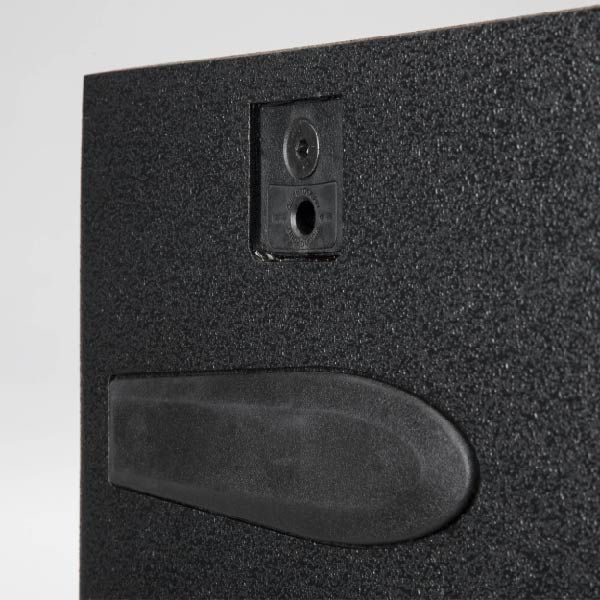

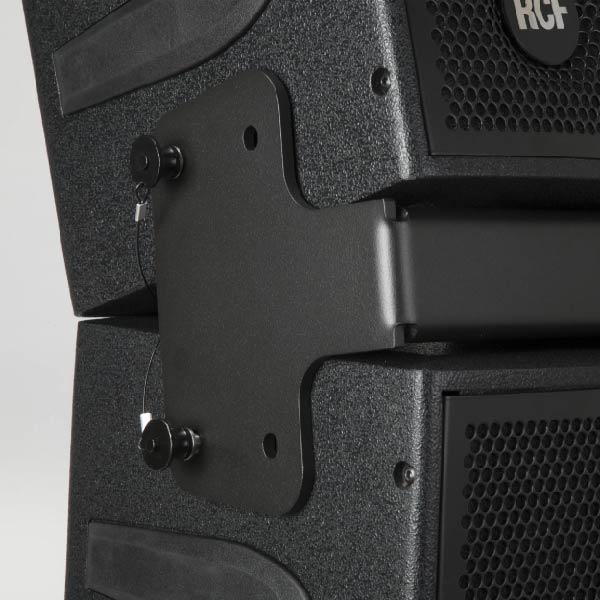

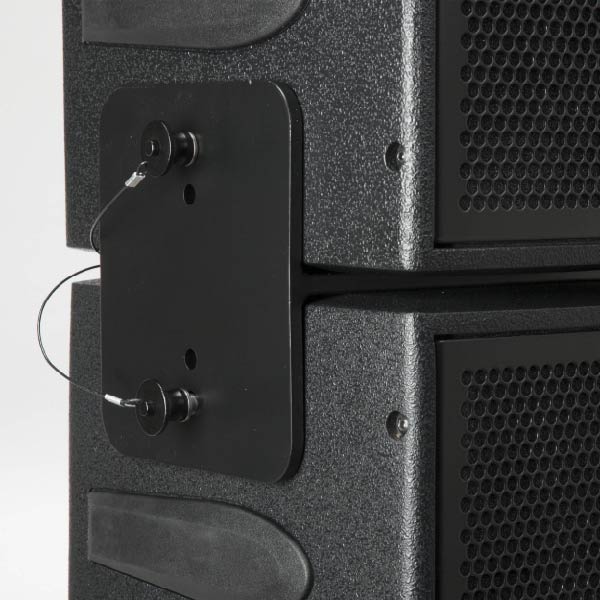

• HARDWARE : 4 x MB, 4 x quick lock
• HANDLES : 2 side

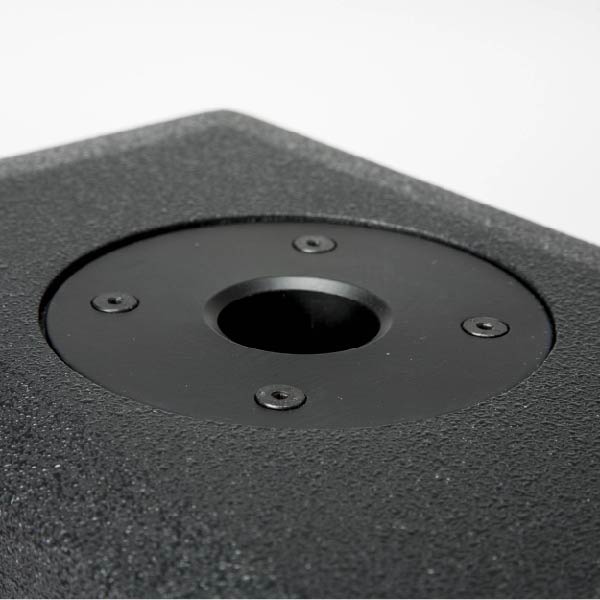

• POLE MOUNT/CAP : Yes
• GRILLE : Steel
• COLOR : Black

Size

• HEIGHT : 1056 mm / 41.57 inches
• WIDTH : 201 mm / 7.91 inches
• DEPTH : 274 mm / 10.79 inches
• WEIGHT : 26.4 kg / 58.2 lbs

Shipping informations

• PACKAGE HEIGHT : 316 mm / 12.44 inches
• PACKAGE WIDTH : 1155 mm / 45.47 inches
• PACKAGE DEPTH : 222 mm / 8.74 inches
• PACKAGE WEIGHT : 29 kg / 63.93 lbs
