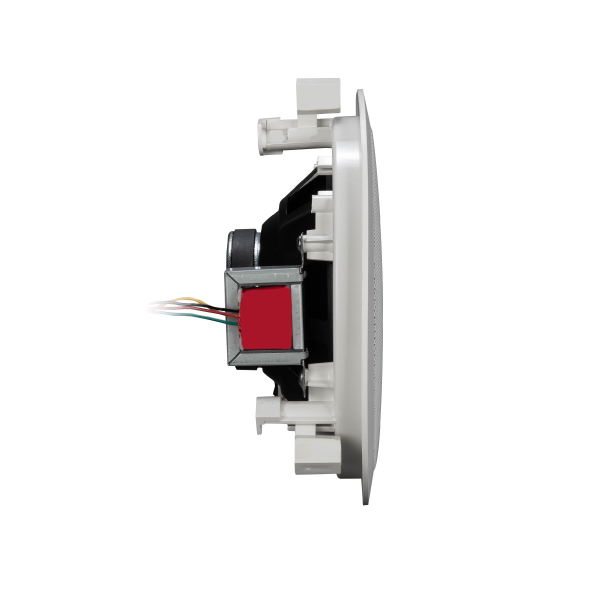

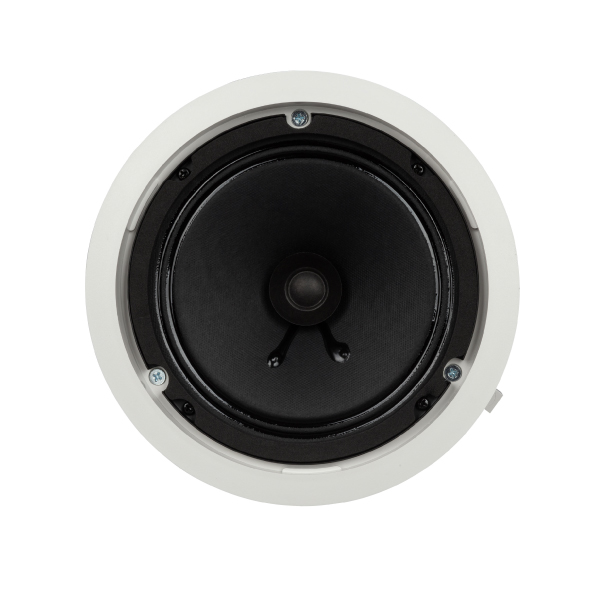

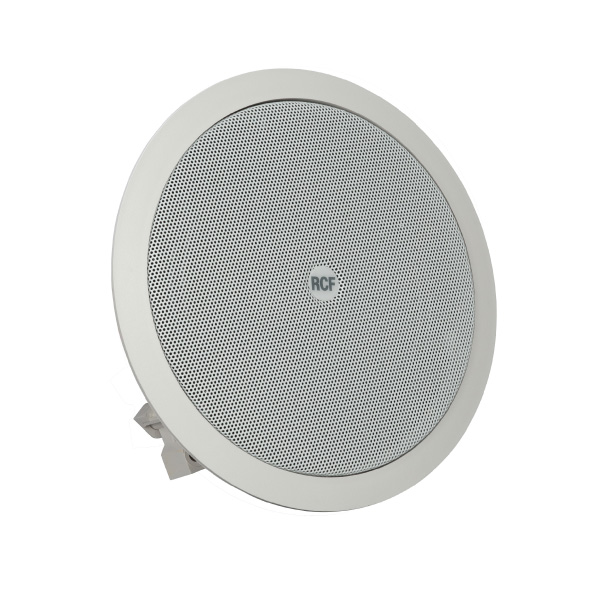

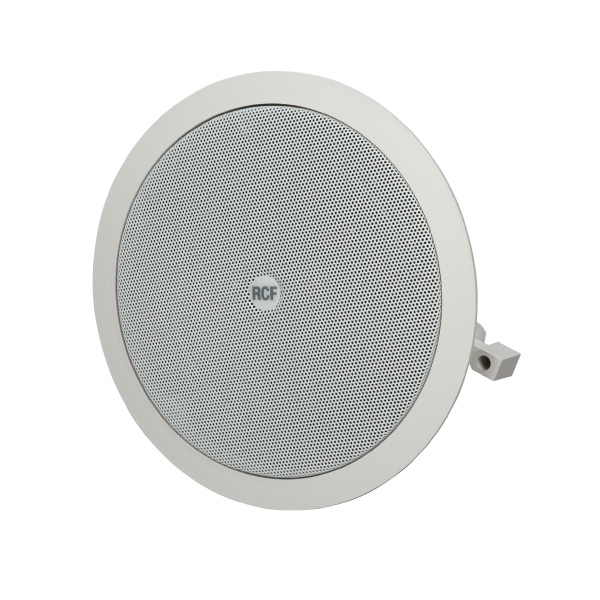

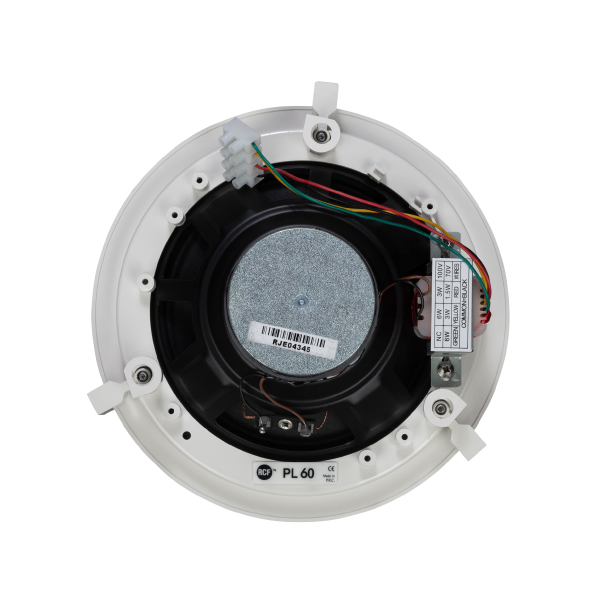

RCF PL 60 ลำโพงติดเพดาน ขนาด 6 นิ้ว 6 วัตต์

สเปค

Acoustical specifications

• FREQUENCY RESPONSE (-10DB) : 90 Hz ÷ 20000 Hz
• MAX SPL @ 1M : 107 dB
• COVERAGE ANGLE : 90°
• SYSTEM SENSITIVITY : 91 dB

Power section

• NOMINAL IMPEDANCE (OHM) : 8 ohm
• POWER HANDLING : 6 W RMS
• PEAK POWER HANDLING : 24 W PEAK
• RECOMMENDED AMPLIFIER : 12 W

Transducers

• FULLRANGE : 6.0”

Input/Output section

• INPUT CONNECTORS : Screw Terminals
• OUTPUT CONNECTORS : Screw Terminals

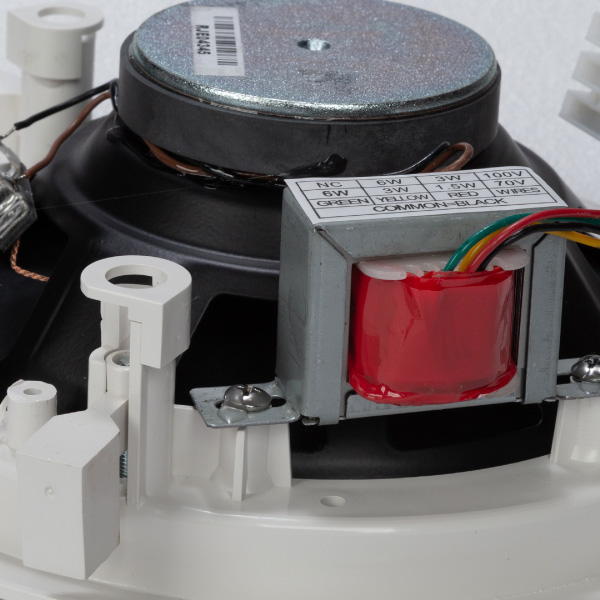

• CONSTANT VOLTAGE TRANSFORMER : 100 V
• POWER SELECTION 1 (100 V) : 6 W – 1667 ohm
• POWER SELECTION 2 (100 V) : 3 W – 3333 ohm

Processor section

• CROSSOVER FREQUENCIES : 180 Hz
• PROTECTIONS : Thermal, RMS
• LIMITER : Soft Limiter
• CONTROLS : Volume, EQ

Standard compliance

• CE MARKING : Yes

Physical specifications

• CABINET/CASE MATERIAL : Baltic birch plywood
• COLOR : Black

Size

• DEPTH : 75 mm / 2.95 inches
• RECESSED DEPTH : 69 mm / 2.72 inches
• DIAMETER : 204 mm / 8.03 inches
• WEIGHT : 0.34 kg / 0.75 lbs

Shipping informations

• PACKAGE WEIGHT : 1.07 kg / 2.36 lbs
• PACKAGE DEPTH : 235 mm / 9.25 inches
• PACKAGE WIDTH : 240 mm / 9.45 inches
• PACKAGE HEIGHT : 105 mm / 4.13 inches
