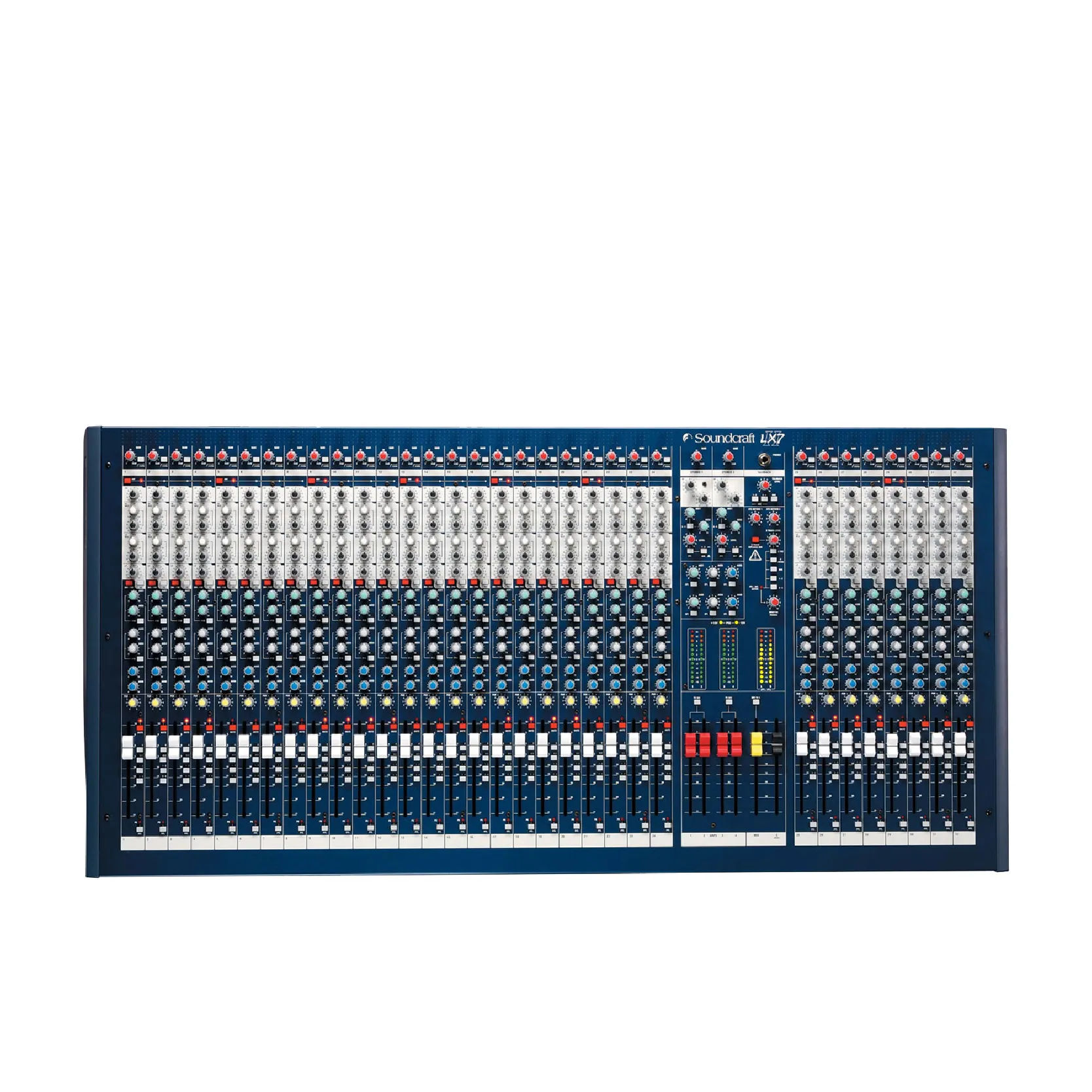

เครื่องผสมสัญญาณเสียง SOUNDCRAFT LX7ii-24CH อนาล็อก มิกเซอร์ 24 ชาแนล
The LX7II24 combines the essential Soundcraft live mixer qualities with basic recording-oriented features, in a compact frame that’s light enough for one person to carry yet easy to configure and use. This makes it especially suitable for multi-purpose use in venues such as small halls and community centres, while its direct channel outputs make the LX7II24 an ideal choice for bands who need a live desk that can double up in the studio. Housed in a 24 channel frame, LX7II24 provides 32 inputs – with no less than 13 separate bus outputs.
Housed 24 channel frame, LX7II24 provides 32 inputs – with no less than 13 separate bus outputs including mix, 4 groups, a dedicated mono bus for centre speaker clusters, side or rear fills, and six auxiliary busses.
There are also 16 direct outs. LX7II24 balanced mic inputs all use Soundcraft new GB30 padless mic preamp providing 60dB of gain and 22dBu of headroom. Each input also includes 4 band EQ with two swept mid frequency controls.
In addition, EQ In/Out switch and steep 18dB/Octave High Pass Filter, allow effective audio control in difficult venues whilst the six auxiliary sends are pre-post switchable in pairs from each channel, providing a maximum of 4 pre-fader and six post-fader.
This makes LX7II24 equally applicable for foldback – heavy performance or in situations where more effects are required.
LX7II24 groups section houses two further stereo inputs – with EQ, auxiliaries for keyboards or stereo recording devices – as well as two FX returns.
All four groups are routable to mix and include 12 segment bargraph metering for accurate monitoring and inserts.
Six auxiliary masters on rotary controls also included AFL soloing.
In the master section there is talkback provision to all pre-fade auxiliaries and the mix.
Phantom power in banks of four, and a two track return for pre-show music are also present.
A “two-track” to mix switch allows the engineer to play CD’s over the main PA whilst back-stage set-up is going on, with one press of a button.
The mix is also routable to the separate mono bus if mono PAs are required. LX7II24 is built in a rugged wedge-shaped steel chassis with an internal power supply, professional all-metal jackfield and connectors on the rear of the console. All inputs and outputs are balanced.
SOUNDCRAFT LX7ii-24CH อนาล็อก มิกเซอร์
- 24 channel frame size
- GB30 mic preamps
- Precision equalization circuitry
- True 7-bus architecture
- 2 stereo inputs
- 2 stereo returns
- Channel direct outputs
- 6 aux sends, 4 of which are pre/post switchable
- Integal universal voltage, switched-mode PSU for light weight
- Talkback facility
- 100mm faders
- +48 phantom power
- 18dB/octave high pass filter
- Group and mix inserts
- 12-segment LED metering
- 33-7/10″W x 6-1/2″H x 19-4/5″D
- Soundcraft LX7ii 24-Channel Mixer
- Soundcraft LX7II24 Console
