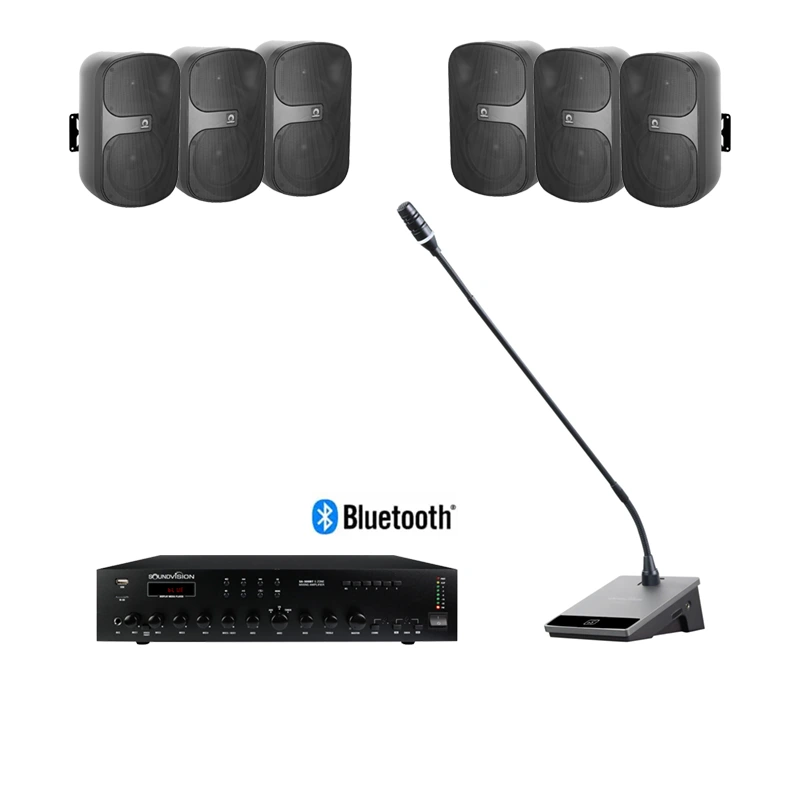

ชุดเครื่องเสียงประชาสัมพันธ์ SOUNDVISION Public Address Systems 6 มิกเซอร์แอมป ยึดแรกส์ 300 วัตต์ ไมค์พูดปราศรัย และตู้ลำโพงติดผนังขนาด 6.5 นิ้ว 3 คู่
SOUNDVISION Public Address Systems 6
ประกอบด้วย
SOUNDVISION SA-300BT
มิกเซอร์แอมป์ 300 วัตต์ 5 โซน 1 เครื่อง
SOUNDVISION GMX-48TB
ไมค์พูด/ปราศรัย 48V Phantom 1 ตัว
SOUNDVISION SVS-62W
ตู้ลำโพงติดผนัง ขนาด 6.5 นิ้ว 2 ทาง 3 คู่

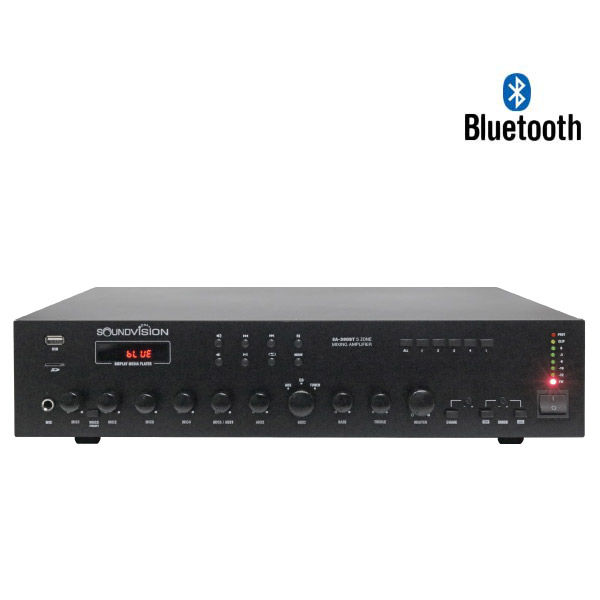

มิกเซอร์แอมป์ SOUNDVISION SA-300BT 300 วัตต์ 5 โซน มีฟังก์ชั่น BLUETOOTH และ USB/SD player มี MIC, AUX, CD, TUNER Input เป็น Mixing Amplifier จากแบรนด์ SOUNDVISION
SOUNDVISION SA-300BT 5 ZONES Mixing Amplifier 300 Watts

SA-300BT 5 ZONES Mixing Amplifier 300 Watts
The SA-300BT USB/SD/BT Mixing Amplifiers are designed to meet the requirements of medium sized professional public address installations, and designed with over all 70V – 100V , 4Ω – 8Ω loads and featured an industry leading 5 Zones 100V load solution, 300W of amplifier power are available, with provided an audio output to 5 different zones within the venue, each zone has its own separate switch on/off manually operated on front panel, and each zone has its own LED indicator, shall light green for on.
- Built-in Bluetooth receiver and USB/SD player.
- 70V – 100V , 4Ω – 8Ω output loads.
- 5 Zones 100V speaker outputs with separate switch ON/OFF & LED indicator.
- Five 48V Phantom Power sockets support unbalanced 6.35mm jack or balanced XLR jack.
- Mic 1 has priority over the inputs with 0 ~ 30dB dB attenuation.
- High-definition display for the working status of playing programme.
- Built-in Chime and Siren circuitry with push-button and volume control.
- BASS and TREBLE tone controllers. Master volume control.
- Complete protection provided for output short circuit, overload, high temperature.
- Removable rack mounting brackets supplied.
Model |
SA-300BT |
Rated Power |
300W |
Power Consumption |
450W |
Frequency Response |
4Ω – 8Ω : 20Hz ~ 20kHz (±3dB) |
70V – 100V : 50Hz ~ 15kHz (±3dB) |
|
Speaker Output Mode |
Low impedance : 4Ω – 8Ω |
Voltage line : 70V – 100V |
|
MIC Input |
5 MIC inputs supporting XLR phantom power connection |
Zone output |
5 Zones selector |
Audio Input |
MIC, AUX, CD, TUNER, SD, USB, BLUETOOTH 4.2 |
Audio Output |
Speaker Out, ZoneOut, Pre-amp Out Line RCA |
T.H.D |
<1% at 1kHz, 1/3 rated power |
S/N |
≥75dB |
Tone Control |
BASS : 100Hz (±10dB), TREBLE : 10kHz (±10dB) |
Protection |
Short circuit, overload, high temperature |
AC Fuse |
T6A |
Power Supply |
AC 220V ~ 240V : 50Hz/60Hz |
Power Cord |
(3 x 0.75mm²) x 1.5M |
Dimensions (H x W x D) |
100 x 430 x 340mm |
Weight |
12 kgs |
ไมโครโฟนสำหรับตั้งโต๊ะ SOUNDVISION GMX-48B คุณภาพเสียงอย่างดี ด้วยเทคโนโลยีระดับสูง และยังตอบสนองย่านความถี่ที่ยืดหยุ่นอีกด้วย คือ 20Hz-18KHz สามารถนำไปใช้งานได้หลากหลายสถานที่ เช่น ห้องประชุม, การประชาสัมพันธ์, สถานศึกษา เป็นต้น เพื่อให้ผู้ใช้ได้สัมผัสประสิทธิภาพสูงเป็นพิเศษ ด้วยการออกแบบที่มีความทันสมัย ใช้งานง่าย และยังให้เสียงที่ชัดเจน SOUNDVISION GMX-48B Desktop Gooseneck Microphone จากแบรนด์ชั้นนำ SOUNDVISION
SOUNDVISION GMX-48B Desktop Gooseneck Microphone
เป็นเทคโนโลยีไมโครโฟนแบบปรับตำแหน่งได้เพื่อปรับเสียงตอบสนองความถี่ให้มีความยืดหยุ่นและการทำสำเนาเสียงได้อย่างแม่นยำ สำหรับแอพพลิเคชันที่หลากหลายเช่นห้องประชุมการประชาสัมพันธ์สถาบันการศึกษา เพื่อเพิ่มความสะดวกสบายเต็มประสิทธิภาพในการใช้งาน
SOUNDVISION GMX-48B is Desktop gooseneck microphone the technology for good sound quality flexibility performance frequency response and accurate sound reproduction for a wide variety of applications,such as Meeting Rooms, Public relations, Education institutions, to provide users with a exceptional performance features contemporary design elements to enhanced convenience and consistent sound.
- Desktop gooseneck microphone microphone for good sound quality.
- High-fidelity condenser pickup microphone and frequency response for accurate sound reproduction across the audio spectrum.
- Balanced, output for increased immunity to electromagnetic hum interference.
- LED indicator Light display working status on the microphone.
- Suitable for speech, Meeting Rooms, Public relations, Education institutions and etc.
- The whole metal shell, Gooseneck microphone and base can removeable.
- Gooseneck can be full bend 315 degrees.
Model | GMX-48B |
Type | Condenser |
Frequency Response | 20Hz-18KHz |
Directivity | Ultra-Cardioid |
Output Impedance | 200Ω |
Sensitivity | -43dB ±3dB @1KHz |
Sound-Receiving Distance | 50-80cm |
Power Supply | 48V Phantom |
Gooseneck length | 480mm |
Demensions | 140*120*38mm |

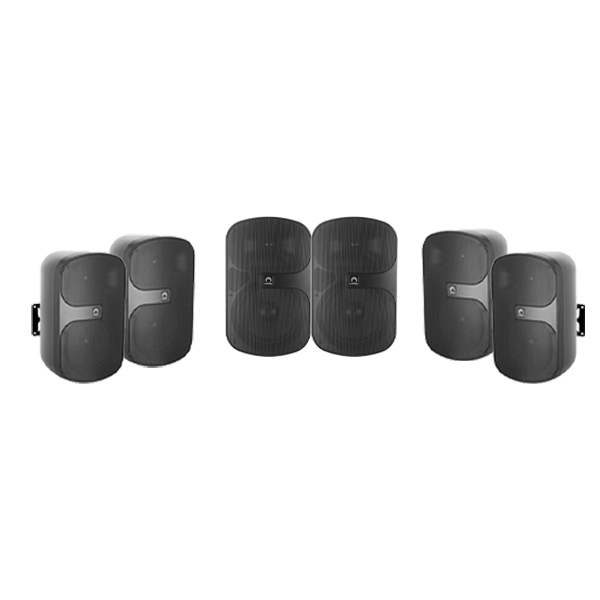

ตู้ลำโพงติดผนัง SOUNDVISION SVS-62 ขนาด 6.5 นิ้ว 2 ทาง 160 วัตต์ ลายโวลท์ 70/100V SVS-62W surface-mount speaker จากแบรนด์ SOUNDVISION
SOUNDVISION SVS-62W 6.5 inch two-way surface-mount speaker
The SVS-62W is a new Passive two-way surface-mount speaker ideal for indoor and outdoor applications requiring high-quality sound. Model SVS-62W designed for a wide range of commercial audio applications including retail shops, hotels, shopping malls, restaurants, conference – rooms, bars and health clubs. Model SVS-62W are available in black, Transformer Taps 70V: 40W, 20W, 10W, 5W | 100V: 80W,40W, 20W, 10W available for constant voltage systems.
- Passive Two-Way Full-range Loudspeaker.
- Elegant design.
- High-quality sound.
- Indoor and outdoor applications.
- All-weather versatility IP54*
- High sensitivity.
- Transformer Taps 70V, 100V
- 6.5-inch LF transducer 60Watts rms
- 1-inch HF transducer 20Watts rms
- Power Handling 160Watts
- Frequency Response 50Hz ~ 20kHz
- coverage H 90° x V 60°
All-weather versatility | IP54 * |
Color | Black |
Input Connections | Euro block |
Speaker Type | Full-range, Mid-High, Two-Way |
Transformer Taps | 70V : 40W, 20W, 10W, 5W | 100V : 80W, 40W, 20W, 10W 8Ω Bypass |
Frequency Response | 65Hz ~ 20kHz (-3dB) |
50Hz ~ 20kHz (-10dB) | |
Sensitivity 1 W/1 m | 93 dB |
Max. SPL/1m (calc) | 118 dB |
Coverage (Nominal -6 dB) H | 90° (±45°) |
Coverage (Nominal -6 dB) V | 60° (±30°) |
System Power Handling | 160W Max. / 80W continuous |
LF Transducer | 6.5-inch Waterproof Paper Cone (Glass fiber cone technology) |
HF Transducer | 1-inch (Silk dome) |
Nominal Impedance (Passive) | 8Ω |
Indoor / Outdoor | Yes |
Material | Engineering-plastics (ABS) |
Dimensions (H x W x D mm) | 196 x 300 x 330mm (without bracket) |
Weight | 10 Kg/ pair, 5 Kg / Single |
