ลำโพงติดเพดาน TANNOY CMS 403DCE ขนาด 4 นิ้ว 160 วัตต์ พร้อมเทคโนโลยี OmnimagnetTorus Ogive waveguide สำหรับการตอบสนองความถี่สูงและทิศทางที่ดีขึ้น Ceiling Loudspeaker จากยี่ห้อ TANNOY

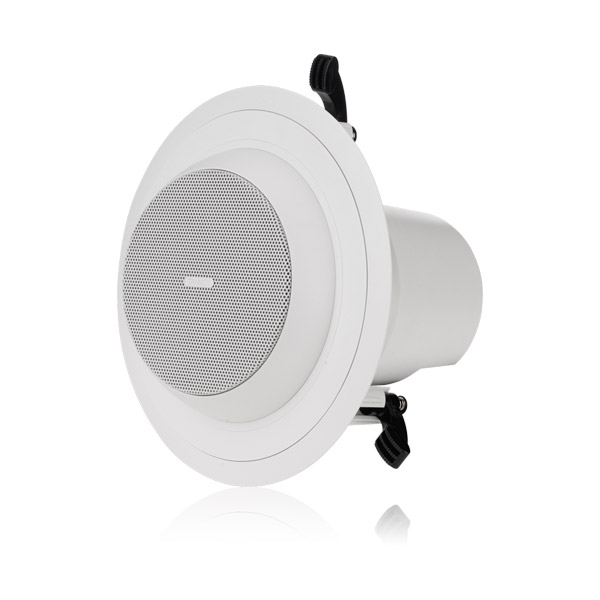

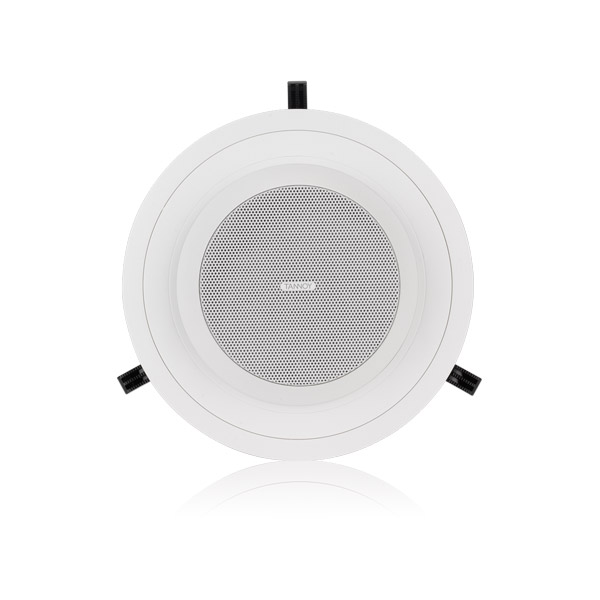

TANNOY CMS 403DCE
4″ Full Range Directional Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications (Blind Mount)
CMS 3.0 CMS 403DCE
The CMS 403DCE is a full bandwidth 160-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 4″ Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the CMS 403DCE delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

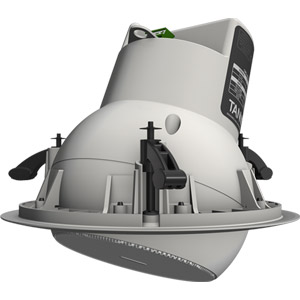

Adjustable Tilt Angle
Specifically designed with a self-aligning 3 way clamp system for fast, simple and cost effective installation, the CMS 403DCE can be angled towards the listener within the fixed ceiling-mounting ring. By discreetly pivoting the loudspeaker towards the desired area of coverage, the challenge of speaker placement in a less than ideal room is easily overcome.
Optimised for Installation

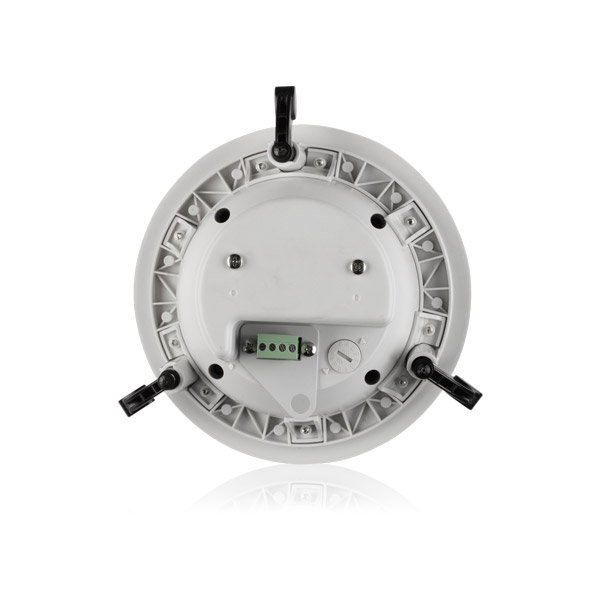

Equipped with a low-insertion loss 30 W transformer with convenient front panel tap switching, CMS 403DCE features an integral ABS back-can with removable locking screw terminal connector and loop-thru functionality. The paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An optional plaster (mud) ring is available separately.
LAB GRUPPEN Ready
The CMS 403DCE is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
คุณสมบัติ
- Full range ceiling loudspeaker for installation applications
- 40 Watts continuous, 160 Watts peak power
- Next generation 4″ Dual Concentric point source driver featuring Omnimagnet technology
- Torus Ogive waveguide for improved high frequency response and directivity
- Blind Mount enclosure supplied with integral moulded ABS back can
- Integrated single unit construction for ease of installation
- Adjustable tilt angle with 360° rotation to accommodate difficult loudspeaker placements
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 30 W line transformer with easily accessible tapping switch
- Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
- Semi matt white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection
- Removable grille for custom painting
- Self-aligning 3 way clamp mounting system
- Mounting C-ring and ceiling tile rails included
- Designed and engineered in the U.K.
