ลำโพงติดเพดาน TANNOY CMS 503ICT LP ขนาด 5 นิ้ว 200 วัตต์ สะดวกในการติดตั้ง ความทนทานสูงสำหรับการใช้งานหนักอย่างต่อเนื่อง ของแท้ ส่งฟรี Ceiling Loudspeaker จากยี่ห้อ TANNOY

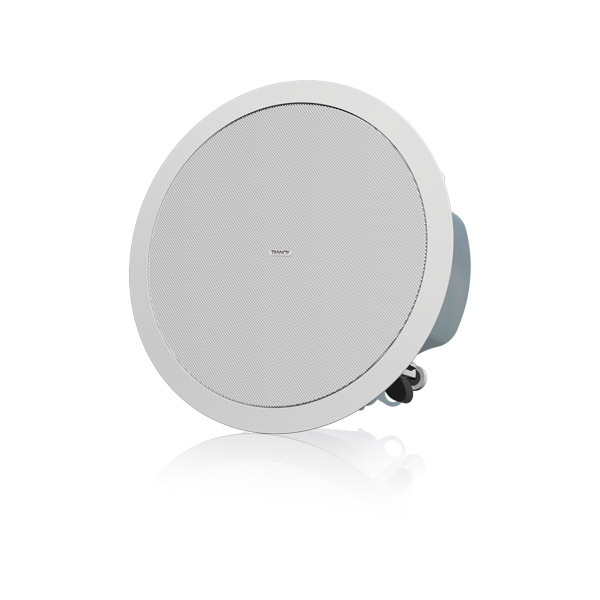

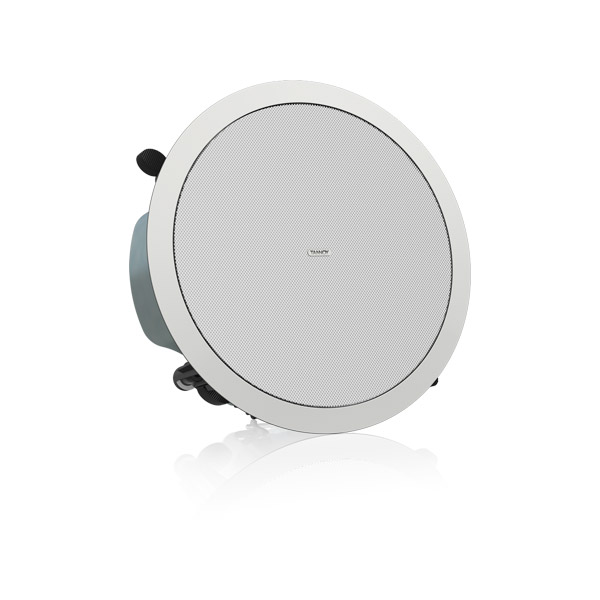

TANNOY CMS 503ICT LP 5″ Full Range Ceiling Loudspeaker with ICT Driver for Installation Applications (Low Profile)
CMS 3.0 CMS 503ICT LP
The CMS 503ICT LP is a full bandwidth 200-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5″ ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 503ICT LP delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.
Optimised for Installation
Specifically designed with a 4 way self-aligning clamp system for fast, simple and cost effective installation, CMS 503ICT LP features an ultra-shallow back can for applications where cavity space is limited, and a removable locking screw terminal connector with loop-thru functionality. A low-insertion loss 30 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.
LAB GRUPPEN Ready
The CMS 503ICT LP is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
- Full range ceiling loudspeaker for installation applications
- 50 Watts continuous, 200 Watts peak power

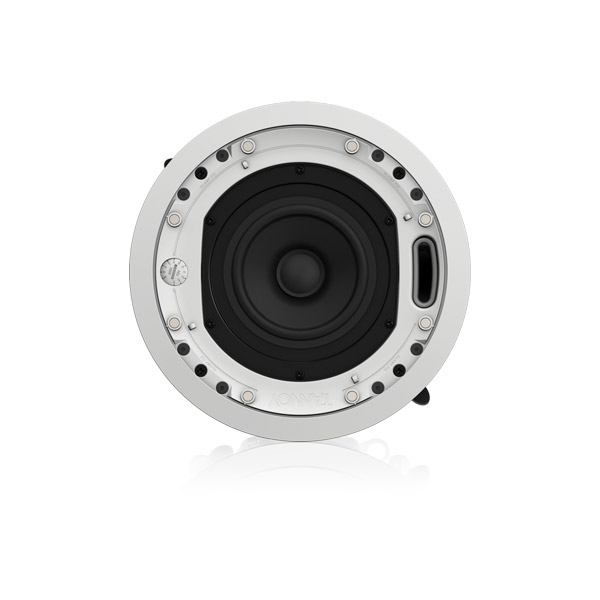

- 5″ ICT (Inductive Coupling Technology) point source driver for extended frequency range
- Ultra-shallow depth profile for applications where cavity space is restricted
- High durability design for constant heavy usage in demanding applications
- UL 1480 certified for general signalling systems
- UL 2043 certified for air-handling spaces
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 30 W line transformer with easily accessible tapping switch
- Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
- Semi matt white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection
- Removable magnetic grille for custom painting
- Optional ARCO designer grilles available for minimal architectural impact
- Self-aligning 4 way clamp mounting system
- Mounting C-ring and ceiling tile rails included
- Designed and engineered in the U.K.
| Frequency response (-3 dB) (1) | 88 Hz – 50 kHz |
| Frequency range (-10 dB) (1) | 77 Hz – 54 kHz |
| System sensitivity (1 W @ 1 m) (2) | 89 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling (3) | |
| Average | 50 W |
| Programme | 100 W |
| Peak | 200 W |
| Recommended Amplifier Power | 100 W @ 16 Ohms |
| Nominal Impedance (Lo, Z) | 16 Ohms |
| Rated maximum SPL | |
| Average | 106 dB |
| Peak | 112 dB |
| Transformer Taps (via front rotary switch) | |
| 70 V | 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / 3.75 W (1320 O) / OFF & low impedance operation |
| 100 V | 30 W (330 O) / 15 W (660 O) / 7.5 W (1320 O) / OFF & low impedance operation |
Transducers
| Low Frequency | 1 x 130 mm (5.0″) mineral loaded polypropylene |
| High Frequency | ICT |
Physical
| Enclosure | |
| Backcan | Zinc plated steel |
| Baffle | Reflex loaded UL 94V-0 rated ABS |
| Grille | Steel, with weather resistant coating |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″) Recommended clamp torque: 1.5 Nm |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22 mm |

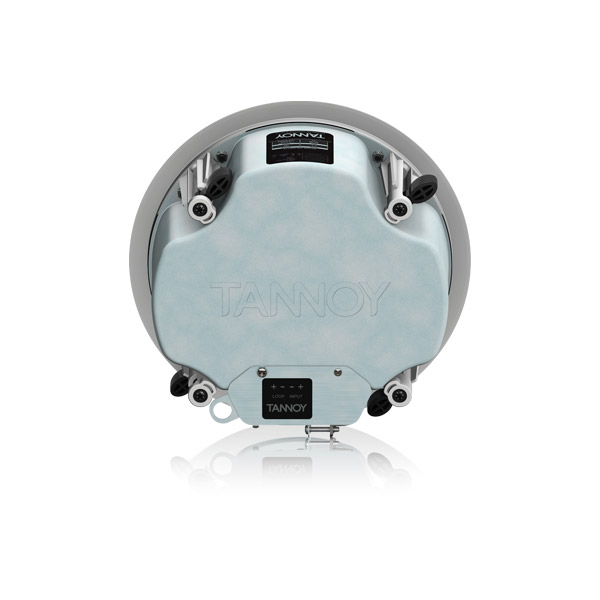

| Connectors | Removable locking connector with screw terminals with “loop through” facility |
| Compliance | UL-1480, UL-2043, CE |
| Dimensions | |
| Bezel diameter | 274.0 mm (10.79″) |
| Front of ceiling to rear of backcan | 98.6 mm (3.88″) |
| Hole cutout diameter | 253.0 mm (9.96″) |
| Net Weight (ea) | 4.4 kg (9.70 lbs) |
| Included Accessories | C-Ring, tile-bridge kit, paint mask, cut-out template, grille |
| Optional Accessories | Plaster (mud) ring, Arco grille |
| Packed Quantity | 2 |
