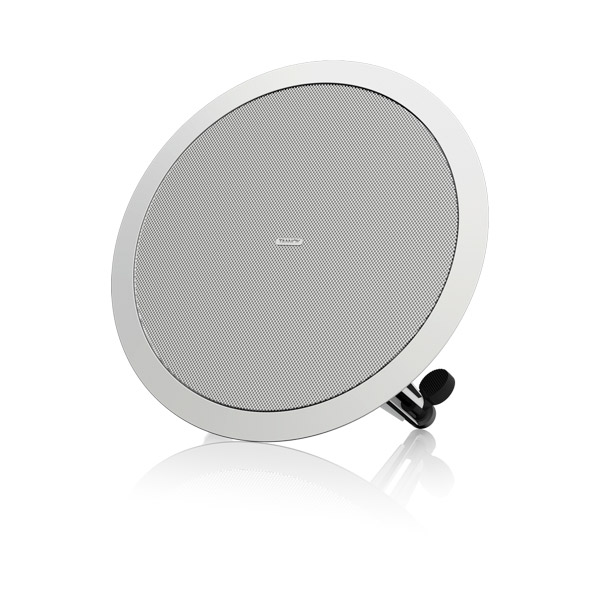

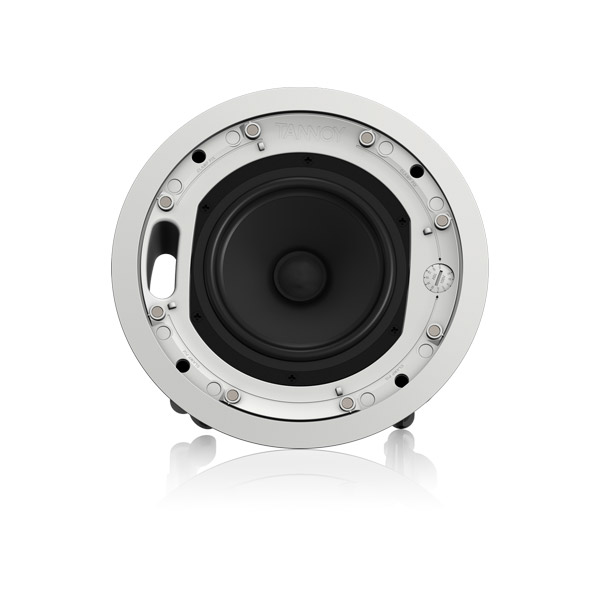

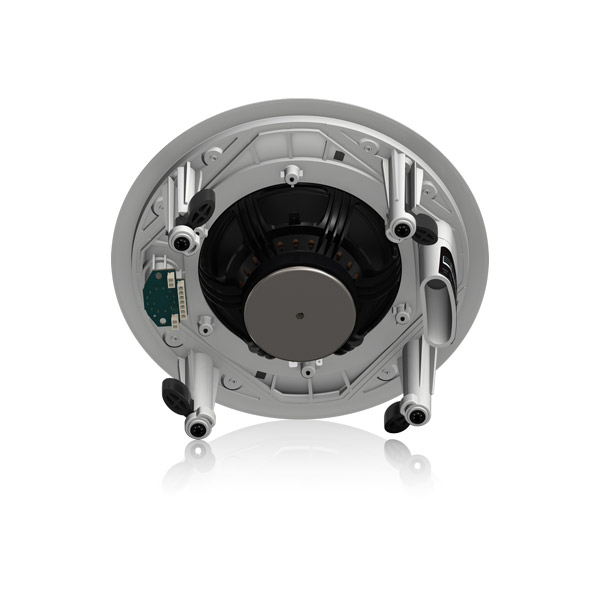

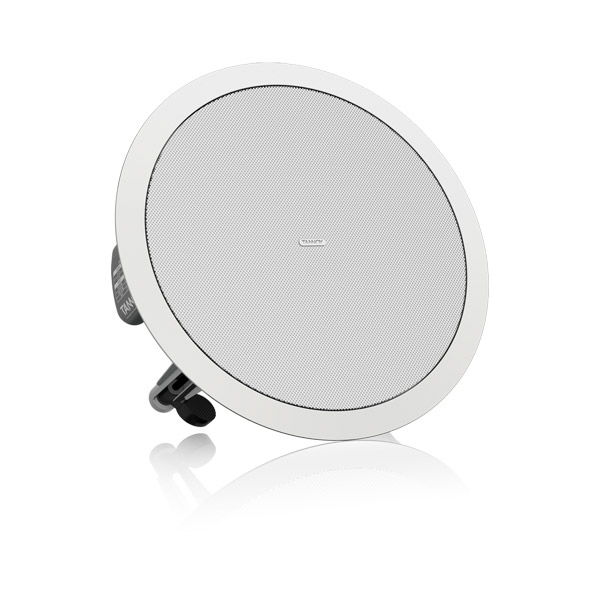

TANNOY CMS 603ICT PI ลำโพงติดเพดาน ขนาด 6 นิ้ว 240 วัตต์

฿7,169 (รวม VAT 7% แล้ว)

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพงติดเพดาน TANNOY CMS 603ICT PI ขนาด 6 นิ้ว 240 วัตต์ ICT (Inductive Coupling Technology) ความทนทานสูงสำหรับการใช้งานหนักอย่างต่อเนื่อง Ceiling Loudspeaker จากยี่ห้อ TANNOY

TANNOY CMS 603ICT PI
6″ Full Range Ceiling Loudspeaker with ICT Driver for Installation Applications (Pre-Install)

CMS 3.0 CMS 603ICT PI

The CMS 603ICT PI is a wide bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6″ ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 603ICT PI delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.

Optimised for Installation

Specifically designed with a self-aligning 4 way clamp system for fast, simple and cost effective installation, CMS 603ICT PI also features extra clamp extension to accommodate thicker ceiling panels, and a locking design that prevents over-tightening. A low-insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, back can, and plaster (mud) ring are available separately.

LAB GRUPPEN Ready

CMS 603ICT PI is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.

คุณสมบัติ

Full range ceiling loudspeaker for installation applications
60 Watts continuous, 240 Watts peak power
6″ ICT (Inductive Coupling Technology) point source driver for extended frequency range
Pre-install version supplied without back can (available separately)
High durability design for constant heavy usage in demanding applications
UL 1480 certified for general signalling systems
UL 2043 certified for air-handling spaces
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
Low insertion loss 60 W line transformer with easily accessible tapping switch
Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
Semi matt white finish fits unobtrusively in any environment
Powder coated UV resistant perforated steel mesh grille with dust protection
Removable magnetic grille for custom painting
Optional ARCO designer grilles available for minimal architectural impact
Self-aligning 4 way clamp mounting system
Mounting C-ring and ceiling tile rails included
Designed and engineered in the U.K.

ยี่ห้อ	TANNOY

สเปค

Performance

Power Handling (3)
Frequency range (-10 dB) ⁽¹⁾	46 Hz – 24 kHz
System sensitivity (1 W @ 1 m) ⁽²⁾	91 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle	90 degrees conical
Coverage Angle (1 kHz to 6 kHz)	92 degrees
Directivity Factor (Q)	7.1 averaged 1 kHz to 6 kHz
Directivity Index (DI)	7.9 averaged 1 kHz to 6 kHz
Average	60 W
Programme	120 W
Peak	240 W
Recommended Amplifier Power	120 W @ 16 Ohms
Nominal Impedance (Lo, Z)	16 Ohms
Rated maximum SPL
Average	109 dB
Peak	115 dB
Transformer Taps (via front rotary switch)
70 V	60 W (83 O) / 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / OFF & low impedance operation
100 V	60 W (165 O) / 30 W (330 O) / 15 W (660 O) / OFF & low impedance operation
Crossover	7 kHz inductively coupled

Transducers

Low Frequency	165 mm (6.50″) mineral loaded polypropylene
High Frequency	ICT aluminium dome

Physical

Enclosure
Backcan	Zinc plated steel
Baffle	Reflex loaded UL 94V-0 rated ABS
Grille	Steel, with weather resistant coating
Safety Features	Safety ring located at rear of enclosure for load bearing safety bond
CMS 603ICT LS	UL 1480 UUMW certification for Life Safety applications
Clamping Design	Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″) Recommended clamp torque: 1.5 Nm
Backcan Options	Separate backcan for pre-installation
Cable Entry Options	Cable clamp & squeeze connector for conduit up to 22 mm
Conduit Knockouts on PI Backcan	3 Sets of horizontal positions 19 / 22 / 28 mm (0.75″ / 0.87″ / 1.10″)
Connectors	Removable locking connector with screw terminals with “loop through” facility
Compliance	UL-1480, UL-2043, CE
Dimensions
Bezel diameter	274.0 mm (10.79″)
Front of ceiling surface to rear of speaker unit	100.0 mm (3.94″)
Front of accessory backcan bezel to top of safety loop	168.5 mm (6.60″)
Hole cutout diameter (all models)	253 mm (9.96″)
Net Weight (ea)
CMS 603ICT PI	2.7 kg (5.95 lbs)
PI Backcan	3.7 kg (8.1 lbs)
Included Accessories	C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional Accessories	Plaster (mud) ring, Arco grille
Packed Quantity	2
