TANNOY CMS 801 SUB BM ซับวูฟเฟอร์ติดเพดาน ขนาด 8 นิ้ว 400 วัตต์

฿21,400 (รวม VAT 7% แล้ว)

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ซับวูฟเฟอร์ติดเพดาน TANNOY CMS 801 SUB BM ขนาด 8 นิ้ว 400 วัตต์ ซับวูฟเฟอร์เพดานขนาดกะทัดรัดสำหรับการติดตั้ง ได้รับการรับรองมาตรฐาน UL 2043 Compact ceiling subwoofer จากยี่ห้อ TANNOY

TANNOY CMS 801 SUB BM
8″ Compact Ceiling Mounted Subwoofer for Installation Applications (Blind Mount)

CMS 801 SUB BM

The CMS 801 SUB BM is a compact 400- Watt subwoofer that complements the entire range of CMS ceiling monitor systems.
Thanks to a powerful 8″ long excursion LF driver, the UL certified CMS 801 SUB BM delivers dynamic low frequency extension and premium grade audio for music and speech reinforcement applications.

Optimised for Installation

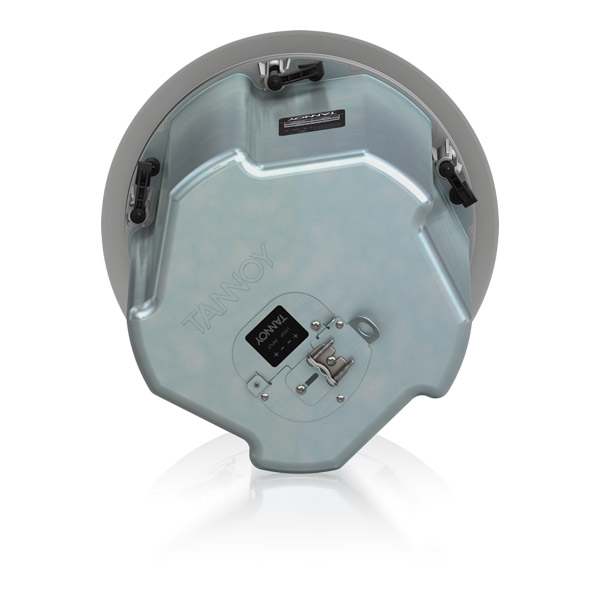

Specifically designed with a self-aligning 5 way clamp system for fast, simple and cost effective installation, CMS 801 SUB BM features an acoustically enhanced zinc plated steel back can with removable locking screw terminal connector and loop-thru functionality.
A low-insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. A plaster (mud) ring is available separately.

LAB GRUPPEN Ready

The CMS 801 SUB BM is finished in semi matt white and optimised for use with LAB GRUPPEN amplifiers.

คุณสมบัติ

Compact ceiling subwoofer for installation applications
100 Watts continuous, 400 Watts peak power

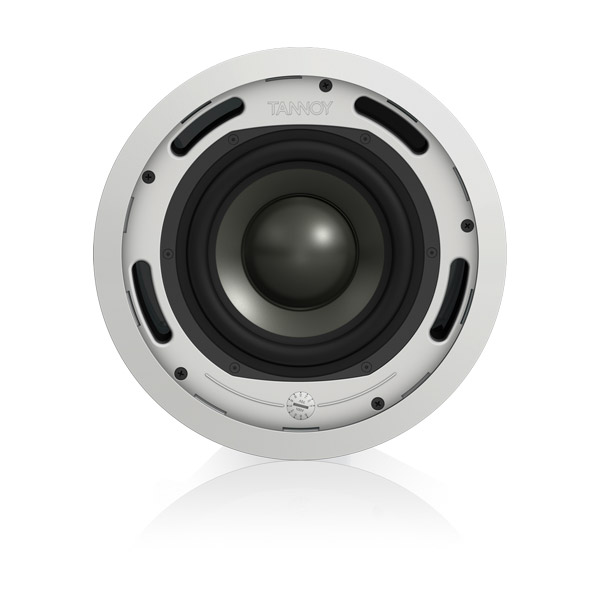

8″ long excursion driver for greater low frequency response
Blind mount version supplied with acoustically enhanced zinc plated steel back can
Integrated single unit construction for ease of installation
Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
UL 1480 certified for general signalling systems
UL 2043 certified for air-handling spaces
Low insertion loss 60 W line transformer with easily accessible tapping switch
Semi matt white finish fits unobtrusively in any environment

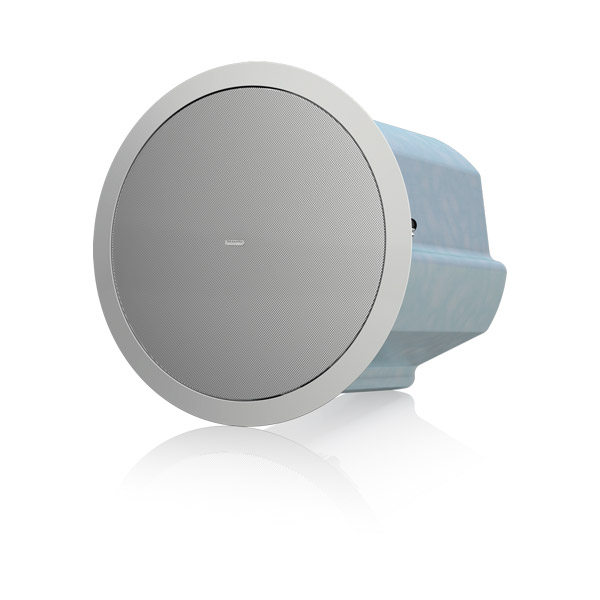

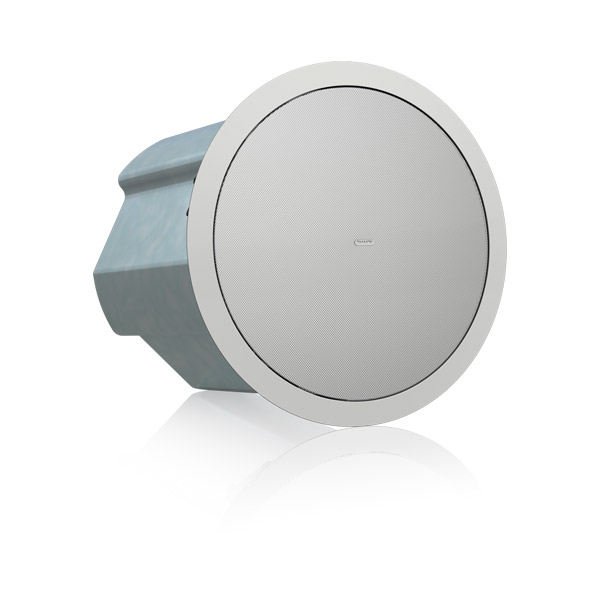

Powder coated UV resistant perforated steel mesh grille with dust protection
Removable grille for custom painting
Self-aligning 5 way clamp mounting system
Mounting C-ring and ceiling tile rails included
Designed and engineered in the U.K.

ยี่ห้อ	TANNOY

สเปค

System

Power handling ⁽³⁾
Frequency response (-3 dB) ⁽¹⁾	58 Hz – 160 Hz
Frequency range (-10 dB) ⁽¹⁾	42 Hz – 300 Hz
System sensitivity (1 W @ 1 m) ⁽²⁾	92 dB (1 W = 2.45 V for 8 Ohms)
Rated maximum SPL ⁽²⁾	112 dB (average) 118 dB (peak)
With THP60	110 dB (average)
Average	100 W
Programme	200 W
Peak	400 W
Recommended amplifier power	200 W @ 8 Ohms
Nominal impedance	8 Ohms
Transformer taps (via front rotary switch)
70 V	60 W/30 W/15 W/7.5 W/OFF & Low impedance operation
100 V	80 W/30 W/15 W/OFF & Low impedance operation
Crossover	Integral 2nd order passive, 160 Hz

Transducers

Enclosure
Low frequency / High frequency	1x 200 mm (8.00″) long throw woofer with multi fibre paper pulp cone
Back can	Zinc plated steel
Baffle	Reflex loaded UL 94V-0 rated ABS
Grille	Steel, with weather resistant coating
Safety Features	Safety ring located at rear of enclosure for load bearing safety bondClamping
Design	Security toggle clamp
Backcan Options
Blind Mount (BM)	Complete with fixed back can
Cable Entry Options	Cable clamp & squeeze connector for conduit up to 22mm
Conduit Knockouts	3 Sets of horizontal positions 19 / 22 / 28 mm (0.75 / 0.87 / 1.1″)
Connectors	Removable locking connector with screw terminals with “loop through” facility
Safety agency ratings (pending)	UL-1480, UL-2043, CE
BM hole cutout diameter	295 mm (11.61″)

Dimensions

Net Weight (ea)
Bezel diameter	325 mm (12.80″)
Front of ceiling to rear of back can (BM)	310.5 mm (12.22″)
Front of ceiling to top of safety loop (BM)	327.8 mm (12.90″)
CMS 801 BM	8.4 kg (18.48 lbs)
Included Accessories	C Ring, tile bridge, paint mask, cutout template, grille
Optional Accessories	Plaster (Mud) Ring
