TANNOY CMS 803DC Q ลำโพงติดเพดาน ขนาด 8 นิ้ว 360 วัตต์

฿23,540 (รวม VAT 7% แล้ว)

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพงติดเพดาน TANNOY CMS 803DC Q ขนาด 8 นิ้ว 360 วัตต์ พร้อมเทคโนโลยี Omnimagnet ท่อนำคลื่น Q-Centric สำหรับการควบคุมรูปแบบแนวตั้งหรือแนวนอน Full Range Ceiling Loudspeaker จากยี่ห้อ TANNOY

TANNOY CMS 803DC Q

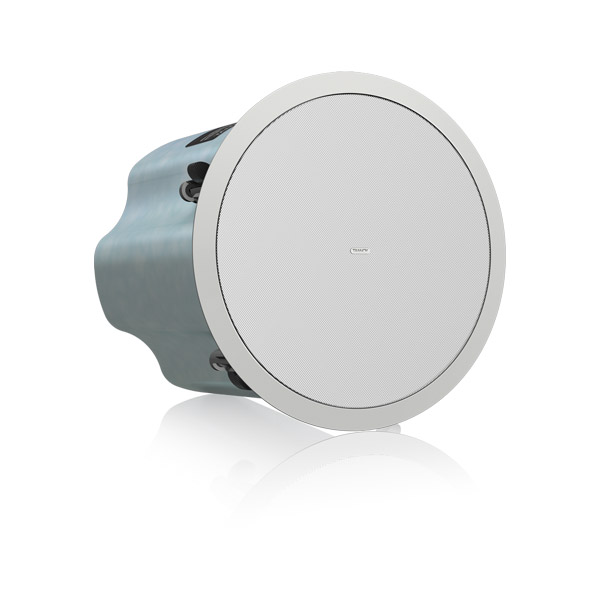

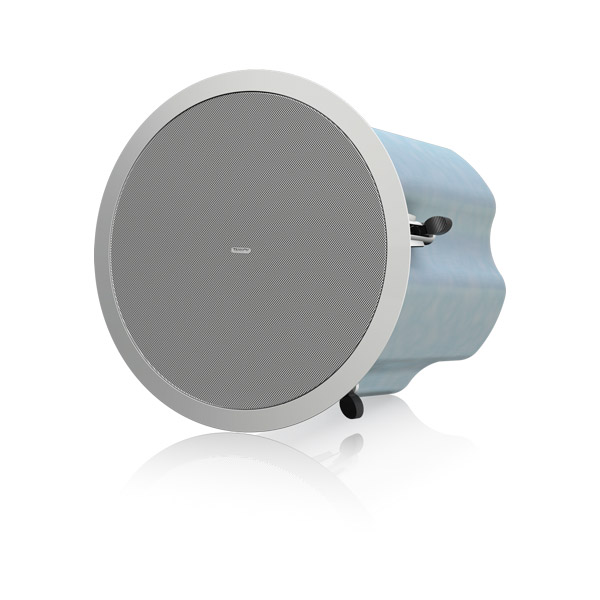

8″ Full Range Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications (Blind Mount)

CMS 3.0 CMS 803DC Q

The CMS 803DC Q is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). The “Q” variant of CMS 803DC is specifically designed for high-ceiling applications, incorporating an extended waveguide design with a tight, uniform 70-degree conical dispersion pattern. Thanks to an all-new proprietary 8″ Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 803DC Q delivers more consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

Optimised for Installation

Specifically designed with a 5 way self-aligning clamp system for fast, simple and cost effective installation, CMS 803DC Q features an acoustically enhanced zinc plated steel back can, and a removable locking screw terminal connector with loop-thru functionality. A low-insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.

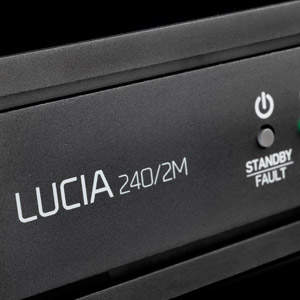

LAB GRUPPEN Ready

The CMS 803DC Q is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.

คุณสมบัติ

Full range ceiling loudspeaker for installation applications
90 Watts continuous, 360 Watts peak power
Next generation 8″ Dual Concentric driver featuring Omnimagnet technology
Q-Centric waveguide for tighter vertical or horizontal pattern control
Torus Ogive waveguide for improved high frequency response and directivity

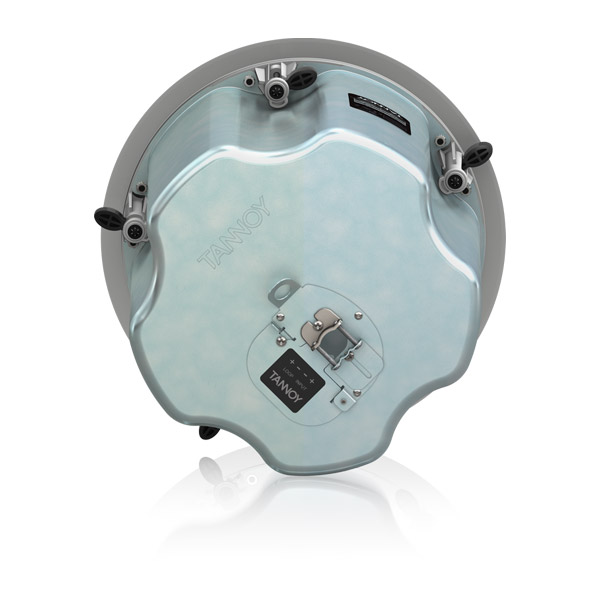

Blind Mount version supplied with acoustically enhanced zinc plated steel back can
Integrated single unit construction for ease of installation
UL 1480 certified for general signalling systems
UL 2043 certified for air-handling spaces
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
Low insertion loss 60 W line transformer with easily accessible tapping switch
Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
Semi matt white finish fits unobtrusively in any environment
Powder coated UV resistant perforated steel mesh grille with dust protection
Removable magnetic grille for custom painting
Optional ARCO designer grilles available for minimal architectural impact
Self-aligning 5 way clamp mounting system
Mounting C-ring and ceiling tile rails included
Designed and engineered in the U.K.

ยี่ห้อ	TANNOY

สเปค

Performance

Power handling (3)
Frequency response (-3 dB) ⁽¹⁾	47 Hz – 30 kHz
Frequency range (-10 dB) ⁽¹⁾	40 Hz – 35 kHz BM Backcan
Frequency range (-10 dB) ⁽¹⁾	41 Hz – 35 kHz PI Backcan
System sensitivity (1 W @ 1 m) ⁽²⁾	93 dB (1 W = 4 V for 16 Ohms)
Nominal coverage angle	60 degrees conical
Average	90 W
Programme	180 W
Peak	360 W
Recommended amplifi er power	180 W @ 16 Ohms
Nominal impedance (Lo, Z)	16 Ohms
Rated maximum SPL
Average	113 dB
Peak	119 dB
With THP60 – average	111 dB
Transformer taps (via front rotary switch)
70 V	60 W (83 O) / 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / OFF & low impedance operation
100 V	60 W (165 O) / 30 W (330 O) / 15 W (660 O) / OFF & low impedance operation

Transducers

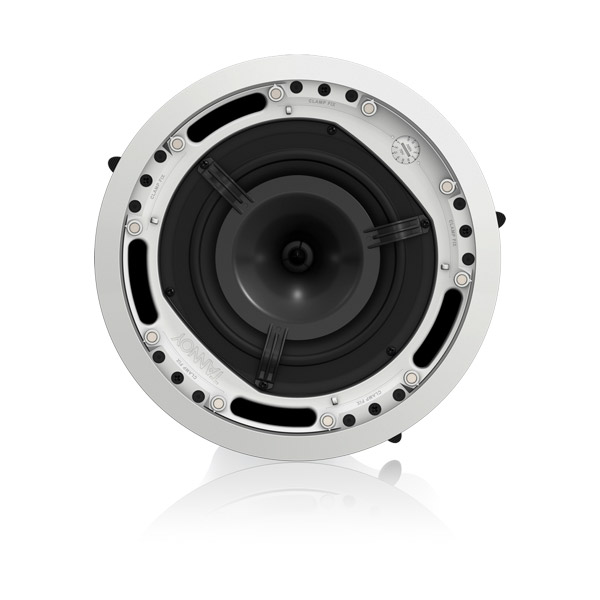

Dual concentric point source driver	1 x 200 mm (8.0″) Dual Concentric driver, using Omnimagnet technology
Low frequency	44 mm (1.75″) voice coil, treated multi fiber paper pulp cone
High frequency	25 mm (1.00″) PEI dome

Physical

Enclosure
Backcan	Zinc plated steel
Baffle	Reflex loaded UL 94V-0 rated ABS
Grille	Steel, with weather resistant coating
Safety features	Safety ring located at rear of enclosure for load bearing safety bond
Clamping design	Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″) Recommended clamp torque: 1.5 Nm
Backcan options
Cable entry options	Cable clamp & squeeze connector for conduit up to 22 mm
Conduit knockouts on PI Backcan	—
Connectors	Removable locking connector with screw terminals with “loop through” facility
Compliance	UL-1480, UL-2043, CE

Physical

Dimensions
Bezel diameter	319.0 mm (12.56″)
Front of ceiling to rear of backcan	310.5 mm (12.22″)
Front of ceiling to top of safety loop	327.7 mm (12.90″)
BM model: Front of ceiling to rear of backcan	—
BM model: Front of ceiling to top of safety loop	—
PI model: Front of ceiling surface to rear of speaker unit	—
PI model: Front of accessory backcan bezel to top of safety loop	—
Hole cutout diameter (all models)	295 mm (11.61″)
Net weight (ea)
CMS 803DC BM	—
CMS 803DC PI	—
PI Backcan	—
Included accessories	C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional accessories	Plaster (mud) ring, Arco grille
Packed quantity	2
