TANNOY CVS 4 MICRO (EN 54) ลำโพงติดเพดาน ขนาด 4 นิ้ว แบบ Coaxial 160 วัตต์

฿8,025 (รวม VAT 7% แล้ว)

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

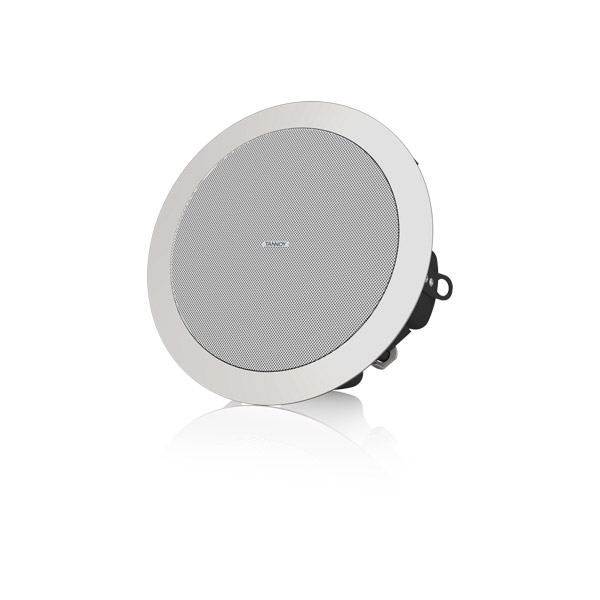

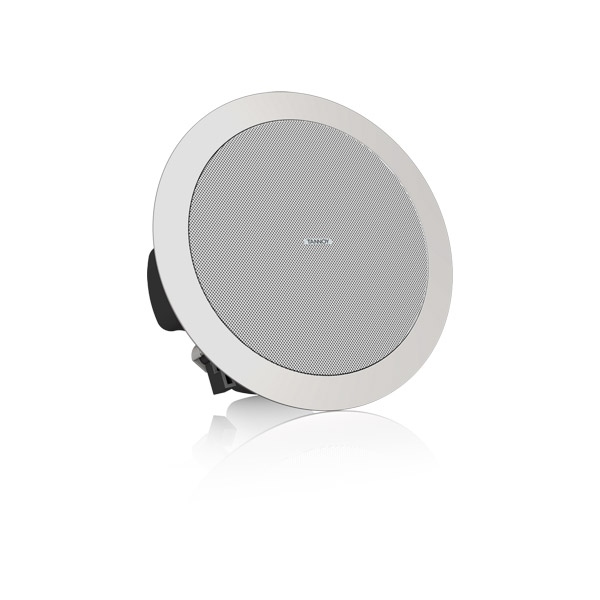

ลำโพงติดเพดาน TANNOY CVS 4 MICRO (EN 54) ขนาด 4 นิ้ว แบบ Coaxial 160 วัตต์ ได้รับการรับรองมาตรฐาน EN 54-24 สำหรับระบบตรวจจับอัคคีภัยและระบบแจ้งเหตุเพลิงไหม้ Coaxial In-Ceiling Loudspeaker จากยี่ห้อ TANNOY

TANNOY CVS 4 MICRO (EN 54)
4″ Coaxial In-Ceiling Loudspeaker with Shallow Back Can for Installation Applications (EN 54 Certified)

CVS 4 MICRO (EN 54)

The CVS 4 MICRO (EN 54) is a compact 160-Watt shallow back can ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 MICRO (EN 54) offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 4 MICRO (EN 54) the perfect choice where safety is a top priority.

Optimised for Installation

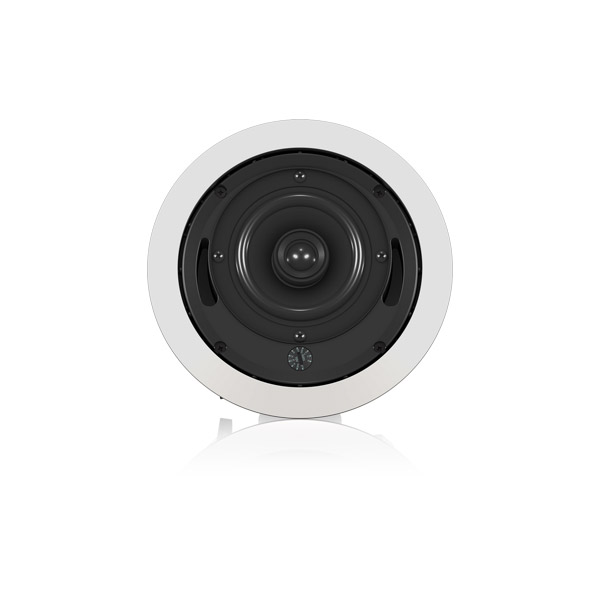

The design comprises a 100 mm (4.00″) mid bass driver with a coaxially mounted 19 mm (0.75″) high frequency section mounted in an injection moulded semi matt white front baffle made of UV/weather resistant UL 94 V-0 ABS material that fits unobtrusively into any environment. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. Thanks to the shallow back can depth of less than 4″ (98.3 mm), CVS 4 MICRO (EN 54) is perfect for applications where above-ceiling space is limited, but exceptional sonic quality and reliability are a requirement.

Comprehensive Installation Package

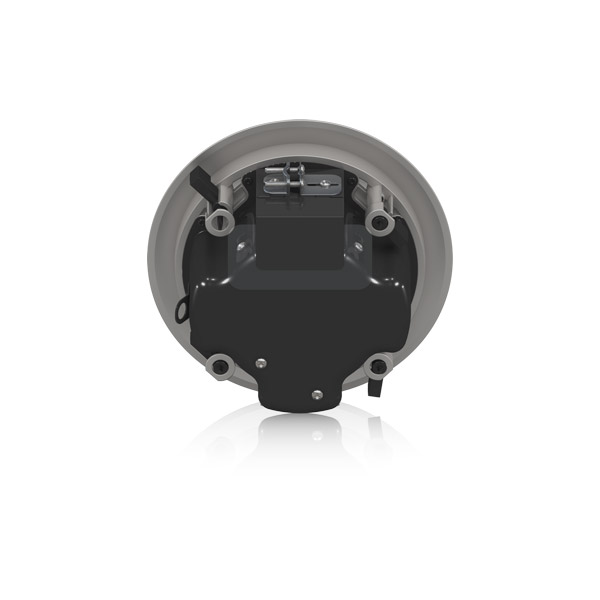

Supplied with an integral plated steel shallow back can, Phoenix* connector with steel cover, and an EN 54 compliant strain relief clamping mechanism for fire rated cable, the CVS 4 MICRO (EN 54) satisfies the vast majority of installation application requirements. Input is via a low insertion loss 15 W line transformer with multiple taps for 70 V and 100 V line systems or 6 Ohm direct input. Installation is quick and easy with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.

คุณสมบัติ

Coaxial full range low profile ceiling loudspeaker for installation applications
40 Watts continuous, 160 Watts peak power
Shallow back can for limited cavity space
4” mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
0.75″ ferrofluid cooled soft dome neodymium high frequency driver
Wide constant directivity dispersion for optimum coverage
EN 54-24 certified for fire detection and fire alarm systems
UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
Low insertion loss 15 W line transformer with easily accessible tapping switch
Semi matt white finish fits unobtrusively in any environment
Powder coated perforated steel mesh grille with dust protection
Mounting C-ring and ceiling tile rails included
Phoenix* connector with steel cover and EN 54 compliant strain relief clamping mechanism for fire rated cable
Designed and engineered in the U.K.

ยี่ห้อ	TANNOY

สเปค

Performance

Frequency Response (-3 dB) (1)	110 Hz – 19 kHz
Frequency Range (-10 dB) (1)	90 Hz – 22 kHz
Rated sensitivity (1 W, Lo Z)	87 dB
Sensitivity as per EN 54 (4 m, through transformer) (2)	74.1 dB
Directivity Factor (Q)	5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI)	7.1 averaged 1 kHz to 6 kHz
Power Handling	Average: 40 W Programme: 80 W Peak: 160 W
Recommended Amplifier Power	80 W @ 6 Ohms
Nominal Impedance (Lo, Z)	6 Ohms
Maximum SPL as per EN 54 (4m, through transformer) (2)	85.1 dB
Rated maximum SPL (1 m, Lo Z) (2)	Average: 103 dB Peak: 109 dB
Transformer Taps (via front rotary switch)	70 V: 15 W / 7.5 W / 3.75 W / 1.9 W / OFF & low impedance operation 100 V: 15 W / 7.5 W / 3.75 W / OFF & low impedance operation
Crossover Point	2.5 kHz

Coverage Angles (4)

Horizontal plane	500 Hz: 179
Vertical plane	500 Hz: 178

Distortion

10% Full Power	2nd Harmonic 250 Hz: 0.231%, 1 kHz: 0.229%, 10 kHz: 0.163% 3rd Harmonic 250 Hz: 0.112%, 1 kHz: 0.253%, 10 kHz: 0.025%
1% Full Power	2nd Harmonic 250 Hz: 0.99%, 1 kHz: 0.816%, 10 kHz: 0.444% 3rd Harmonic 250 Hz: 0.169%, 1 kHz: 0.323%, 10 kHz: 0.27%

Transducers

Low Frequency	150 mm (6.00
High Frequency	19 mm (0.75″) coaxially mounted

Physical

Enclosure	Blind Mount (BM)
Backcan	Painted Steel
Baffle	Reflex loaded UL 94 V-0 rated ABS
Grille	Steel, with weather resistant coating
Safety Features	Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design	Security toggle clamp Min / Max Clamping Range: 0.0mm (0.0″) / 20.0mm (0.79″) Recommended Clamp Torque: 1.5Nm
Connectors	Euroblock type connector with screw terminals (with input cover and cable gland supplied)
Dimensions	Bezel Diameter: 213 mm (8.39″) Front of Ceiling to Rear of Backcan: 98.3 mm (3.87″) Front of Ceiling to cable entry centre: 46.5 mm (1.83″)
Hole Cutout Diameter	180 mm (7.09″)
Net Weight (ea)	2.0 kg (4.4 lbs)
Included Accessories	C Ring Tile bridge Paint mask Cutout template Grille
Optional Accessories	Plaster (mud) ring
Packed Quantity	2
Finish
Colour	White (Ral 9003)
