ลำโพงติดเพดาน TANNOY CVS 4 MICRO ขนาด 4 นิ้ว แบบ Coaxial 160 วัตต์ สำหรับการใช้งานที่หลากหลายตั้งแต่ร้านอาหารและโรงแรมไปจนถึงธุรกิจทุกประเภท Coaxial In-Ceiling Loudspeaker จากยี่ห้อ TANNOY
TANNOY CVS 4 MICRO

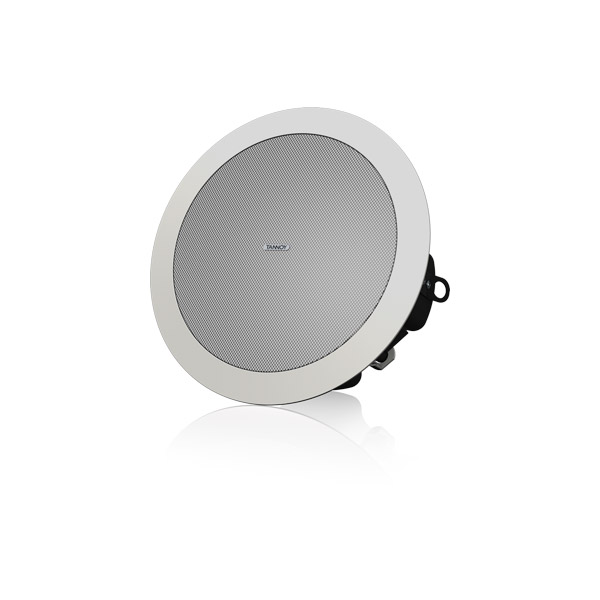

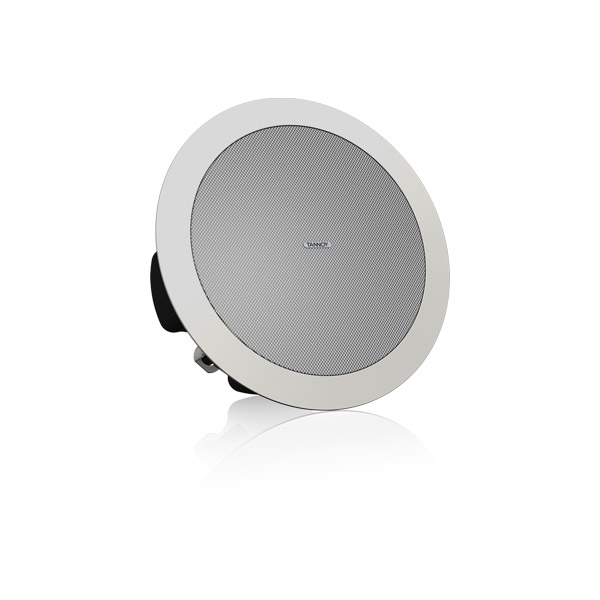

4″ Coaxial In-Ceiling Loudspeaker with Shallow Back Can for Installation Applications
CVS 4 MICRO
The CVS 4 MICRO is a compact 160-Watt shallow back can ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 MICRO offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.
Optimised for Installation

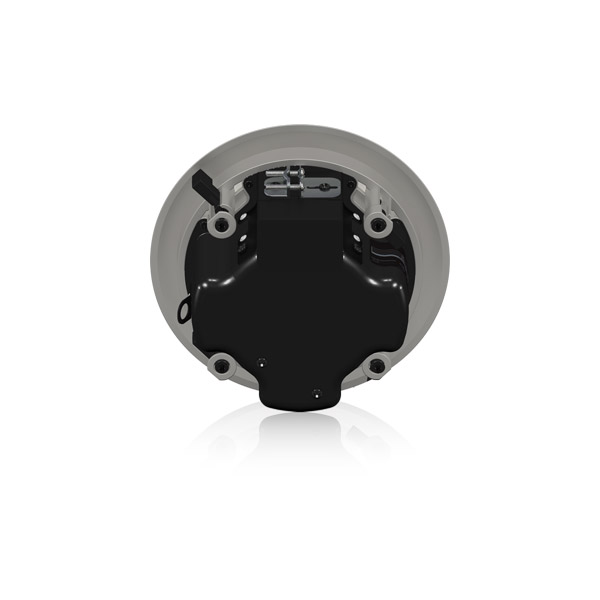

Supplied with an integral zinc-plated steel shallow back can, with recessed termination box, the CVS 4 MICRO satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and “loop through” facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.
Comprehensive Installation Package
Supplied with an integral zinc-plated steel back can, with recessed termination box, the CVS 4 satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and “loop through” facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.
คุณสมบัติ
- Coaxial full range low profile ceiling loudspeaker for installation applications
- 40 Watts continuous, 160 Watts peak power
- Shallow back can for limited cavity space

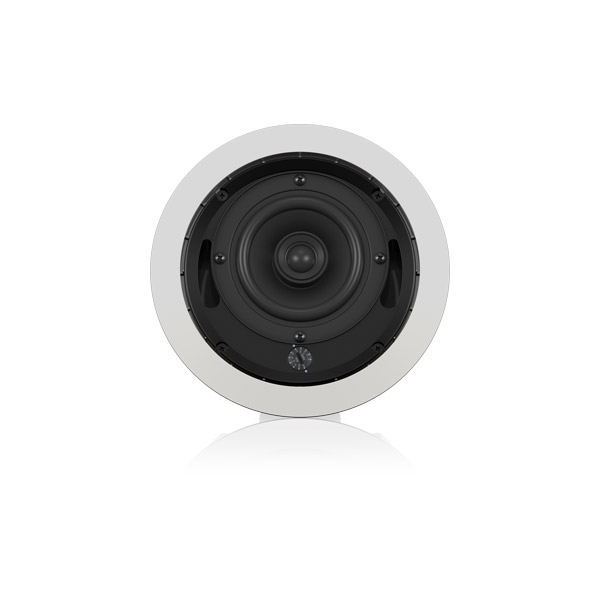

- 4” mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
- 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
- Wide constant directivity dispersion for optimum coverage
- UL 1480 certified for fire-protected signalling systems
- UL 2043 certified for air-handling spaces
- UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
- Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
- Low insertion loss 15 W line transformer with easily accessible tapping switch
- Semi matt white finish fits unobtrusively in any environment
- Powder coated perforated steel mesh grille with dust protection
- Mounting C-ring and ceiling tile rails included
- Phoenix* connector with steel cover and strain relief clamping mechanism for fire rated cable
- Designed and engineered in the U.K.
