TANNOY CVS 6 ลำโพงติดเพดาน ขนาด 6 นิ้ว แบบ Coaxial 240 วัตต์

฿10,486 (รวม VAT 7% แล้ว)

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ลำโพงติดเพดาน TANNOY CVS 6 ขนาด 6 นิ้ว แบบ Coaxial 240 วัตต์ สำหรับการใช้งานที่หลากหลายตั้งแต่ร้านอาหารและโรงแรมไปจนถึงสถานที่สักการะและธุรกิจทุกประเภท Coaxial In-Ceiling Loudspeaker จากยี่ห้อ TANNOY

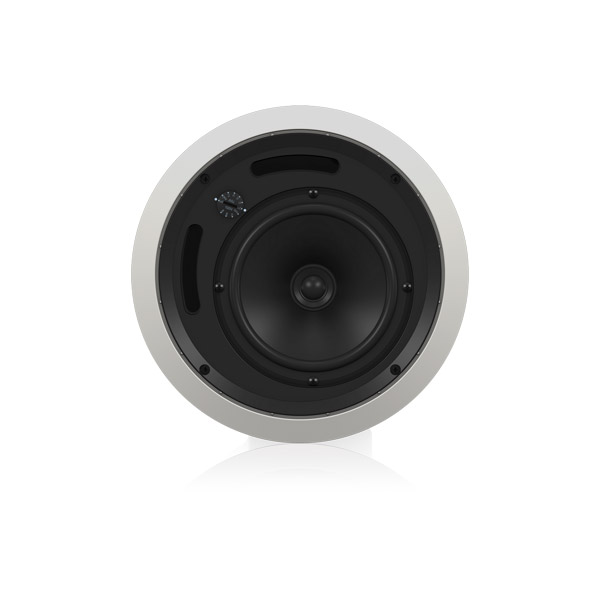

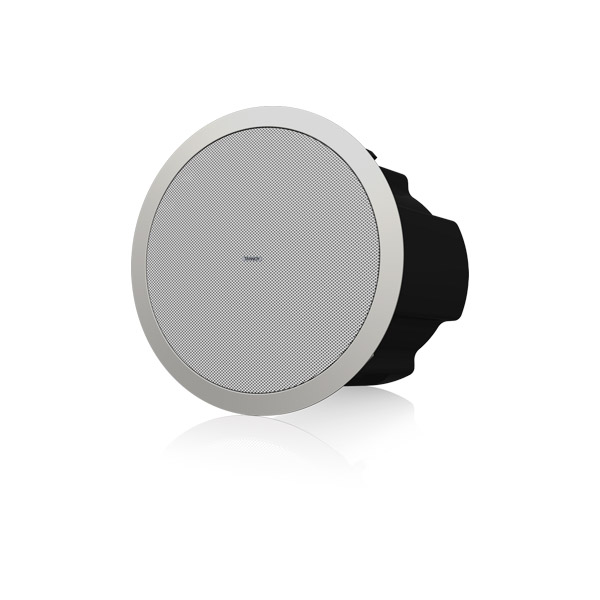

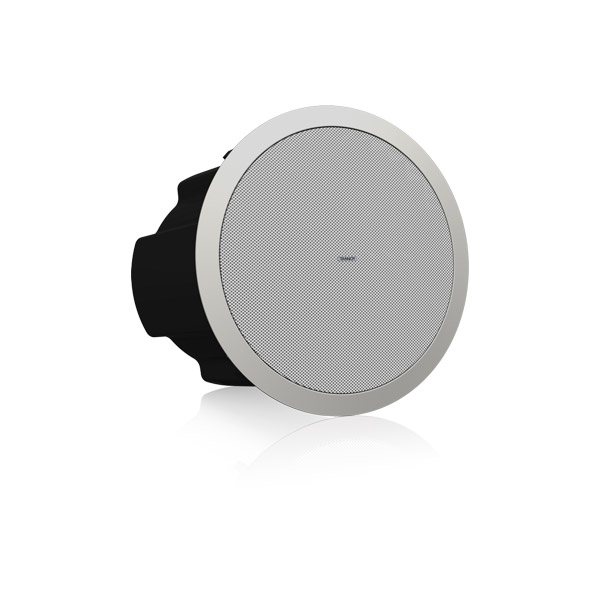

TANNOY CVS 6
6″ Coaxial In-Ceiling Loudspeaker for Installation Applications

CVS 6

The CVS 6 is a compact 240-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 6 offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.

Optimised for Installation

The design comprises a 150 mm (6.00″) mid bass driver with a coaxial 19 mm (0.75″) high frequency section mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. This compact unit is specifically designed for applications requiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.

Comprehensive Installation Package

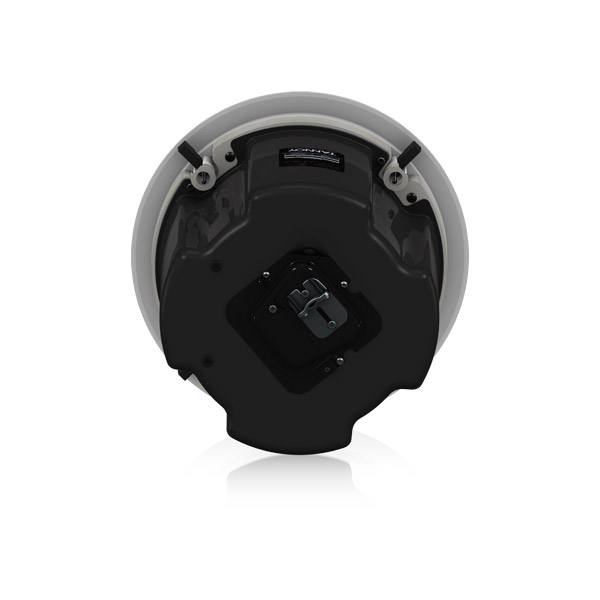

Supplied with an integral zinc-plated steel back can, with recessed termination box, the CVS 6 satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and “loop through” facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.

คุณสมบัติ

Coaxial full range ceiling loudspeaker for installation applications
60 Watts continuous, 240 Watts peak power
6” mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
0.75″ ferrofluid cooled soft dome neodymium high frequency driver
Wide constant directivity dispersion for optimum coverage
UL 1480 certified for fire-protected signalling systems
UL 2043 certified for air-handling spaces
UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
Low insertion loss 60 W line transformer with easily accessible tapping switch
Semi matt white finish fits unobtrusively in any environment
Powder coated perforated steel mesh grille with dust protection
Mounting C-ring and ceiling tile rails included
Phoenix* connector with steel cover and strain relief clamping mechanism for fire rated cableDesigned and engineered in the U.K.

ยี่ห้อ	TANNOY

สเปค

Performance

Frequency Response (-3 dB) (1)	79 Hz – 21 kHz
Frequency Range (-10 dB) (1)	60 Hz – 24 kHz
System Sensitivity (1 W @ 1 m) (2)	91 dB (1 W = 2.45 V for 6 Ohms)
Nominal Coverage Angle	90 degrees conical
Coverage Angle (1 kHz to 6 kHz)	93 degrees conical
Directivity Factor (Q)	7.7 averaged 1 kHz to 6 kHz
Directivity Index (DI)	8 averaged 1 kHz to 6 kHz
Rated Maximum SPL (2)	Average: 109 dB Peak: 115 dB
Power Handling (3)	Average: 60 W Programme: 120 W Peak: 240 W
Recommended Amplifier Power	120 W @ 6 Ohms
Nominal Impedance	6 Ohms
Transformer Taps (via front rotary switch)	70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation
Crossover	2.5 kHz

DISTORTION

10% Full Power	2nd Harmonic 250 Hz: 0.439%, 1 kHz: 0.396%, 10 kHz: 0.235% 3rd Harmonic 250 Hz: 0.140%, 1 kHz: 0.458%, 10 kHz: 0.023%
1% Full Power	2nd Harmonic 250 Hz: 1.16%, 1 kHz: 1.014%, 10 kHz: 0.944% 3rd Harmonic 250 Hz: 0.214%, 1 kHz: 0.685%, 10 kHz: 0.047%

TRANSDUCERS

Low Frequency	150 mm (6.00″) mineral loaded cone
High Frequency	19 mm (0.75″) coaxially mounted

PHYSICAL

Finish
Enclosure	Back Can: Zinc plated steel Baffle: Reflex loaded UL 94 V-0 rated ABS Grille: Steel, with weather resistant coating
Safety Features	Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design	Security toggle clamp Min / Max Clamping Range: 0.0mm (0.0″) / 20.0mm (0.79″) Recommended Clamp Torque: 1.5Nm
Cable Entry Options	Cable clamp & squeeze connector for conduit up to 22 mm
Connectors	Removable locking connector with screw terminals with “loop through” facility
Safety Agency Ratings	UL-1480, UL-2043, CE
Hole Cutout Diameter	250 mm (9.84″)
Dimensions	Bezel diameter: 279.5 mm (11.01″) Front of ceiling to rear of back can: 246.5 mm (9.70″) Front of ceiling to top of safety loop: 258.5 mm (10.18″)
Net Weight (ea)	6.5 kg (14.3 lbs)
Included Accessories	C Ring Tile bridge Paint mask Cutout template Grille
Optional Accessories	Plaster (mud) ring
Packed Quantity	2
Colour	White (Ral 9003)
