ซับซูฟเฟอร์ติดผนัง TANNOY iW 62S-WH 2×6 นิ้ว 640 วัตต์ ลำโพงติดผนังขนาดกะทัดรัดสำหรับการฟังเพลงแบบหลายโซน จากยี่ห้อ TANNOY

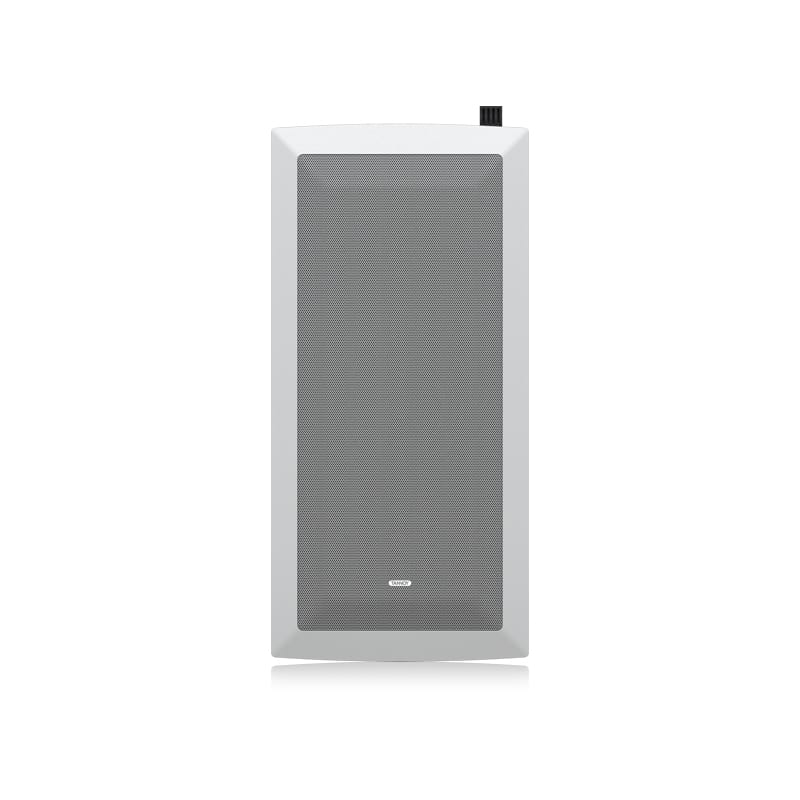

TANNOY iW 62S-WH
2 x 6″ In-Wall Subwoofer
iW 62S-WH
Designed to excel in a wide variety of sound reinforcement applications, the iW 62S-WH is a compact 640-Watt wall mount subwoofer that provides inspiring acoustic performance with exceptional low frequency punch and power. The iW 62S-WH is ideally suited for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls and bars.
Superb Performance

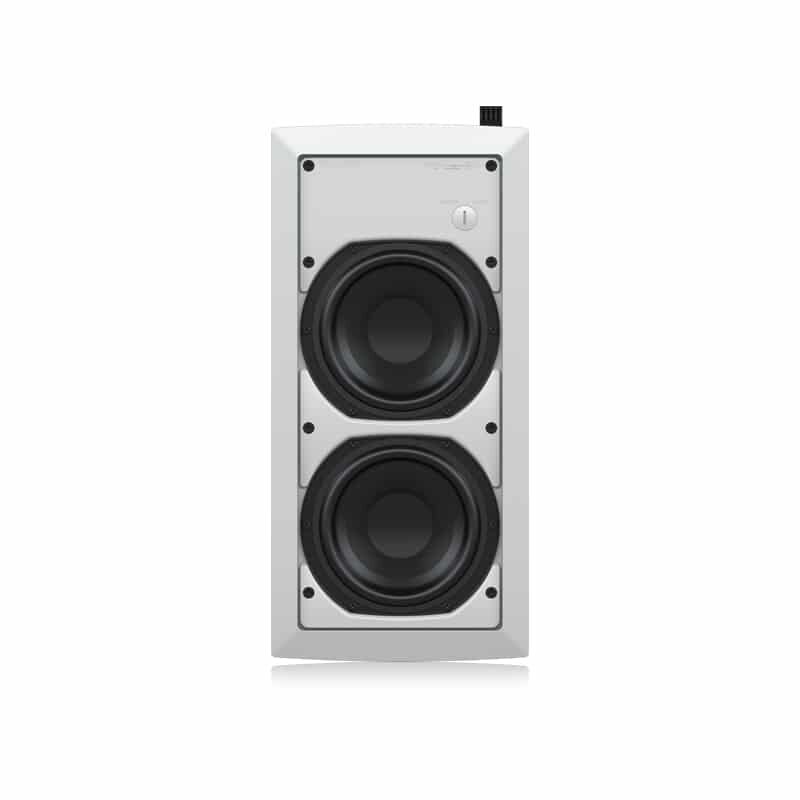

iW 62S-WH’s design comprises dual 150 mm (6.00″) bass drivers mounted in an enclosure that is robust enough for commercial applications. This configuration handles up to 640 Watts to deliver exceptional transient response with highly accurate time and phase coherence, all in a compact and highly efficient system that is well-suited to a wide range of amplifier options – including entry level amplifiers.
Attractive & Easy to Install

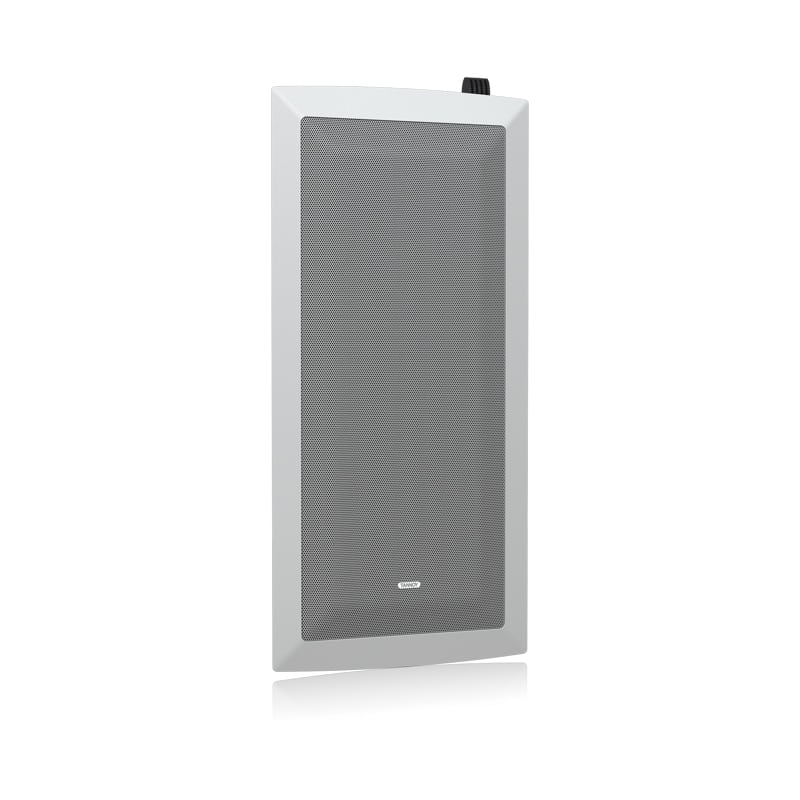

The semi matt white, weather resistant grille and enclosure can be painted to match any décor, and features an innovative self-aligning clamping system for easy installation into standard stud partition walls.
- Compact wall mount loudspeaker for multi-zone music and AV systems
- 2 x 6? bass drivers provide exceptional low frequency performance
- 160 Watts continuous, 640 Watts peak power handling delivers exceptional dynamics and realism
- Highly efficient 92 dB/Watt sensitivity
- Robust construction and performance allows use within commercial environments
- Ideal for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls and bars
- Weather resistant steel mesh grille to protect driver
- Semi matt white finish fits unobtrusively in any environment
- Both baffle and grille may be painted to match d?cor
- Innovative self-aligning clamping system for easy installation into standard stud partition wall
- Tannoy – Over 90 years of British sound heritage and innovation
- Designed and engineered in the U.K.
Performance
| System Type | In-wall subwoofer |
| Frequency Response – 6dB | 29Hz-110Hz passive (determined by controller in active mode) |
| Low Frequency Alignment – 6dB | 29Hz passive (determined by controller in active mode) |
| Recommended Amplifier Power | 100 – 400W |
| Power Handling | Average: 200W Programme: 400W Peak: 800W |
| Sensitivity 2.83 Volts @ 1 metre | Half Space: 94dB |
| Maximum SPL@ 1 metre | Average: 117dB Peak: 123dB |
| Impedance | Stereo: 8 Ohms Mono: 4 Ohms |
Drive Units
| Driver Complement | 2 x 165mm (6.50″ ) drive units with long throw multi fibre paper pulp cones |
Crossover
| Crossover Passive | 110Hz |
| Active | determined by controller |
Construction
| Finish | White – paintable |
| Connectors | Gold plated spring terminals |
| Dimensions (H x W) | Front Baffle: 473.50 x 227mm (18.68 x 8.94″) Mounting Panel Thickness: 25mm Maximum |
| Cut-out Dimensions (H x W) | 426.1 x 187.6mm (16.78 x 7.39″) |
| Rec. in-wall Mounting Volume | 30 litres (1.1 cu.ft.) |
| Mounting Depth | 95.50mm (3.76″) |
| Weight (each) | 6.5kg (16.3lbs) |
| Accessories | Pre-installation ring Back can |
