ตู้ลำโพงคอลัมน์ TANNOY QFLEX 8 ดอก LF 8×4 นิ้ว 220 วัตต์ มีแอมป์ในตัว คลาส D สำหรับการติดตั้งที่มีระยะครอบคลุมถึง 70 ม. (230 ‘) จากยี่ห้อ TANNOY
TANNOY QFLEX 8
Digitally Steerable Powered Column Array Loudspeaker
QFLEX 8
The QFLEX 8 is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres and museums. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility and complete loudspeaker system diagnostics and monitoring.
Class-Leading Control
While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 8 has a classleading ±70° steering control, plus 8 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.
A Revolution in Sound Technology
The first digitally steerable column array loudspeaker of its kind, QFLEX 8’s revolutionary BeamEngine technology steers the full-range sound away from surfaces that cause reflections. The intuitive BeamEngine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the BeamEngine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility – all in a very aesthetically-pleasing package.
Drivers, Power & DSP

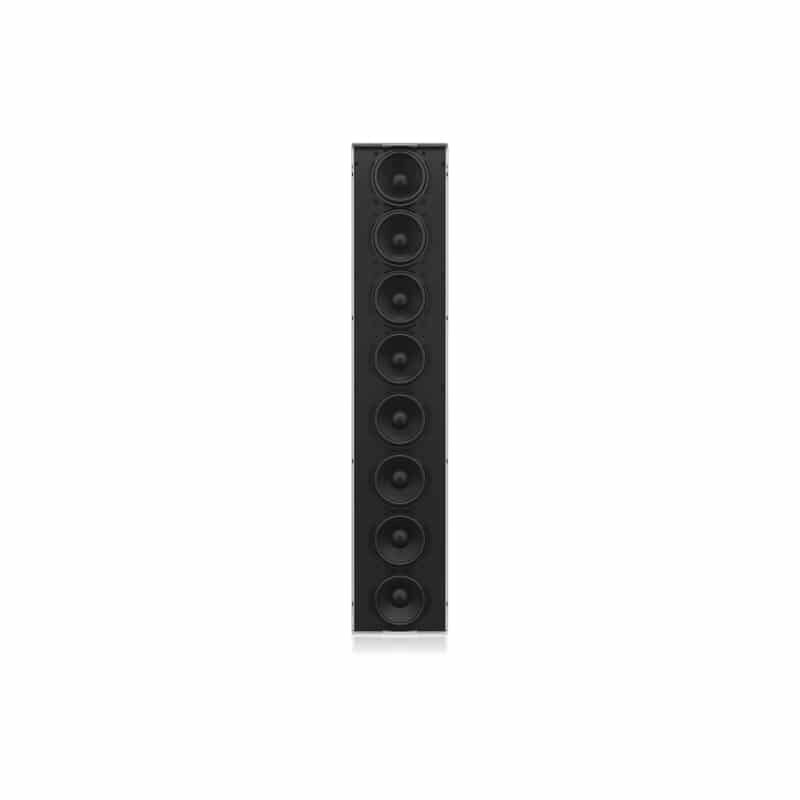

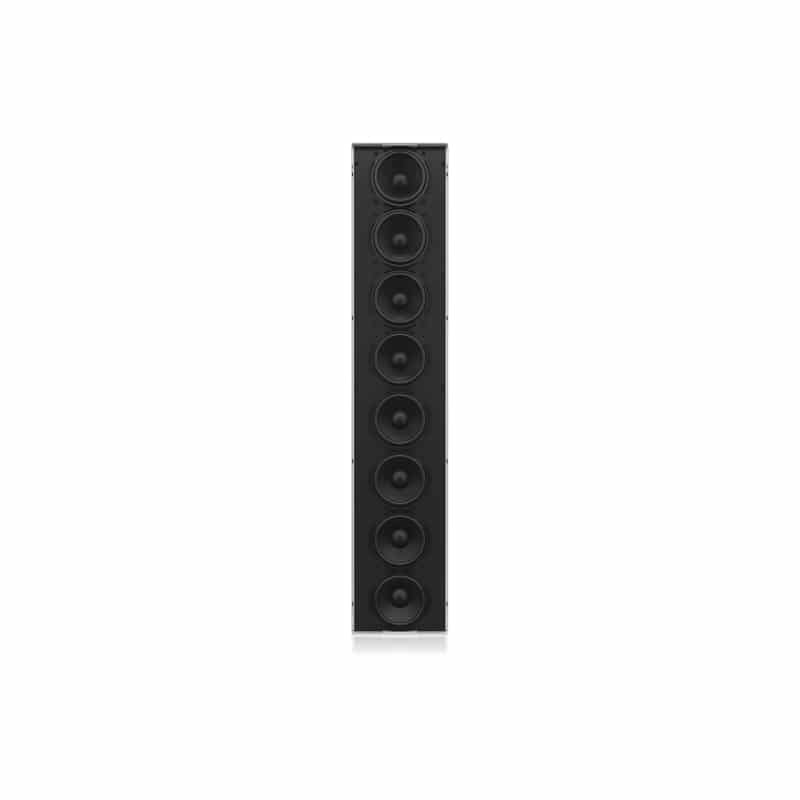

The QFLEX 8 column array loudspeaker comprises eight 4″ full-range drivers, each with its own dedication 100-Watt Class D amplifier. QFLEX 8’s drivers provide digitally-steerable coverage for distances up to 20 m (66’). A robust internal DSP engine works seamlessly with the proprietary VNET and BeamEngine software, both of which are available for free download here.
Scalability
Designed to provide premium-grade performance as a standalone self-powered column array, QFLEX 8 is also an exceptional choice for multiple-column configurations consisting of other TANNOY VNET enabled products. Implementation of the network between nodes is via high-quality rugged Neutrik Ethercon connectors, which are compatible with standard RJ45 plugs, and CAT5 cable. Each speaker has a unique address for auto-location on the network.
System Add-Ons
A wide range of accessory options are available for the VNET-enabled QFLEX 8 including: The VNET ETHERNET INTERFACE; VNET USB RS232 INTERFACE; VNET2-AES INTERFACE, VNET INTERFACE POWER SUPPLY; VNET INTERFACE RACK MOUNT; as well as the QFLEX ISOLATOR, for eliminating potential ground/hum issues.
PA/VA Compliant
Engineered for the ultimate in reliability, QFLEX 8’s high level of voice intelligibility and telemetry functionality renders it fully compliant in any life safety or mass notification environment.
Build Quality

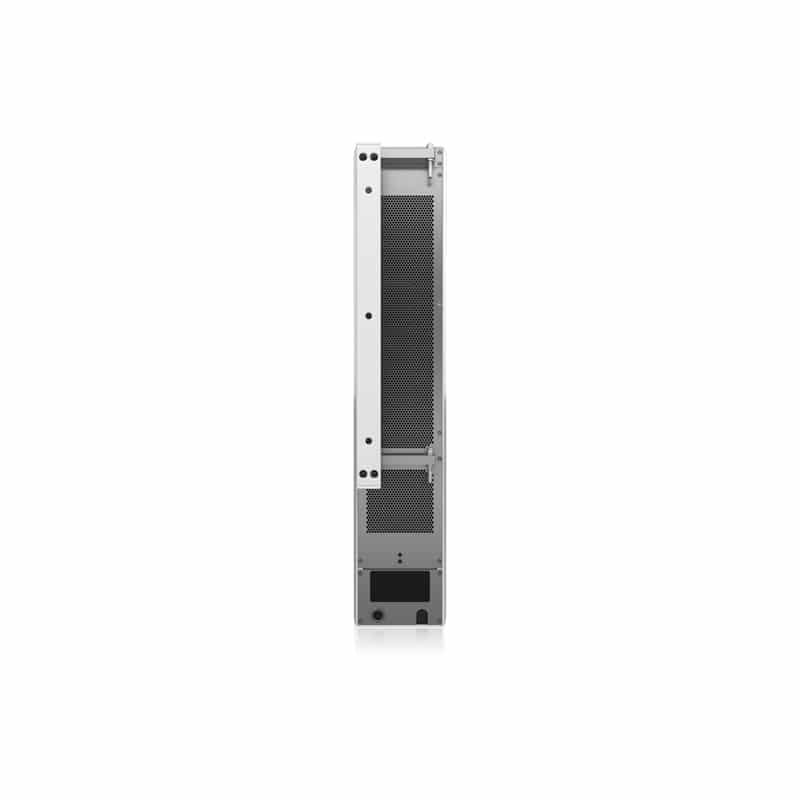

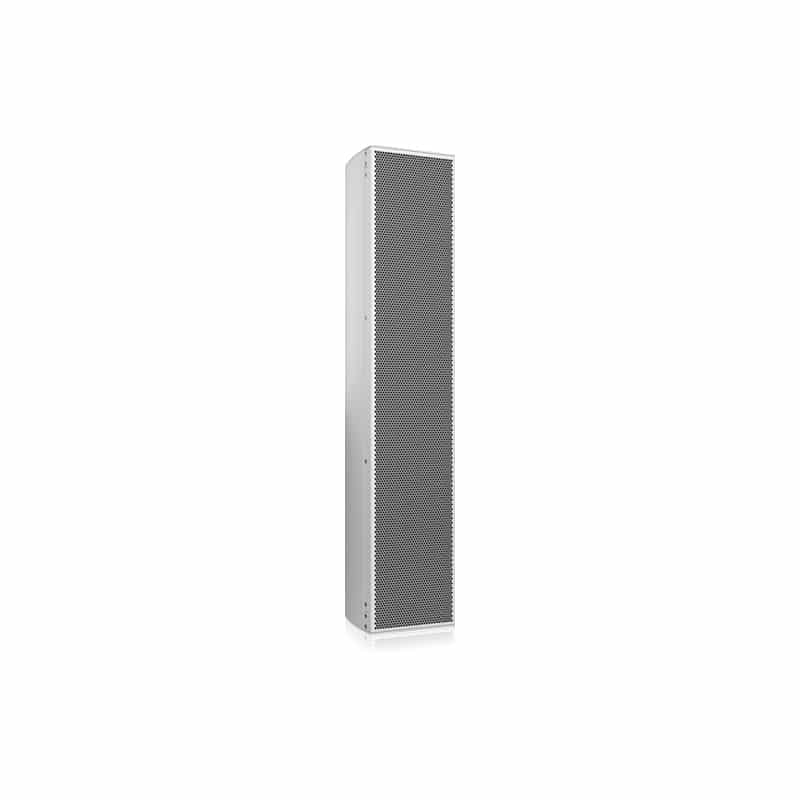

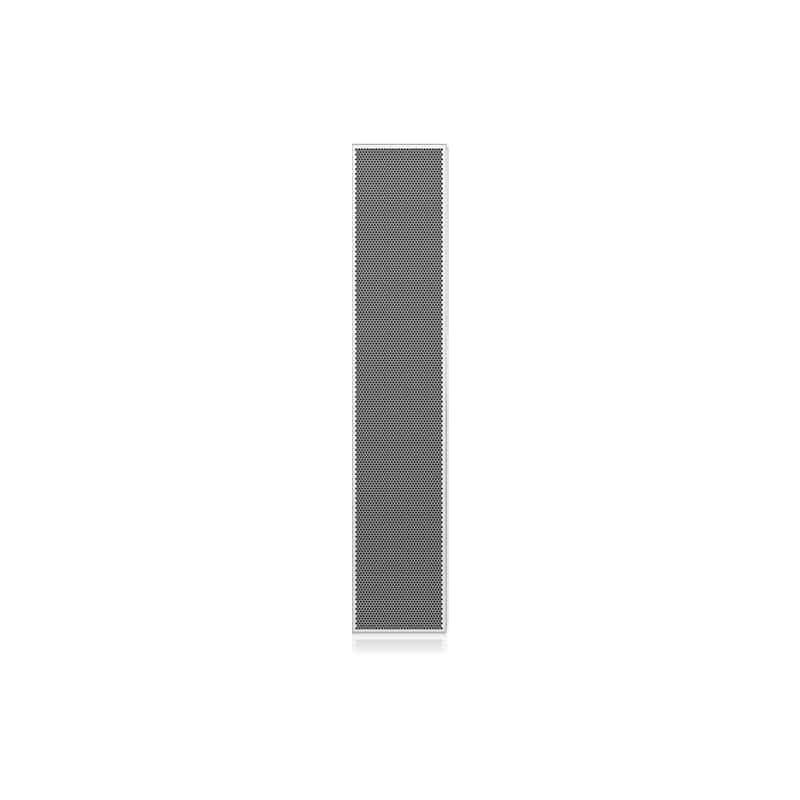

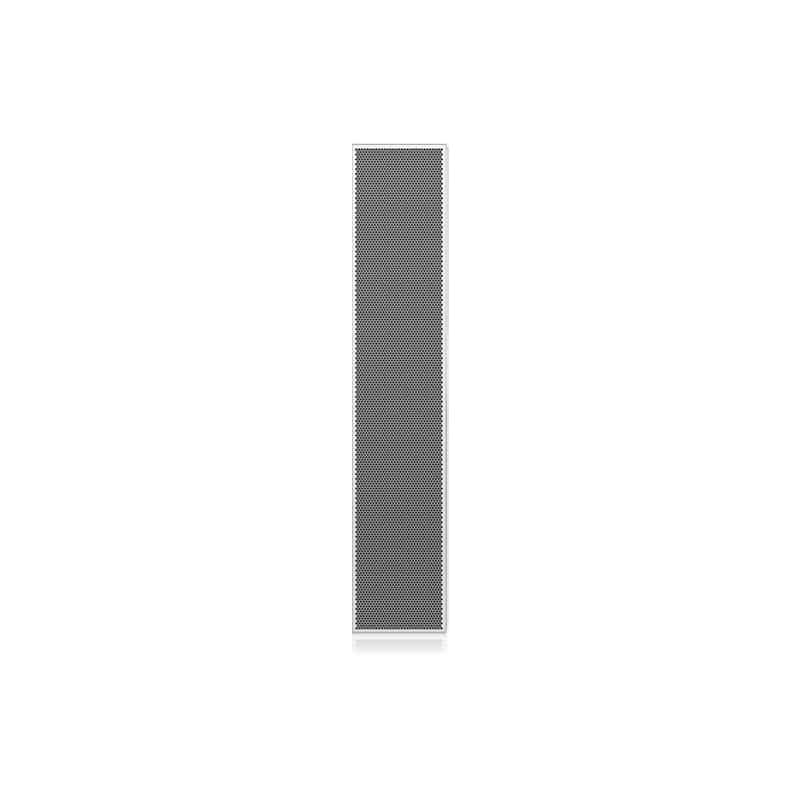

The architecturally styled aluminium enclosure is finished in a semi matt white paint with a corrosion resistant aluminium perforated grille. The QFLEX 8 includes the necessary hardware for quick and accurate installation. Mains input and output link power connectors are Neutrik powerCON.
- Digitally steerable column array speaker system provides high intelligibility speech and music reproduction
- 32 4″ low frequency drivers, 16 3″ low frequency drivers and 16 1″ high frequency drivers with individual 100 Watt Class D amplifiers
- Class leading ±70° steering control with 64 channels of integrated DSP and amplification
- Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
- High density array of transducers with proportional frequency spacing prevents aliasing artefacts
- Ideal for the most challenging acoustic environments due to extended frequency range steering control
- For installation applications with coverage distances up to 100 m (328′)
- Fully PA/VA compliant
- Fully integrated amplified speaker system connects to other Tannoy products via VNET
- Input accessory options for constant voltage systems and Audinate Dante* digital audio networks
- All components weather and dust resistant to IP54
- Architecturally styled aluminium enclosure with a semi matt white painted finish
- Corrosion resistant aluminium perforated grille
- Included custom brackets allow quick and accurate installation
- AES3 input and link connections on RJ-45 connectors with internal sample rate conversion up to 96 kHz
- Designed and engineered in the U.K.
Configuration
| 4" LF | 8 |
| No. of Amp Channels 100 W (RMS) @ 4 Ohms | 8 |
| Vertical Dispersion | Variable between 10 – 100 degrees(Asymmetric & multiple beams may alsobe generated) |
| Frequency Range | 110 Hz – 4 kHz |
| Horizontal Dispersion | 120 degrees |
| Aiming Angle Limit | ± 70 degrees |
| LF Beam Control Limit | 700 Hz |
| Maximum SPL @ 100 ft (30 m)* | 92 dB |
| Column Height | 840 mm (33″) |
| Column Width | 171.5 mm (6.7″) |
| Column Depth | 150 mm (5.9″) |
| Typical Application Distance** | 50 m (66 ft.) |
| Sample Rate | 96 kHz |
| Audio Inputs | Analogue & AES/EBU |
| Net Weight | 14.5 kg (31.9 lbs) |
Accessories
| Mains supply | 100-230 V~ 50/60 Hz |
| Max Input power/watts | 220 |
