ตู้ลำโพง TANNOY TKT112 12 นิ้ว 2 ทาง 2,000 วัตต์ Full Range Loudspeaker Designed and engineered in the U.K. ของแท้ ส่งฟรี ทั่วประเทศ จากยี่ห้อ TANNOY
TKT122

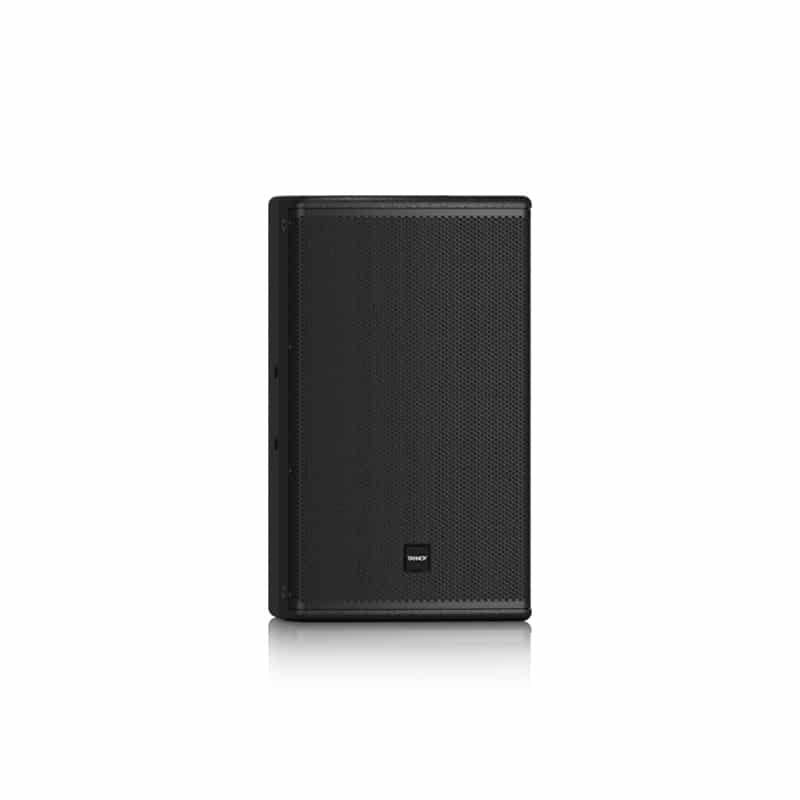

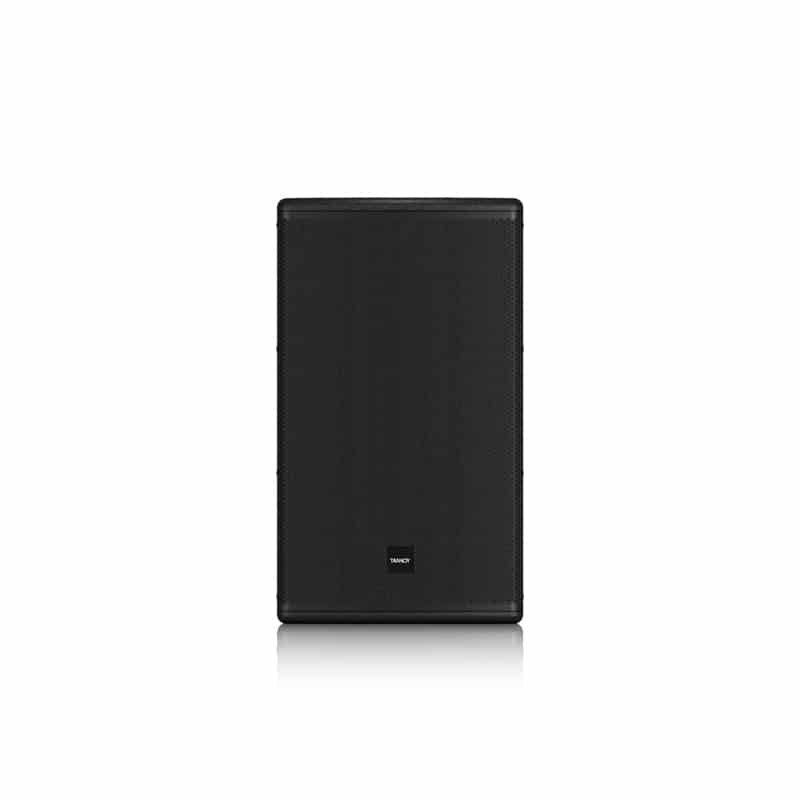

The 2 way full range TKT122 is a 2,000 Watt 12″ loudspeaker system designed specifically for KTV applications. Engineered for either permanent installation or portable operation, TKT122’s trapezoidal cabinet shape accommodates industry standard mounting brackets, while the 35 mm pole mount and integral carry handle provide additional versatility.
Precision and Detailed Clarity

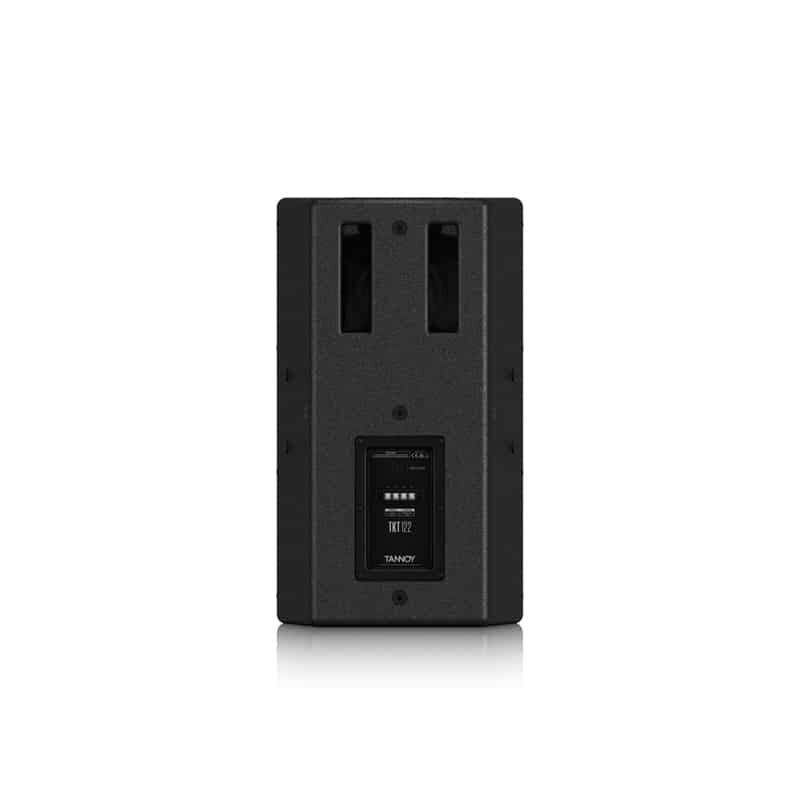

The TKT122 loudspeaker features a 12″ low frequency driver with a low mass voice coil for improved transient response, and a PEN dome 1″ ferrite motor compression driver mounted on a 70° horizontal by 70° vertical low distortion waveguide. All drivers are matched with a high-precision passive crossover network that provides maximum performance in the midrange vocal region. The rear panel connector plate carries Neutrik speakON NL4 and screw terminal barrier strip connectors for quick and convenient wiring.
Rock Solid Construction
Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (⅝”) birch plywood – and includes an architecturally styled powder coated perforated steel mesh grille backed with reticulated foam. Multiple internal rigging points are provided for suspension in any orientation, or mounting with industry standard brackets – available separately.
-
2 way full range loudspeaker for KTV applications
-
Low distortion waveguide with 70° H x 70° V dispersion
-
500 Watts continuous, 2,000 Watts peak power
-
High power 12″ low frequency driver with low mass voice coil
-
PEN dome 1″ ferrite motor compression driver
-
Precision engineered crossover for maximum performance in the midrange vocal region
-
Tweeter overload protection circuit gives uninterrupted performance
-
Multiple internal rigging points allow standard bracket mount and suspension in any orientation
-
Trapezoidal cabinet shape enables visually unobtrusive installation
-
15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
-
Architecturally styled powder coated perforated steel mesh grille with foam backing
-
Integral 35 mm pole mount and handle for portable operation
-
Neutrik speakON* NL4 and barrier strip connectors
-
Designed and engineered in the U.K.
System
| Frequency response |
80 Hz – 20 kHz ±3 dB |
| Nominal dispersion |
70° H x 70° V @ -6 dB points |
| Power handling (IEC) |
500 W continuous, 2000 W peak |
| Sensitivity |
95 dB (1 W @ 1 m) |
| Maximum SPL |
122 dB continuous, 128 dB peak |
| Impedance |
8 O |
| Components |
1 x 12″ (315 mm) LF driver |
Enclosure
| Connectors |
1 x Neutrik speakON* NL4, |
| Wiring |
Pins 1+ / 1- input, pins 2+ / 2- link |
| Dimensions (H x W x D) |
594 x 345 x 386 mm (23.4 x 13.6 x 15.2″) |
| Net weight |
22 kg (48.4 lbs) |
| Construction |
15 mm (2/3″) birch plywood |
| Finish |
Semi matt black paint |
| Grille |
Powder coated perforated steel |
| Flying hardware |
M10 x 19 |
