ตู้ลำโพงคอลัมน์ TANNOY VLS 5 5×3.5 นิ้ว 480 วัตต์ ลำโพงอาร์เรย์คอลัมน์แบบพาสซีฟสำหรับการใช้งานติดตั้งภายในและภายนอกอาคาร จากยี่ห้อ TANNOY
TANNOY VLS 5
Passive Column Array Loudspeaker
VLS 5

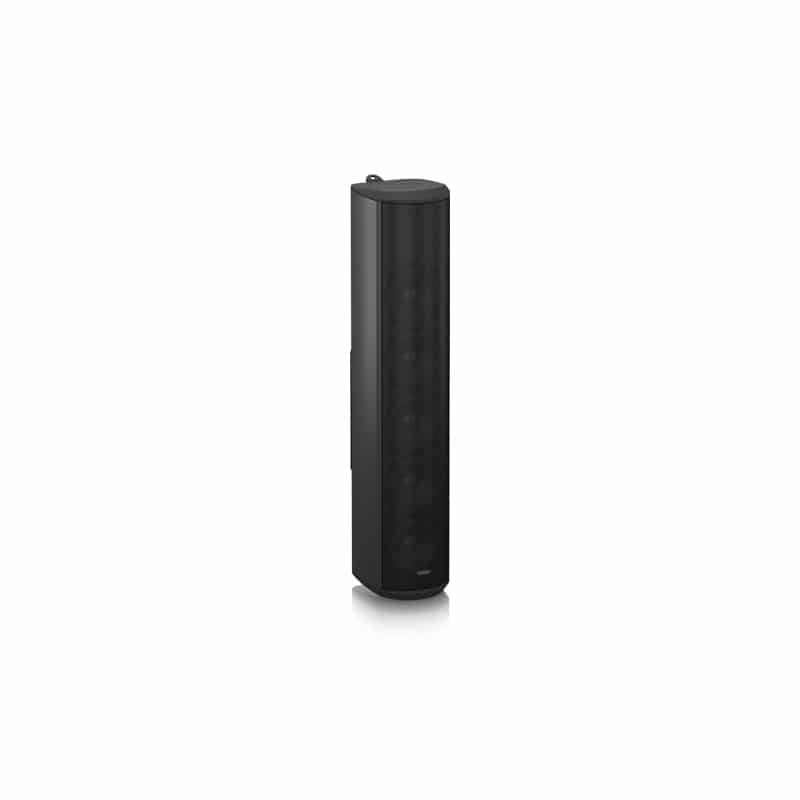

The VLS 5 is a 480-Watt passive column array loudspeaker ideally suited for challenging acoustic and architecturally sensitive spaces where speech reinforcement is required. Applications include airports, train stations, conference centers, houses of worship, stadium concourses, museums, theme parks and hotels. The vertically arrayed mid-range drivers provide high-intelligibility speech reproduction packaged in a slender and narrow profile, aesthetically refined, painted aluminum chassis that facilitates quick and easy installation, including ceiling mounting in long narrow corridors.
Superb Performance
VLS 5’s design comprises 5 vertically arrayed 3.5″ mid-range drivers designed for pristine speech reproduction from 130 Hz – 15 kHz (-10 dB), with 116 dB peak SPL (1 m, Lo-Z). The UV and weather resistant aluminium
enclosure provides 130° horizontal x 45° vertical dispersion for targeted coverage.
Low-Z or Transformer Operation
A multi-position tamper-resistant rotary switch on the rear panel allows the choice of either the low-Z, or the 70 / 100 V operating modes, with available transformer taps at 100; 50; 25, and 12.5 Watts.
Outdoor Applications
A right angled water tight cable gland is supplied with the VLS 5 for use in outdoor applications along with an input panel cover plate that can be secured to the cabinet using the four screws. Simply pass the wiring through the cable gland and make your connections on the provided barrier strip. A second strip is provided for linking additional loudspeakers in either low-Z, or 70 / 100 V distributed systems.
Attractive & Easy to Install
The stylish and durable extruded aluminium enclosure with stainless steel grille features a semi matt black paint finish that fits unobtrusively into even the most architecturally sensitive environments. Input is via a low insertion loss 100 W line transformer with multiple taps for 70 / 100 V line systems. A dedicated flying bracket, wall mount bracket, input panel cover plate, and weather resistant gland are all included for ease of installation. At only 8.2 kg (18.1 lbs), the VLS 5 is significantly lighter and easier to install than many competing products.
Connections
Utilising a pair of internally paralleled barrier strip connectors, the VLS 5 can either be connected to a low-Z amplifier, or used within a 70 / 100 V distributed system. The operation mode is easily selectable via rotary switch located on the rear of the enclosure.
Build Quality
The architecturally styled corrosion resistant extruded aluminium enclosure is finished in a semi matt black paint and is complemented by a stainless steel perforated grille. All VLS 5 mounting hardware is included and over-engineered for the ultimate in safety. Custom RAL colours are also available (additional cost and lead time).
- Passive column array loudspeaker for indoor and outdoor installation applications
- 120 Watts continuous, 480 Watts peak power
- 5 vertically arrayed 3.5″ full frequency drivers provide high intelligibility speech reproduction
- Can be used as a ceiling mounted device in long narrow corridors
- Specification and design aided by Ease Focus software
- Multiple transformer taps for 70 V and 100 V line systems or 12 Ohm direct input
- Low insertion loss 100 W line transformer with easily accessible tapping switch
- All components weather resistant to IP65 for outdoor use
- Architecturally styled aluminium enclosure with a semi matt black painted finish
- Corrosion resistant stainless steel perforated grille
- Included custom brackets allow quick and accurate installation
- Designed and engineered in the U.K.
