ตู้ลำโพงแขวน Point Source TANNOY VQ 64DF 2 ทาง 800 วัตต์ Dual Concentric 3.5 “และ 1.75” สำหรับการสร้างเสียงกลางและความถี่สูง จากยี่ห้อ TANNOY

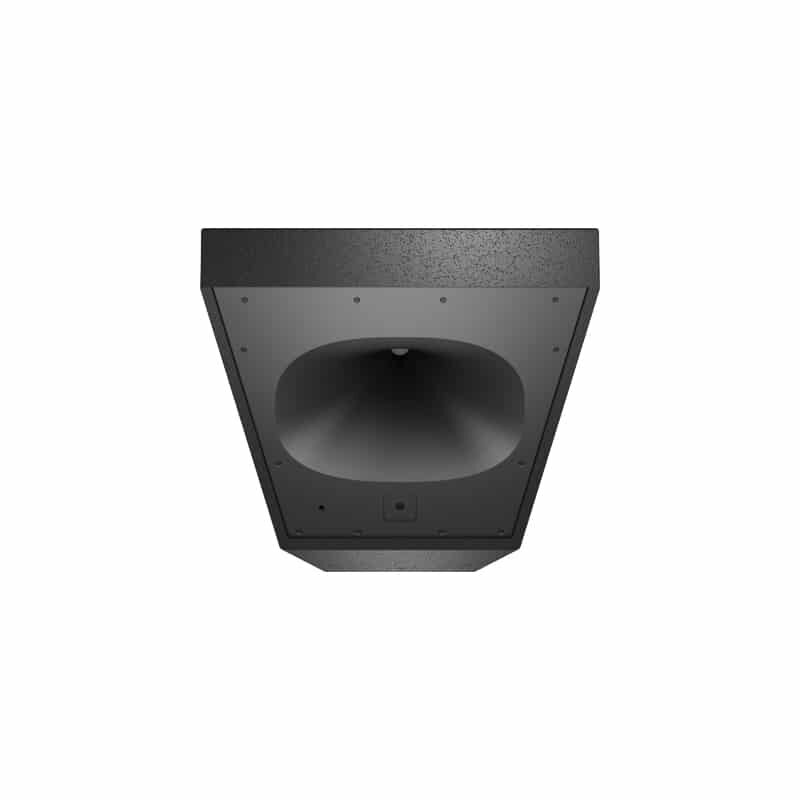

VQ 64DF
The modular design approach of the VQ 64DF allows the system designer to create seamless and very predictable arrays which are ‘tight packed’ to avoid any unsightly spaces between cabinets; or they can be used singly as part of large distributed systems. The VQ 64DF addresses this requirement for compact dimensions without compromising performance in any way.
With the addition of these VQ products it is now possible to design and install arrayed configurations comprising of multiple MH (mid-high) horns and DF (down firing) horns, along with MB (mid bass) enclosures – ideal for applications such as large sports arenas and stadia.
Comprehensive Installation Package
The VQ 64DF can be configured for use in Single-Amp or Bi-Amp mode, in conjunction with a Lake LM26/44 digital signal processor (DSP) or Lab Gruppen PLM+ or D series platforms.
Exceptional Sound and Reliability
Our unique approach in keeping what is effectively a Dual Concentric behind a single horn gives us many performance advantages. Performance of the VQ 64DF in terms of accuracy and sound quality is second to none. The VQ horn design principles provide definitive and measurable advantages over multiple-horn and co-axial designs.
The VQ 64DF incorporates a unique driver technology to radiate a coherent single point source for superior dispersion control when coupled to a PSW (Point Source Waveguide). This advanced design aligns the acoustical centres of the transducers providing a single coherent wavefront emanating from the throat. The PSW waveguide achieves an optimum balance of extremely well controlled coverage, smooth frequency response, and natural sound character.
- 3 way full range large format loudspeaker for high performance installation applications
- 1,300 Watts continuous, 5,200 Watts peak power
- Dual 12″ low frequency drivers in semi horn-loaded configuration
- Dual Concentric 3.5″ and 1.75″ diaphragm compression drivers for mid and high frequency reproduction
- Patented PSW waveguide technology provides acoustic centre alignment for coherent wavefront at horn throat
- Phase coherent point source provides exceptional transient response and dispersion control
- 60° conical dispersion allows installation of tightly packed point-source clusters
- Precise time alignment eliminates interference from multiple driver sources
- User configurable for bi-amp and tri-amp operation
- Extremely high efficiency design provides high SPL for modest power input
- Modular design for versatile and compact cluster configurations
- Internally braced birch plywood enclosure
- Finished with hard wearing semi matt black paint
- Rugged powder coated perforated steel mesh grille
- Integral M10 rigging points for ease of installation
- 8 handles ergonomically integrated into cabinet
- Optional vertical flyware with 10:1 safety ratio (available separately)
- speakON NL4 and barrier strip connectors for input and link output
Specification
System
| Frequency response (-3 dB) | 400 Hz – 23 kHz |
| Frequency range (-10 dB) | 350 Hz – 27 kHz |
| Sensitivity (1 W @ 1 m) | 114 dB |
| Dispersion (-6 dB) | 60 x 40 degrees |
| Driver components | N/A |
| MF/HF – dual concentric compression driver loaded into single PSW waveguide | |
| Crossover | Single amplified – 7 kHz (passive) Bi-amp – 7 kHz (active) |
| Directivity factor (Q) | 19.3 |
| Directivity index (DI) | 12.9 |
| Maximum SPL | 137 dB averaged, 143 peak |
| Power handling | |
| LF @ 4 Ω | N/A |
| MF @ 8 Ω | 200 W cont, 400 W peak |
| HF @ 8 Ω | 90 W cont, 180 W peak |
| Passive MF/HF @ 8 Ω | 200 W cont, 400 W peak |
| Nominal impedance | MF – 8 Ω, HF – 8 Ω |
Enclosure
| Construction | 18 mm (0.71″) birch plywood, internally braced |
| Grille | Powder coated perforated steel grille |
| Finish | Textured black or white paint |
| Connectors | Barrier strip and speakon connector |
| Fittings | 2 x recessed carrying handles, 12 x M10 flying inserts |
| Dimensions | 500 x 694 x 515 mm
(19.7 x 27.3 x 20.3″) |
| Weight | 29.5 kg (64.9 lbs) |
