There’s much more to Sonicview than meets the eye. Internally, these recording consoles have a generous 40 mono channels and two stereo channels so you can fly-in backing tracks to make a small vocal band sound huge. You can also accommodate additional physical audio inputs via the expansion slots for larger ensembles, manage sources from every part of a venue via the Dante network, and mix dozens of DAW tracks. Eight DCAs enable you to easily control groups of channels. Programmable layer keys select which custom combination of channels and output buses are controlled by the motorised faders. Start working on a mix, save your fader settings, and continue mixing later – thanks to the motor faders, you’ll pick up exactly where you left off.

Each input channel can use any or all of 11 processing functions, which can be independently set:

Each microphone input feeds a Tascam Class 1 HDIA (High Definition Instrumentation Architecture) preamp – the finest mic preamplifier we’ve ever made. Thanks to an instrumentation amplifier with extraordinary good noise characteristics in the first stage, these microphone preamps exhibit excellent equivalent input noise (EIN), signal-to-noise ratio, distortion ratio and frequency response. The ultra-definition mic preamps used in Sonicview will pick up and record the slightest nuance from rosin on a violin bow to the subtle dynamic changes of a voice or saxophone. The microphone inputs can handle signal levels up to +32 dBu, providing plenty of headroom for sudden level increases.

The combination of Class 1 HDIA preamps, 32-bit/96-kHz ADCs and our 54-bit FPGA mixing engine is impressive but Tascam didn’t stop there: We conducted extensive internal and external evaluations to tune the Sonicview consoles for optimal performance. The result is best-in-class sound that will never disappoint for mixing and recording both live or in the studio.

The built-in 32-in/32-out USB audio interface makes Sonicview a first-rate front end for recording and broadcast studios, as well as for capturing live events. Record your choice of channel direct outs, flex buses and the L/R main bus to your favourite DAW at up to 96 kHz with the same 32-bit precision used throughout the console.

You can simultaneously capture the main mix directly to the onboard stereo SD recorder – handy when the band wants to listen to their performance at the hotel or on the bus. A top-panel port also lets you record in stereo to a USB flash drive.

Tascam Sonicview offers multiple ways to record. In addition to the integrated audio interface and stereo recorder, a multi-track recording card (IF-MTR32) can be installed as an option, enabling you to capture 32 audio tracks directly to an SDXC card. The SD recorder supports punch-in/punch-out for all 32 tracks simultaneously as well as pre-record, auto-record, and markers. Best of all, it automatically saves and closes the file every 60 seconds during recording to safeguard against data loss. So you can let the recorder do it’s job worry-free while you focus on mixing.

You get a wealth of output buses with powerful signal processing and flexible routing options. In addition to the main stereo bus, Sonicview provides 22 flexible output buses, each of which is configurable as a subgroup, aux or matrix. Provide multiple stereo in-ear monitor submixes without running short of buses and send to the analogue outputs. Create matrix mixes for multiple loudspeaker zones and send them over the Dante network to record mixes, deliver sound to theatres and concert halls, and more. All output buses are equipped with 31-band graphic EQ, real-time analyzer functions, 4-band parametric EQ, compressor/ducker, delay, plus Solo, Pan, and Mute.

Each individual input channel can be looped through four additional effects, including a high-quality reverb.

Dante® audio-over-IP networks integrate thousands of concert touring systems, as well as installed systems in recording studios, radio stations, corporate boardrooms, city halls, and much more. Tascam Sonicview consoles can serve as the audio center of these systems usimg their built-in 64-in/64-out Dante interface that supports AES67 mode, SMPTE 2110 mode and Dante Domain Manager. Two Dante ports enable redundant streams. Thanks to the combination of Dante and the recording capabilities built into Sonicview, you can mix and record concerts, panel discussions, lectures, worship services and more from any network location, including a remote recording or broadcast studio.

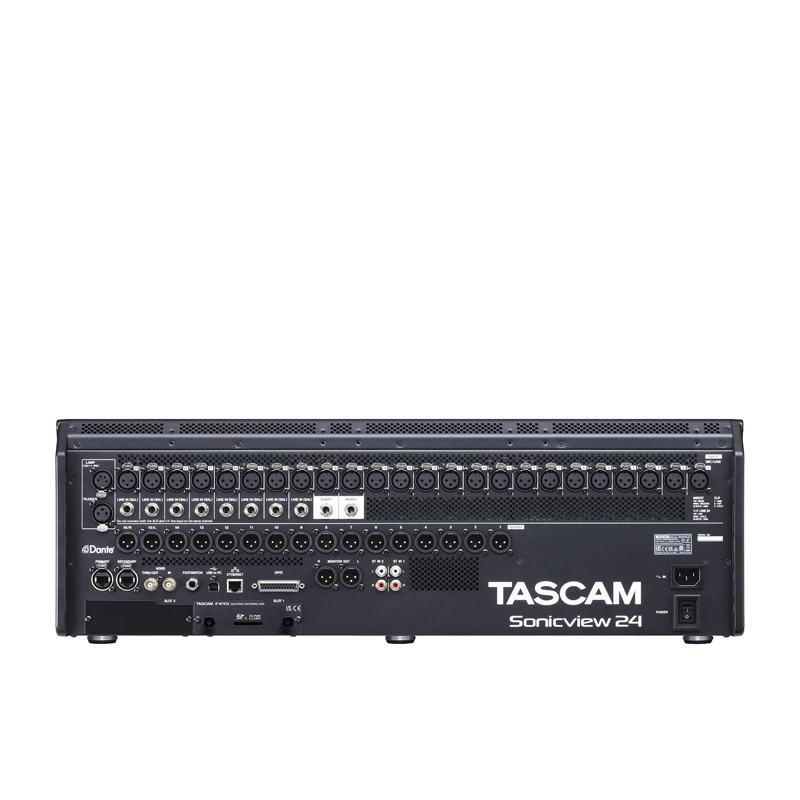

As you’d expect, Sonicview offers plenty of physical outputs, with 16 XLR line outputs, and two XLR monitor outputs. If that’s not enough, you can add more analogue, MADI, or AES/EBU I/O with an optional expansion card. To further expand the system, add one or more optional 16-in/16-out Dante-networked stage boxes (SB-16D). Microphone gain for all 16 inputs can be remotely controlled from Sonicview, and the SB-16D can be used as a floor box or rack-mounted. The combination of Dante networking and multiple stage boxes makes Sonicview a great recording and mixing solution for multi-room studios and capturing large ensembles.

Whether in the recording studio, onstage, backstage, in a control room or at the rear of a concert hall, you’re always in full control of your Tascam Sonicview mixer. Just connect a Wi-Fi router to the Ethernet port and use our free control software for Windows, macOS and iPadOS to manage your your Sonicview from virtually anywhere in the venue. Edit settings offline in advance so you’re ready to go when a session or show begins, then make adjustments from the console or from the software.

Sonicview offers intuitive, analogue-like operation while providing a variety of convenient digital functions that can be customised as needed. Eighteen user-defined function keys can be assigned to recording with the internal recorder, playback and more. Several keys are conveniently preassigned to functions such as Sends On Fader and Snapshot Recall but you can reassign them as desired. An optional footswitch allows delay times to be set by tapping.

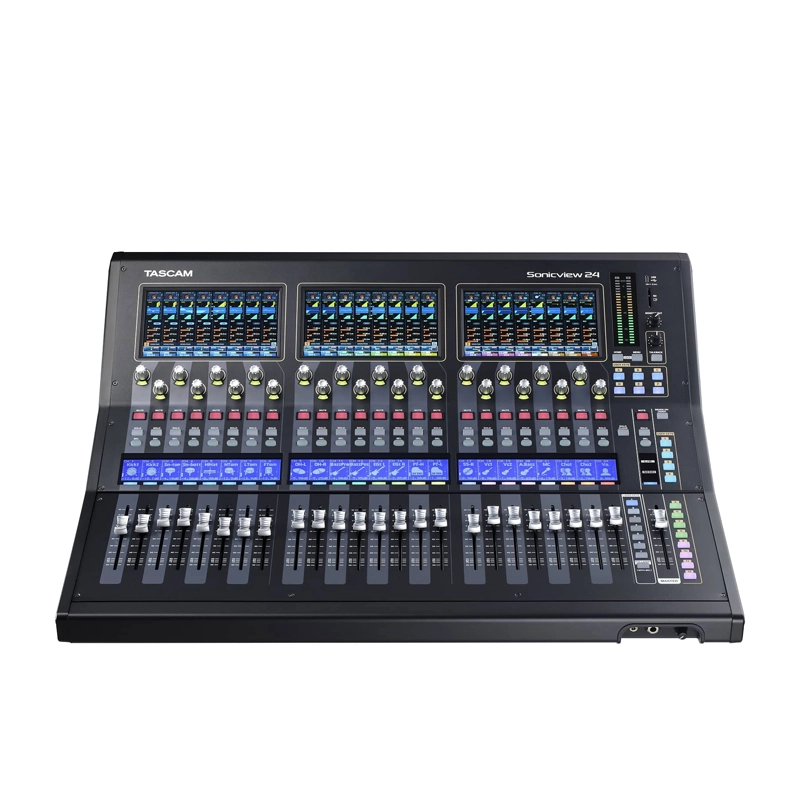

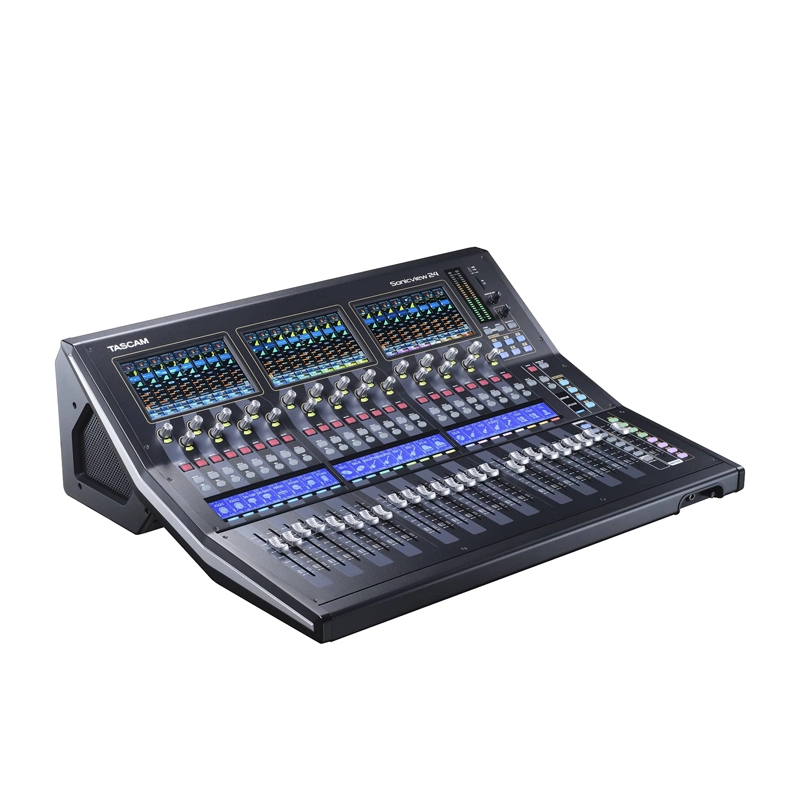

When you’re recording and mixing a show, broadcast, or crucial recording session, you can’t afford to hit the wrong button or grab the wrong control. The Sonicview control surface makes it easy to see at a glance what you’re controlling, even in a dark concert hall. Each channel strip includes a channel-name LCD with a full-colour LED. The User keys also feature full-colour LEDs, so you can group each input source and function by colour and view them easily. The Solo and Channel Select keys have distinctive shapes, and the Mute key is guarded with a cap. With these features and the customisable touch panels, you always know where you are and what you’re controlling.

In addition to audio inputs and outputs, Dante and USB ports, Sonicview is equipped with a GPIO interface (on a DB25 connector) with eight inputs and eight outputs for external control, making it suitable for events and relay applications. BNC wordclock In and Out/Thru enable digital audio synchronisation, and an Ethernet port can connect to a Wi-Fi router for wireless control. Sonicview also has two Tascam expansion slots that accept a selection of expansion cards.

Your business depends on reliable equipment that will stay in service with minimal interruptions, and we designed Sonicview consoles accordingly. Sonicview’s recording and mixing engine and real-time operating system are completely separated from the physical mixing surface, greatly improving stability. In the unlikely event that the mixing surface becomes inoperable, the sound won’t stop, and operation can be restored by restarting the control surface operating system. Meanwhile, the show will go on.
