TASCAM US-2×2 USB Audio/MIDI Interface 2-IN/2-OUT 24-Bit/192kHz US-2×2 ออดิโออินเตอร์เฟส จากแบรนด์ TASCAM

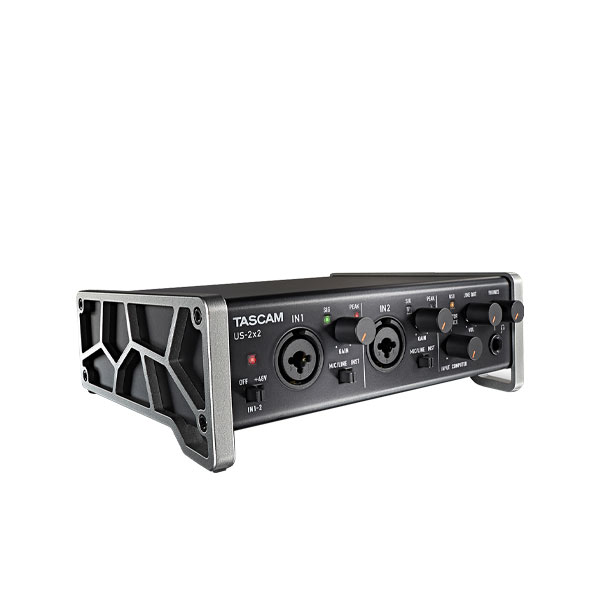

TASCAM US-2×2
USB Audio / MIDI Interface
TASCAM’s US-2×2 combines great audio quality and ergonomic design for a powerful 2-in/2-out USB 2 Audio interface.
Two of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.
คุณสมบัติ
- Two Ultra-HDDA mic preamplifiers
- Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power
- Two TRS analog balanced outputs
- 18mW/ch headphone output
- USB bus-powered for mobile recording
- Optional AC adaptor available for use with iOS devices
สเปค
| US-2×2 | |
| Sampling frequency | 44.1k/48k/88.2k/96k Hz |
| Quantization bit rate | 16/24-bit |
Analog audio inputs |
|
| MIC IN | IN 1-2 |
| Connector | XLR-3-31 (1: GND, 2: HOT, 3: COLD), BALANCED |
| Input impedance | 2.2kΩ |
Nominal input level |
|
| GAIN: MAX | –65dBu (0.0004Vrms) |
| GAIN: MIN | –8dBu (0.3090Vrms) |
| Maximum input level (GAIN: MIN ) |
+8dBu (1.9467Vrms) |
| Gain | 57dB |
| INST IN | IN 1-2 |
| Connector | 1/4″ (6.3mm) TS-jack (T: HOT, S: GND), UNBALANCED (when set to “INST” at MIC/LINE.INST switch) |
| Input impedance | 1MΩ |
Nominal input level |
|
| GAIN: MAX | –63dBV (0.0007Vrms) |
| GAIN: MIN | –6dBV (0.5015Vrms) |
| Maximum input level (GAIN: MIN ) |
+10dBV (3.162Vrms) |
| Gain | 57dB |
| LINE IN | IN 1-2 |
| Connector | 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED (when set to “MIC/LINE” at MIC/LINE.INST switch) |
| Input impedance | 10kΩ |
Nominal input level |
|
| GAIN: MAX | –53dBu (0.0017Vrms) |
| GAIN: MIN | +4dBu (1.228Vrms) |
| Maximum input level (GAIN: MIN ) |
+20dBu (7.75Vrms) |
| Gain | 57dB |

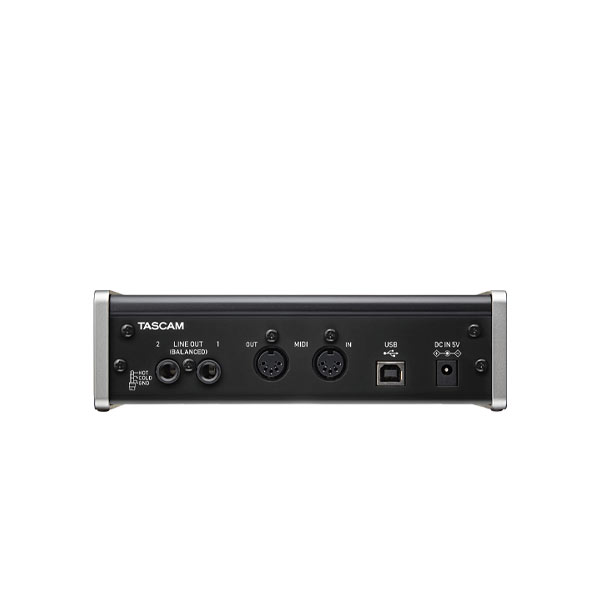

| Analog audio outputs | |
LINE OUT |
|
| Connector | 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED |
| Output impedance | 110Ω |
| Nominal output level | +4dBu (1.273Vrms) |
| Maximum output level | +20dBu (7.75Vrms) |
| PHONES | |
| Connector | 1/4″ (6.3mm) stereo phone jack |
| Maximum output level | 18mW + 18mW or more (THD+N 0.1% or less, 32Ω loaded) |
MIDI IN / OUT |
|
| Connector | DIN 5-pin |
| Format | Standard MIDI format |
| USB | |
| Connector | USB B type 4-pin |
| Format | USB2.0 HIGH SPEED |
| Power | |
| when connected PC | USB bus poweredAC Adapter (TASCAM PS-P520, sold separately) |
| when connected iOS | |
| Power consumption | 2.5W |
| Dimensions (W×H×D) | 7.32″ ×2.56″ × 6.3″ 186 × 65 × 160 mm |
| Weight | 2.43 lbs. / 1.1 kg |
| Operating temperature | 41˚F to 95˚F / 5˚C to 35˚C |
| Bundled software | Cubase LE |
| Accessories | USB cable, User’s manual, warranty card |
Audio performance
Frequency response |
|
| LINE OUT(BALANCED) | |
| 44.1k/48k Hz | 20Hz to 20kHz, +0dB/–0.1dB |
| 88.2k/96k Hz | 20Hz to 40kHz, +0dB/–0.2dB |
| PHONES | |
| 44.1k/48k Hz | 20Hz to 20kHz, +0dB/–0.5dB |
| 88.2k/96k Hz | 20Hz to 40kHz, +0dB/–2dB |
| THD | 0.003% or less |
| S/N ratio | 101dB or more |
| Crosstalk | 95dB or more |
| EIN | –127dBu or less |
Computer system requirements
Windows |
|
| Compatible computers | Windows-compatible computer with a USB 2.0 port |
| CPU type/speed | Dual core / 2GHz or faster (x86) |
| Memory | 2GB or more |
| DRIVER | ASIO2.0, WDM(MME) |
| Macintosh | |
| Compatible computers | Apple Macintosh computer with a USB 2.0 port |
| CPU type/speed | Dual core / 2GHz or faster |
| Memory | 2GB or more |
| DRIVER | Core Audio, Core MIDI |
