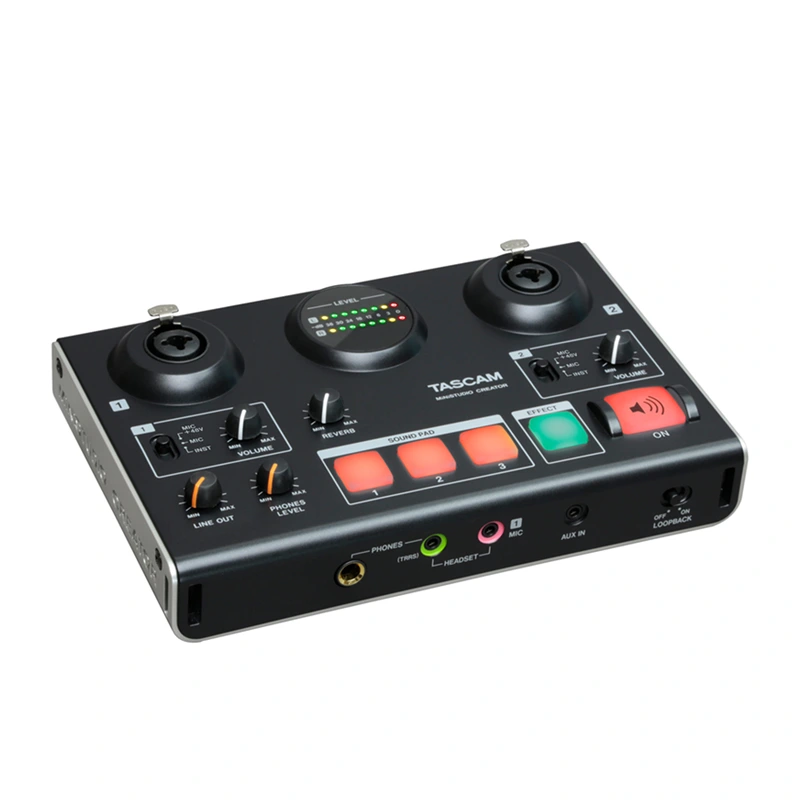

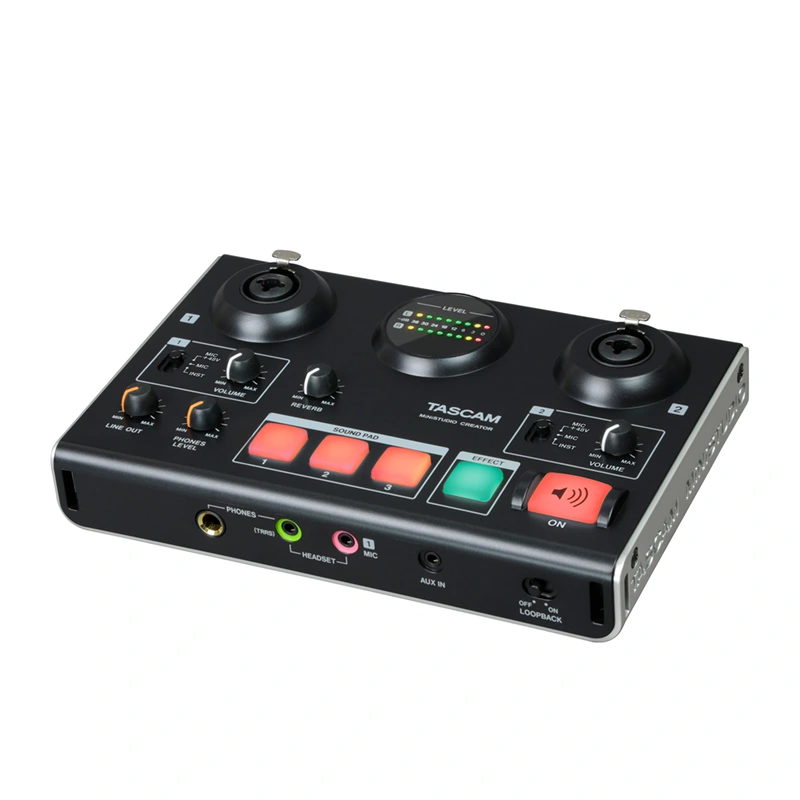

USB Audio Interface TASCAM US-42B ความละเอียด 24Bit / 96kHz เอฟเฟกต์ DSP ในตัว สำหรับการ พอดคาสต์, การเล่นเกมสด การพากย์ภาพยนตร์ และอื่นๆ จากแบรนด์ TASCAM
TASCAM MiNiSTUDIO ออกแบบมาเพื่อเพิ่มมิติใหม่ ๆ ให้กับพ็อดคาสท์และการสตรีมสดของคุณ มีปุ่มเอฟเฟกต์เสียง PON ที่กำหนดได้สามปุ่ม ใช้เอฟเฟกต์กระดิ่ง ออด และเสียงปรบมือ หรือใช้ไฟล์ .wav หรือ .mp3 ที่ปรับแต่งได้ เอกลักษณ์เฉพาะของ MiNiSTUDIO Creator คือสวิตช์ตัวเลือก Creator / Broadcast เมื่อตั้งค่าเป็นโหมด Broadcast จะให้ผู้ชมของคุณได้ยินเสียงเหมือนต้นฉบับที่สร้างจาก MiNiSTUDIO ของคุณหรือคอมพิวเตอร์คุณอย่างชัดเจน เมื่อตั้งค่าเป็น Creator โหมด MiNiSTUDIO จะแปลงเป็น USB Audio Interface 2 ชาแนล ที่เหมาะสำหรับซอฟต์แวร์ DAW หรือ ซอฟต์แวร์ตัดต่อวิดีโอ และ การผสมผสานระหว่างไมค์ปรี HDDA คู่, Hi-z, EQ, compression และ reverb ทำให้การผลิตสื่อของคุณมีความหลากหลาย
คุณสมบัติ
Audio interface functions
- Support for high-resolution recording formats up to 96kHz/24-bit
- Supports Windows (ASIO/WDM) and Mac (Core Audio)
- USB2.0 computer connection
- Compliant with USB Audio 2.0
- Can be connected to an iOS device using an Apple Lightning-USB camera adapter (sold separately).
- USB bus power operation supported when connected to a computer
- Operation confirmed with major DAW software, including Sonar, ProTools, Cubase, Live, Studio One and GarageBand
- Operation confirmed with major streaming and calling software
Hardware functions
- 2 HDDA (High Definition Discrete Architecture) mic preamps
- XLR/TRS input jacks support balanced input and can provide +48V phantom power
- Mini jack mic input (MIC 1)
- Supports connection of 4-pole earphone with mic
- Stereo mini jack AUX input that can be used to connect portable audio players and game devices
- Built-in omnidirectional condenser mic
- Support for low-level dynamic mic input signals
- DSP effects (equalizer, compressor and reverb)
- Input monitoring function allows input sounds to always be heard before they are transmitted

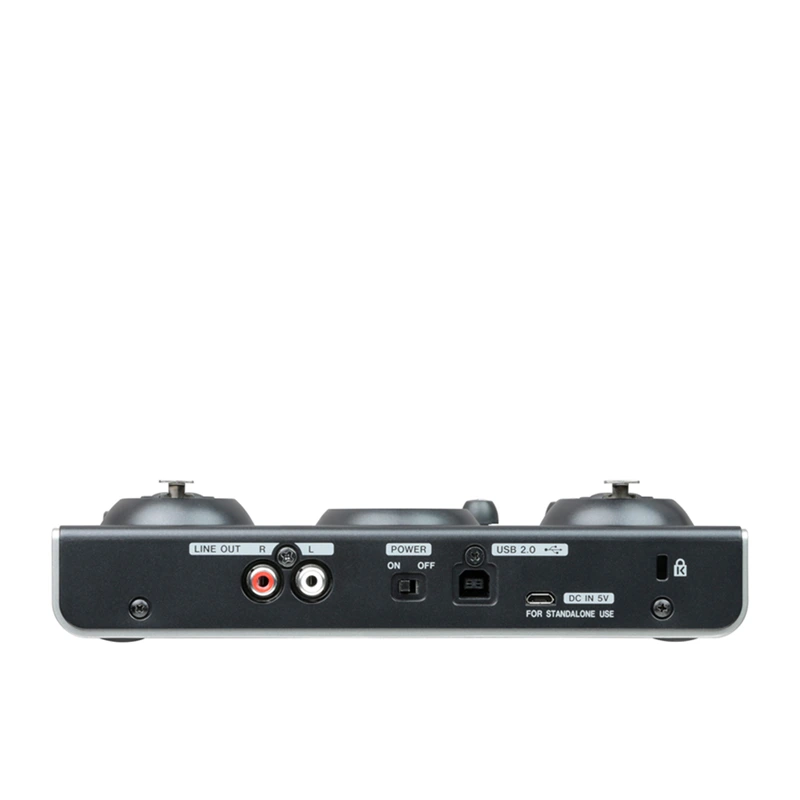

- Stereo analog RCA output jacks suitable for connection to powered monitors

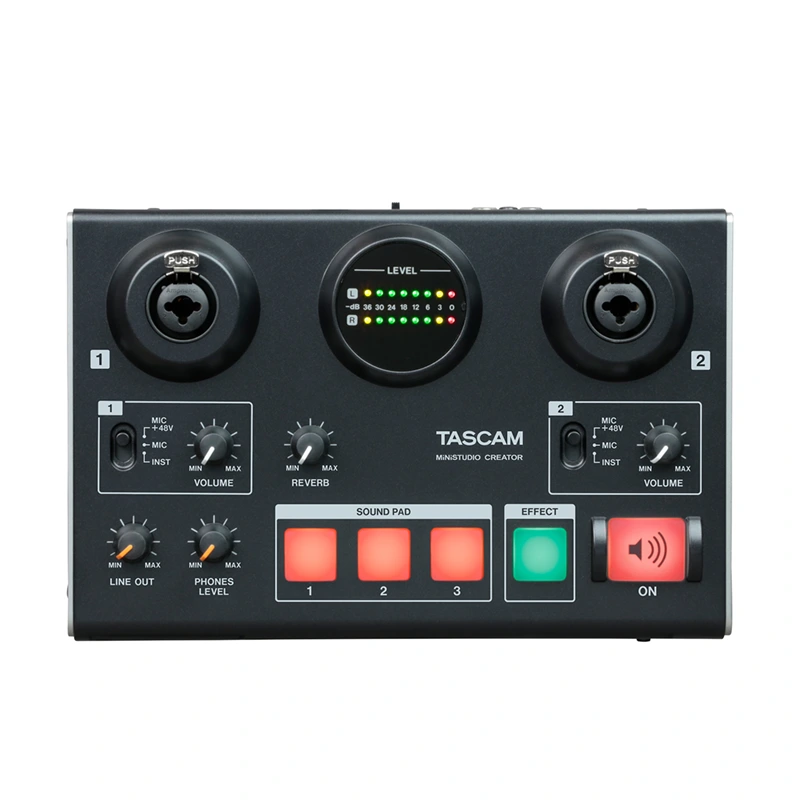

- 3 PON trigger pads that are self-lighting and velocity-sensitive
- REVERB knob that can be used to adjust the amount of reverb
- Voice effect on/off button
- ON AIR button that starts transmission to the computer

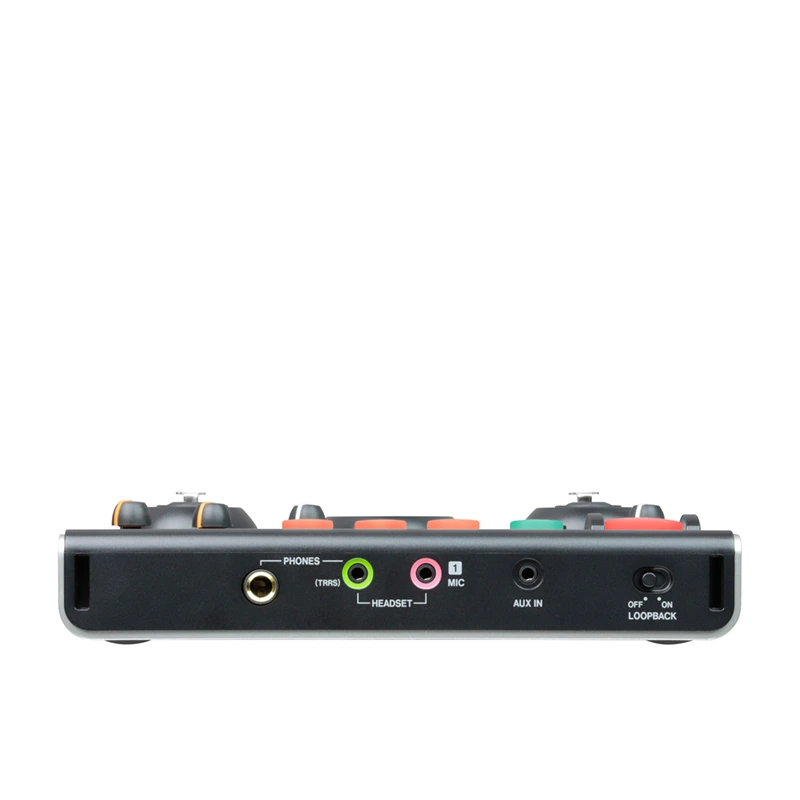

- Stereo mini jack headphone output
- 1/4” headphone output
- Separate controls for line and headphone output volumes
- BROADCAST/CREATOR mode switch
Software functions
- Dedicated software has EASY and EXPERT tabs
- Audio files can be assigned to PON trigger pads by dragging and dropping
- Velocity can be turned on/off for PON trigger pads
- PON trigger pad volume adjustment
- PON trigger pad repeat ON/OFF
- PON trigger pad fade in/out setting
- PON trigger pad start time setting
- 4 sound presets with equalizer and compressor settings
- 5 voice effect presets
- Voice effect parameter adjustment
- 5 reverb presets
- Reverb type and parameter setting (HALL/ROOM/LIVE/STUDIO/PLATE)
- Buffer size setting (64/128/256/512/1024) function (Windows only)
- Mic input MONO/STEREO switching (MONO in BROADCAST mode, STEREO in CREATOR mode)
- Transmitted signal MONO/STEREO switching
- ASIO ON/OFF switch that allows mic audio to be transmitted after effect processing (Windows only)
- Loopback function that mixes computer audio with transmitted audio
(automatically OFF in CREATOR mode
- PC Audio Out (PC output sound) and Master Out (audio transmitted to PC) volume adjustment
Other features
- Lightweight design convenient for mobile use
- 2 strap attachment points allow commercially-available camera straps to be attached
- Product compliant with RoHS
* Restrictions when connecting iOS devices
- PON trigger pads do not function.
- Effect type settings cannot be changed.
- External power supply is necessary.
- This unit will not provide power to the iOS device.
- You will need an Apple Lightning to USB Camera Adapter (sold separately) for connection.
สเปค
|
MiNiSTUDIO PERSONAL |
MiNiSTUDIO CREATOR |
| Sampling frequency |
44.1k / 48k / 88.2k / 96k Hz |
| Quantization bit rate |
16/24-bit |
| Analog audio inputs |
|
 MIC IN (Top Panel) |
|
| Connectors (Balanced) |
XLR-3-31 / 1/4″ (6.3mm) TRS Phone Combo jack × 2
(1: GND, 2: HOT, 3: COLD), (T: HOT, R: COLD, S: GND) |
| Input impedance |
2.4kΩ |
| Nominal input level |
|
| VOLUME knob at MAX |
–65dBu (0.0004Vrms) |
| VOLUME knob at MIN |
–20dBu (0.0775Vrms) |
| Gain range |
45dB |
 MIC IN (Front Panel) |
|
| Connectors (with plug-in power) |
1/8″ (3.5mm) 4-pole Mini jack (for headset) × 1
1/8″ (3.5mm) Mini jack × 1 |
| Input impedance |
5kΩ or more |
| Gain range |
45dB |
 Built-in mic |
|
| Type |
Omnidirectional Condenser Mic |
– |
| Gain range |
45dB |
– |
 Instrument inputs |
|
| Connector (Unbalanced) |
– |
1/4″ (6.3mm) TS Phone jack × 2
(T: HOT, S: GND) |
| Input impedance |
– |
1MΩ or more |
| Gain range |
– |
45dB |
 External input |
|
| Connector |
1/8″ (3.5mm) Stereo Mini jack × 1 |
| Input impedance |
5kΩ or more |
Maximum input level
(VOLUME knob at MIN) |
+7.7dBV (2.427Vrms) |
| Analog audio outputs |
|
| LINE OUT |
|
| Connector |
– |
RCA Pin jacks × 1 pair |
| Output impedance |
– |
200Ω or more |
| Nominal output level |
– |
–10dBV (0.316Vrms) |
| Maximum output level |
– |
+6dBV (1.995Vrms) |
| PHONES |
|
| Connectors |
1/4″ (6.3mm) Stereo Phone jack × 1
1/8″ (3.5mm) 4-pole Mini jack (for headset) × 1
1/8″ (3.5mm) Stereo Mini jack × 1 |
| Maximum output level |
15mW + 15mW or more (THD+N 0.1% or less, into 32Ω load) |
| Control I/O |
|
| USB |
|
| Connector |
USB B-type ×1 |
| Format |
USB 2.0 High Speed (480Mbps) |
| DC IN 5V |
|
| Connector |
USB Micro B type × 1 |
| Supported audio drivers |
|
| Windows |
ASIO2.0  , WDM |
| Mac |
Core Audio |
| iOS device |
Core Audio for iPhone |
| Power |
|
| Used with a computer |
USB bus power |
| Used with an iOS device |
USB power adapter (that can supply 5 V and a current of at least 700 mA) *1
External battery pack (that can supply 5 V and a current of at least 700 mA) *2 |
| Power consumption |
1W |
1.5W |
| Dimensions (W×H×D) |
5.9″ × 1.57″ × 5.1″ / 150 × 40 × 130 mm |
7.87″ × 1.57″ × 5.1″ / 200 × 40 × 130 mm |
| Weight |
0.84 lbs. / 382 g |
1.1 lbs. / 500 g |
| Operating temperature range |
41˚F to 95˚F / 5˚C to 35˚C |
| Included items |
USB cable , Owner’s manual (with warranty) |
*1 We strongly recommend using the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod Touch.
To use it with an iPod Touch, purchase a genuine Apple USB power adapter (that can supply 5 V and a current of at least 700 mA) separately.
*2 We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5 V and a current of at least 700 mA
Audio performance
|
MiNiSTUDIO PERSONAL |
MiNiSTUDIO CREATOR |
| Frequency response |
|
| at 44.1k / 48k Hz |
|
| LINE OUT |
– |
20Hz: +0dB/–1dB (MIC IN 1/2, JEITA)
20kHz: +0dB/–1dB (MIC IN 1/2, JEITA) |
Headphones out
(1/4″ stereo jack) |
20Hz: +0dB/–1dB (MIC IN 1, JEITA)
20kHz: +0dB/–3dB (MIC IN 1, JEITA) |
20Hz: +0dB/–1dB (MIC IN 1/2, JEITA)
20kHz: +0dB/–3dB (MIC IN 1/2, JEITA) |
| at 88.2k / 96k Hz |
|
| LINE OUT |
– |
20Hz: +0dB/–1dB (MIC IN 1/2, JEITA)
40kHz: +0dB/–1dB (MIC IN 1/2, JEITA) |
Headphones out
(1/4″ stereo jack) |
20Hz: +0dB/–1dB (MIC IN 1, JEITA)
40kHz: +0dB/–3dB (MIC IN 1, JEITA) |
20Hz : +0dB/–1dB (MIC IN 1/2, JEITA)
40kHz: +0dB/–3dB (MIC IN 1/2, JEITA) |
| Distortion |
0.008% or less
(MIC IN 1 → Headphones output, 1kHz sine wave, at nominal input level and maximum output level, JEITA) |
0.005% or less
(MIC IN 1/2 → LINE OUT, 1kHz sine wave, at nominal input level and maximum output level, JEITA) |
| S/N ratio |
90dB or more
(MIC IN 1 → Headphones output, VOLUME knob at MIN, JEITA) |
100dB or more
(MIC IN 1/2 → LINE OUT, VOLUME knob at MIN, JEITA) |
| Crosstalk |
95dB or more
(MIC IN 1 → Headphones output, 1kHz sine wave, JEITA) |
95dB or more
(MIC IN 1/2 → LINE OUT, 1kHz sine wave, JEITA) |
Mic amp EIN
(equivalent input noise) |
–113dBu or less
(150Ω termination, VOLUME knob at MAX) |
–120dBu or less
(150Ω termination, VOLUME knob at MAX |
Comparison chart
|
MiNiSTUDIO PERSONAL |
MiNiSTUDIO CREATOR |
| Ideal applications |
Personal broadcasting, Voice chat |
Personal broadcasting, Voice chat,
Audio/video creation |
| PON trigger function |
✔ |
✔ |
| Reverb |
✔ |
✔ |
| Voice effects |
✔ |
✔ |
| Loop playback |
✔
(always ON) |
✔
(switched ON/OFF with mode) |
| Portable device (AUX) input |
✔ |
✔ |
| Built-in mic |
✔ |
– |
| Number of mic inputs (XLR/TRS jacks) |
1 |
2 |
| Direct guitar input |
– |
✔ |
| Mic preamps |
High-quality mic preamp |
HDDA mic preamps |
| Number of headset mic inputs |
1 |
1 |
| Number of headphone output jacks |
2 |
2 |
| External speaker (line) outputs |
– |
✔ |
| Mode switching |
– |
✔ |
