TOA A-2060 มิกเซอร์แอมป์ 60 วัตต์ MONO 3 MIC , 2 AUX TOA A-2060 CE-AU Mixer Power Amplifier จากแบรนด์ TOA

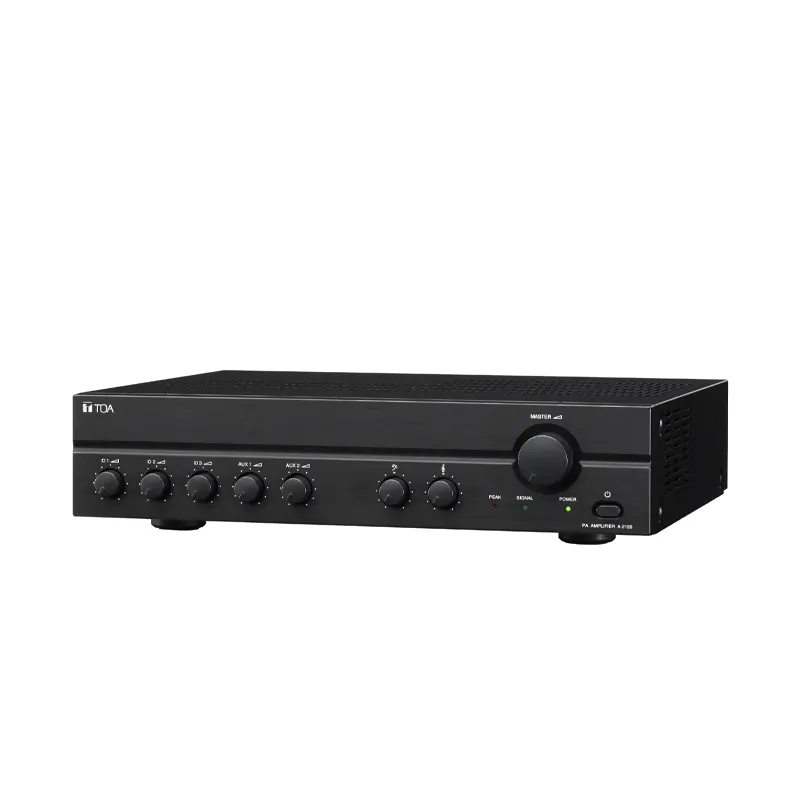

TOA A-2060 CE-AU
Mixer Power Amplifier
The A-2060 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
สเปค
Power Source |
220 – 240 V AC, or 24 V DC |
Rated Output |
60 W |
Power Consumption |
72 W (EN60065), 4 A (DC operation at rated output) |
Frequency Response |
50 – 20,000 Hz (±3 dB) |
Distortion |
1% or less at 1 kHz, 1/3 rated power |
Input |
MIC 1 – 3: -60 dB*, 600 Ω, balanced, equivalent to XLR-3-31 type
|
Output |
Speaker out: Balanced (floating), M3.5 screw terminal,
|
Phantom Power |
DC +21 V (MIC 1) |
S/N Ratio |
60 dB or more |
Tone Control |
Bass: ±10 dB at 100 Hz
|
Muting |
MIC 1 overrides other input signals with 0 – 30 dB attenuation by mute terminal
|
Finish |
Panel: ABS resin, black
|
Dimensions |
420 (W) × 100.9 (H) × 280.3 (D) mm (16.54″ × 3.97″ × 11.04″) |
Weight |
7 kg (15.43 lb) |
ดาวน์โหลด
