TOA A-230 HV มิกเซอร์แอมป์ 30 วัตต์ MONO 3 MIC TOA A-230 HV มิกเซอร์แอมป์ จากแบรนด์ TOA

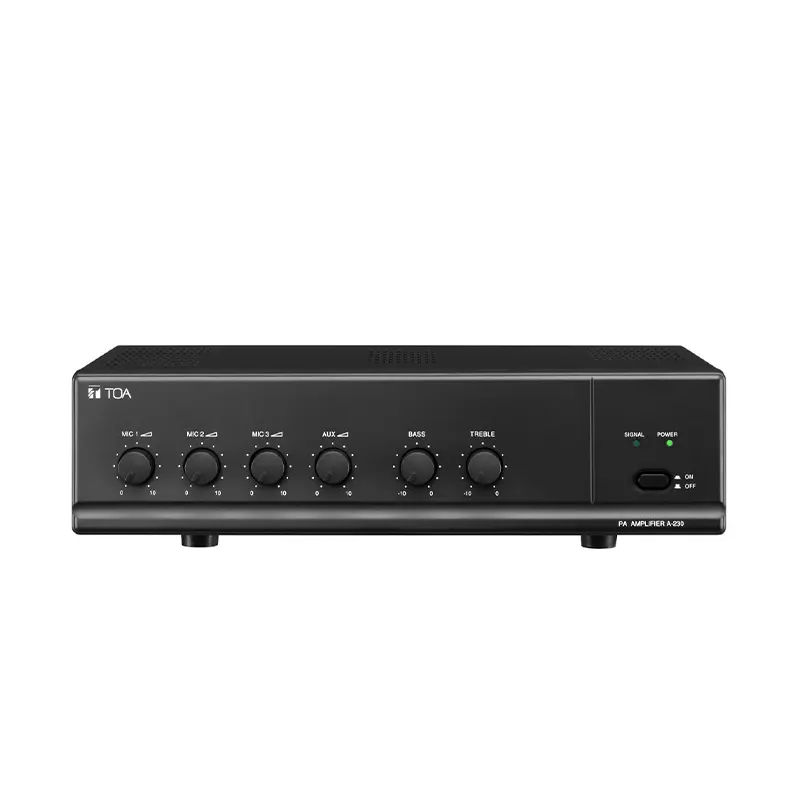

TOA A-230 HV
DIGITAL PA AMPLIFIER 30 Watt
The PA Amplifier A-230, designed to fulfill requirement arrange voice like paging,oration, ceremony, inter communication, religious service place, car- calling, and others.
สเปค
Power Source |
220 – 230 V AC, or 12 V DC |
Rated Output |
30 W |
Power Consumption |
34 W (AC operation at IEC60065) |
Current Consumption |
4.5 A (DC operation at rated output) |
Frequency Response |
50 Hz – 20 kHz |
Distortion |
1 % or less at 1 kHz, 1/3 rated power |
Input |
MIC 1 – 3: -60 dB* (1.0 mV), 600 Ω, unbalanced, phone jackAUX: -20 dB* (100 mV), 10 kΩ, unbalanced, RCA pin jack |
Output |
Speaker out: Floating balancedHigh impedance: 330 Ω (100 V)Low impedance: 4 Ω (11 V) |
S/N Ratio |
60 dB or more (MIC 1 – 3)70 dB or more (AUX) |
Tone Control |
Bass: -10 dB at 100 HzTreble: -10 dB at 10 kHz |
Muting |
MIC 1 overrides other Mic inputs and AUX input with 0 – 30 dB attenuation,attenuation by MIC 1 input |
Indicator |
Power LED, Signal LED |
Finish |
Panel: ABS resin, black Hair LineCase: Steel plate, black |
Dimensions |
350 (W) × 105 (H) × 240 (D) mm (13.78″ × 4.13″ × 9.45″) |
Weight |
3.5 kg (7.72 lb) |
