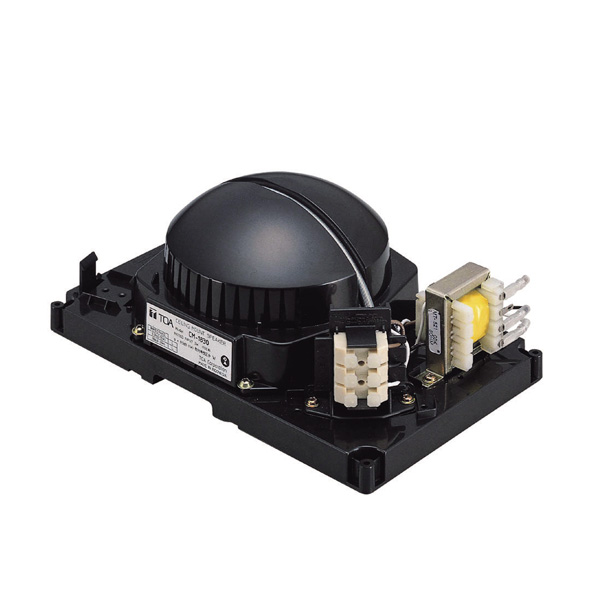

TOA CM-760 Separate Type Ceiling Speaker (ไม่มี Grille )
TOA CM-760 ลำโพงติดฝ้าเพดาน TOA CM-760 ลำโพงติดเพดาน จากแบรนด์ TOA
The CM-760 speaker allows selection of most suitable front panel out of the CP-70 series panels (optional) depending on the installation place. Thanks to its coil spring catch method, the panel can be easily attached to the speaker. The CM-760 comes with a push-in connector which permits instant wire connection for bridging and branch wiring. The speaker is protected by a hard speaker cover.
ต้องใช้รวมกับ
-
ลำโพงติดฝ้าเพดาน
-
ลำโพงระบบแอมป์ไลน์โวลล์ 70V/100V
-
การตอบสนองย่านความถี่ 100Hz – 16kHz
- ความไวลำโพง 90dB
Rated Input |
6 W |
Rated Impedance |
1.7 kΩ (6 W), 3.3 kΩ (3 W),
|
Sound Pressure Level |
90 dB (1 W, 1 m) |
Frequency Response |
100 – 16,000 Hz |
Speaker Component |
12 cm dynamic cone-type speaker |
Dimensions for Fixing Hole |
φ150 (mounting hole) × 50 (ceiling thickness) mm |
Speaker Mounting Method |
Spring catch |
Applicable Cables |
600 V Vinyl-insulated cable (IV wire or HIV wire)
|
Connection |
Push-in connector (Bridging and branch connections possible.) |
Finish |
Grille: Fire-resistant, high-impact styrene resin
|
Dimensions |
215 (W) × 134 (H) × 89 (D) mm |
Weight |
630 g |
Applicable Panel |
CP-70 series panel (option): CP-73, CP-77 |
