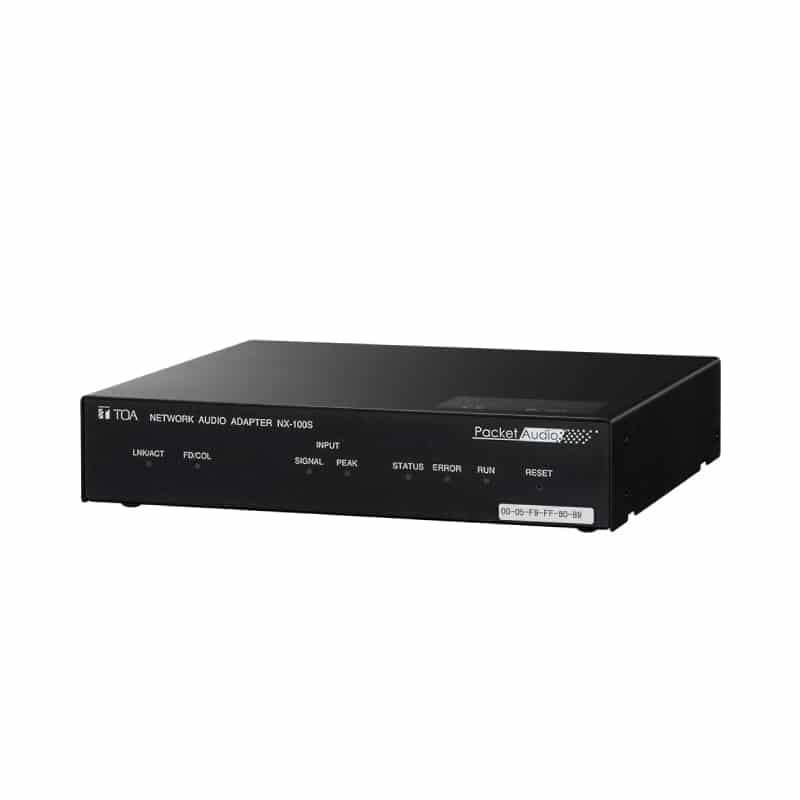

| Power Source |
AC adapter AD-246 (optional) or the equivalent |
| Power Consumption |
7 W (when AD-246 (optional) is used) |
| Audio Input |
1 channel (transformer-isolated), -58 dB* to 0 dB*,
balanced (MIC/LINE changeable, volume adjustable with volume control),
2 kΩ, removable terminal block (3 pins),
phantom power supply (24 V, can be set with the switch) |
| Audio Output |
1 channel (transformer-isolated), balanced, 600 Ω,
removable terminal block (3 pins) |
| Frequency Response |
50 – 14 kHz (when sampling frequency is 32 kHz) |
| Distortion |
0.3% or less (1 kHz, when sampling frequency is 32 kHz) |
| Control Input |
8 channels, no-voltage make contact input, open voltage: 12 V DC,
short-circuit current: 10 mA, removable terminal block (9 pins) |
| Control Output |
8 channels, open collector output (polarized), withstand voltage: 30 V DC,
control current: 50 mA max., removable terminal block (9 pins) |
| Network I/F |
10BASE-T/100BASE-TX, Auto-Negotiation |
| Network Protocol |
TCP, UDP, ARP, ICMP, HTTP, RTP, IGMPv1 |
| Audio Packet Transmission System |
Unicast (Up to 4 simultaneous transmissions),
Multicast (Up to 64 simultaneous transmissions) |
| Operating Temperature |
0℃ to +40℃ |
| Operating Humidity |
Under 90% RH (no dew condensation should be produced) |
| Finish |
Steel plate, black, 30% gloss |
| Dimensions |
210 (W) × 44.7 (H) × 188 (D) mm |
| Weight |
1.1 kg |
| Accessory |
CD (PC Installation & Operation software programs, Instruction manuals)…1,
Audio I/O removable terminal plug (3 pins)…2, Ferrite clamp…1,
Control I/O removable terminal plug (9 pins)…2, Bracket mounting screw…8 |
| Option |
Rack mounting bracket: MB-15B-BK (for rack mounting one NX-100S unit),
MB-15B-J (for rack mounting two NX-100S units)
AC adapter: AD-246 |
