ลำโพงติดเพดาน TOA PC-2360EN 6 นิ้ว 6 วัตต์ มาตรฐาน EN54-24 เหมาะสำหรับสถานศึกษาโรงพยาบาล / การดูแลสุขภาพโรงแรมอาคารสำนักงานร้านค้าปลีกศูนย์การค้า จากแบรนด์ TOA

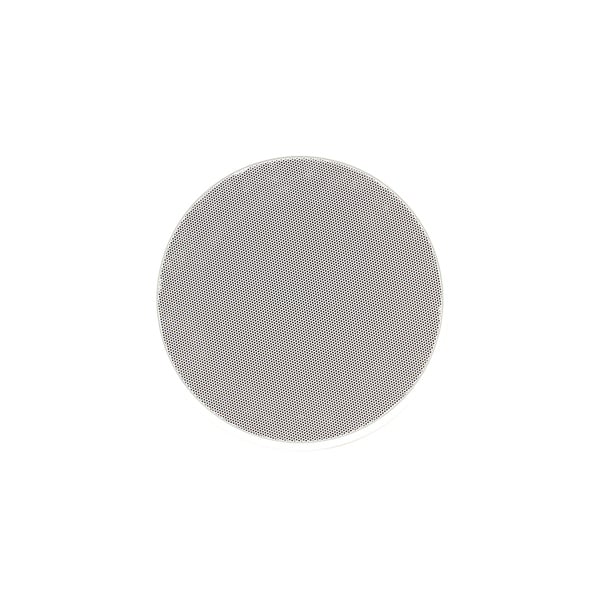

TOA PC-2360EN Ceiling Speakers
The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker’s design harmonizes with modern architecture and decor. The PC-2360EN is designed according to EN54-24.
คุณสมบัติ
- Flat front panel
- Quick and easy installation
- Dripping-water protection
- Snap in cable terminal
- 6 W rated input
- Additional DC blocking capacitor
- 16 cm speaker
สเปค
Specifications
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise) 92 dB (1 W, 1 m) (100 Hz – 10 kHz, pink noise) 80 dB (1 W, 4 m) (100 Hz – 10 kHz, pink noise) |
| Maximum Sound Pressure Level | 99 dB (6 W, 1 m) (100 Hz – 10 kHz, pink noise) 87 dB (6 W, 4 m) (100 Hz – 10 kHz, pink noise) |
| Frequency Response | 60 Hz – 20 kHz (peak -20 dB) |
| Coverage Angle (-6 dB) | Horizontal and Vertical: 160゜ (500 Hz), 170゜ (1 kHz), 160゜ (2 kHz), 60゜ (4 kHz) according to EN 54-24 |
| Environmental type | A (indoor applications) |
| Speaker Component | 16 cm (6″) cone-type |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Dimensions for Fixing Hole | Mounting hole: φ200±3 mm (7.87″±0.12″) Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″) |
| Speaker Mounting Method | Spring clamp |
| Applicable Cable | Solid wire: 0.5 – 3 m㎡ (AWG 20 – 12) |
| Connection | Push wire connection (Bridging terminal-2 branch type) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), paint Grille: Steel net, white (RAL 9016 equivalent), paint |
| Dimensions | φ230 × 76 (D) mm (9.06″ × 2.99″) |
| Weight | 740 g (1.63 lb) |
| Accessory | Paper pattern …1, Zip tie …3 |
