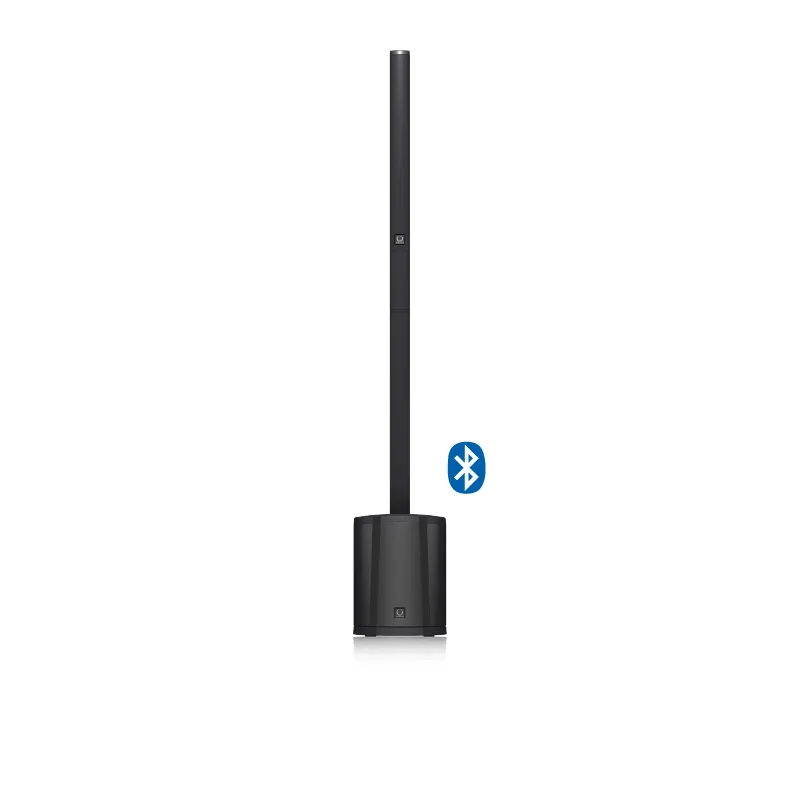

TURBOSOUND iP500 V2
Column loudspeaker for portable PA
600 Watt Powered Column Loudspeaker with an 8″ Subwoofer, 6 Neodymium Drivers, Klark Teknik Spatial Sound Technology, Digital Mixer, Reverb, Remote Control via iPhone/iPad and Bluetooth Audio Streaming
ทดสอบกลางทุ่ง ริมน้ำ! เปิดลำโพง Array Column TURBOSOUND iP500 | iP1000 | iP2000 | iP3000
- Modular column loudspeaker for portable PA applications and high quality music playback
- Klark Teknik’s revolutionary SST (Spatial Sound Technology) for creating 3D acoustic environments
- Extremely wide sound dispersion provides consistent sound to the audience and performers
- 600 Watt power, multi-channel Klark Teknik Class-D technology
- 3 channel digital mixer with gain setting recall
- Studio-grade stereo reverb adds finishing touch to your sound
- Comprehensive remote control via Apple iPhone/iPad*
- High quality Bluetooth* stereo audio streaming
- DSP presets for application type and speaker positioning
- Intuitive single rotary control user interface with LCD display for ease of navigation
- 8″ high excursion low frequency driver for low distortion sub-bass response
- 6 x 2″ neodymium drivers with edge wound aluminium voice coils for extended high frequency reproduction
- Multiple height configurations for floor or elevated use
- Precision-lock system eliminates speaker cables and stands
- High impact and lightweight enclosure
- Integrated protective perforated steel mesh grilles
- Integral ergonomic carrying handle for ease of portability
- Durable shoulder bag included for carrying column sections
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
iNSPIRE iP500 V2
Although we refer to it as a “column” loudspeaker, the INSPIRE iP500 delivers the powerful, high-quality sound and optimised dispersion inspired by our award-winning line array products – in a surprisingly lightweight and easy to use, all-in-one form factor. Thanks to an on-board 3-channel digital mixer and multichannel 600-Watt Class-D amplifier driving a custom-engineered 8″ subwoofer and 6 x 2″ neodymium drivers, the iP500 is ideally-suited for small to medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and much more.
Weighing in at a very modest 15 kg (33 lbs), the iP500 is easy to transport and features industry-leading KLARK TEKNIK Digital Sound Processing (DSP), studio-grade stereo reverb, Class-D amplifier and Spatial Sound technologies – plus convenient Bluetooth stereo audio streaming and iPhone/iPad remote control.
Tiny PA – 600 Watts of Perfect Sound
Designed for maximum portability, iP500’s column sections and subwoofer fit neatly into their included carry bags, and setup is fast and easy; just attach the column section(s) to the base and connect your mic or mixer feed and power. Our revolutionary Class-D amplifier technology provides 600 Watts of incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with an industry-leading DSP module, provides dynamic equalisation and sophisticated limiting functions to ensure optimal performance and long-term reliability. The powerful iP500 fills the room with the world-famous TURBOSOUND “sound” that has won the coveted Queen’s Award – an unprecedented three times.
Outstanding Sound Dispersion
Much like the huge line array systems you’ve experienced at concerts and outdoor festivals (we make those too), the 2″ neodymium midrange / extended high-frequency drivers in the iP500 columns are strategically placed to provide up to a 100° horizontal dispersion pattern. Such wide coverage eliminates the need for monitor wedges for the performers and creates a more even, sonically balanced soundscape that covers the entire room. By taking advantage of the arrival-time differential between sound waves reaching the left and right ears, iP500’s groundbreaking Spatial Sound Technology (SST) creates a wide, well-defined virtual 3-D acoustic environment, enveloping the listener in a richer and more realistic experience. No matter where you sit, the location of the onstage voices and instruments are perceived in their rightful position within the soundscape, for a performance that is beautifully open and transparent – with unparalleled intelligibility.
KLARK TEKNIK – Inspired Technology
KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and even a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK’s legendary heritage.
TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK Class-D amplifier and DSP technologies into their products.
DSP – the Secret to Superb Sound
From the instant your signal enters the iP500, the built-in DSP takes over ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the 24-bit processor analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality. It’s like having an audio engineer monitoring the input and output signals, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter, three discrete amplifier channels and more – all of which adds up to significantly better sound.
Our speakers are designed specifically for each application – it’s what sets us apart from the competition. When you buy a TURBOSOUND speaker system, you can rest assured that the speakers inside have been engineered to perform flawlessly in conjunction with every other element for truly professional results.
Built-in Digital Mixer – Comprehensive Remote Control

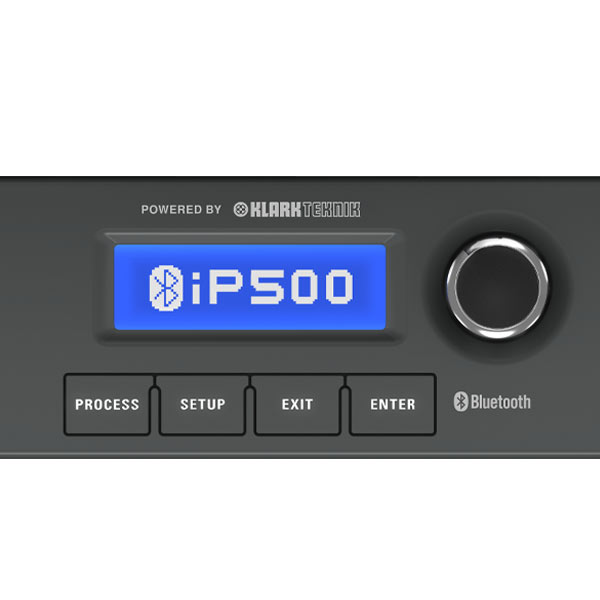

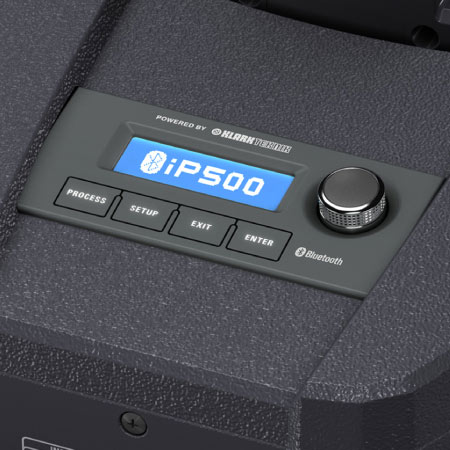

The iP500 features a fully addressable onboard digital mixer with two combo jack/XLR connectors that accept balanced and unbalanced connections for dynamic mics and line-level instruments. The simple and intuitive user interface consists of a single rotary push-encoder with Process, Setup, Exit and Enter function buttons. A beautifully-backlit display controls DSP functions including mixer parameters, 3 band EQ, and presets. All settings can be controlled locally, or via free downloadable iPhone/iPad apps – and locked down to prevent unauthorised access.
We take Bluetooth a step further, giving you total control of the iP500 directly from your iPhone or iPad. This amazing feature lets you adjust all settings from either the listening area or the stage, for the perfect sound every time. The dedicated apps are available free of charge at turbosound.com, or from the Apple App Store.
If your iP500 is used mainly for speeches and presentations, you may not need it – but if you plan to perform on a musical instrument or sing, you will probably want to add some effects. So, we have included a great-sounding digital Reverb processor to help sweeten your sound. This easy to use, studio-grade vocal effect provides the perfect finishing touch, giving your performance a dash of professional polish.
The days of tape decks, CD and even mp3 players are long gone. Now your music lives on your smartphone or computer tablet, so you can stop searching for those outdated cables and fancy adapters. An industry first, the iP500 puts all your music at your fingertips via stereo Bluetooth. Now with a simple wave of your hand, you can stream music from any Bluetooth-equipped iOS device, such as your iPad, iPod touch, iPhone – or even your laptop computer.
Stunning Performance – Superb Value
The INSPIRE iP500 active PA loudspeaker stands head and shoulders above the rest of the pack and delivers exceptional performance, even when pushed to the limit. Ultra-lightweight and powerful with custom-designed transducers, an integrated mixer, stereo Bluetooth streaming, iPhone/iPad remote control, 600 Watts of Class-D output power and Digital Sound Processing, the iP500 is ideal for both portable and installed applications – at a price unheard of in this class.
Experience the iP500 at your local dealer today, or get yours online today – and let TURBOSOUND take your performance to the next level!
|Frequency Response||65 Hz – 14 kHz ±3 dB 50 Hz – 16 kHz -10 dB|
|Nominal Dispersion||100° H @ -6 dB points|
|Maximum SPL||118 dB|
|Crossover type||2 way, active|
|Transducers||1 x 8″ (208 mm) LF driver6 x 2″ (54.2 mm) HF drivers|
|Limiter||Independent HF, LF|
|Maximum output power*||600 W|
|Type||LF: Class-D HF: Class AB|
|Protection||Short circuit, open circuit, thermal|
|Input A / B||2 x combo jack / XLR|
|Input impedance||16 kΩ unbalanced, 33 kΩ balanced|
|Maximum input level||+22 dBu|
|Mains supply||IEC mains connector with integrated power switch†|
|Software||iOS/Android interface via Bluetooth|
User DSP Functions
|Factory EQ presets||Positioning, sound mode|
|Display||LCD 128 x 32, blue, backlitt|
|Equalisation||Bass, middle and treble|
|Reverb||KLARK TEKNIK design|
|Protection||Lock-out function for all settings|
Bluetooth Wireless Technology
|Frequency range||2402 MHz ~ 2480 MHz|
|Version||Bluetooth 4.0 dual mode|
|Compatibility||Supports A2DP 1.2, AVRCP 1.4 profile|
|Maximum communication range||30 m (without interference)|
|Connectivity||Master-slave: stereo pairing link|
