TURBOSOUND TLM LMS-D24 2 Input, 4 Output Digital Loudspeaker Management System with BV-Net Card
TURBOSOUND LMS-D24 ดิจิตอลโปรเซสเซอร์ DSP 2 Input, 4 Output พร้อม BV-Net Card TURBOSOUND LMS D24 จากแบรนด์ TURBOSOUND

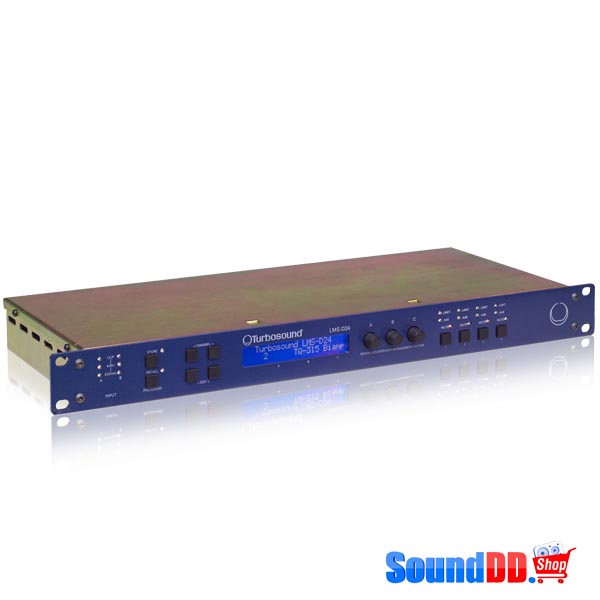

The TURBOSOUND LMS-D24 digital loudspeaker management system is a compact and powerful DSP based 2-in 4-out audio processing unit, ideally suited to live sound and fixed installation applications, and designed for use with TURBOSOUND loudspeakers and associated bass enclosures and subwoofers. It provides tailored equalisation and crossover functions specifi c to TURBOSOUND loudspeaker systems in a compact 1U high, 19″ wide rack unit.
To achieve this, the LMS-D24 provides two inputs and four outputs, configured by factory presets, in addition to a total of 40 user-defi ned presets to enable use with a variety of loudspeakers. High performance limiters, delays (up to 400 ms input, 80 ms output), equalisation, gain, polarity, and crossover fi lter controls are accessible to the user in order to match specifi c operating environments. It provides exceptional audio quality through the use of carefully optimised processing and high performance converters for better than 111 dB of dynamic range, 96 kHz sampling rate and minimal fi ltering. It employs audio-grade capacitors in the analogue signal path for true audiophile performance and superior accuracy.
TURBOSOUND LMS-D24
features LF shelving fi lters to allow adjustment of the response in order to match variations of the acoustic conditions such as half space environments like fl oor monitor applications, or for close coupling of loudspeaker arrays. Input delays of up to 400 ms, and output delays of up to 80 ms can be set up on each output (mono) or pair of outputs (stereo) with fi ne resolution of 21 μs steps to ensure perfect driver alignment.

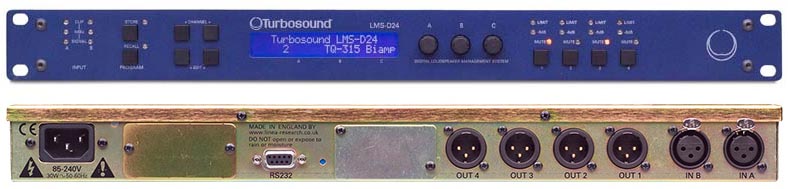

The LMS-D24 is designed for quick setup and adjustment via an easy-to-use menu structure accessed by front panel buttons and rotary encoders. A high resolution back-lit LCD display provides the user interface to the menu options and parameters being adjusted. The LMS-D24 is equipped with a switching power supply that automatically adjusts to mains input voltages from 85 volts to 240 volts, allowing it be used anywhere in the world without inconvenient mains transformer adjustment
- 2 input, 4 output digital loudspeaker management system processor with BV-Net card
- State-of-the-art DSP implementation for highest signal integrity
- Crossover flters up to 48 dB/oct with Butterworth, Bessel and LinkwitzRiley responses
- High pass flter, 2 shelving flters, 6 parametric EQs and 400 ms of delay on each input
- 2 shelving flters, 6 parametric EQs, 80 ms of delay and limiter on each output
- Comprehensive channel grouping and ganging options
- TURBODRIVE remote control software available for download at turbosound.com
- Presets for TURBOSOUND passive and bi-amped speakers available for download
- Rugged 1U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
- Designed and engineered in England
LMS-D24
2 Input, 4 Output Digital Loudspeaker Management System with BV-Net Card
Technical Specifications
System
| Dimensions | 44 x 482 x 254 mm (1.75 x 19 x 10″) Excluding Connectors |
| Net Weight | 2.7 kg (5.9 lbs) |
| Frequency Response | 10 Hz – 40 kHz ±1 dB (Filters Disabled) 10 Hz – 20 kHz ±0.25 dB (Filters Disabled) |

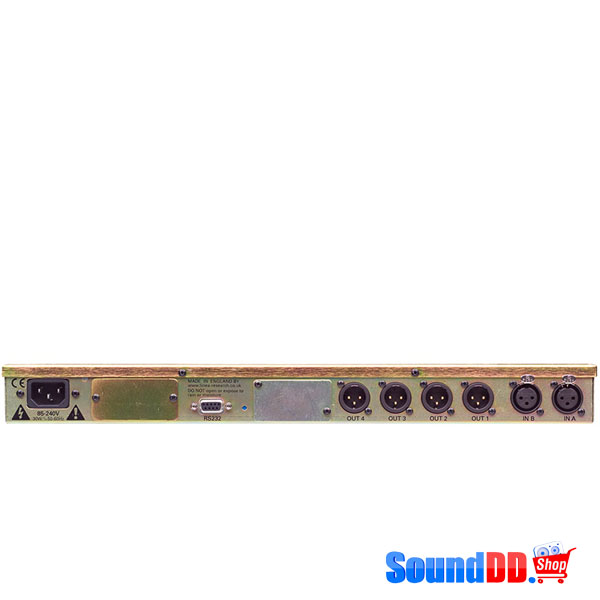

| Connectors | Input: 3-pin Female XLR Output: 3-pin Male XLR |
| Power Requirements | Universal Switch Mode PSU, 85 V ~ 240 V AC, 50 – 60 Hz |
