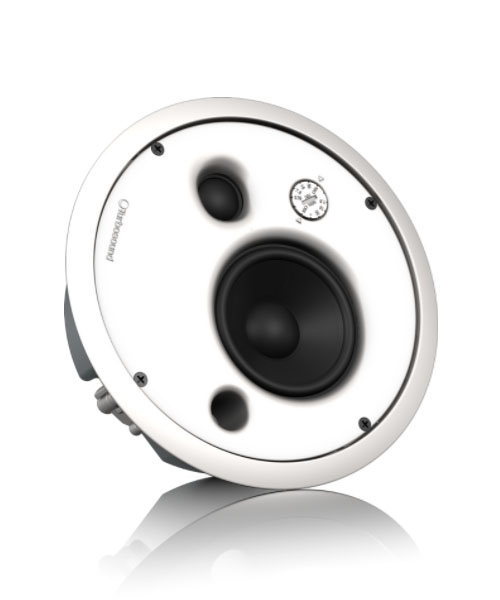

TURBOSOUND CEILING TCS32C-T-WH 2 Way 3.5″ Full Range Ceiling Loudspeaker with Line Transformer for Installation Applications (White)
TURBOSOUND TCS32C-T-WH ลำโพงติดเพดาน ขนาด 3.5นิ้ว 2 ทาง 120 วัตต์ รองรับการเชื่อมต่อได้ทั้งแบบ 16 โอห์ม หรือ แบบไลน์โวลล์ 70V/100V TURBOSOUND TCS-32C ลำโพงติดเพดาน สีขาว จากแบรนด์ TURBOSOUND
The 120-Watt TCS32C-T-WH is a high performance 2 way 3.5″ full range ceiling speaker system ideally suited to installed speech and music sound reinforcement applications. Engineered as a 2-way system not requiring any external equalization or filtering, the TCS32C-T-WH can be driven by low impedance or 70 V and 100 V line amplifiers. The TCS32C-T-WH achieves optimal performance when used with a low frequency high pass filter or with TURBOSOUND loudspeaker management systems.
- Compact 2 way full range ceiling loudspeaker for installation applications
- 30 Watts continuous, 120 Watts peak power
- High excursion 3.5″ low frequency driver with high temperature voice coil
- 1″ ferrofluid cooled neodymium high frequency driver
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low distortion waveguide provides 150º coverage
- Mount ring and ceiling tile rails included

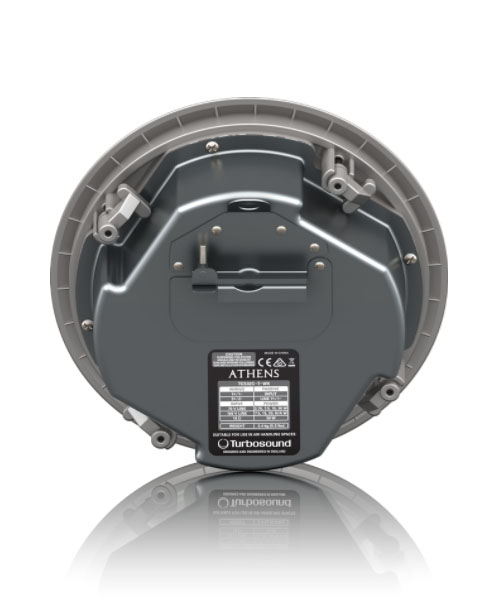

- UL94 V-0 rated ABS front with plated steel fire can enclosure
- Semi matt white finish fits unobtrusively in any environment
- Powder coated perforated steel mesh grille with dust protection
- Phoenix* connector with steel cover and strain relief accepts fire rated cable
TCS32C-T-WH
2 Way 3.5″ Full Range Ceiling Loudspeaker with Line Transformer for Installation Applications (White)
Technical Specifications
System
Frequency Response | 120 Hz – 20 kHz ±3 dB 100 Hz – 20 kHz -10 dB |
Nominal Dispersion | 150° conical @ -6dB point |
Power Handling (IEC) | |
Passive | 30 W continuous, 120 W peak |
100 V line | 30, 15, 7.5 W continuous |
70 V line | 30, 15, 7.5, 3.75 W continuous |
Sensitivity | 87 dB (1 W @ 1 m) |
Maximum SPL | |
Passive | 102 dB continuous, 108 dB peak |
100 V line | 108, 105, 102 dB peak |
70 V line | 108, 105, 102, 99 dB peak |
Impedance | |
Passive | 16 O |
Crossover Type | Passive |
Components | 1 x 3.5″ (89 mm) LF driver 1 x 1″ (25 mm) HF driver |
Enclosure
Connectors | 1 x Phoenix |
Wiring | Input 1+ / 1-, link 2+ / 2- |
Dimensions (diameter, depth) | 235 x 83 mm (9.3 x 3.3″) |
Hole cut-out diamaeter | 215 mm (8.5″) |
Minimum mount depth | 110 mm (4.3″) |
Net Weight | 2.4 kg (5.3 lbs) |
Construction | UL-V0 ABS, steel fire can |
Finish | White, paintable |
Grille | Powder-coated perforated steel |
Flying Hardware | Rotating screw clamps |
Accessories
C-Ring and tile bridge – included |
