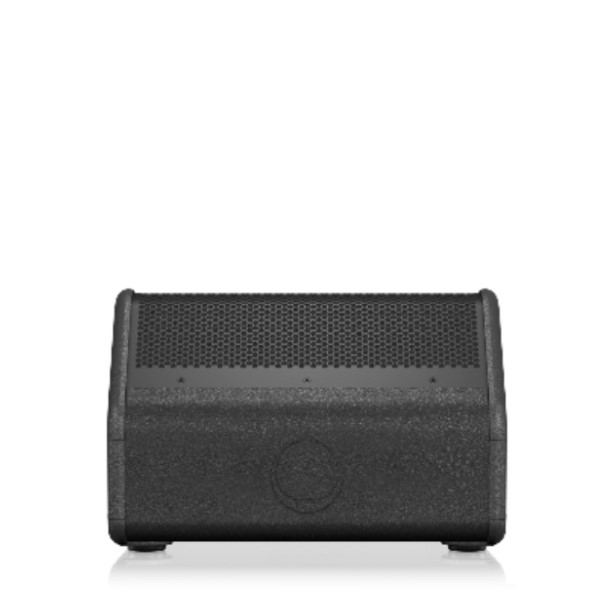

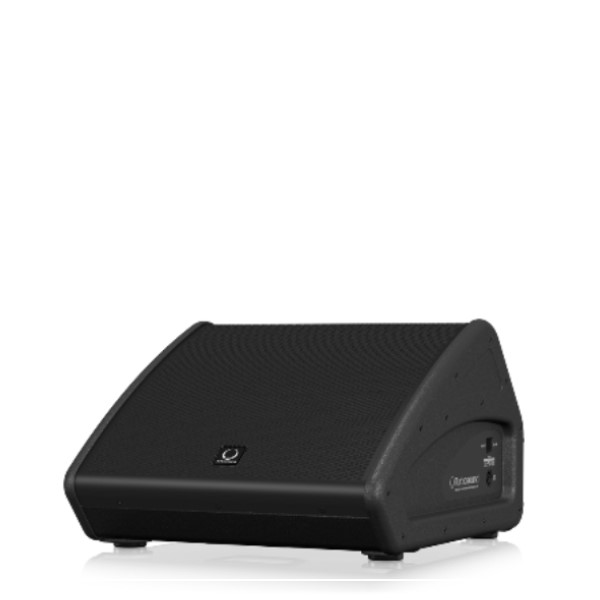

TURBOSOUND TFM122M ตู้ลำโพงมอนิเตอร์เวที 12นิ้ว 2 ทาง 1,400 วัตต์ มีแอมป์ในตัว คลาส D

฿49,500 (รวม VAT 7% แล้ว)

  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ตู้ลำโพงมอนิเตอร์เวที 12 นิ้ว 2 ทาง 1,400 วัตต์ มีแอมป์ในตัว คลาส D FLASHLINE MONITORS TFM122M 2 Way 12″ Stage Monitor จากแบรนด์ชั้นนำ TURBOSOUND

TURBOSOUND TFM122M
Co-axial 2 Way 12″ Stage Monitor for Touring Applications

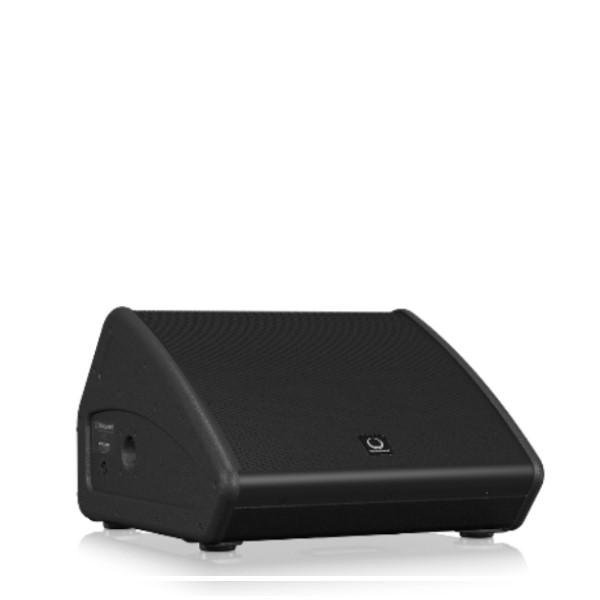

FLASHLINE MONITORS TFM122M

The 2-way full range TFM122M is a switchable passive/bi-amp 1,400 Watt 12″ loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. The TMS122M is designed to work in conjunction with LAB GRUPPENamplification and loudspeaker management systems, the TFM122M provides optimal performance for wedge monitoring and is an exceptional choice for FOH, sidefill and delay line

The 2-way full range TFM122M is a switchable passive/bi-amp 1,400 Watt 12″ loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. The TMS122M is designed to work in conjunction with LAB GRUPPENamplification and loudspeaker management systems, the TFM122M provides optimal performance for wedge monitoring and is an exceptional choice for FOH, sidefill and delay line applications.

TURBOSOUND is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TFM122M loudspeaker features a carbon fibre loaded 12″ neodymium low frequency driver and a titanium dome 1.4″ neodymium high frequency compression driver, which is mounted on a 60° horizontal by 40° vertical dispersion low distortion waveguide.

Plywood Construction

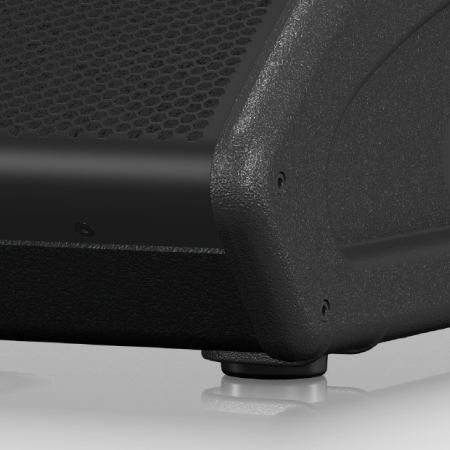

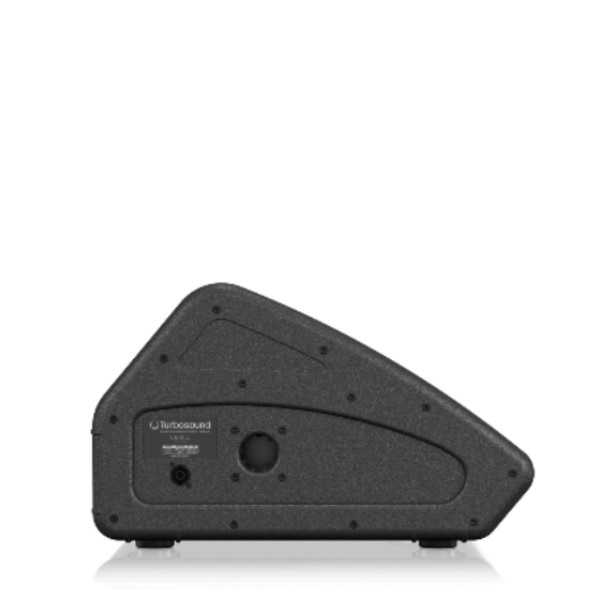

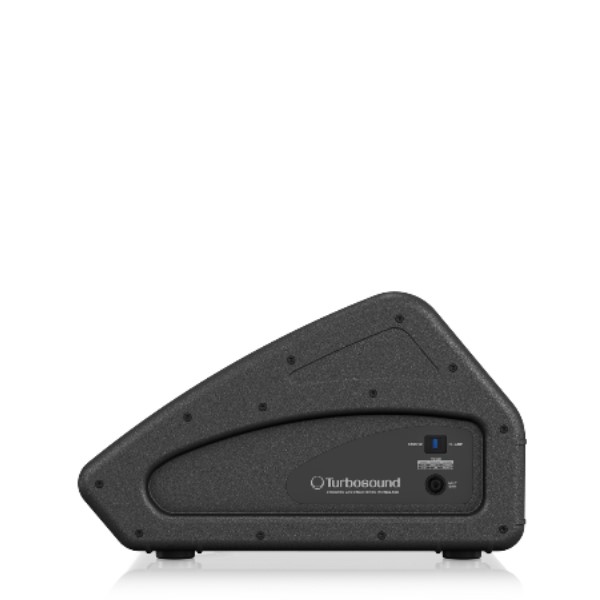

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8″) plywood with fibre glass reinforced composite end cheeks and a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TFM122M includes a convenient pole mount socket for use with 35 mm poles/speaker stands to optimise coverage and a durable handle for easy transport. The side panels carry two Neutrik speakON* NL4 connectors for input and link connections to additional enclosures. TFM122M’s low profile design provides improved audience line of sight for seamless integration into any application.

Touring-Grade Performance

Designed to provide exceptional and unobtrusive onstage performance for travelling musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 1,400-Watt TFM122M puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.

คุณสมบัติ

  • 2 way stage monitor for touring applications
  • 350 Watts continuous, 1,400 Watts peak power
  • Carbon fibre loaded 12″ neodymium motor low frequency driver
  • Titanium dome 1.4″ neodymium motor compression driver
  • Low profile design to maximise audience sight lines
  • Low distortion waveguide provides 60° H x 40° V dispersion
  • Switchable passive/bi-amp operation for flexibility of use
  • 15 mm (5/8″) plywood enclosure with fibre glass reinforced composite end cheeks
  • Hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Durable handle for easy lifting and carrying
  • Neutrik speakON* NL4 connectors for reliable long life operation
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.
น้ำหนัก 15.5 กก.
ขนาด 452 × 504 × 302 มิลลิเมตร
ยี่ห้อ

ดูเฉพาะ

,

ขนาดดอก

สเปค

System

Frequency Response 70 Hz – 18 kHz ± 3 dB
63 Hz – 20 kHz -10 dB
Nominal Dispersion 60° H x 40° V @ -6 dB points, rotatable
Directivity Factor (Q) 18.3
Directivity Index (DI) 12.6

Power Handling (IEC)

Passive 350 W continuous, 1,400 W peak
Bi-amp LF: 310 W continuous, 1,240 W peak
HF: 40 W Continuous, 160 W peak
Sensitivity 96 dB (1 W @ 1 m)

Maximum SPL

Passive 122 dB continuous, 128 dB peak
Bi-Amp LF: 121 dB continuous, 127 dB peak
HF: 123 dB continuous, 129 dB peak

Impedance

Passive 8 O
Bi-Amp LF: 8 O
HF: 8 O
Crossover Type Passive / bi-amp, switchable
Components 1 x 12″ (315 mm) LF driver
1 x 1.4″ (33 mm) HF compression driver

Enclosure

Connectors 2 x Neutrik speakON NL4,
Wiring
Passive Pins 1+ / 1- input, pins 2+ / 2- link
Bi-Amp Pins 1+ / 1- LF, pins 2+ / 2- HF
Dimensions (H x W x D) 302 x 452 x 504 mm (11.9 x 17.8 x 19.9″)
Construction 15 mm (5/8″) birch plywood + Polypropylene plastic
Finish Semi matt black paint
Grille Powder coated perforated steel
Flying Hardware N/A

ดาวน์โหลด

โบรชัวร์
รหัสสินค้า: TURBOSOUND TFM122M หมวดหมู่: , ป้ายกำกับ:
