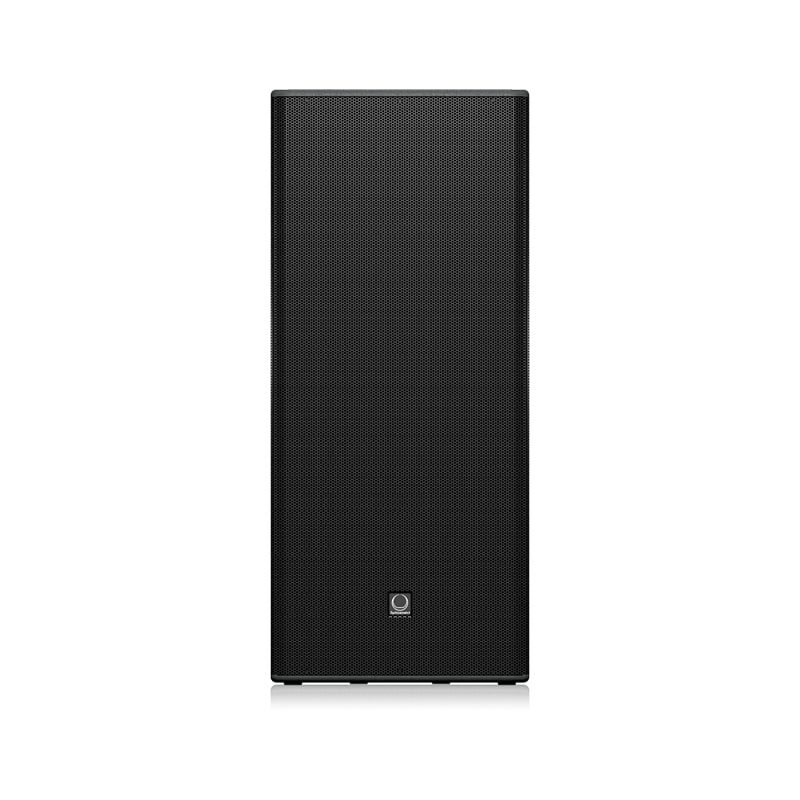

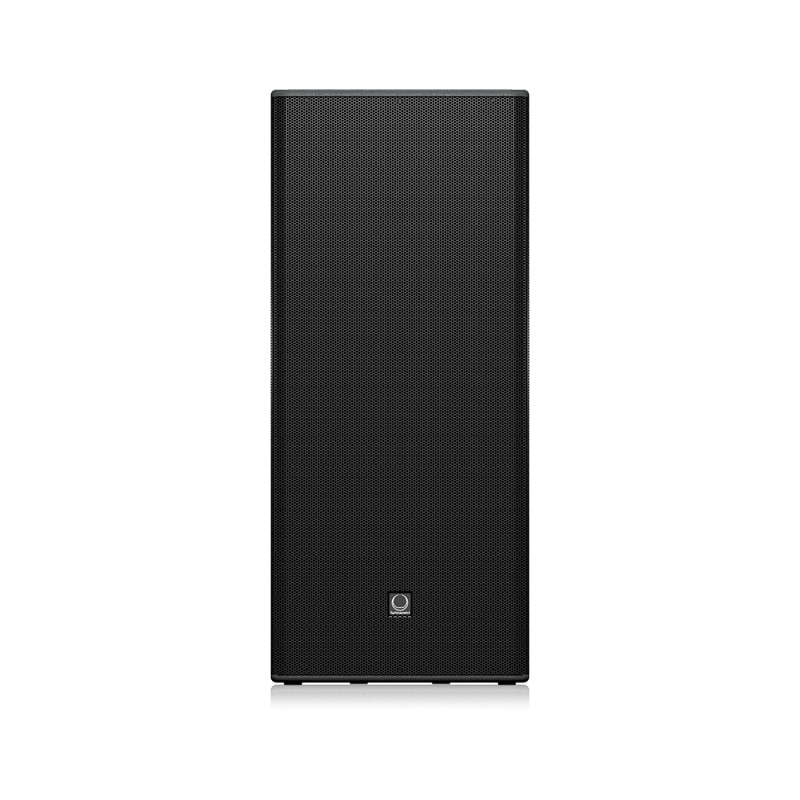

ตู้ลำโพง TURBOSOUND TMS153 ขนาด 2×15 นิ้ว 2 ทาง 4,800 วัตต์ สลับการทำงานแบบพาสซีฟ / ไบแอมป์เพื่อความยืดหยุ่นในการใช้งาน จากแบรนด์ TURBOSOUND
TURBOSOUND TMS153
Dual 2 Way 15″ Full Range Loudspeaker for Portable PA and Installation Applications
MADRID TMS153

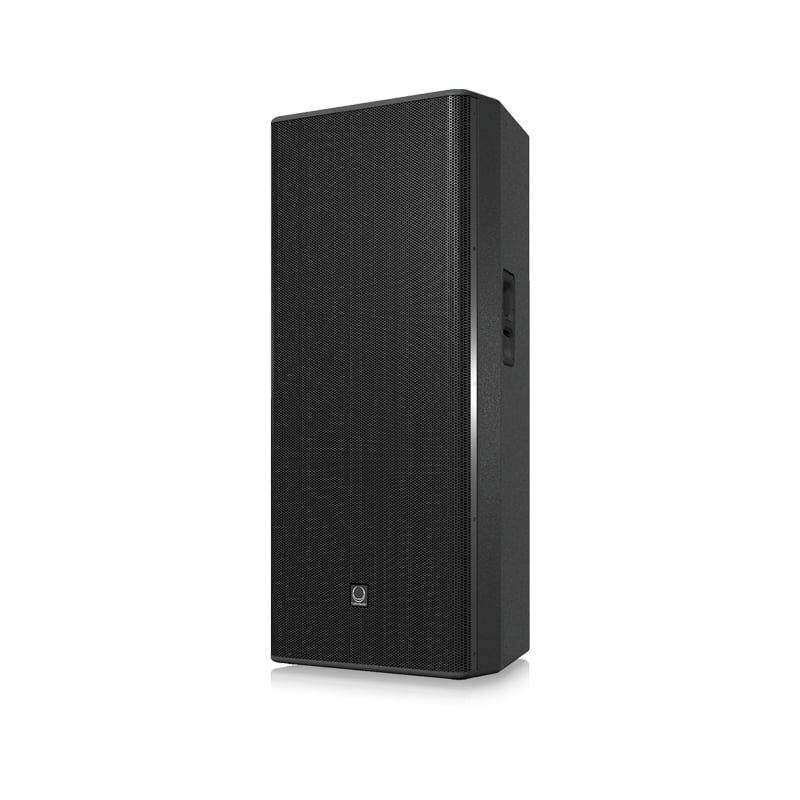

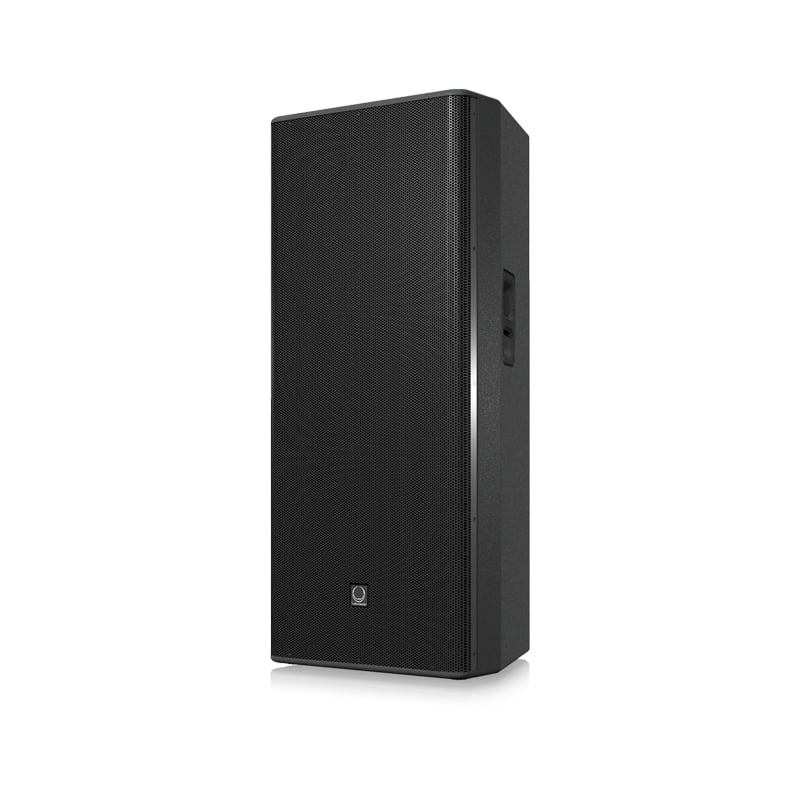

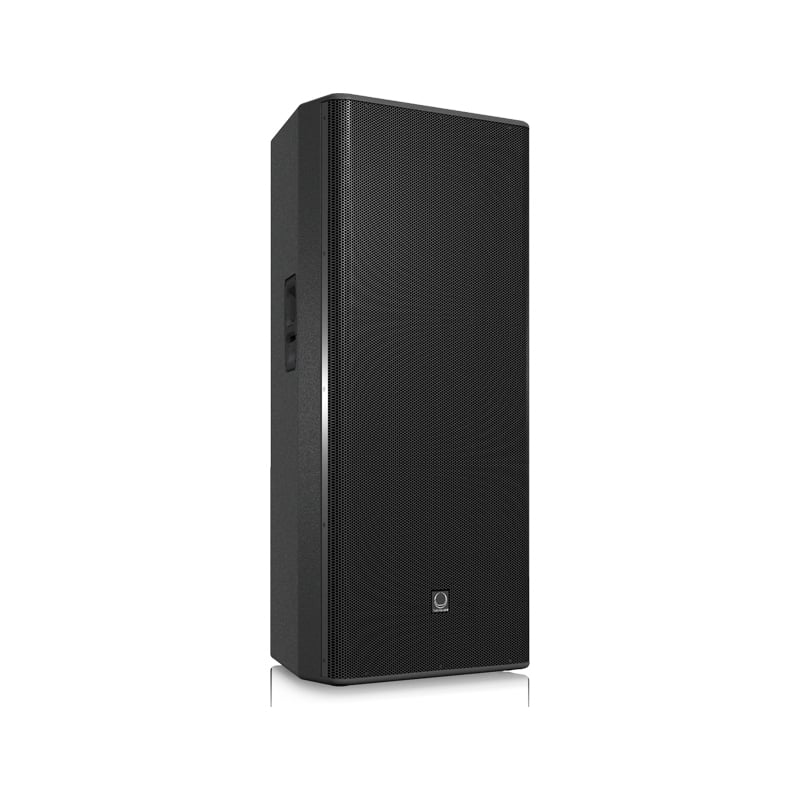

The 2 way full range TMS153 is a switchable passive/bi-amp 15″ 4,800 Watt loudspeaker system is ideally suited for a wide range of portable speech and music sound reinforcement applications. Designed to work in conjunction with Turbosound loudspeaker management systems, the TMS153 provides optimal sonic performance for FOH, side and drum fill applications that demand very high output levels.
The TMS153 loudspeaker features dual carbon fibre loaded 15″ low frequency drivers with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4″ neodymium motor compression driver mounted on a 75° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

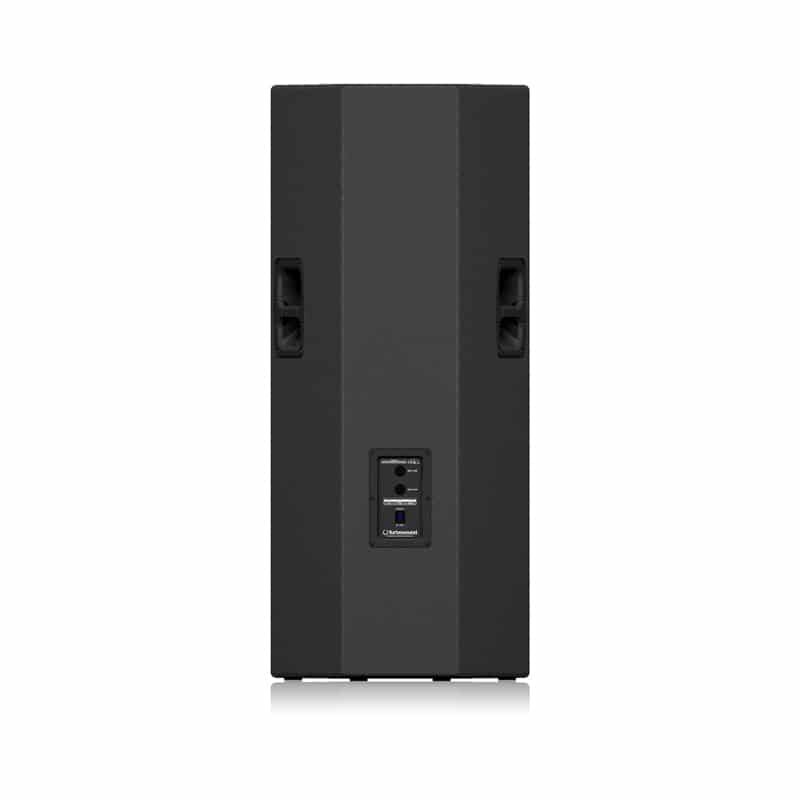

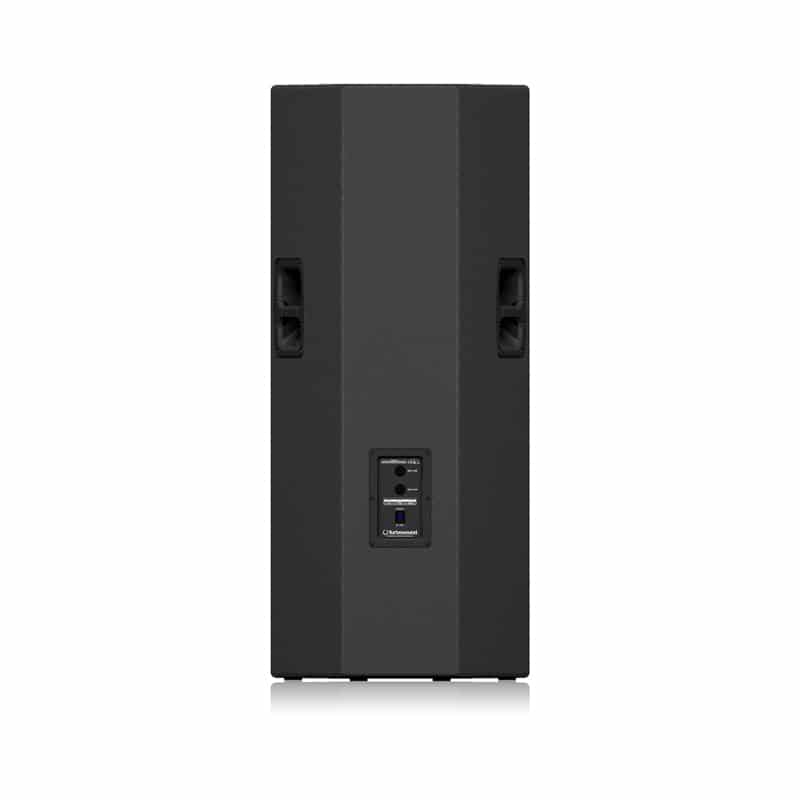

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5⁄8″) birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TMS153 utilises durable handles for portability, and is equally suited for permanent install applications. A rear panel connector plate carries two Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.
IMPACT TCI32-T-WH
Shipped in pairs, the ultra-compact IMPACT TCI32-T-WH is a passive two way surface-mount loudspeaker that is ideally suited for a wide range of installed speech and music applications. With a power handling capacity of 120 Watts, the system consists of a high excursion 3.5″ low frequency driver with a high temperature voice coil, and a 1″ neodymium ferro-fluid cooled high frequency driver mated to a proprietary elliptical waveguide – for a wide 120º horizontal by 100º vertical dispersion pattern.
Custom-Engineered Drivers

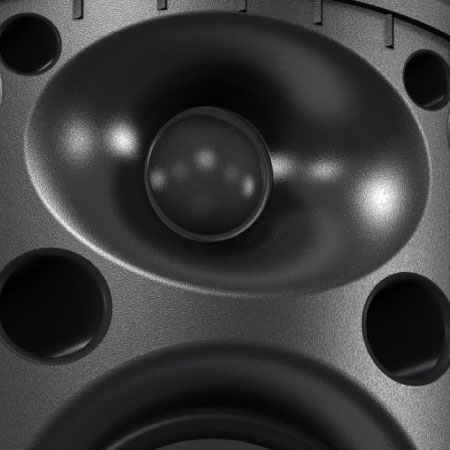

TURBOSOUND is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers in the industry. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The custom designed high excursion 3.5″ low frequency and 1″ neodymium high frequency drivers ensure truly world-class performance that will deftly stand the test of time.
Internal Transformer
The TCI32-T-WH includes an internal line transformer with multiple taps for use in 70 and 100 Volt line distributed sound applications, as well as a direct 16 Ohm input for use with low-impedance amplifiers. Taps are provided at 30, 15, and 7.5 Watts on the 100 V line; 30, 15, 7.5, and 3.75 Watts on the 70 V line.
Discreet Implementation
When permanently installed, the architecturally styled, glass filled and impact resistant TCI32-T-WH enclosure sports a classic semi matt white finish, which allows it to fit unobtrusively and elegantly into any environment. The included integral wall mounting bracket provides hidden cable management, completing the seamless visual presentation.
Installation and Connectivity

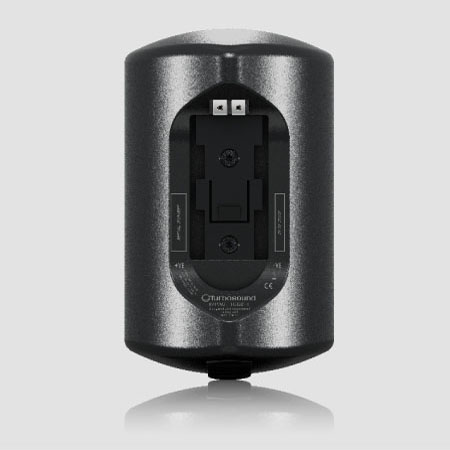

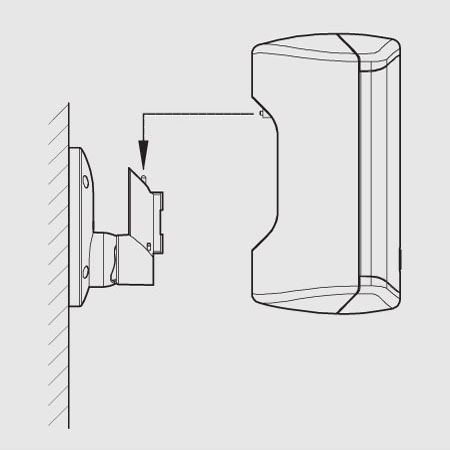

The TCI32-T-WH is supplied with an adjustable wall mounting bracket that also provides the loudspeaker connections, allowing the brackets alone to be sited, installed, and wired in the early stages of building construction or remodelling – making final installation a greatly simplified and cost effective process. Threaded internal M6 rigging points are also provided for installation with TURBOSOUND wall and ceiling hardware, as well as industry standard brackets. A convenient 3⁄8″ mic stand fitting, hidden under the EPDM rubber cover on the bottom of the cabinet, allows affixing the TCI32-T-WH to a standard microphone stand for use as a ‘spot monitor’.
คุณสมบัติ
- 2 way full range loudspeaker for portable PA and installation applications
- 1,200 Watts continuous, 4,800 Watts peak power
- Ideal for FOH, side and drum fill applications
- Carbon fibre loaded 15″ low frequency drivers with inside/outside wound coil
- Titanium dome 1.4″ neodymium motor compression driver
- Switchable passive/bi-amp operation for flexibility of use
- Low distortion waveguide provides 75? H x 50? V dispersion
- 15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
- Rugged powder coated perforated steel mesh grille
- Durable handles for easy lifting and carrying
- Multiple internal rigging points for installation applications
- Neutrik speakON* NL4 connectors for reliable long life operation
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
