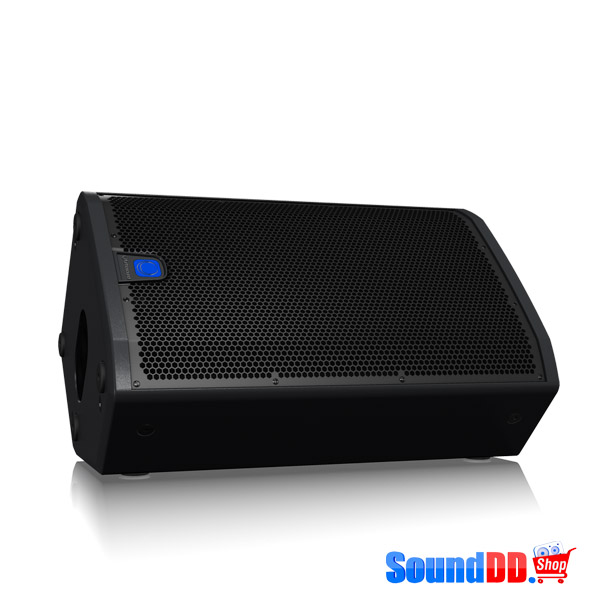

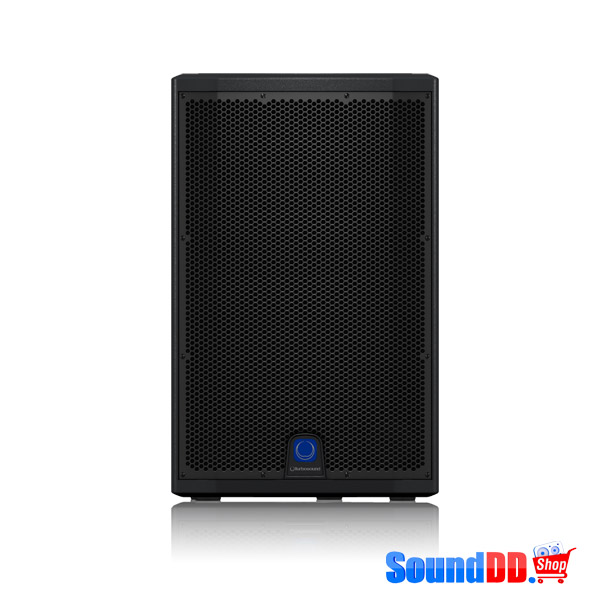

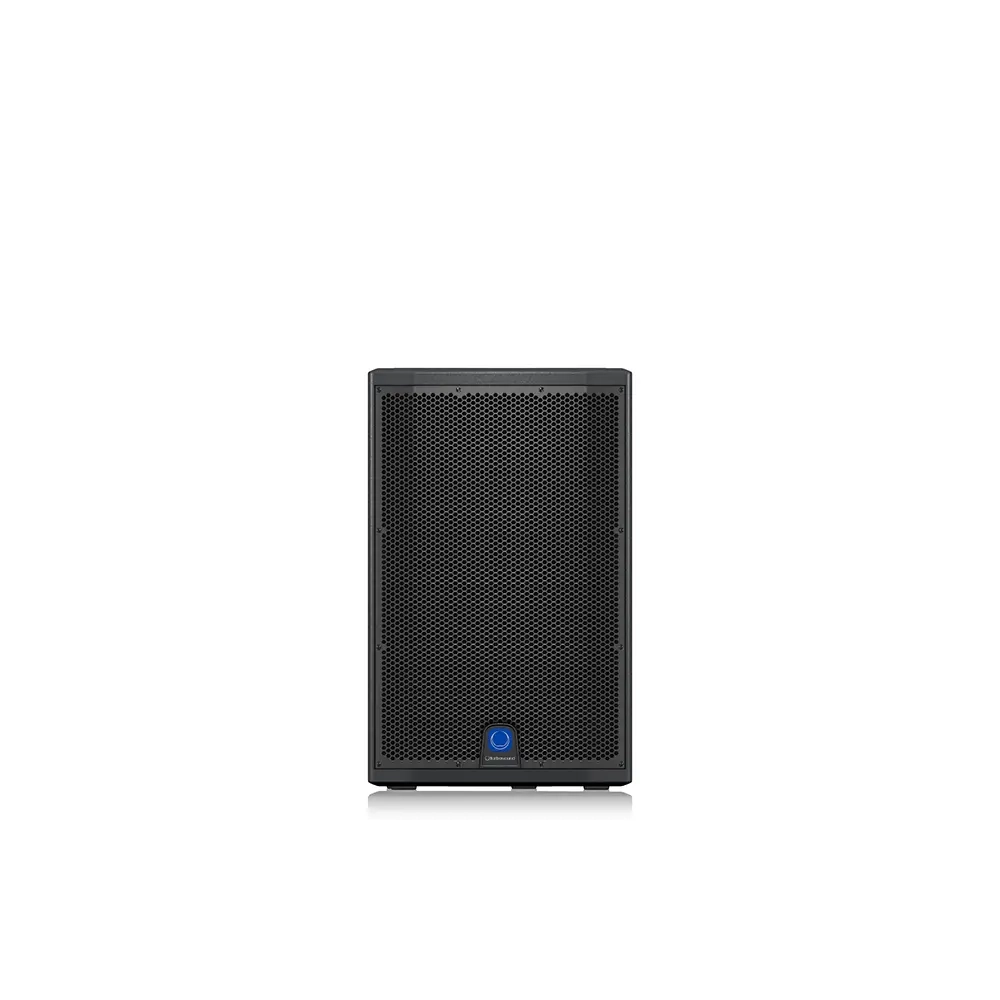

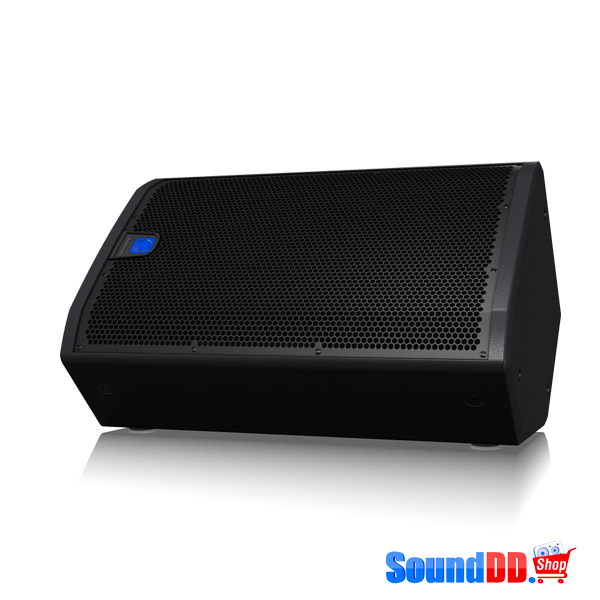

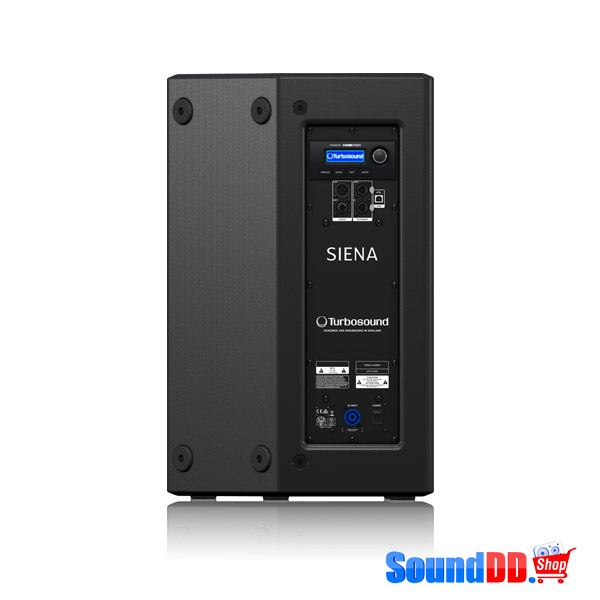

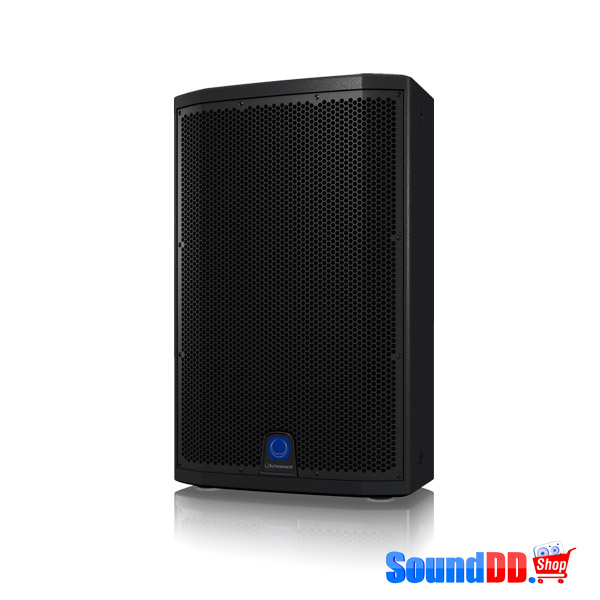

ตู้ลำโพง TURBOSOUND TSP122-AN 12 นิ้ว 2 ทาง 2,500 วัตต์ มีแอมป์ในตัว คลาส D ตอบสนองความถี่ 50 Hz – 18 kHz ±3 dB และ 43 Hz – 20 kHz -10 dB TURBOSOUND TSP-122-AN ลำโพง 12 นิ้ว จากแบรนด์ TURBOSOUND
with KLARK TEKNIK DSP Technology and ULTRANET Networking
คุณสมบัติ
-
2 way full range loudspeaker for portable PA applications
- 2,500 Watt power featuring KLARK TEKNIK Class-D technology
- KLARK TEKNIK Digital Signal Processing for total system control
- ULTRANET digital audio networking connects to mixers and other sources
- 12″ low frequency driver with inside/outside wound coil for high power handling
- Titanium dome 1″ compression driver with extended high frequency reproduction
-
Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- Low distortion waveguide provides 70° H x 50° V dispersion
- 18 mm (3/4″) birch plywood enclosure, finished in a black semi-matt textured paint
-
Rugged powder coated perforated steel mesh grille
- Dual angle pole mount for accurate coverage control
-
Multiple internal rigging points for install applications
- Mains input on Neutrik powerCON* connectors
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
สเปค
TSP122-AN
2500 Watt 2 Way 12″ Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking
Technical Specifications
System
Frequency response |
50 Hz – 18 kHz ±3 dB
43 Hz – 20 kHz -10 dB |
Nominal dispersion |
70° H x 50° V @ -6 dB Points |
Maximum SPL |
133 dB peak |
Crossover type |
Active |
Transducers |
1 x 12″ (316 mm) LF driver
1 x 1″ (25.4 mm) HF compression driver |
Limiter |
Independent HF, LF, peak and rms |
Amplifier
Maximum output power* |
2500 W |
Type |
Class-D |
Protection |
Short circuit, thermal |
Controls
DSP |
Rotary push-encoder and level control
Buttons for process, setup, exit, enter |
User DSP Functions
Factory EQ presets |
Positioning, Sound mode FBQ |
Display |
LCD 128 x 32, blue, backlit |
Delay |
0 – 300 ms |
Equalisation |
High and low shelving EQ
2 x parametric EQ |
Limiter |
Zero attack input limiter |
Presets |
20 total presets, 19 user-definable |
Crossover |
High Pass L-R 24 dB/oct |
Protection |
Lock-out function for all settings |
Ultranet Digital Network
Digital processing |
A/D conversion |
24-bit, 44.1/48 kHz sample rate |
Converter type |
24-bit, delta-sigma |
System |
Signal |
16 channels |
Latency |
< 0.9 ms |
Frequency response |
20 Hz to 20 kHz (+0 / -3 dB) |
Dynamic range |
Typical 92 dB |
Cabling |
Cables |
Shielded CAT5 |
Cable length |
Max. 246 ft / 75 m recommended |
Power Supply
Power consumption |
90 W @ 1/8 max power |
Voltage (fuses) |
USA / Canada |
120 V~, 60 Hz (T 15 A H 250 V) |
UK / Australia / Europe |
220-240 V~, 50/60 Hz (T 10 A H 250 V) |
Korea / China |
220-240 V~, 50/60 Hz (T 10 A H 250 V) |
Japan |
100 V~, 50/60 Hz (T 15 A H 250 V) |
Enclosure
Dimensions HWD |
613 x 384 x 340 mm (24.1 x 15.1 x 13.4″) |
Net weight |
21.5 kg (61.2 lbs) |
Construction |
18 mm (¾”) birch plywood |
Finish |
Semi matt black paint |
Grille |
Powder coated perforated steel |
Flying hardware |
M10 x 6 points |
Accessories
TS-PC12-2 protective cover for TSP122 |
