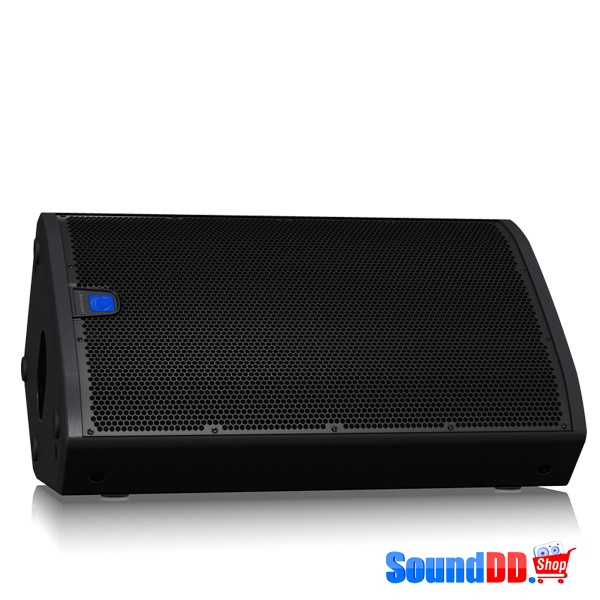

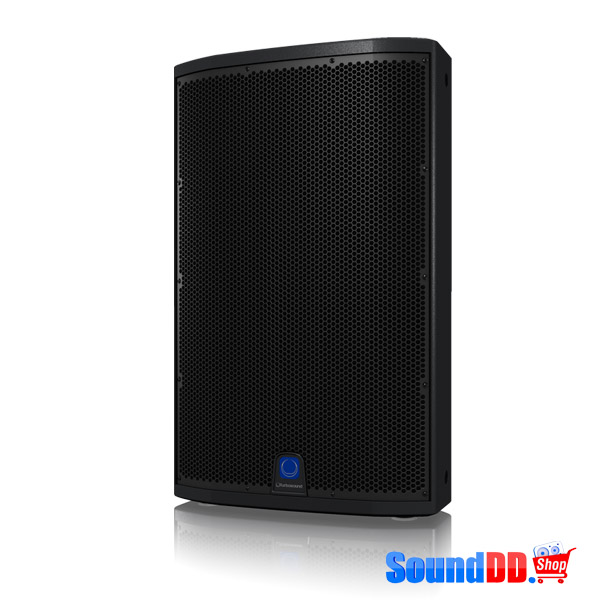

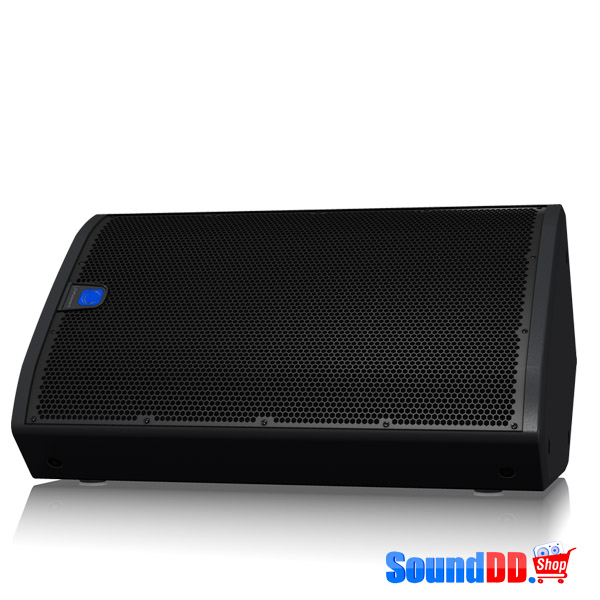

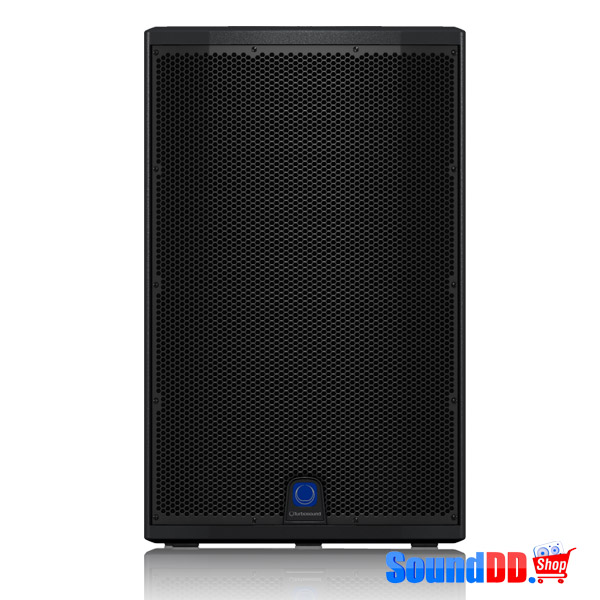

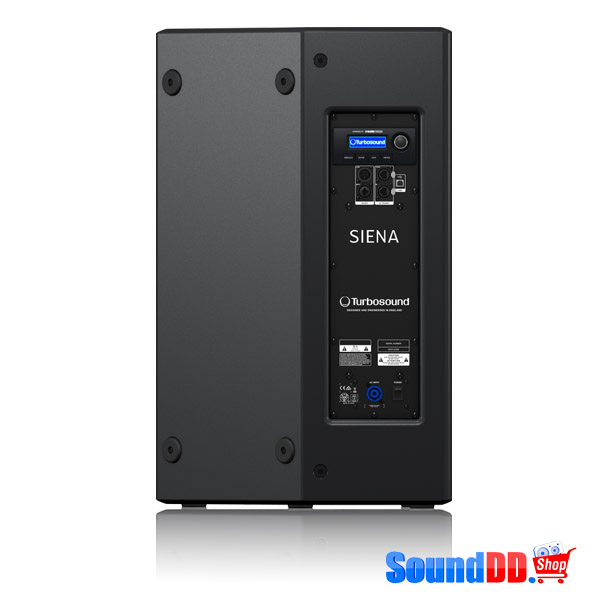

ตู้ลำโพง TURBOSOUND TSP152-AN 15 นิ้ว 2 ทาง 2,500 วัตต์ มีแอมป์ในตัว คลาส D ตอบสนองความถี่ 41 Hz – 18 kHz ±3 dB และ 35 Hz – 20 kHz -10 dB TURBOSOUND TSP-152-AN ลำโพง 15 นิ้ว จากแบรนด์ TURBOSOUND
with KLARK TEKNIK DSP Technology and ULTRANET Networking
คุณสมบัติ
- 2 way full range loudspeaker for portable PA applications
- 2,500 Watt power featuring KLARK TEKNIK Class-D technology
- KLARK TEKNIK Digital Signal Processing for total system control
- ULTRANET digital audio networking connects to mixers and other sources
- 15″ low frequency driver with inside/outside wound coil for high power handling
- Titanium dome 1″ compression driver with extended high frequency reproduction
- Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- Low distortion waveguide provides 70° H x 50° V dispersion
- 18 mm (3/4″) birch plywood enclosure, finished in a black semi-matt textured paint
- Rugged powder coated perforated steel mesh grilleDual angle pole mount for accurate coverage control
- Multiple internal rigging points for install applications
- Mains input on Neutrik powerCON* connectors
- 10-Year Warranty Program*Designed and engineered in the U.K.
สเปค
TSP152-AN
2500 Watt 2 Way 15″ Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking
Technical Specifications
System
| Frequency response |
41 Hz – 18 kHz ±3 dB
35 Hz – 20 kHz -10 dB |
| Nominal dispersion |
70° H x 50° V @ -6 dB Points |
| Maximum SPL |
133 dB peak |
| Crossover type |
Active |
| Transducers |
1 x 15″ (394 mm) LF driver
1 x 1″ (25.4 mm) HF compression driver |
| Limiter |
Independent HF, LF, peak and rms |
Amplifier
| Maximum output power* |
2500 W |
| Type |
Class-D |
| Protection |
Short circuit, thermal |
Connectors
| Input/link |
1 x Combo Jack/XLR, 1 x XLR |
| Sensitivity |
+4 dBu or +14 dBu software switchable |
| Input impedance |
40 kO balanced |
| Maximum input level |
+22 dBu |
| Ultranet input/link |
2 x RJ45 |
| Mains Supply |
Neutrik powerCON 20A† |
Controls
| DSP |
Rotary push-encoder and level control
Buttons for process, setup, exit, enter |
User DSP Functions
| Factory EQ presets |
Positioning, Sound mode FBQ |
| Display |
LCD 128 x 32, blue, backlit |
| Delay |
0 – 300 ms |
| Equalisation |
High and low shelving EQ
2 x parametric EQ |
| Limiter |
Zero attack input limiter |
| Presets |
20 total presets, 19 user-definable |
| Crossover |
High Pass L-R 24 dB/oct |
| Protection |
Lock-out function for all settings |
Ultranet Digital Network
| Digital processing |
| A/D conversion |
24-bit, 44.1/48 kHz sample rate |
| Converter type |
24-bit, delta-sigma |
| System |
| Signal |
16 channels |
| Latency |
< 0.9 ms |
| Frequency response |
20 Hz to 20 kHz (+0 / -3 dB) |
| Dynamic range |
typical 92 dB |
| Cabling |
| Cables |
Shielded CAT5 |
| Cable length |
Max. 246 ft / 75 m recommended |
Power Supply
| Power consumption |
90 W @ 1/8 max power |
| Voltage (fuses) |
| USA / Canada |
120 V~, 60 Hz (T 15 A H 250 V) |
| UK / Australia / Europe |
220-240 V~, 50/60 Hz (T 10 A H 250 V) |
| Korea / China |
220-240 V~, 50/60 Hz (T 10 A H 250 V) |
| Japan |
100 V~, 50/60 Hz (T 15 A H 250 V) |
Enclosure
| Dimensions HWD |
717 x 443 x 360 mm
(28.2 x 17.4 x 14.2″) |
| Net weight |
27 kg (61.2 lbs) |
| Construction |
18 mm (¾”) birch plywood |
| Finish |
Semi matt black paint |
| Grille |
Powder coated perforated steel |
| Flying hardware |
M10 x 6 points |
Accessories
| TS-PC15-2 protective cover for TSP152 |
