เพาเวอร์แอมป์ลายน์ WHARFEDALE PRO MA5220 70V/100V 200 วัตต์ Powered Amplifier จากแบรนด์ WHARFEDALE PRO

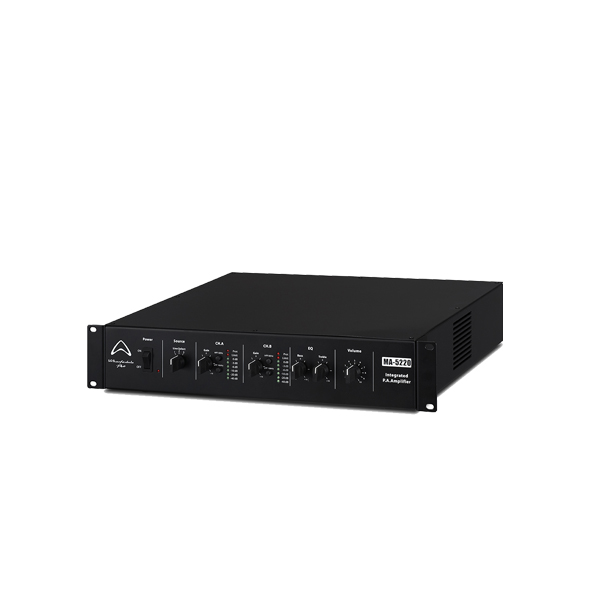

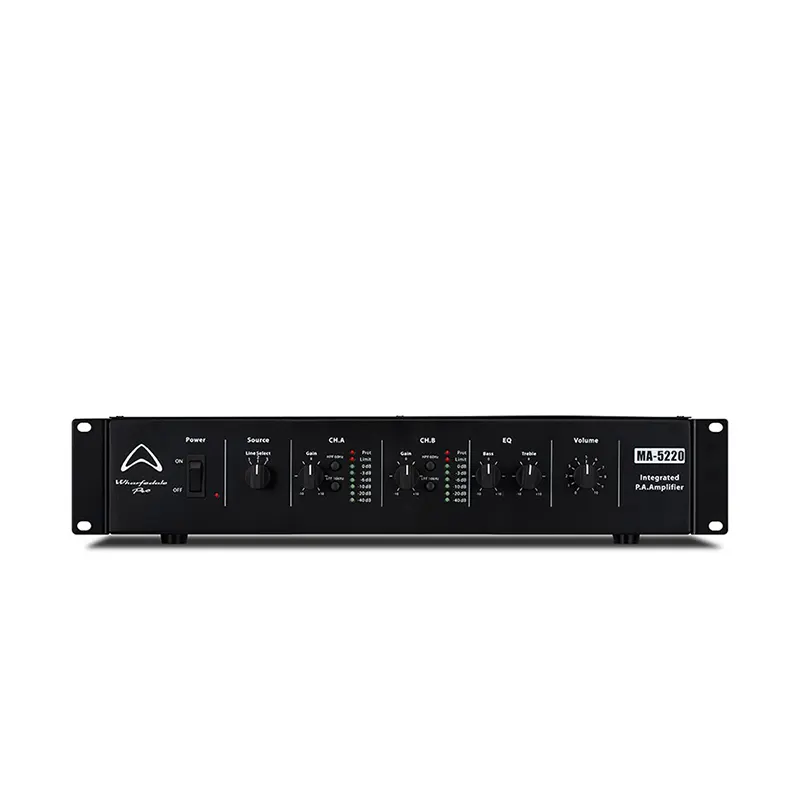

WHARFEDALE PRO MA5220
Powered Amplifier 70v/100v
Wharfedale Pro proudly announce the MA5220 Integrated Amplifier. Combining multiple line and microphone inputs, sound processing controls and options for both low impedance and constant voltage outputs the amplifier is a true contender for sound installations demanding a range of audio applications in a simplistic, affordable package.
คุณสมบัติ
- Integrated amplifier
- Ideal for public installation
- Low impedance ( 4 Ohms / 16 Ohms) operation
- Constant voltage (100v / 70v line) operation
- Screw connector outputs
- Additional line outputs
- +24v Phantom Power

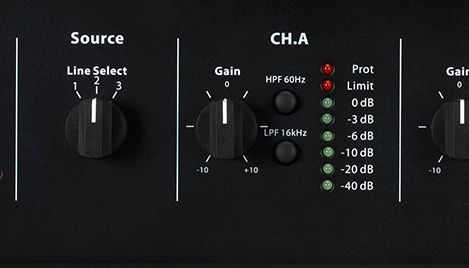

- HPF / LPF on each channel
- 2 Band Master EQ
- 8-Segment LED for level and protect display
- Built-in Limiter
- Adjustable ducking feature
- Variable speed fan cooling

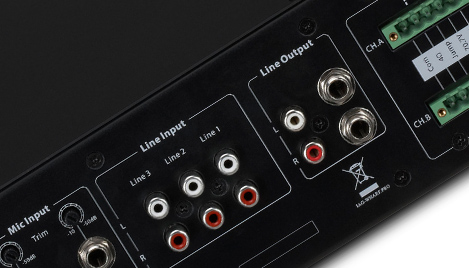

Multiple Inputs

Multiple Speaker Formations

On-board sound processing
สเปค
Power | 2 x 200W RMS |
Operation | 4 Ohms low-impedance, 110v / 70.7v |
Inputs | 3 x RCA Phono, 2 x 6.3mm Jack |

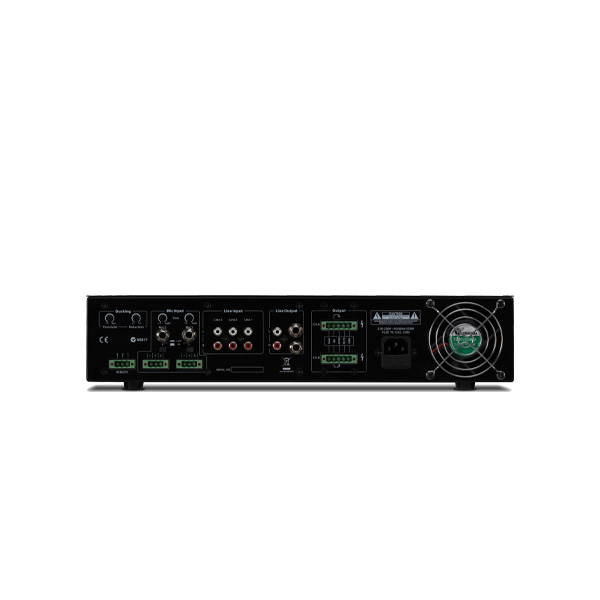

Outputs | 2 x Screw Terminal, 1 x RCA Phono,2 x 6.3mm jack |
EQ | Bass +/- 10dB at 100Hz |
Treble +/- 10dB at 12kHz | |
Filter | HPF 60Hz +/-3dB |
LPF 16Hz +/-3dB | |
Ducking Control | Threshold / Reduction |
Phantom Power | 24v |
Remote Control | Range @ -45dB |
Frequency Response | 20Hz – 20kHz +/-3dB |
Signal To Noise Ratio | >85dB |
Crosstalk | >73dB |
Input Impedance | 10k Ohms (line unbalanced) |
600 Ohms (microphone) | |
Display | 8 Segment LED |
Protection | Limiter, Fan Cooling |
Dimensions | 430mm x 360mm x 86mm |
Weight | 11.2kg / 24.69lbs |
