เพาเวอร์มิกเซอร์ WHARFEDALE PRO PMX 710 เครื่องผสมสัญญาณเสียง มีแอมป์ในตัว 7 ชาแนล คลาส D 250 วัตต์

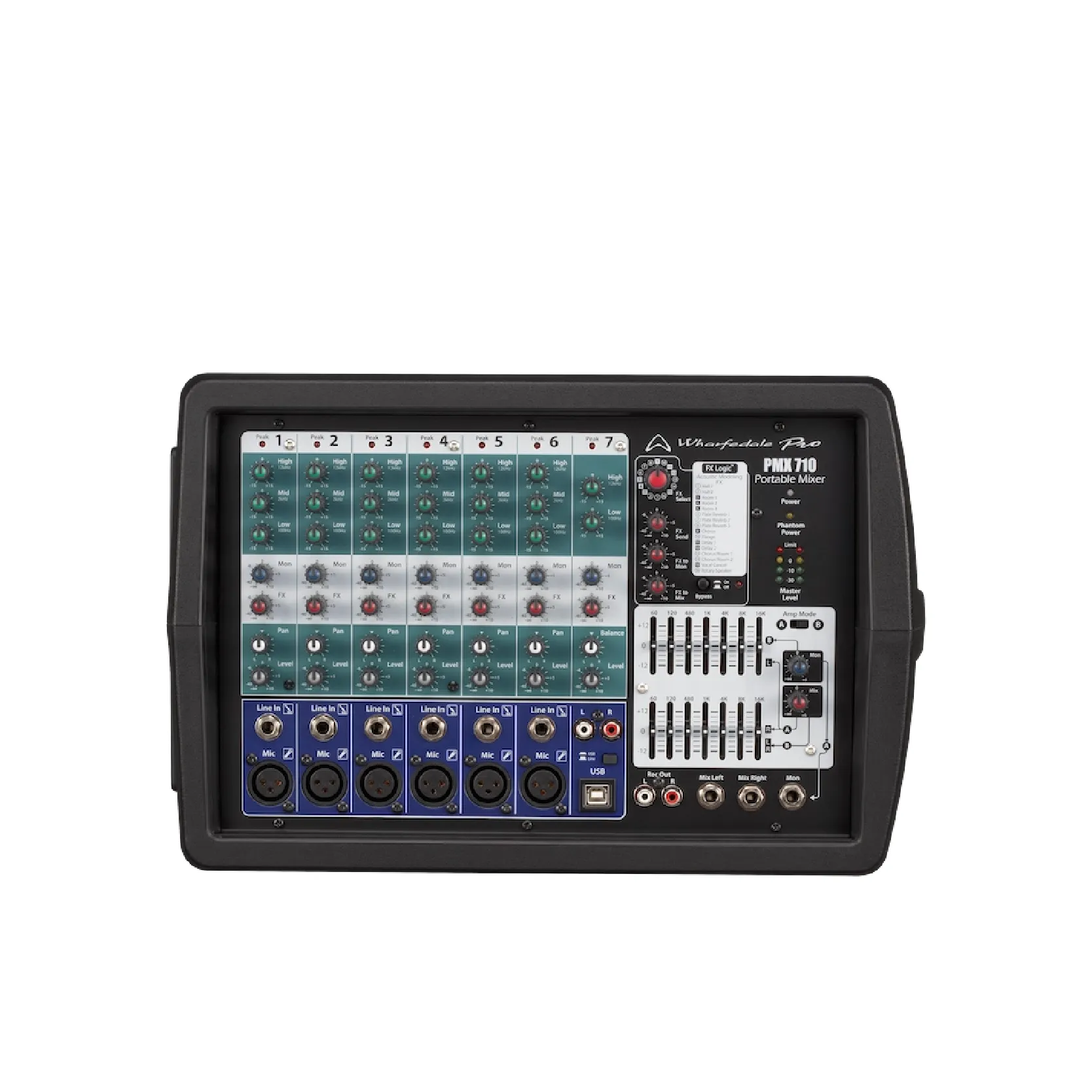

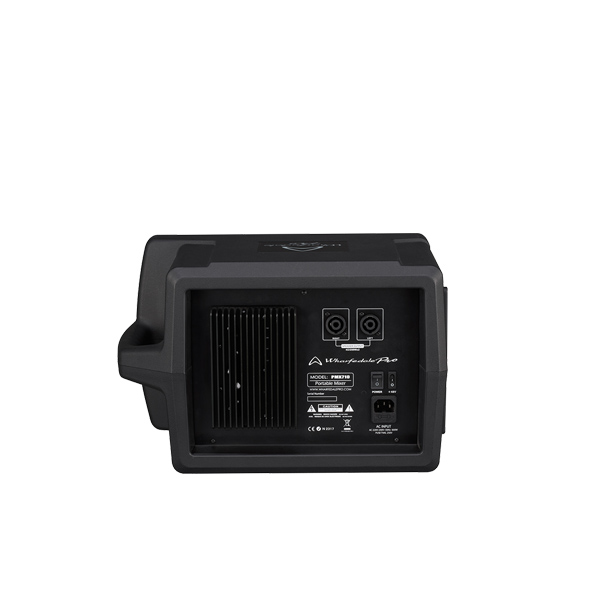

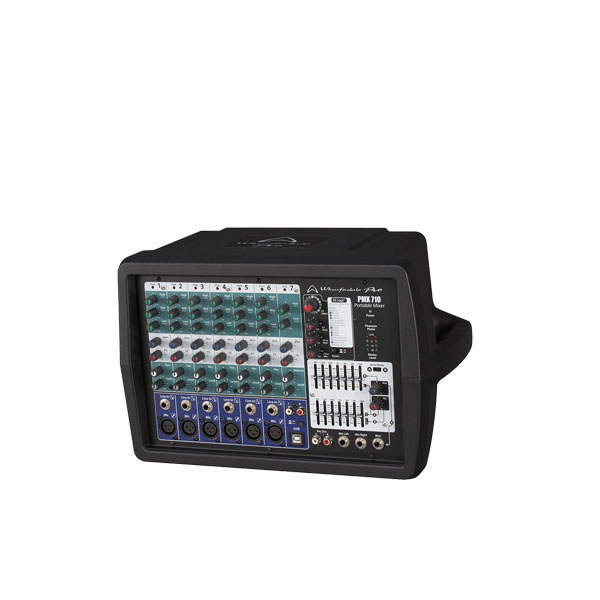

WHARFEDALE PRO PMX 710
Powered Mixer
The PMX 710 from Wharfedale Pro is a class-leading lightweight, compact and portable powered mixer. Class D amplification technology means the amplifier is portable yet powerful with built-in digital FX this is a time and space saving powered mixer perfect for the mobile performer.
คุณสมบัติ
WHARFEDALE PRO PMX-500
- 2 x 250W RMS
- Lightweight Class-D Amplifier Modules
- Lightweight, High-Efficiency Switch-Mode Power Supplies
- Phantom Powered Balanced XLR Mic Inputs
- USB Audio interface for recording and playback
- ¼” Jack and RCA Line Level Inputs
- Peak Indicator for Each Channel
- 3-Band EQ on Every Channel
- Built-in Digital FX
- Clip LED display
- Dual 7-Band Graphic EQ on Master Section
- 4 Segment LED Metering
- Jack / Speakon Outputs
More power, less weight.
Designed to be a perfect balance of portability and power the PMX 710 is suitable for use in a wide range of portable sound applications. Everything you need to mix and amplify microphones and line level sources is included in one box, with an ergonomic carry handle to aid transportation. The one box concept speeds up your setup time and allows you to start your performance quicker than ever before.
Digital FX
The PMX 710 features built in digital FX processing, expanding your creativity and improving your sound quality without the need for additional expensive and often cumbersome processors. Dual graphic EQ’s allow fine tuning of the overall mix.
USB Audio Interface
With a built-in USB audio interface, this latest series enables a stereo in/out which can be used for playback of audio files from your PC or Mac, and can also record the master output of your mixing desk. 16-bit / 48 kHz recording ensures CD quality for your audio,.
สเปค
| Channels | 7 |
| Inputs | 6 x XLR, 6 x 6.3mm jack, 2 x RCA Phono USB |
| Outputs | 2 x NL4 (speakON compatible)Combi Jack, 2 x RCA, 3 x 6.3mm jack |
| Power | 250W RMS x 2 4Ω |
| Channel EQ | 3 Band |
| FX | 16 Effects (Hall1; Hall2; Room1; Room2; Room3; Plate Reverb1; Plate Reverb2; Plate Reverb3; Chorus; Flange; Delay1; Delay2; Chorus/Room1; Chorus/Room2; Vocal Cancel; Rotary Speaker) |
| Phantom Power | Yes |
| Noise | ±15dB Maximum |
| USB | Yes |
| Graphic equalizer | Dual 7 Band Graphic EQ (60Hz, 120Hz, 480Hz, 1KHz, 4KHz, 8KHz, 16KHz) ±12dB Gain |
| Net weight | 5.7kg / 12.67lbs |
| Display | Power, Limit, Signal and Status LED’s |
| Dimension (H x W x D) | 392mm x 261mm x 243mm |
