WHARFEDALE-PRO XO-204X Stereo Two-Way Crossover
WHARFEDALE-PRO XO-204X ครอสแยกเสียง 2 ทาง แบบ สเตอริโอ XO-204X Crossover จากแบรนด์ WHARFEDALE PRO
The XO-204 is a crossover built for stereo bi amplified sound reinforcement systems. A simplified front panel layout and feature set takes the confusion out of complicated set ups. A completely intuitive interface with protective features means you can setup your system safely and easily. Both the XO-204 and XO-204X models are equipped with 2 inputs and 4 outputs, however the ‘X’ model uses balanced XLR connectors (as opposed to balanced 6.3mm Jack)
- 2-way stereo model
- 2 x 6.3mm inputs, 4 x 6.3mm outputs
- simplified one control setup for both channels
- Professional 24dB/Oct Linkwitz Riley filters
- Switchable 40Hz 12dB/Oct HPF
- Polarity switch to minimise phasing
- Soft limit option on all channels
- LF / HF mute switches for setup
- LF / HF output level control for overall tonal balance
- Mono LF output switch for subwoofers
- Balanced 1/4″ Jack inputs and outputs or Balanced XLR on ‘X’ model
- Groundlift switch
- 1U 19″ rackmount chassis
- 4 LED output level meters plus input clip indicator

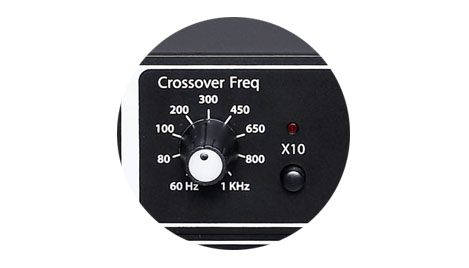

Simplistic, Accurate Control
Maximum headroom and protection
The choice is yours
Inputs / Inputs (XO-204X) | 2 x 6.3mm Jack / 2 x XLR |
Outputs / Outputs (XO-204X) | 2 x 6.3mm Jack / 4 x XLR |
Subwoofer Output / Subwoofer Output (X) | 6.3mm Jack / XLR |
Frequency Response | 10Hz – 40kHz |
Crossover Frequency | 60Hz – 10kHz |
Input Impedance | Balanced 20k ohm, unbalanced 10k ohm |
Max Output Level | +21dBu |
THD + Noise | <0.004% |
Power consumption | 12W |
Dimensions | 482mm x 250mm x 46mm |
Weight | 2.92kg |
