WORK PRO WD-616D KMT Dimmers

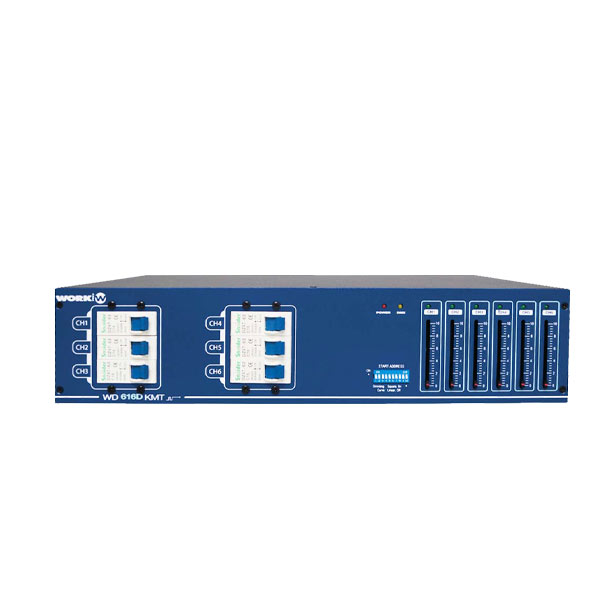

WD 616D KMT is a 6 channels dimmer pack ( 16 A each one) that provides the control over the lighting intensity.Complete, versatile and functional, fits any demand, being compatible with DMX 512 signals and has tri-phase power supply. WD 616D KMT has individualcontrol for each channel with LED showing the dimming value.
WD 616D KMT has functions as preheat up to 50% of the total output or DMX adressing trhough the dip-switches assignment.
- 6 channels digitaldimmer pack.
- Input signal: DMX 512.
- Load capacity: 16 Aper channel.
- Total 22 kW (mono-phase), 7,4 kW ( tri-phase).
- Preheat rotative control( all channels)up to50%output level.

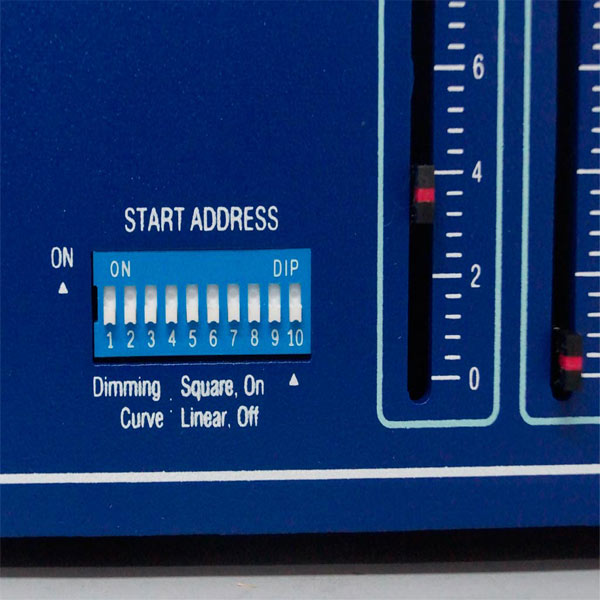

- DMX start adressconfigurablewith dip-switches.
- Individually potentiometeron each channel fader.
- 16 A circuit breakers on each channel to protect against electrical fluctuations.

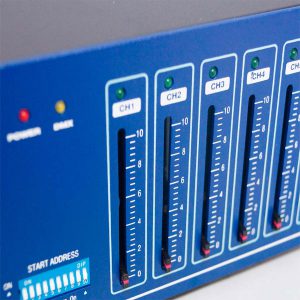

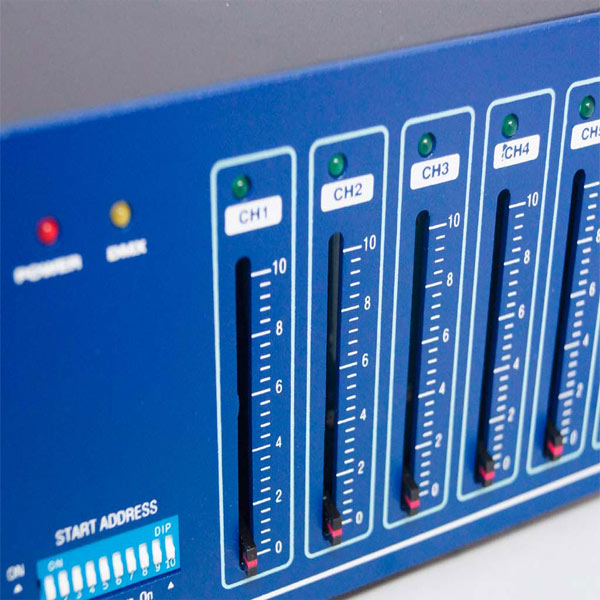

- LED indicators for output levels of each channel, DMX signal detection.
- Main supply: Mono-phase 230/240 V AC. Tri-phase (3P/N/E) 380 V AC.
- Output power: Mono-phase 7,4 kW. Tri-phase 22 kW.
- Output current: 16 A/canal.
- LOad type: Resistive and inductive (no more than 15% of nominal load if it is inductive).

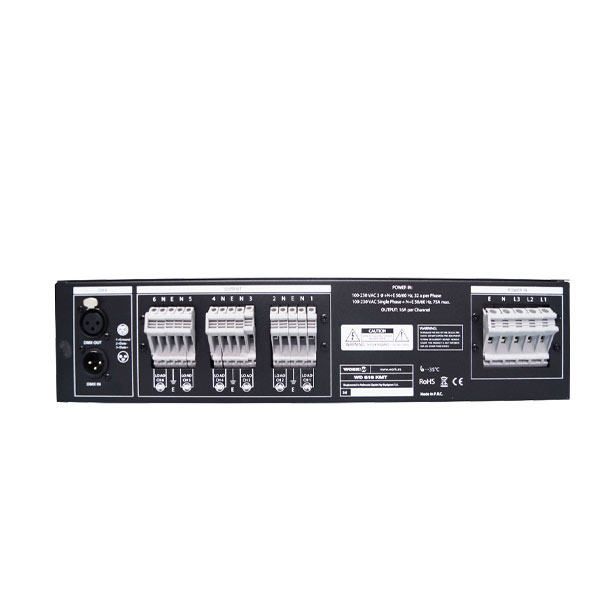

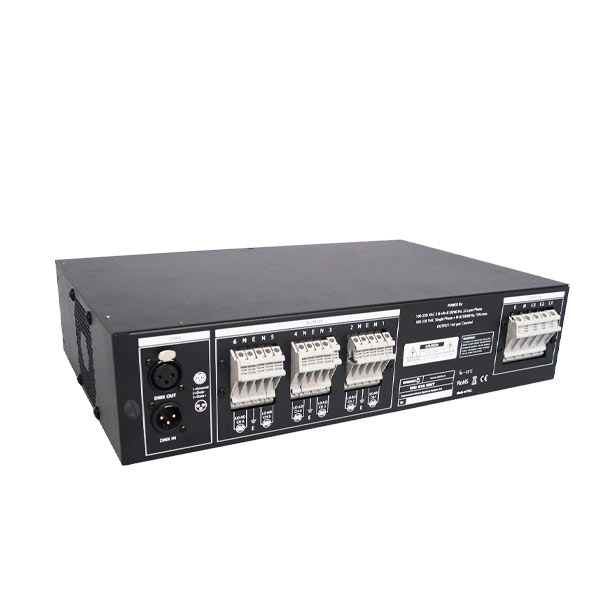

- Signal connector: DMX in : XLR-3 pin male. DMX out: XLR-3 pin female.
- Main supply connector: Terminals (L+N+E).
- Output channel connector: Terminals (L+N+E) x 6.
- Dimensions (W xH x D): 483 x 88 x 381 mm. (2 HU rack 19″).
- Weight: 8,38 kg.
