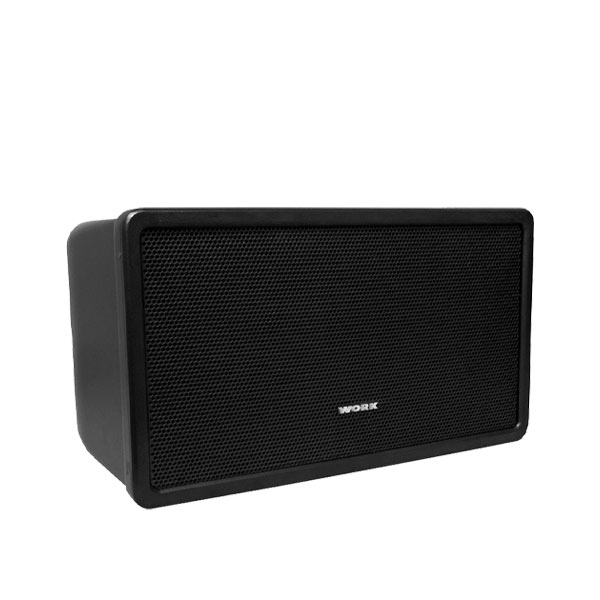

WORK PRO WFS 10-CX Audio projector. IP 65. 10” coaxial + 1” driver. 120W (100V) – 300W (8 ohm)
This audio projector has been designed for outdoor appliances. It incorporates a 10″ coaxial transducer and a 1″ compression driver.It elevate IP range (IP 65) makes it very suitable for sports facilities, entertainment complexes, etc.Its 90ºx90º directivity in most of the band, making easier the contractors job designing an installation with the adequate audio dispersion. Its 2 connectivity modes (low impedance 8 Ohm and 100V line) allows to set the devices to several acoustic solutions.

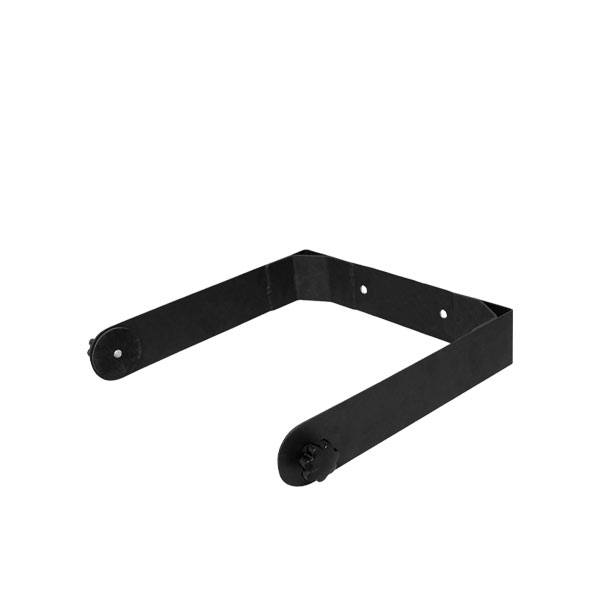

WFS 10 CX incorporates the WSTB 10 H for an easy and fast installation.
- Sound projector with coaxial transducer
- Outdoor design (IP 65)
- 8 Ohm (300W program) / 100 V LINE (120W)
- Horizontal support included WSTB 10H
- Type: Sound projector with coaxial transducer
- Elements: LF: 10″ + HF: 1″ compression driver
- Power handling(8 Ohm) : 300W program / 500W peak
- Power handling (100V Line): 120W
- Frequency response: 89Hz – 20.5 kHz. (± 6dB)
- Sensitivity(1W/1m): 104 dB
- Max. SPL: 126/131 dB
- Recommended sub-sonic filter: HPF 72 Hz.
- Dispersion angle (H/V): 90ºx90º ±10 (500Hz – 4kHz)
- Material (housing): Black fiberglass
- Material (grille): Metal
- Dimensions: 593 x 326 x 470 mm
- Weight:19.8 kg
