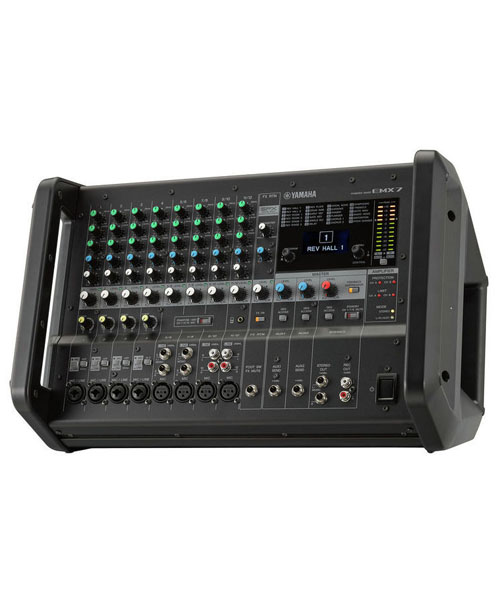

YAMAHA EMX7 เพาเวอร์ มิกเซอร์ YAMAHA EMX7 Powered Mixer YAMAHA EMX7 เครื่องผสมสัญญาณเสียงมีแอมป์ขยายในตัว (เพาเวอร์มิกเซอร์ 710W x 2 @ 4Ω)

แชร์หน้านี้ :

สอบถาม สั่งซื้อ

LINE @SoundDD.Shop

02-435-8998

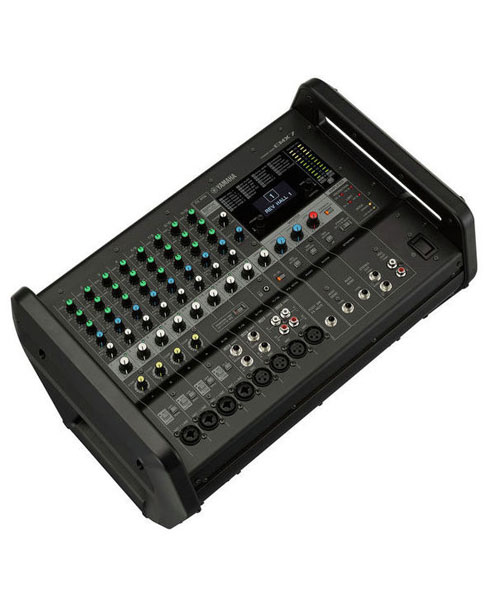

YAMAHA EMX7 เพาเวอร์มิกเซอร์ 12 ชาแนล คลาส D 2×710 วัตต์

฿40,500 (รวม VAT 7% แล้ว)

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

แชร์หน้านี้ :

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

แชร์หน้านี้ :

เครื่องผสมสัญญาณเสียงมีแอมป์ขยายในตัว YAMAHA EMX7 (เพาเวอร์มิกเซอร์ 710W x 2 @ 4Ω) YAMAHA EMX7 เพาเวอร์ มิกเซอร์

YAMAHA EMX7

Powered Mixer

รีวิว YAMAHA EMX เพาเวอร์มิกเซอร์ ตอบโจทย์ได้มากกว่า ตู้ลำโพง Active ?

หากเป็นผู้ใช่มือใหม่ ก็คงหลีกไม่พ้นที่ต้องเลือกใช้ตู้ลำโพงแบบ Active ด้วยการใช้งานที่สะดวก แต่หากใช้เพาเวอร์มิกด้วยละ จะตอบโจทย์การใช้งานได้ตรงมากกว่าหรือเปล่า ?

21
ม.ค.

อ่านบทความรีวิว คลิก

เพาเวอร์มิกเซอร์ ขนาด 12 อินพุท (8 XLR, 2 TS Stereo, 2 RCA Stereo และ 1 Mini Stereo)
710W @4Ω หรือ 500W @8Ω
Hi-z (CH4), Phantom Power (+48V), 1-Knob COMP และ SPX 24 โปรแกรม
3-Band EQ, Flex 9 GMQ และ Feedback Suppressor
Preset สำหรับลำโพงยามาฮ่า (CBR, Club A, R)

Get Serious About Your Sound

The new EMX7 and EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

YAMAHA EMX7 เพาเวอร์ มิกเซอร์ YAMAHA EMX7 Powered Mixer

คุณสมบัติ

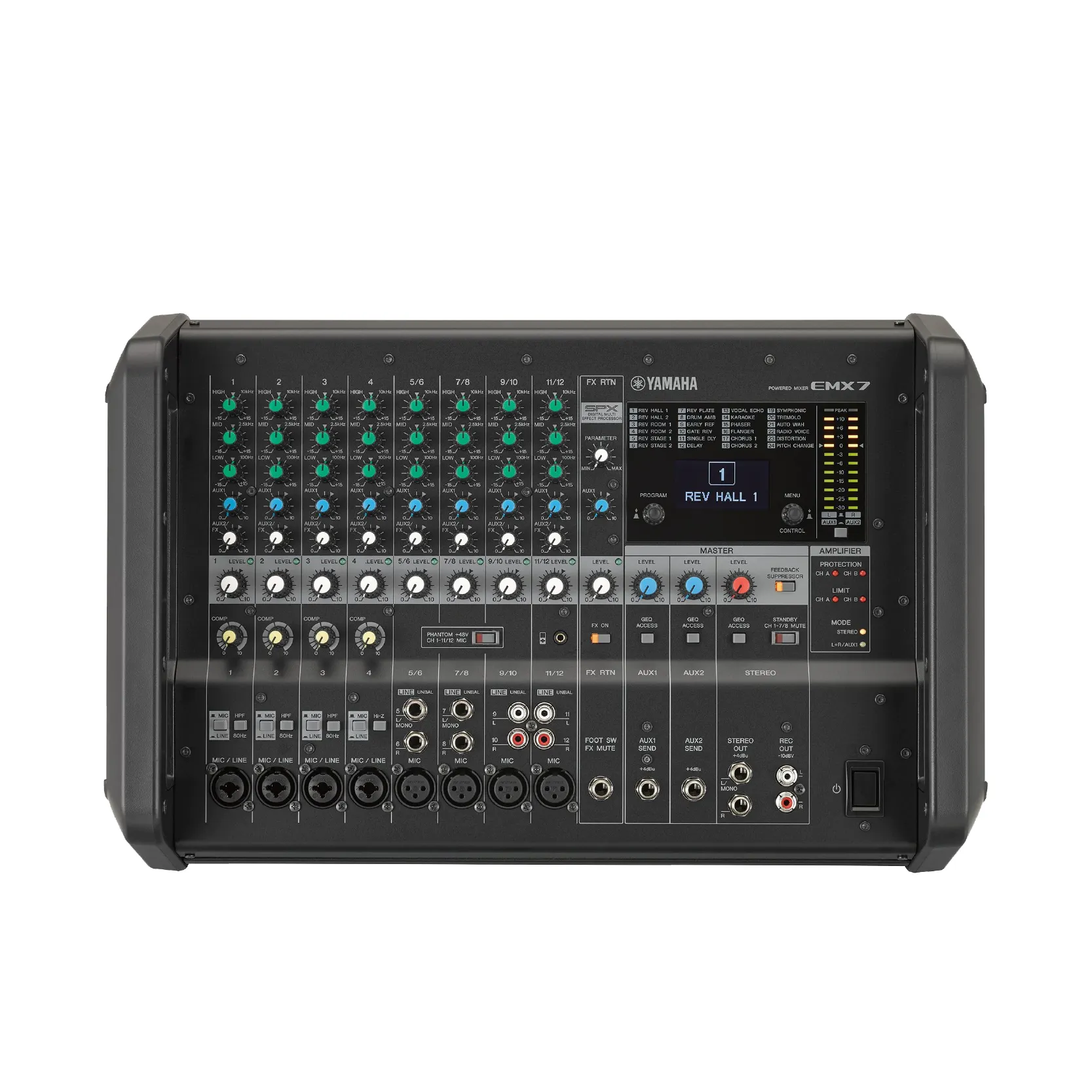

YAMAHA EMX7

Box-type robust and portable powered mixer featuring high efficiency power amplifier of 710W and mixer with comprehensive effects, Flex 9 Graphic Equalizer, speaker preset and built-in feedback suppressor.

2x 710W [4Ω], 2x 500W [8Ω] (1kHz THD+N less than 10% CEA2006)
2x 600W [4Ω], 2x 400W [8Ω] (1kHz THD+N less than 1% CEA2006)
Powerful & High Efficiency Class-D Amplifier
12 Line Inputs (8 mono + 4 stereo)
High-Z input (channel 4) to connect guitars or basses directly
Flex 9 Graphic Equalizer
Onboard Feedback Suppressor
Comprehensive, professional 24 different effects
Yamaha Speaker presets
Metal chassis for extended operation and robustness
Large handles for extreme portability and protection
Universal power supply eliminates concern on power fluctuations
Optional rack-mount kit available

Powerful & High Efficiency Class-D Amplifier

The EMX7 and EMX5 models feature a built-in high-efficiency power amplifier of 2 x 710W, 2 x 630W of output power respectively. Despite their low power consumption, these amps are capable of very high volume output, yet still manage to remain surprisingly lightweight. Both models also come equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.

Robust But Extremely Portable Design

The EMX7 and EMX5 benefit from a robust and portable design with a rugged, impact-resistant, powder-coated metal chassis geared towards extended operation and road usage. Large handles on the front and back of the enclosure make it extremely portable, and also help to protect knobs and terminals on the surface of the chassis from impact or pressure during transport.

Easy Setup, Easy Operation

With their intuitive, user-friendly architecture, the EMX7 and EMX5 can be setup and operated quickly and easily by users with a fundamental understanding of sound reinforcement. Their versatile enclosure design allows users to choose from a variety of vertical or horizontal placements depending on the type of application. From a tabletop, floor, or installation environment no matter used on a tabletop or from a seated position with the mixer placed on the floor.

Complete Range of Input & Output Channels

Both the EMX7 and EMX5 are equipped with four mono input channels and four mono/stereo input channels, allowing up to 8 microphones, and line-level devices such as keyboards and portable playback device to be connected to each channel. In addition, channel 4 can be used with Hi-Z inputs to connect instruments such as guitars or basses directly. Each model is also equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal.

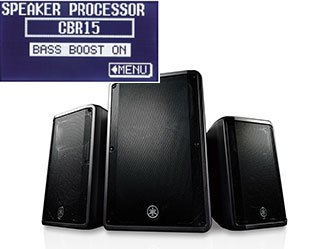

Speaker Processor and Preset (EMX7 only)

The speaker processor function allows you to select an appropriate setting to match the particular speakers you’re using. It features presets specifically tuned for each model in Yamaha’s extensive lineup of passive speakers, including CBR, Club, A and R series. This allows users to optimize speaker performance and save even more time during system setup. It also includes a bass boost function that can be enabled to significantly bring out the lower frequencies.

Onboard Feedback Suppressor

Few things make a live performance or speaking engagement take a negative turn like the sudden, uncomfortable, and often embarrassing howling of unwanted feedback. EMX7/5 come equipped with a Feedback Suppressor that utilizes a unique Yamaha digital technology to instantly eliminate annoying feedback with the single switch of a button, which utilizes a seven-band notch filter

3-band Equalizer Control

With individual knobs you can adjust the [HIGH], [MID], and [LOW] audio frequencies. You can operate instantly turning the control to amplify (boost) and attenuate (cut) the corresponding frequency band.

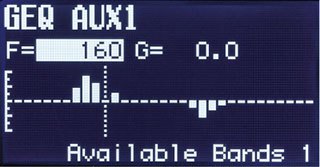

Flex 9 Graphic Equalizer (EMX7 only)

EMX7 is equipped with Flex-type graphic equalizer (Flex9GEQ) that allows you to select up to nine bands out of a total of 31 for fine tuning ±15 dB.

1-knob COMP

EMX7/5 is equipped with the popular 1-knob COMP function used in MGP and MG series models. By simply operating a single control, it is possible to get optimal compression for vocals and instruments. As the [COMP] control is turned to the right, the threshold, ratio, and output gain are adjusted simultaneously.

YAMAHA EMX7 Rack-Mounting

EMX7/5 can be mounted onto a 19-inch rack by using the RK-EMX7 (rack-mount kit) sold separately.

YAMAHA EMX7 Comprehensive, Professional Effects and Signal Processing

EMX7/5 are equipped with a powerful, comprehensive DSP section that provides a total of 24 different effects that are in the same league as our famed SPX effect processor series used by professionals. It is possible to add reverb and delay effects that simulate the sound of different performance environments, such as concert halls and small clubs.

YAMAHA EMX7 Flexible Speaker Connectivity

EMX7/5 are equipped with speaker jacks which can be used with both TS phone and speakON plugs.

YAMAHA EMX7 Internal Universal Power Supply

EMX7/5 have a highly-efficient internal universal power supply, then offer worry-free operation in any region around the globe – even in environments prone to potentially damaging power fluctuations. An internal power supply also simplifies rack mounting of the console for installed applications, eliminating the need for a bulky adapter or additional connections.

ยี่ห้อ	YAMAHA
จำนวนช่อง (Channel)	มิกเซอร์ 12 ชาแนล

สเปค

Outline		EMX7
I/O	Inputs	TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
	Phantom power	+48 V
	Outputs	SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
	Control and others	FOOT SWITCH : Effect Mute on/off
Bus		Stereo: 1, AUX: 2 (Including FX)
Input Channel Function	PAD	30 dB (CH1-4)
	Hi-Z	Supported (CH4)
	HPF	80 Hz, -12 dB/oct. (CH1–3)
	COMP	1-knob COMP (CH1–4)
	EQ HIGH	10 kHz +15 dB / -15 dB (Shelving)
	EQ MID	2.5 kHz +15 dB / -15 dB (Peaking)
	EQ LOW	100 Hz +15 dB / -15 dB (Shelving)
On-board processors	DSP	SPX Algorithm 24 programs, Feedback suppressor, Graphic equalizer, Speaker processor
On-board amplifiers	Maximum output power @4ohms	1kHz THD+N less than 10% (CEA2006) : 710 W + 710 W, 1kHz THD+N less than 1% (CEA2006) : 600 W + 600 W
On-board amplifiers	Maximum output power @8ohms	1kHz THD+N less than 10% (CEA2006) : 500 W + 500 W, 1kHz THD+N less than 1% (CEA2006) : 400 W + 400 W
Level Meter		2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK)
General specifications		EMX7
Frequency response		Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
Total harmonic distortion		Input to SPEAKERS: MIC/LINE =LINE (CH1–4): 0.1% @ 10 W (40 Hz to 20 kHz), 0.04% @ 65 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: MIC/LINE =LINE (CH1–4): 0.02% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
Hum & noise level	Equivalent input noise	-117 dBu (Noise is measured with A-weighting filter)
Hum & noise level	Residual output noise	Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
Crosstalk		-85 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuit	Load protection	DC-fault
	Amplifier protection	Over heat protection, Over current protection, Integral power protection
	Power supply protection	Over heat protection, Over current protection
Power requirements		AC 100-240V, 50Hz/60Hz
Power consumption		45 W (Idle) / 250 W (1/8 Power)
Dimensions	W	465 mm (18 5/16″)
	H	308 mm (12 1/8″)
	D	325 mm (12 13/16″)
Net weight		9.5 kg (20.9 lbs)
Accessories		Owner’s Manual, Technical Specifications, AC power cord (2.5 m)
Options		Foot switch: FC5, Rack-mount brackets: RK-EMX7
Others		Operating Temperature : 0 to +40℃

(0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 Ω All level controls are at their maximum position if not specified.)

YAMAHA EMX7 Input Characteristics

Input Jack		MIC/LINE	Hi-Z	Actual Load Impedance	For Use with Nominal	Input Level			Connector
Input Jack		MIC/LINE	Hi-Z	Actual Load Impedance	For Use with Nominal	*Sensitivity 1**	*Nominal Level (▼ Position) 2**	Max. Before Clip	Connector
CH 1–4	XLR	MIC	–	3 kΩ	50–600 Ω Mics	-60 dBu (0.775 mV)	-43 dBu (5.48 mV)	-15 dBu (138 mV)	Combo jack *3 (Balanced)
	XLR	LINE	–	3 kΩ	50–600 Ω Mics	-30 dBu (24.5 mV)	-13 dBu (173 mV)	+15 dBu (4.36 V)
	Phone	MIC	–	8 kΩ	600 Ω Lines	-50 dBu (2.45 mV)	-33 dBu (17.3 mV)	-5 dBu (436 mV)
	Phone	LINE	–	8 kΩ	600 Ω Lines	-20 dBu (77.5 mV)	-3 dBu (548 mV)	+25 dBu (13.8 V)
CH 4 (Hi-Z)	Phone	MIC	ON	1 MΩ	10 kΩ Lines	-50 dBu (2.45 mV)	-33 dBu (17.3 mV)	-5 dBu (436 mV)	Phone jack *4 (Unbalanced)
CH 4 (Hi-Z)	Phone	LINE	ON	1 MΩ	10 kΩ Lines	-20 dBu (77.5 mV)	-3 dBu (548 mV)	+20 dBu (7.75 V)	Phone jack *4 (Unbalanced)
CH 5/6, 7/8	XLR	–	–	3 kΩ	50–600 Ω Mics	-60 dBu (0.775 mV)	-43 dBu (5.48 mV)	-15 dBu (138 mV)	XLR-3-31 *5 (Balanced)
CH 5/6, 7/8	Phone	–	–	10 kΩ	600 Ω Lines	-20 dBu (77.5 mV)	-3 dBu (548 mV)	+25 dBu (13.8 V)	Phone jack *4 (Unbalanced)
CH 9/10, 11/12	XLR	–	–	3 kΩ	50–600 Ω Mics	-60 dBu (0.775 mV)	-43 dBu (5.48 mV)	-15 dBu (138 mV)	XLR-3-31 *5 (Balanced)
CH 9/10, 11/12	Pin	–	–	10 kΩ	600 Ω Lines	-8 dBu (316 mV)	+10 dBu (2.45 V)	+25 dBu (13.8 V)	RCA pin (Unbalanced)
CH 11/12	Mini jack	–	–	10 kΩ	600 Ω Lines	-8 dBu (316 mV)	+10 dBu (2.45 V)	+25 dBu (13.8 V)	Stereo mini jack *6 (Unbalanced)

(0 dBu = 0.775 Vrms)
*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)
*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.
*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD
*4 Tip = Signal, Sleeve = GND
*5 1 = GND, 2 = HOT, 3 = COLD
*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND

YAMAHA EMX7 Output Characteristics

Output Jack	Actual Source Impedance	For Use with Nominal	Output level		Connector
Output Jack	Actual Source Impedance	For Use with Nominal	Nominal	Max. Before Clip	Connector
STEREO OUT L, R	600 Ω	10 kΩ Lines	+4 dBu (1.228 V)	+20 dBu (7.75 V)	Phone jack *1 (Impedance balanced)
AUX SEND 1, 2	600 Ω	10 kΩ Lines	+4 dBu (1.228 V)	+20 dBu (7.75 V)	Phone jack *1 (Impedance balanced)
REC OUT L, R	600 Ω	10 kΩ Lines	-10 dBV (0.308 V)	+18 dBV (7.75 V)	RCA pin (Unbalanced)

(0 dBu = 0.775 Vrms 0 dBV = 1.00 Vrms)
*1 Tip = HOT, Ring = COLD, Sleeve = GND

Speaker Output Characteristics

Output Jack	Actual Source Impedance	For Use with Nominal	Output level		Connector
Output Jack	Actual Source Impedance	For Use with Nominal	1 kHz THD+N < 1% (CEA2006)	1 kHz THD+N < 10% (CEA2006)	Connector
SPEAKERS A, B	< 0.1 Ω	4 Ω Speakers	600 W (EMX7), 500 W (EMX5)	710 W (EMX7), 630 W (EMX5)	speakON NL4 1 Phone jack 2
SPEAKERS A, B	< 0.1 Ω	8 Ω Speakers	400 W (EMX7), 370 W (EMX5)	500 W (EMX7), 460 W (EMX5)	speakON NL4 1 Phone jack 2
