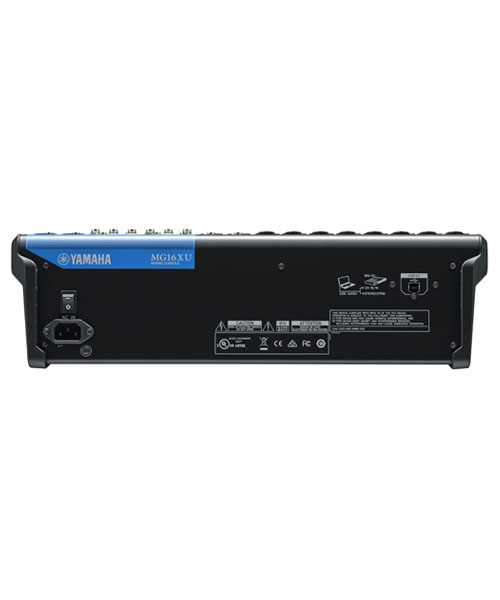

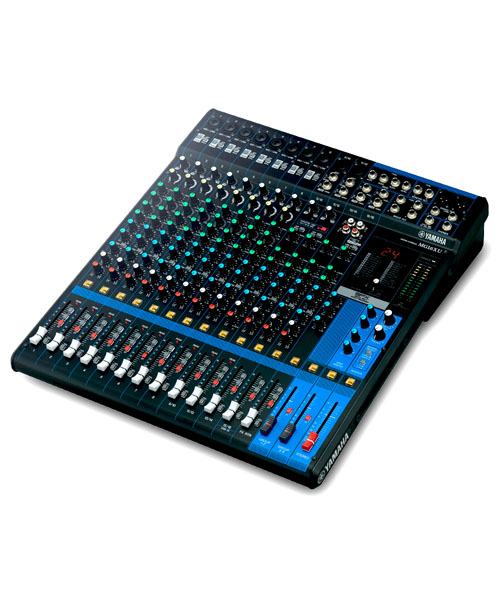

YAMAHA MG16XU Analog Mixer 16 Input เครื่องผสมสัญญาณเสียง มิกเซอร์อนาล็อก 16 ชาแนล

฿28,350 (รวม VAT 7% แล้ว)

  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ
แชร์หน้านี้ :
  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ
แชร์หน้านี้ :

มิกเซอร์อนาล็อก 16 ชาแนล YAMAHA MG16XU Analog Mixer 16 Input เครื่องผสมสัญญาณเสียง

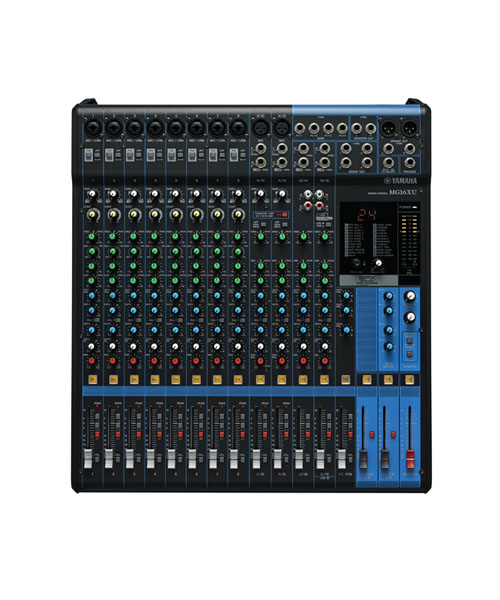

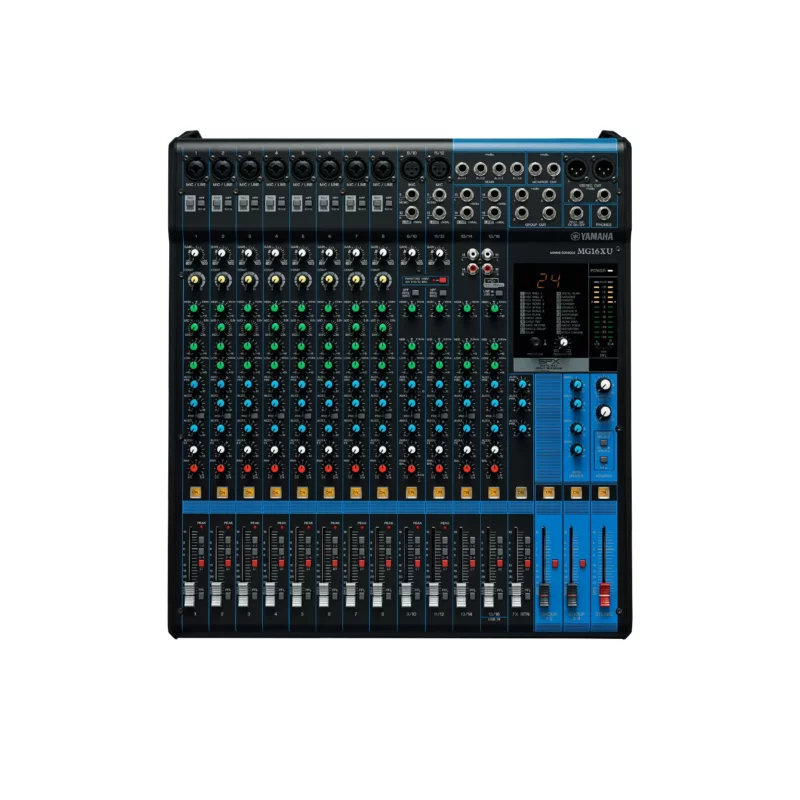

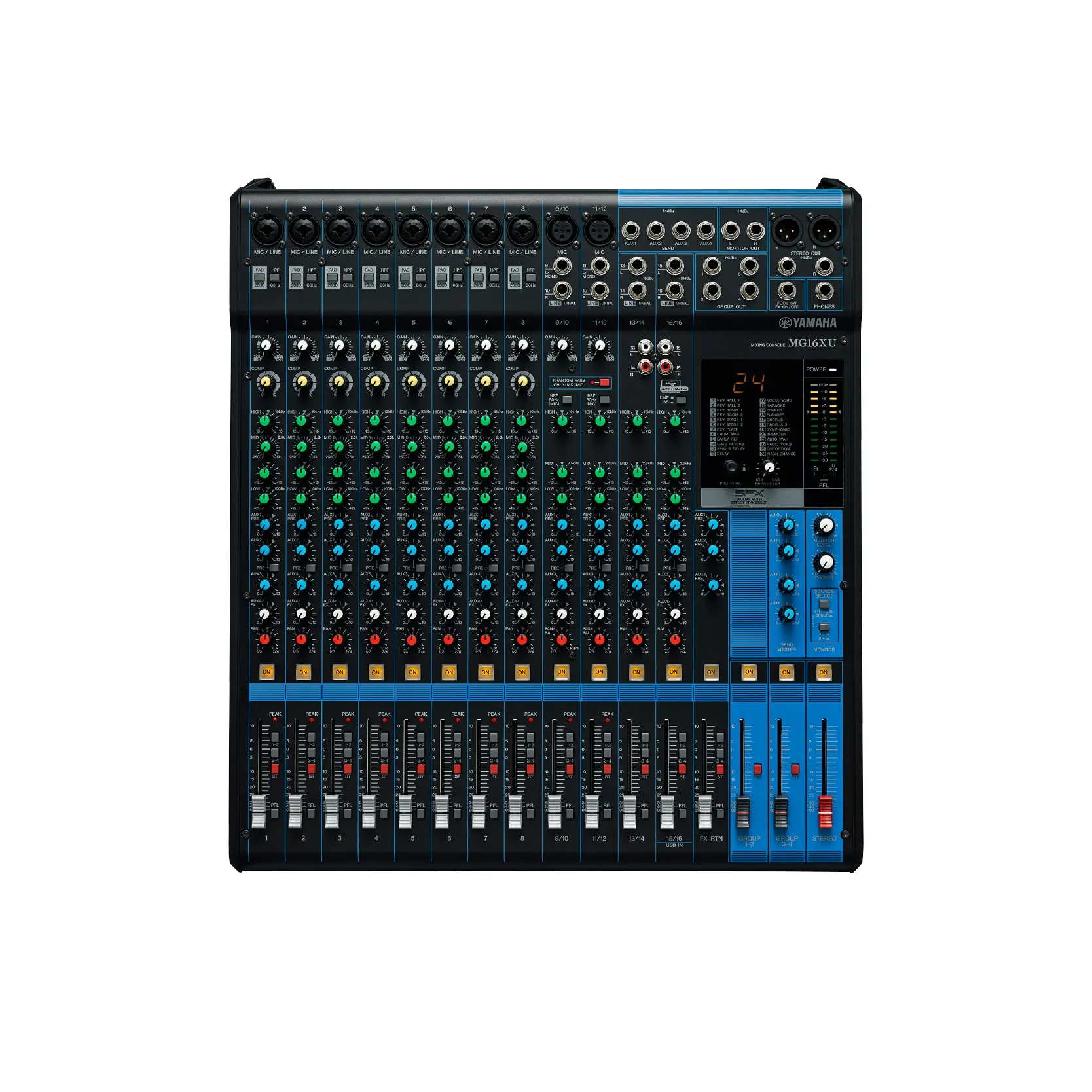

YAMAHA MG16XU

Analog Mixer 16 Input (8 mono + 4 stereo) 4 Group Buses + 1 Stereo Bus 4 AUX , USB , Cubase AI , Effects

วิธีใช้งานมิกเซอร์ YAMAHA MG XU SERIES แนะนำวิธีการใช้งานเข้าใจง่ายๆ

แนะนำวิธีการใช้งานมิกเซอร์อนาล็อก YAMAHA MG Series (XU Model) เหมาะสำหรับการนำไปใช้ในงานที่หลากหลาย

  • มิกเซอร์ขนาด 16 อินพุท (8 โมโน และ 4 สเตอริโอ)(D-PRE)
  • ช่องเอาท์พุทแบบ XLR และ TRS
  • USB Audio 24-bit 192 kHz สนับสนุนการทำงานร่วมกับ iPad2 ขึ้นไป
  • เอฟเฟคท์ SPX คุณภาพสูง 24 โปรแกรม พร้อมด้วย Cubase AI
  • 4 AUX และ 4 Group
D-PRE

ถูกออกแบบมาเพื่อเก็บรายละเอียดของเสียงต้นฉบับได้อย่างครบถ้วน ด้วยวงจร Discrete Inverted Darlington แบบคู่ ที่ให้เสียงสะอาด เที่ยงตรงและสัญญาณรบกวนต่ำ ปราศจากความผิดเพี้ยนของสัญญาณเสียง

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a “signature” sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never.

Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix.

Equipped with some of the same state-of-the-art functionality featured on Yamaha’s high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.

For gigging, recording, and installed applications alike, your console can be subjected to a wide range of environmental conditions and hazards.

Excessive humidity, unstable power supplies, and the rigors of road travel in general can take a serious toll on a mixing console, often causing expensive, time-consuming repairs, and reducing its lifespan.

The MG Series has been redesigned with an emphasis on durability, incorporating practical features that offer greater flexibility while ensuring peak performance for many years to come.

The MG Series features the same digital connectivity that is used to streamline the recording process on Yamaha’s professional-level mixing consoles. Take advantage of state-of-the-art digital technology that makes it easier than ever to plug-in, play, record, and then listen to your creations.

คุณสมบัติ

  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit/192kHz 2in/2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase Al DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5″ x 5.1″ x 19.7″)
  • Net Weight: 6.8 kg (15.0 lbs.)
ยี่ห้อ

จำนวนช่อง (Channel)

สเปค

Outline

Mixing capability

On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

I/O

Phantom power +48 V
Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Input Channels

Mono[MIC/LINE] 8
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2

Output Channels

STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 4
GROUP OUT 4

Bus

Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)

Input Channel Function

PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General specifications

Total harmonic distortion

0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response

+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level

Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)

Crosstalk

-78 dB

Power requirements

AC 100 – 240 V, 50 / 60 Hz

Power consumption

30 W

Dimensions

W 444 mm (17.5″)
H 130 mm (5.1″)
D 500 mm (19.7″)

Net weight

6.8 kg (15.0 lbs.)

Accessories

Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5

Others

Operating Temperature: 0 to +40˚C



ดาวน์โหลด
