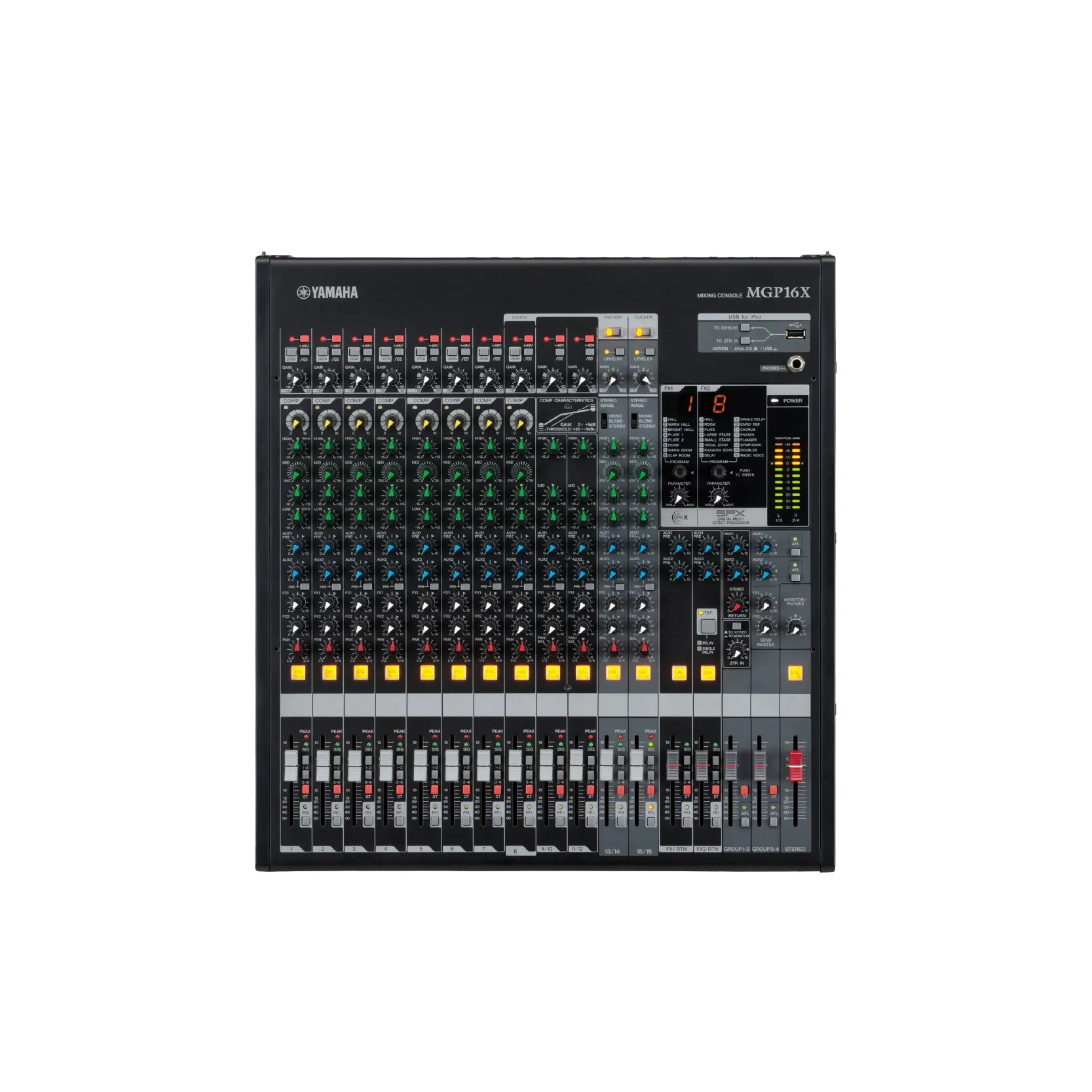

YAMAHA MGP16X มิกเซอร์ อนาล็อก 16 ชาแนล YAMAHA MGP16X เครื่องผสมสัญญาณเสียง อนาล็อก จากแบรนด์ YAMAHA
YAMAHA MGP16X
Analog Mixer 16 Channel 10 Mic
- มิกเซอร์ขนาด 16 อินพุท (10 โมโน 2 สเตอริโอ และ 2 FX) (D-PRE)
- REV-X (8 โปรแกรม) และ SPX (16 โปรแกรม)
- Hybrid Channel ใช้งานในสไตล์อนาล็อค (Ducker, Leveler, Stereo Image)
- เล่นเพลงผ่านอุปกรณ์ iPod/iPhone และควบคุมการทำงานด้วย MGP Editor
- 2 AUX, 2 FX send และ 4 Group
ถูกออกแบบมาเพื่อเก็บรายละเอียดของเสียงต้นฉบับได้อย่างครบถ้วน ด้วยวงจร Discrete Inverted Darlington แบบคู่ ที่ให้เสียงสะอาด เที่ยงตรงและสัญญาณรบกวนต่ำ ปราศจากความผิดเพี้ยนของสัญญาณเสียง
When it comes to audio engineering and sound reinforcement, the verdict is in—nothing beats the warmth and musicality of analog sound. By incorporating state-of-the-art digital technologies into the development process of our premium professional analog equipment, the MGP is the next step in the evolution of compact professional mixers.
The MGP is the realization of a new approach towards the utilization of digital technologies in a mixer, offering simple, analog-style control of sophisticated DSP functions. One of the most compelling features of analog gear is the direct, hands-on, intuitive operation that unites the operator with the console. The MGP sought to keep this feel consistent throughout the design to offer a wealth of functionality, yet with a simple, familiar touch.
In response to the growing demand for compatibility with iPod/iPhone, iPod/iPhone integration with the MGP offers much more than simple playback. With a single connection your Apple device is transformed into a flexible controller, giving you more detailed control of your MGP console.
-
10 Mic Inputs with 48V Phantom Power and HPF per Channel
-
16 Line Inputs (8 mono and 4 stereo)
-
4 GROUP Buses + ST Bus
-
2 AUX Sends + 2 FX Sends
Outline |
MGP16X |
|
Mixing capability |
Mixing channels | 16 Line Inputs (8 mono and 4 stereo) |
GROUP | 4 GROUP Buses + ST Bus | |
AUX | 2 AUX Sends + 2 FX Sends | |
Input channel functions | Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving | |
On-board processors | FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control) | |

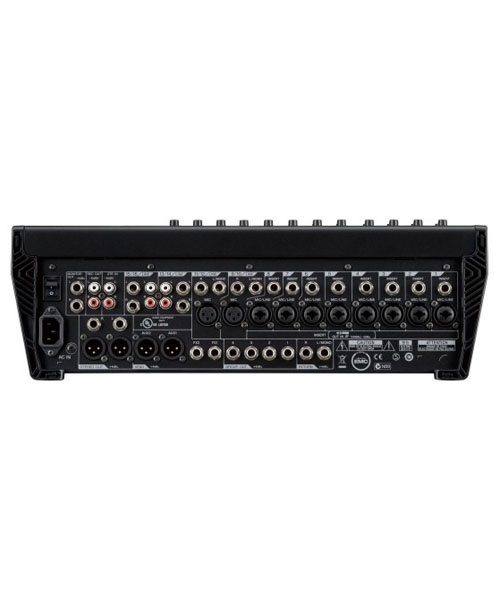

I/O |
Mic inputs | MIC: 10 |
Phantom power | 48V phantom power per channel | |
Line inputs | LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo | |
Digital I/O | USB Audio USB IN: iPod, iPhone exclusive | |
General specifications |
MGP16X |
|
Total harmonic distortion |
0.02% (20Hz-20kHz@ +14dBu) | |
Frequency response |
+0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz | |
Hum & noise level |
Equivalent input noise | -128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) |
Residual output noise | -102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) | |
Crosstalk |
-74dB @ 1kHz | |
Power requirements |
100-240V 50Hz/60Hz | |
Power consumption |
55W max | |
Dimensions |
W | 447mm |
H | 143mm | |
D | 495mm | |
Net weight |
9.0kg |
