YAMAHA Rio3224-D2 ดิจิตอล สเตจบ๊อกซ์ 32 Input 16 Output YAMAHA Rio3224-D2 Rack จากแบรนด์ YAMAHA

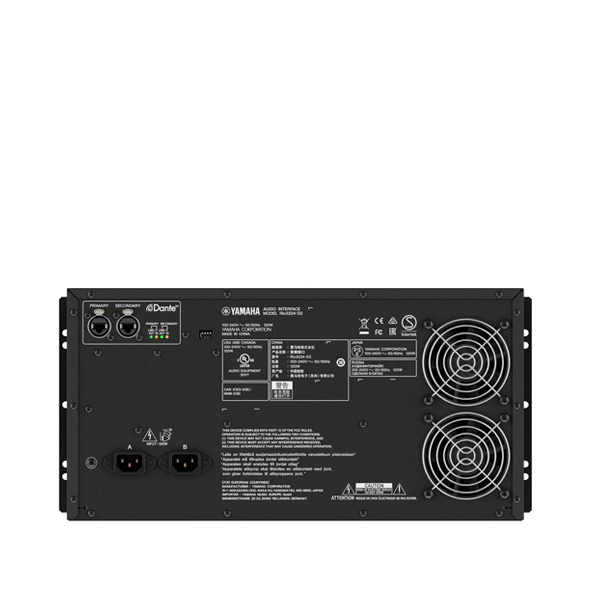

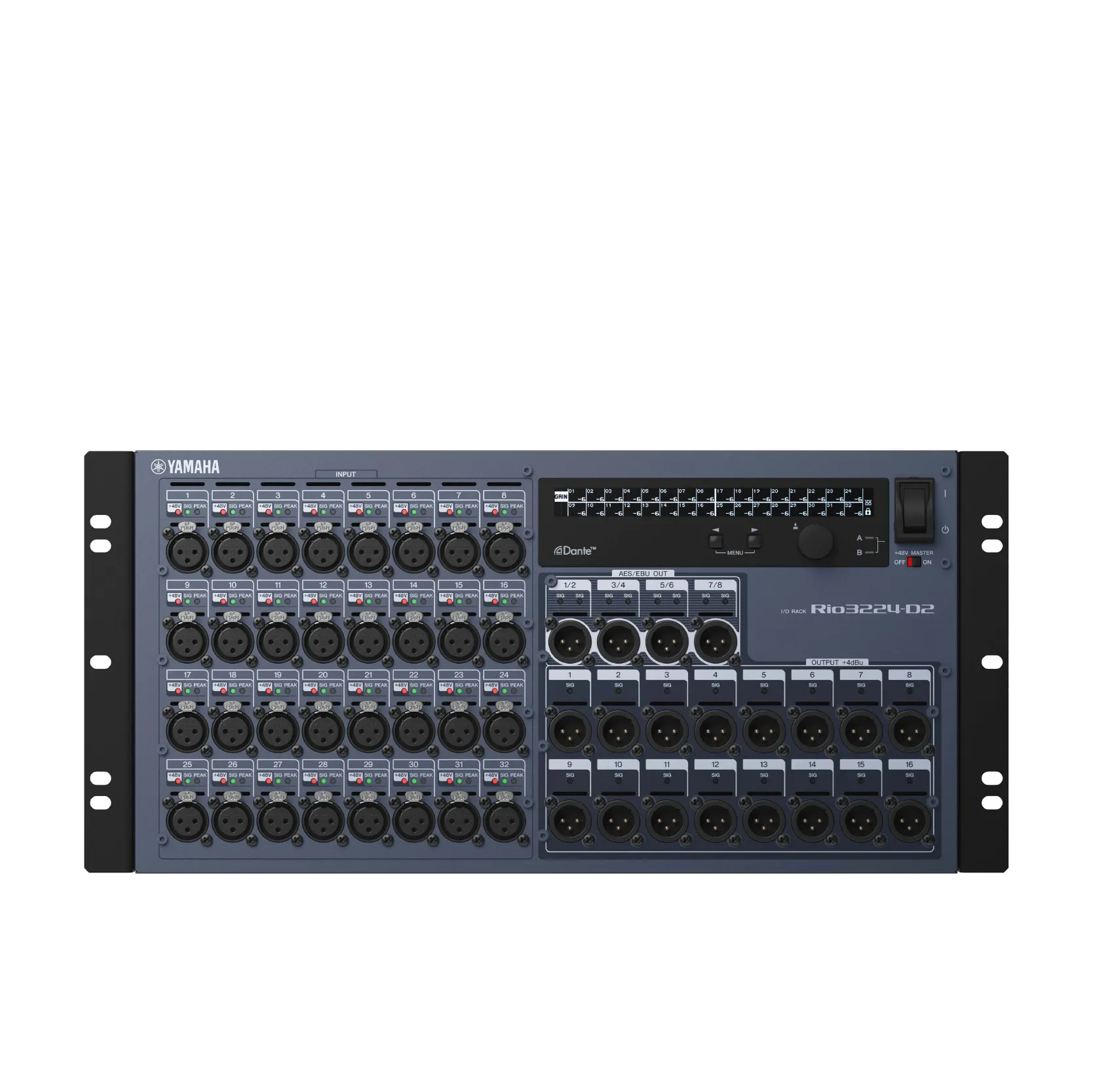

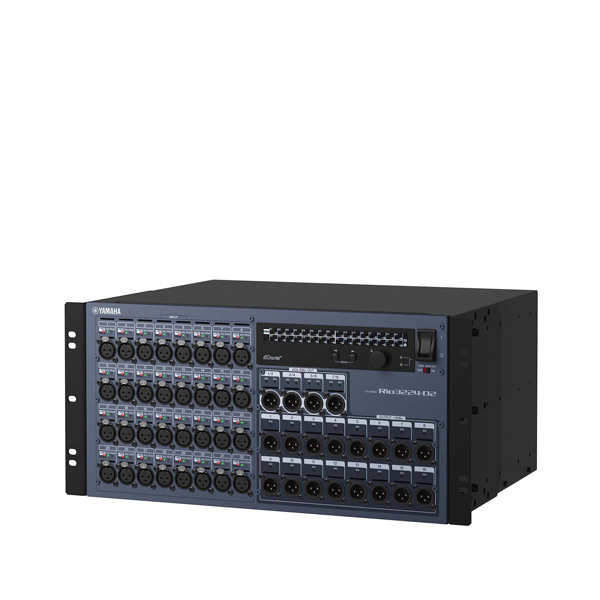

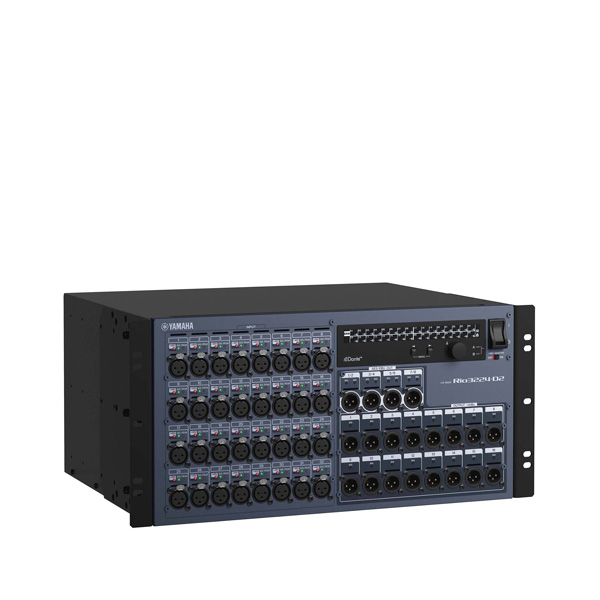

YAMAHA Rio3224-D2
I/O Rack
This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.
คุณสมบัติ
- 32 great-sounding mic preamps achieve a transparent, natural sound
- Connects directly to a Dante digital audio network for flexible system configuration at up to 96kHz
- 4 stereo AES outputs expand your connectivity
- Dual redundant power supplies ensure peace of mind
- Supports daisy-chain connections
- Benefit from local control of gain and other parameters
- Character display offers easy visual confirmation of your settings
สเปค
-
Type:Stage Box Remote Interface
-
Compatibility:Rivage PM7 Mixing System, CL Digital Mixer, QL Digital Mixer
-
Channels:32 x 16 (analog), 32 x 24 (including AES/EBU)
-
Inputs – Mic Preamps:32 x XLR
-
Phantom Power:Yes (remote on/off)
-
Outputs – Main:16 x XLR (line out)
-
Outputs – Digital:4 x XLR (AES/EBU)
-
Data I/O:2 x Ethernet (Dante Primary, Secondary)
-
Software:Dante Controller, R Remote Application
-
Rackmountable:Yes, 5U
-
Power Source:Dual Redundant Power Supply, 2 x Standard IEC AC inputs
-
Height:8.6″
-
Depth:14.2″
-
Width:18.9″
-
Weight:27.3 lbs.
