เครื่องผสมสัญญาณเสียง YAMAHA TF5 ดิจิตอล 32 ชาแนล 48 input เครื่องผสมสัญญาณเสียง มิกเซอร์ดิจิตอล มากด้วยฟังก์ชันการใช้งาน พร้อมรองรับการใช้งาน ร่วมกับ iPhone , iPad และ iPod touch ได้ มิกเซอร์ ดิจิตอล

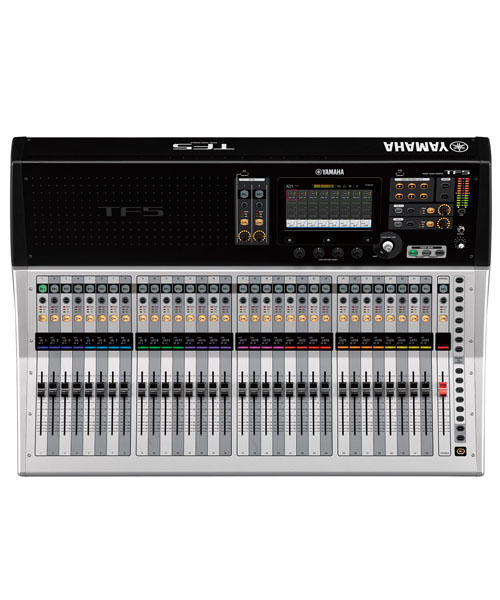

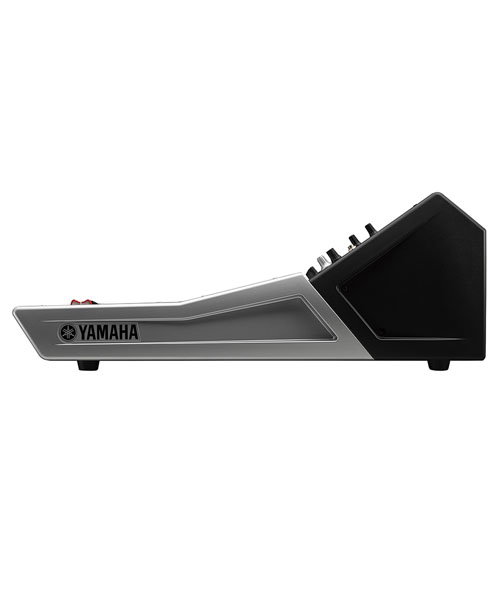

YAMAHA TF5
Digital mixer 32 Channels , 48 input
Yamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide.
The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user’s intuition even freer rein. TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix.
Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.
YAMAHA TF5 มิกเซอร์ ดิจิตอล YAMAHA TF5 เครื่องผสมสัญญาณเสียง ดิจิตอล
คุณสมบัติ

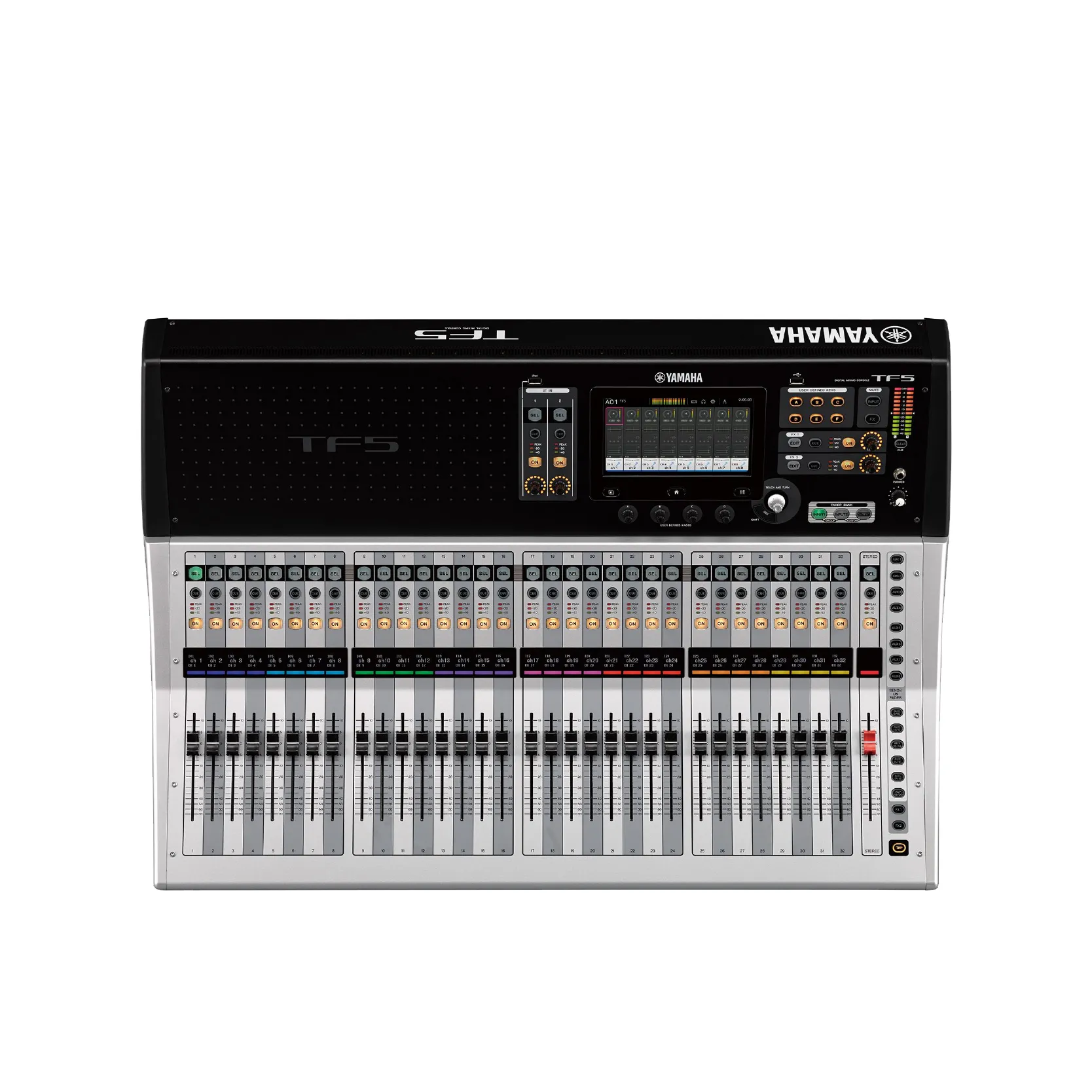

YAMAHA TF5 High input capacity and fader count makes this powerful console ideal for larger applications.
- 33 motor faders (32 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 return)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
- 8 DCA groups with Roll-out

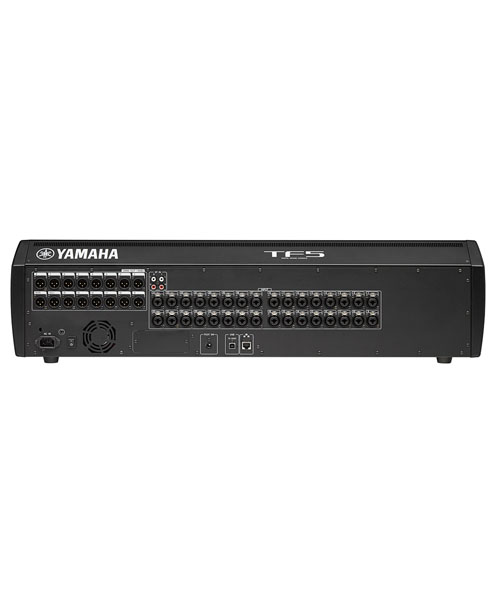

- 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- 8 Effects and 10 GEQ
- 1 expansion slot for NY64-D audio interface card

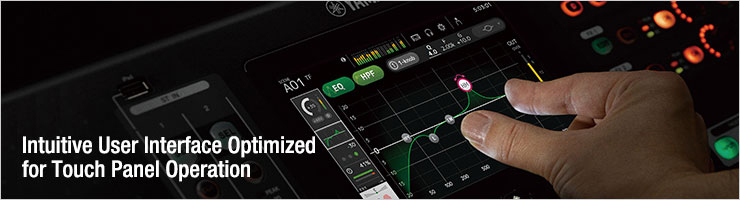

In developing the TF series
Yamaha engineers built from their existing base of acclaimed high-end mixer interfaces, adding intuitive control in an interface optimized for the type of touch panel control that has become a familiar feature in a wide range of applications. Allowing most operations to be carried out via the touch panel alone, the innovative TF series interface will quickly become second nature to a broad spectrum of users. Whether you have experience with Yamaha digital consoles, work with other digital consoles, operate analog consoles, or have never operated a mixer before, TF consoles will lead you to the desired results quickly and effortlessly through a smooth, efficient workflow. The availability of physical controls surrounding the touch panel further enhances control versatility and precision.
Effective gain, compressor, and EQ setup requires a considerable degree of skill and experience.
Even veteran engineers need to spend time on these important basic settings. In addition to their intuitive user interfaces, TF consoles include a number of features that contribute to faster, smoother setup of these essential parameters.
The familiar Yamaha scene memory that stores mix settings for instant recall when needed is included as always.
There’s also a range of channel presets that have been created in cooperation with leading microphone manufacturers and eminent sound engineers, providing starting points that take you a long way towards achieving great sound.
The channel presets cover parameters such as HA gain, EQ, dynamics, and much more, right down to details like channel name and color. Less time needs to be spent on basic setup so that more time is available for refining the mix and communicating with the performers.

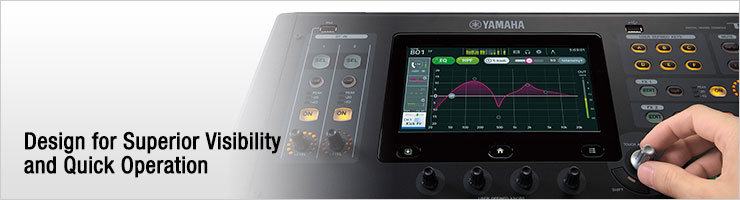

The TF series hardware is packed with features that contribute to superior operability and convenience.
Faders, knobs, and buttons with outstanding fit and feel work seamlessly with state-of-the-art display technology, including high-visibility channel name and color displays. The touch panel itself offers an ideal blend of comprehensive visual feedback and fast response.The physical layout of these components brings everything together in a system that offers surprisingly efficient workflow.
Separate software applications that allow wireless mixing, personal monitor mixing, or offline setup of digital live mixing consoles have become fairly common.
The TF series goes a step further with three dedicated apps – TF Editor, TF StageMix, and MonitorMix – that feature user interfaces that seamlessly extend the console’s own on any device.
Faithful reproduction of the on-stage sound is the foundation, then creativity can take over.
Yamaha’s unswerving approach to live sound reinforcement is alive and well in the TF series.
The input stage of any console has a notable effect on its sonic character.
The TF consoles feature acclaimed D-PRE™ microphone preamplifiers that not only deliver outstanding quality, but are recallable as well. Circuitry and individual components have been reassessed and redesigned where necessary to achieve extraordinarily pure, natural sound. That solid sonic foundation is backed up by an updated selection of high-performance processors and effects. Input and output channel processors such as EQ, gates, and compressors are complemented by eight processors that provide a broad spectrum of creative capabilities.

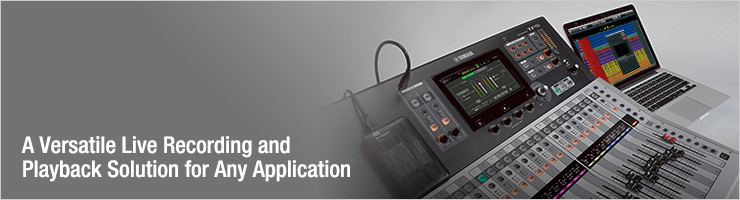

Live recording capability is becoming increasingly important in live sound systems.
From simple 2-track recording using a USB storage device* to all-out multitrack recording with a computer based DAW (Digital Audio Workstation), the TF series is ready to roll. TF consoles come supplied with Steinberg’s Nuendo Live Multitrack live recording software, providing an easy way to simultaneously record up to 34 tracks to a computer connected to the console via USB 2.0. MP3 and WAV files can be played back from USB storage devices, and audio from an iPhone or iPad can be played back via a direct digital connection.
When playing back from a DAW, analog input or DAW input can be individually selected for each channel so that pre-recorded material can be mixed with live input for virtual sound checks or rehearsals.
Of course BGM and sound effects can be played back too.
*Please note – USB thumb drives are not supported by TF for recording purposes. Please refer to this link for compatible hard drives.
The natural, musical sound that was a key element of the TF Series design policy is carried on without compromise in the Tio1608-D I/O Rack
Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, and exhaustive performance and listening tests were carried out at each stage of development. For networking the same Dante protocol implemented in higher end Yamaha digital consoles is used for precise synchronization, low latency, low jitter, and high sample accuracy.
In addition to superior performance, a Tio1608-D stage box system can be set up in just three easy steps.
