ตู้ลำโพงมอนิเตอร์สตูดิโอ ADAM AUDIO T7V 7 นิ้ว 70 วัตต์ มีแอมป์ในตัว คลาส D เหมาะอย่างยิ่งสำหรับใช้ในห้องควบคุมขนาดเล็กในการผลิตเพลงและวิดีโอ จากแบรนด์ ADAM AUDIO
ADAM AUDIO T7V Nearfield Monitor
The T7V is a two-way studio monitor designed for vertical use in a nearfield application.
The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.

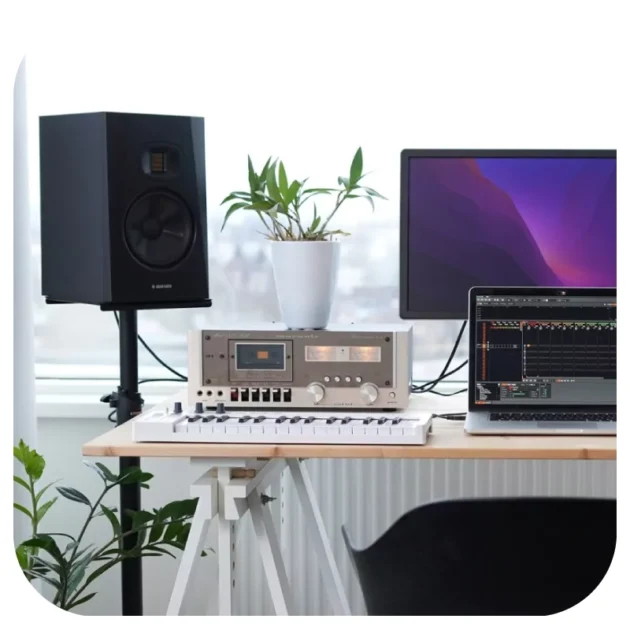

The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with.
The ADAM Audio T10S subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end.
BENEFIT TO THE CUSTOMER
|U-ART 1.9” Accelerated Ribbon Tweeter||
|The air velocity ratio of 4:1 during the sound generation by folded U-ART membrane||Direct, fast response in the high-range even with complex transients|
|HPS waveguide from the S Series||
|Lightweight polypropylene construction of the woofer||Excellent transient response even at high sound levels without breakup of the diaphragm|
|Vertical 2-way system with 7” woofer||High resolution of the stereo image|
|Spacious rear-firing bass reflex port||Bass reproduction with very low compression|
|Linear frequency response of 39 Hz to 25 kHz||Unbiased reproduction in a wide frequency band|
|Maximum peak sound pressure per pair in 1 m ≥ 110 dB||Powerful, compression-free sound reproduction even at very high sound levels|
|DSP-powered crossover design||Smooth frequency response without interferences between the drivers in the critical mid-range|
|Simple room acoustic adjustments via high- and low-shelf filters||Allows optimal adaptation to acoustically difficult listening environments or individual preferences|
|Analog inputs over XLR and RCA||Optimized for balanced and unbalanced line signals|
|Acoustically optimized cabinet geometry||Reduction of unwanted reflections on the cabinets|
|Compact cabinet dimensions||Fits every desktop|
|Basket Ø||7″ (178 mm)|
|Diaphragm Area||4 inch² (2420 mm²)|
|Equiv. Diaphragm Ø||1.9″ (48 mm)|
|Velocity Transform Ratio||4:1|
|Diaphragm Weight||0.17 g|
|Amp. Power RMS||50 W|
|Amp. Power RMS||20 W|
|Input Sensitivity||Switchable +4 dBu / -10 dBV|
|High-Shelf||– 2 dB, 0 dB, +2 dB|
|Low-Shelf||– 2 dB, 0 dB, +2 dB|
|Input Impedance||10 kOhm / 20 kOhm|
|Frequency Response||39 Hz – 25 kHz|
|THD > 80 Hz||0.5 %|
|Max. SPL per pair at 1 m||≥110 dB|
|Crossover Frequency||2.6 kHz|
|Max. Power Consumption||132 W|
|Weight||15.7 lbs (7.1 kg)|
|Height x Width x Depth||13.7″ x 8.3″ x 11.5” ( 347 mm x 210 mm x 293 mm)|
|Delivery Contents||Power cord, Quick Start Guide|
