ไมค์บันทึกเสียงคอนเดนเซอร์ AKG C314 แบบ large-diaphragm มีแคปซูลขนาดหนึ่งนิ้วที่ยอดเยี่ยมบนระบบกันสะเทือนเพื่อลดเสียงรบกวนจากกลไก แบรนด์ AKG

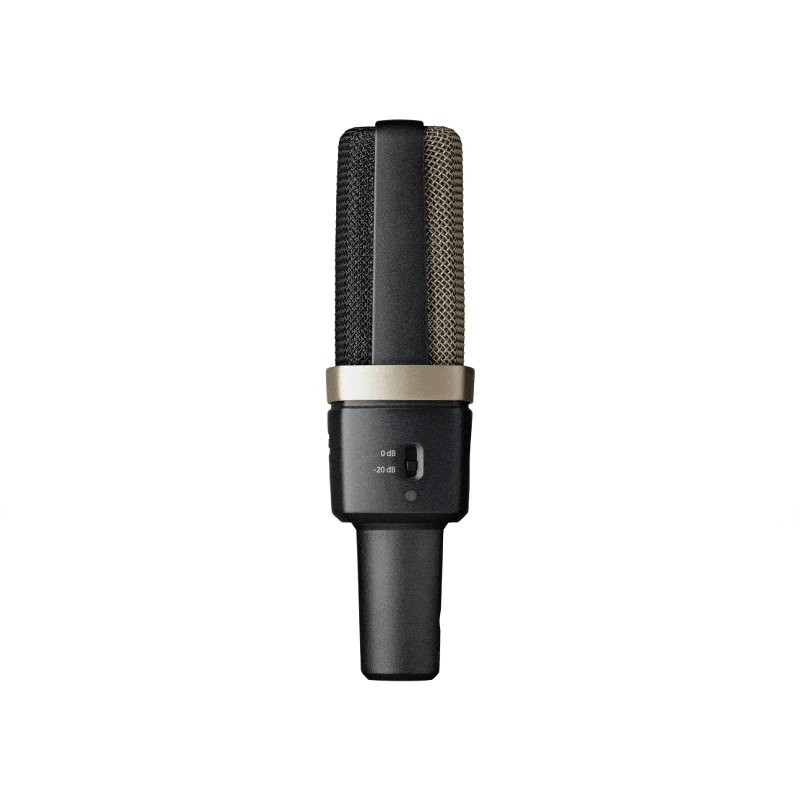

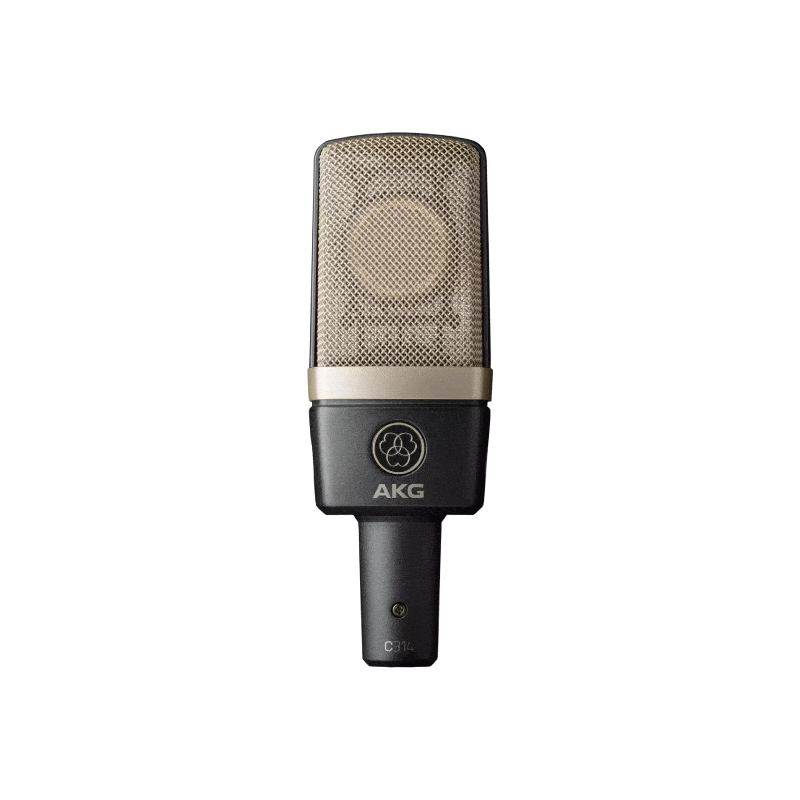

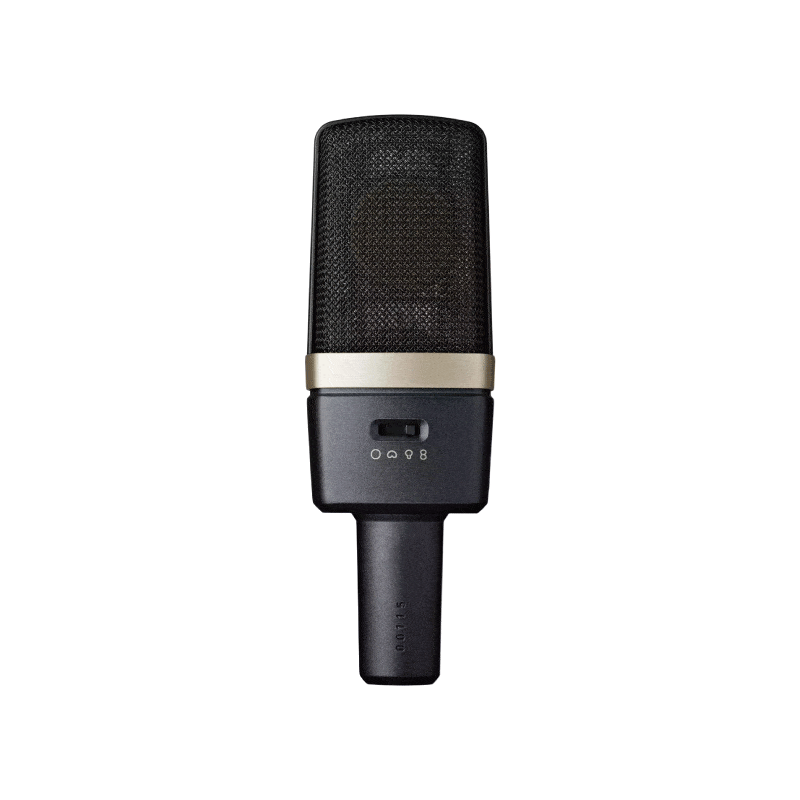

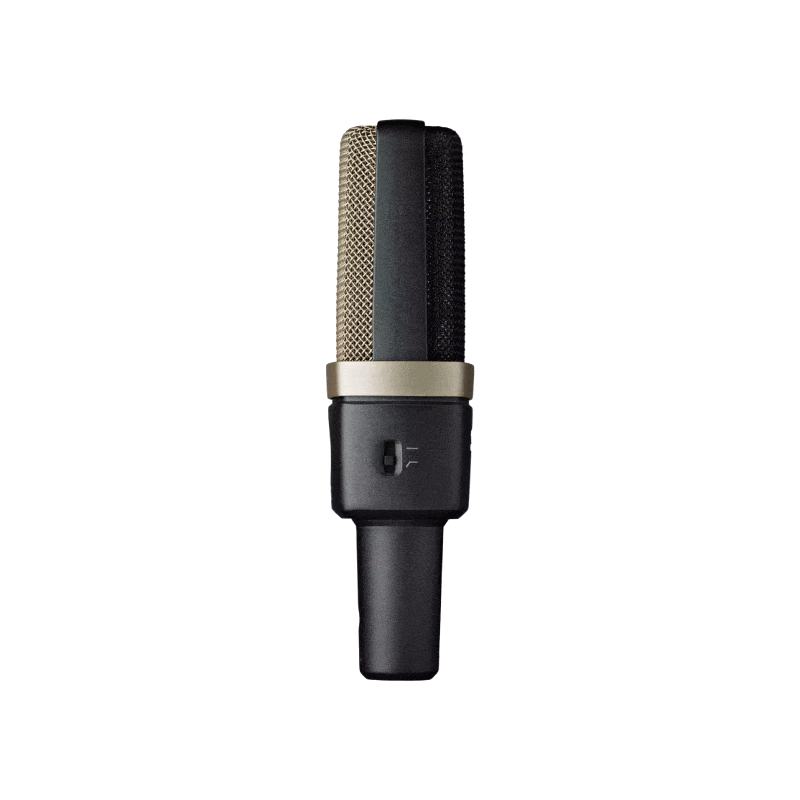

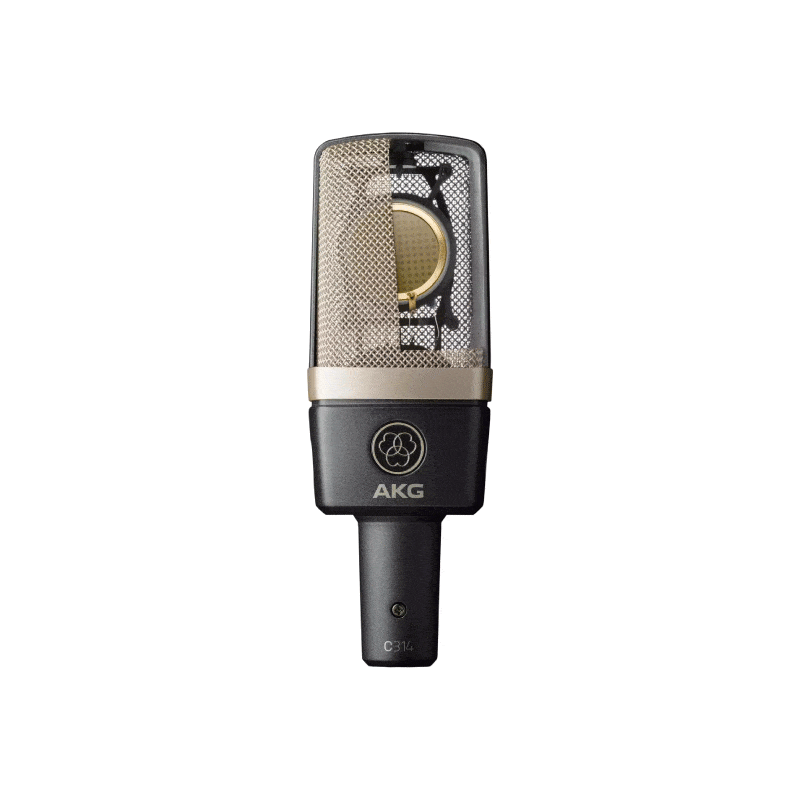

AKG C314
Professional multi-pattern condenser microphone
Perfect twins
The AKG C314 professional multi-pattern condenser microphone belongs to one of the industry’s most widely used studio and stage microphone families, designed for enthusiasts and professionals alike. It has advanced features that help artists fine-tune their signature sound, such as four selectable polar patterns, a high class, self-noise level and an overload detection LED. Using the same one-inch dual diaphragm capsule as the C414 XLS, musicians, engineers and producers can have the confidence that their audience will experience every subtle nuance as it was intended.
Realistic stereo recordings require microphones with outstanding performance and excellent quality. It also requires performance consistency and accurate localization from the pair of microphones. Therefore, every factory-matched pair of C314s is created from thousands of individual microphones selected by AKG‘s sophisticated computer-aided matching method. The result is the highest possible correlation over the whole frequency range and virtually identical sensitivity for stunning, three-dimensional recordings.
- เป็น Condenser Microphone แบบ Large-diaphragm
- ตัวรับเสียงแบบคู่ Dual-diaphragm capsule
- ออกแบบวงจรสำหรับระบบกันการสั่นสะเทือนของตัวไมค์ เพื่อให้เกิดเสียงรบกวนน้อยที่สุด
- ไฟ LED สำหรับการตรวจจับการ Overload ของสัญญาณ
- ปรับรูปแบบการรับเสียงได้ 4 แบบ Omnidirectional, Supercardioid, Cardioid, Figure of Eight
- สวิตช์ Low-cut Filter ที่ 100 Hz, 12dB/octave
- สวิตช์ Pad สัญญาณที่ -20 dB
- สามารถใช้บันทึกเสียงที่มีความดังสูงอย่างการตีเครื่องทองเหลือง
- เหมาะสำหรับการบันทึกเสียงร้อง, เปียโน, เครื่องสาย, เครื่องเป่า, เครื่องดนตรีอคูสติค
- ตอบสนองย่านความถี่ 20 – 20 KHz
- เชื่อมต่อแบบ XLR
- รองรับการจ่ายไฟ 48V
- Professional Studio
- Recording
- ไมโครโฟน C314
- H85 Universal Shock Mount
- SA60 Stand Adapter
- W214 Windscreen
- เคสกันกระแทก
- ตัวไมค์เป็นโลหะแข็งแรงทนทาน
- เคสเป็นโลหะ ผสมกับส่วนที่เป็นไฟเบอร์แข็ง
General Specifications
- Microphone type : Condensor
- Polar Patterns : Cardioid, Supercardioid, Omnidirectional, Figure of eight
- Audio frequency bandwidth : 20 – 20000 Hz
- Equivalent noise level : 8 dB-A
- Sensitivity : 20 mV/Pa
- Signal to Noise : 86 dB-A
- Preattenuation Pad : -20 dB
- Bass cut filter : 100 Hz, 12dB/octave
- Electrical impedance : 200 Ohms
- Recommended load impedance : 1000 Ohms
Dimensions
- Length : 160 mm
- Width : 55 mm
- Height : 43 mm
- Net Weight : 300 g (mic only)
Audio Output
- Type : Balanced XLR
- Gender : Male
- Contacts : 3-pin
Powering Interface
- Voltage : 44 to 52 V
- Current : 3 mA
Application
- Pro Studio : Yes
Instrument
- Vocals : Yes
- Piano / Strings : Yes
- Horns / Woodwinds : Yes
- Drums / Percussion : Yes
