ANTHEM STR Integrated Amplifier อินทิเกรตแอมป์ 200W ที่ 8 โอห์ม, 400W ที่ 4 โอห์ม, 550W ที่ 2 โอห์ม

฿193,900 (รวม VAT 7% แล้ว)

เลือกสี

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

อินทิเกรตแอมป์ ANTHEM STR Integrated Amplifier 200W ที่ 8 โอห์ม, 400W ที่ 4 โอห์ม, 550W ที่ 2 โอห์ม ใช้แพลตฟอร์มเทคโนโลยีใหม่ทั้งหมด จากแบรนด์ ANTHEM

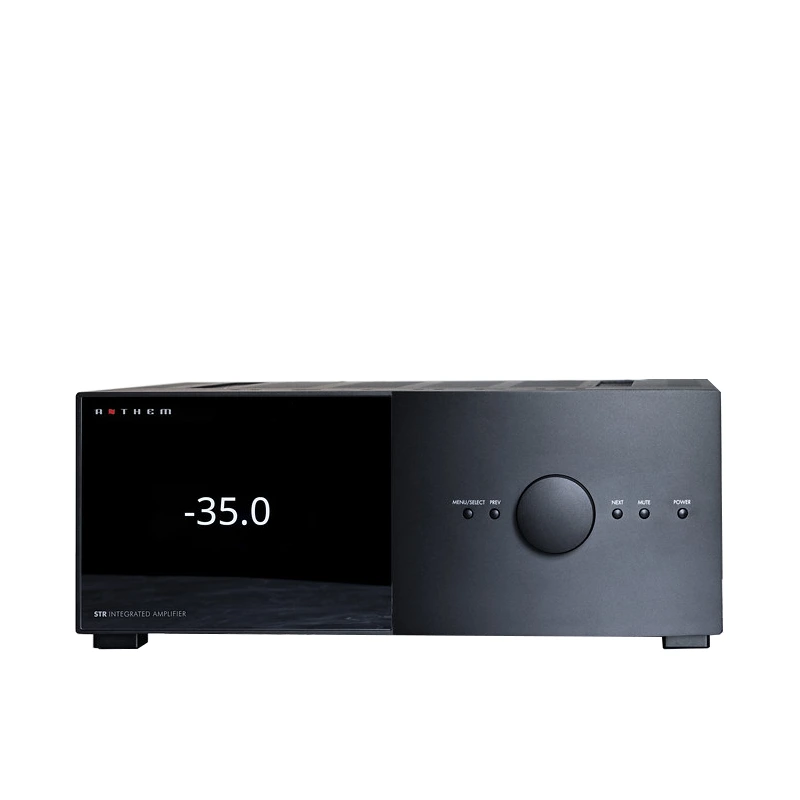

ANTHEM STR Integrated Amplifier
Powering the Future of Audio.

The revolutionary STR Integrated Amplifier is based on an entirely new technological platform, for true benchmark performance in stereo amplification. More power, more control, more connection options, and the most advanced technology available in a single, easy-to-use component.

Designed, engineered, and Crafted in Canada, the STR Integrated Amplifier combines the benefits of an advanced preamp with the power of a massive amplifier and processor. It includes leading-edge DAC, onboard Anthem Room Correction (ARC®^®), customizable bass manager for mono or stereo sub outs, MM and MC phono inputs—far more than the average integrated amp.

And it includes new generations of many of Anthem’s award-winning, audiophile-loving, review-praised digital signal processing innovations, delivering a noticeably higher level of audio performance realism.

This is the integrated amplifier with the power, features, connections and control to fuel your two-channel dreams, today and into tomorrow.

คุณสมบัติ

High-resolution preamplifier section
High current, high output amplifier section
Amplifier uses 8 bipolar output devices per channel, a toroidal transformer power supply, and Advanced Load Monitoring for 200W at 8 ohms, 400W at 4 ohms, 550W at 2 ohms, all continuous
Anthem Room Correction (ARC^®) optimizes in-room response for perfect sound
Bass management for two subwoofers, in mono or stereo
Up-sampling of lower-resolution sources to 32-bit/192kHz

S/PDIF coaxial and optical, and balanced AES/EBU inputs
Asynchronous USB Audio Input supports 32-bit/384kHz PCM, and DSD 2.8 / 5.6 MHz sources
MM and MC phono, balanced XLR, and single-ended analog inputs
Analog Direct mode
Graphic Front Panel Display for easy setup and navigation
Controllable via Ethernet, RS-232, or supplied IR remote
Available in Silver and Black Finishes
Crafted in Canada

น้ำหนัก	18 กก.
ขนาด	445 × 432 × 172 มิลลิเมตร
ยี่ห้อ	ANTHEM

สเปค

PHONO PREAMPLIFIER The phono preamplifier is suitable for moving magnet and high-output moving coil cartridges
Input Impedance	100 Ω (MC), 47 kΩ (MM)
Input Capacitance	270 pF (MM)
Maximum Input (at 1 kHz for <0.1% THD 20 Hz – 20 kHz)	3.6 mV (MC), 37.7 mV (MM)
Gain (default at 1 kHz, user adjustable ± 20 dB)	55 dB (MC), 35 dB (MM)
RIAA Response	± 0.1 dB (20 Hz to 20 kHz)
THD+N (at 1 kHz, 20 Hz – 20 kHz BW, 2 Vrms output)	0.008% (MC), 0.005% (MM)
S/N Ratio (at 1 kHz, IEC-A, 2 Vrms output)	82 dB (MC), 96 dB (MM)
PREAMPLIFIER
Frequency Response
digital-in, 192 kHz	10 Hz – 50 kHz (+0.00, -0.50 dB)
digital-in, 96 kHz	10 Hz – 45 kHz (+0.00, -0.50 dB)
digital-in, 44.1 kHz	10 Hz – 20 kHz (+0.00, -0.03 dB)
analog-in, DSP mode	10 Hz – 40 kHz (+0.02, -0.20 dB)
analog-in, direct mode	10 Hz – 80 kHz (+0.00, -0.10 dB)
THD+N (at 1 kHz, 20 Hz – 20 kHz BW, 2 Vrms output)
digital-in, 44.1 kHz, 0 dBFS	0.0008%
analog-in, DSP mode, 1 Vrms input	0.001%
analog-in, direct mode, 1 Vrms input	0.0020%
SNR (at 1 kHz, IEC-A, 2 Vrms output)
digital-in, 44.1 kHz, 0 dBFS	112 dB
analog-in, DSP mode, 2 Vrms input	110 dB
analog-in, direct mode, 2 Vrms input	120 dB
Maximum Output (<0.1% THD)	2.2 Vrms except analog-direct 3.3 Vrms
XLR Configuration	Pin 1: Ground, Pin 2: Normal, Pin 3: Inverted

POWER AMPLIFIER

Impedance	8Ω	4Ω	2Ω
Power Output (per channel) (Continuous, 20 Hz – 20 kHz, <1% THD)	200 W	400 W	550 W

THD (100 W)

0.002% (1 kHz), 0.015% (20 kHz)

IMD (100 W)

ITU-R (19 kHz + 20 kHz)

0.0007%

SMPTE (60 Hz + 7 kHz)

0.005%

SNR (IEC-A, ref. 200 W)

114 dB

Frequency Response (20 Hz – 20 kHz)

± 0.1 dB

Power Bandwidth (-3 dB at 200 W into 8 ohms)

80 kHz

Slew Rate

30 V/μs

Damping Factor (20 Hz – 1 kHz)

330

Channel Separation

101 dB (100 Hz), 61 dB (10 kHz)

POWER REQUIREMENT

120 V version:

In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.

220-240 V version:

In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.

POWER CONSUMPTION

Standby

0.38 W (120V), 0.45 W (240V)

Standby + Network

1.1 W (120V), 1.2 W (240V)

Idle

40 W

Typical Use

250 W

High Output

500 W
