ชุดไมค์ประชุมสำหรับประธาน/ผู้ร่วมประชุม ระบบดิจิตอล AUDIO-TECHNICA ATUC-50DUa+M43H ก้านยาว 43 ซม. ฐานไมโครโฟน+ไมโครโฟน 3 ขาพร้อมวงแหวน LED
AUDIO-TECHNICA ATUC-50DUa DISCUSSION UNIT / ATUC-M43H 3-PIN MICROPHONE WITH LED RING (430MM)

ในซีรีย์ ATUC-50 ประกอบด้วย เครื่องควบคุมไมโครโฟนประชุม ATUC-50CU ที่มาพร้อม Feedback Suppressor ในตัว ,ไมโครโฟนประชุมสำหรับ สำหรับประธาน/ผู้ร่วมประชุม (ก้าน 58 เซนติเมตร) ATUC-50DUa + ATUC-M58H และ ไมโครโฟนประชุมสำหรับประธาน/ผู้ร่วมประชุม (ก้าน 43 เซนติเมตร) ATUC-50DUa+M43H จากแบรนด์ชั้นนำ AUDIO-TECHNICA
ประกอบด้วย

AUDIO-TECHNICA ATUC-50DUa
ฐานไมโครโฟน ประชุม 1 ตัว

AUDIO-TECHNICA ATUC-M43H
ก้านไมโครโฟน ประชุม ยาว 43 ซม. 1 ตัว
ประกอบด้วย

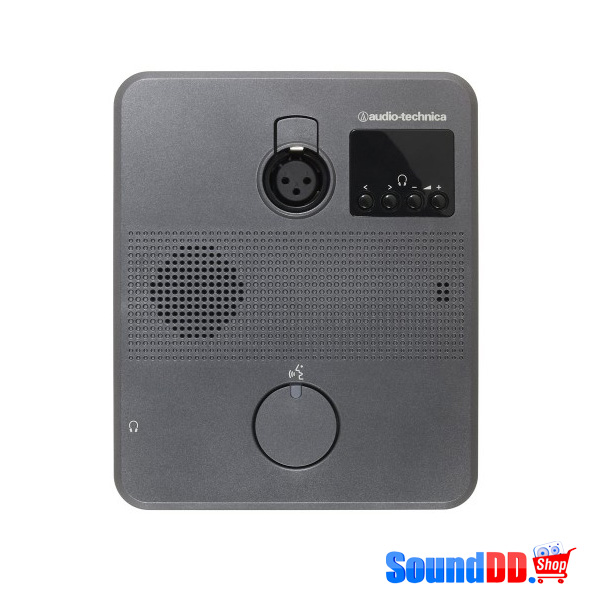

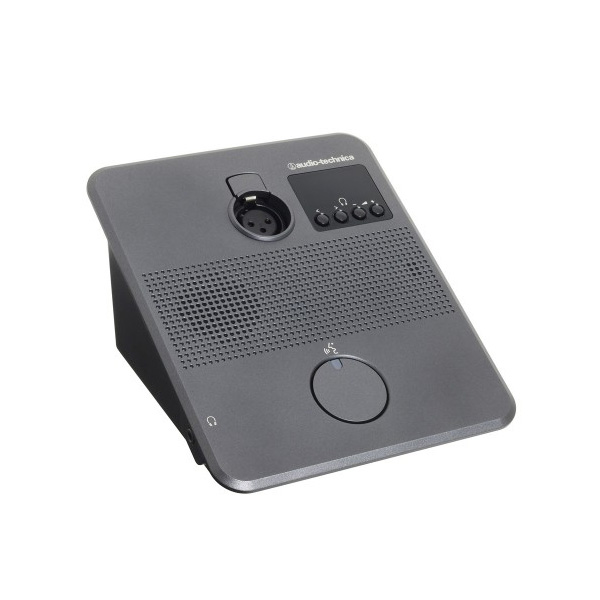

ATUC-50DUa ฐานไมโครโฟน ประชุม
DISCUSSION UNIT WITH HIGH QUALITY AUDIO
Whatever your conferencing or discussion needs, the ATUC-50 is designed to offer reliable, clear and intelligible communication to significantly increase meeting efficiency and effectiveness.
Voice is the quickest and most efficient tool for exchanging ideas – whether in meeting rooms, councils, classrooms or through videoconference, speech is the most direct way of communication and understanding.

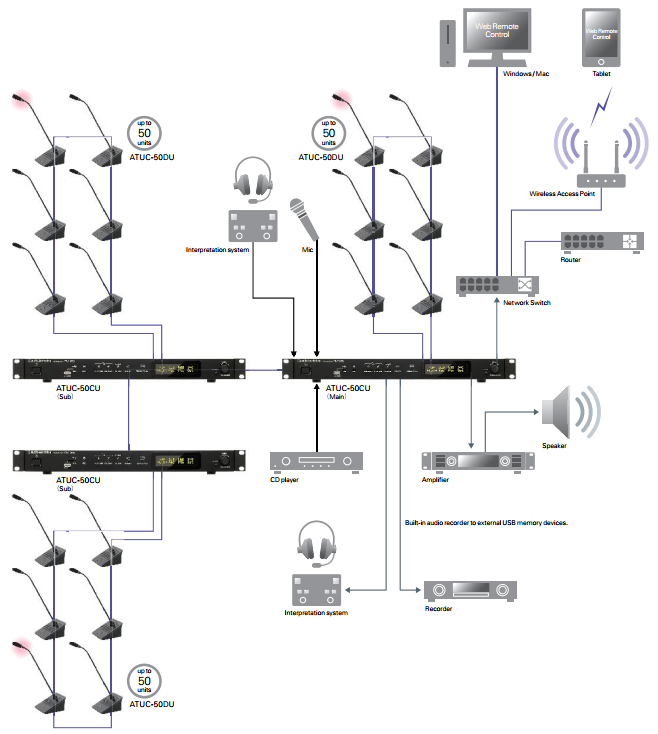

ใช้สาย Cat 5 มาตรฐานระบบ ATUC-50 เชื่อมต่อได้ง่ายไม่ว่าจะเป็นระบบเดซี่เชนหรือ หรือ ริงโทโปโลยี่ แบบวงแหวน
- เชื่อมต่อได้ถึง 50 ชุดต่อเครื่องควบคุม 1 เครื่อง และสามารถเพิ่มชุดประชุมได้มากถึง 150 ชุดโดยใช้ชุดควบคุมหลายชุด
- ลำโพงคุณภาพสูงเพื่อตอบโจทย์การใช้งานยิ่งขึ้น
- จอแสดงผล LED เพิ่มความชัดเจนสำหรับการควบคุมระดับเสียงและการเลือกช่อง
- ระบบควบคุมอัตโนมัติ เช่น เกนขยาย (AGC) อัตราขยายของไมค์และ Mic EQ

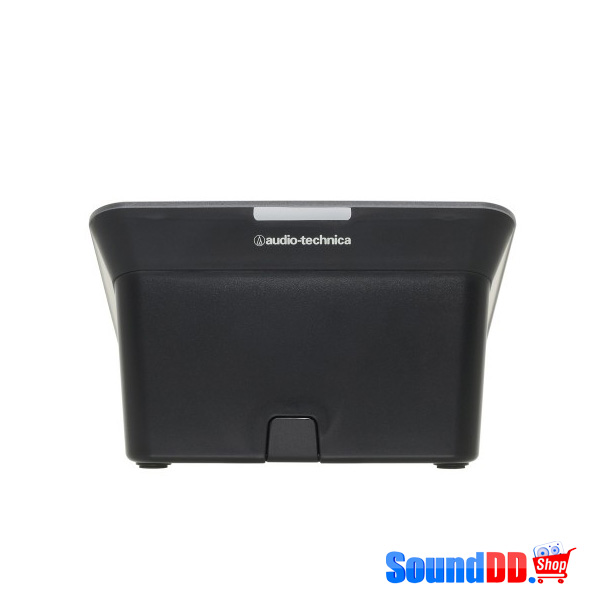

- มีไฟ LED หลายสีที่ DU (ด้านหลัง)
- มีไฟหลายสี LED ที่ปุ่มพูด
- คอนเนคเตอร์แบบ XLR 3 พินมาตรฐาน
Accessories Included | Quick Setup Guide, Warranty Sheet |
Frequency response | +1.0, -2.0dB 20Hz – 20kHz, refer to +4dBu output @1kHz |
Headroom | 20dB |
Operating Humidity | 25-85% |
Operating Temperature Range | 0-40℃ |
Sampling Frequency | 24bit /48kHz |
Total Harmonic Distortion | Less than 0.07% @1kHz unity |
Phantom Power | DC +24V |
Dynamic Range | 107dB A-Weighted |
Signal-to-Noise Ratio | 87dB A-Weighted |
Equivalent Input Noise | Less than -121dBu Rs=150ohm |
Connections | Inputs: Mic x 1, Outputs: Headphones x 1, CHAIN: DU / CU terminals |
Power Supply | DC +48V |
Power Consumption | 2.2W |
Dimensions | 135mm x 148.3mm x 84.2mm |
Weight | 570g |

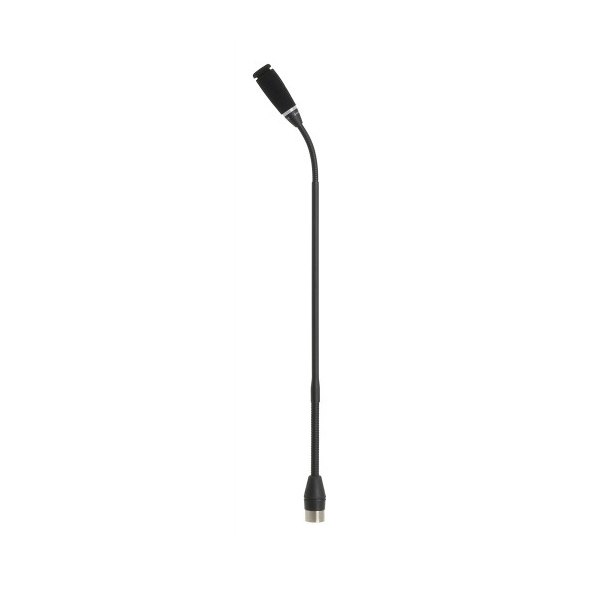

ATUC-M43H ก้านไมโครโฟน ประชุม ยาว 43 ซม.
3-PIN MICROPHONE WITH LED RING (430MM)
- Compatible with ATUC-50 Digital Discussion System
- Unique 3-pin balanced microphone with remote controlled LED ring
- Patent-pending design isolates the microphone connector from the discussion unit
- Double-layer pop filter (inside microphone and detachable windscreen)
- RFI shielding technology offers outstanding rejection of RF interference
- 430mm Double-gooseneck design for incredible positioning flexibility
- Also available in 580mm length
Element | Fixed-charge back plate, permanently polarized condenser |
Polar Pattern | Hypercardioid |
Frequency Response | 100 – 15,000Hz |
Open Circuit Sensitivity | -40 dB (10.0 mV) re 1V at 1 Pa |
Impedance | 250 ohms |
Maximum Input Sound Level | 134 dB SPL, 1 kHz at 1% T.H.D. |
Signal-to-Noise Ratio | 64 dB, 1 kHz at 1 Pa |
Weight | 82 g |
Dimensions | 18.9 mm diameter × 430 mm |
