| Overall System |
| Operating Frequencies |
UHF
Band D: 656.125 to 678.500 MHz DISCONTINUED IN NORTH AMERICABand I : 487.125 to 506.500 MHz |
| Modulation Mode |
FM |
| Maximum Deviation |
±40 kHz |
| Frequency Response |
100 Hz to 15 kHz (+1 dB, -3 dB) |
| Operating Range |
100 m (300′), typical
Open range environment with no interfering signals. |
| Total Harmonic Distortion |
< 1% (at 1 kHz, ±20 kHz deviation) |
| Operating Temperature Range |
5º C to 45º C
41º F to 113º F
Battery and LCD performance may be reduced at very low temperatures. |
| Number Of Channels |
10 total |
| Notes |

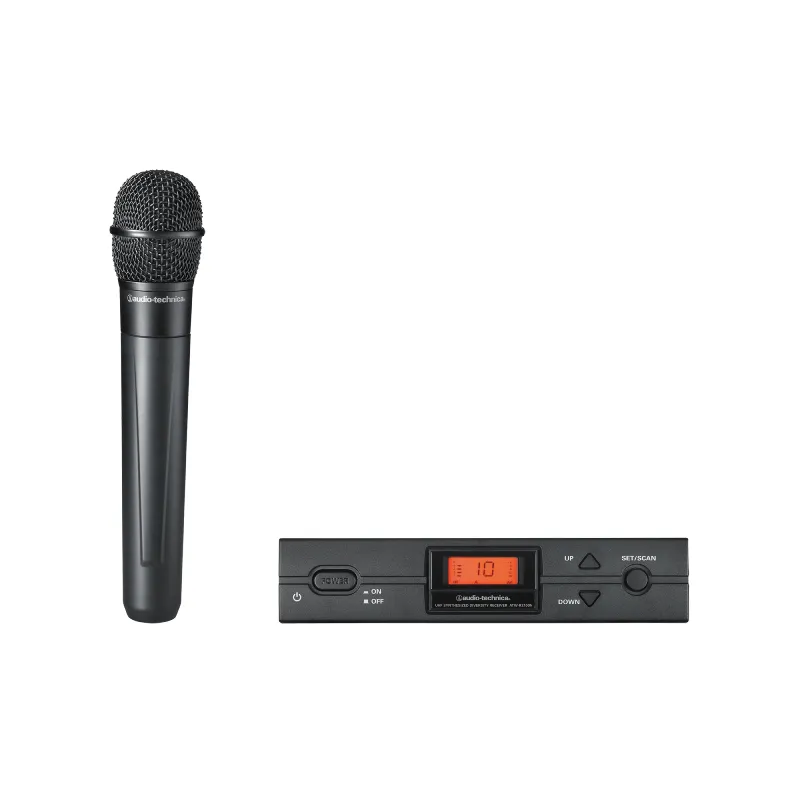

Third-generation 2000 Series (“b” version) components:
ATW-R2100b receiver
ATW-T210b body-pack transmitter
ATW-T220b cardioid dynamic microphone/transmitter
Click here for “b” version 2000 Series owner’s manual.Second-generation 2000 Series (“a” version) components:
ATW-R2100a receiver
ATW-T210a body-pack transmitter
ATW-T220a cardioid dynamic microphone/transmitter
Click here for “a” version 2000 Series owner’s manual.First-generation 2000 Series (original) components:
ATW-R2100 receiver
ATW-T210 body-pack transmitter
ATW-T220 cardioid dynamic microphone/transmitter
Click here for original 2000 Series owner’s manual.CONSUMER ALERT
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones. |

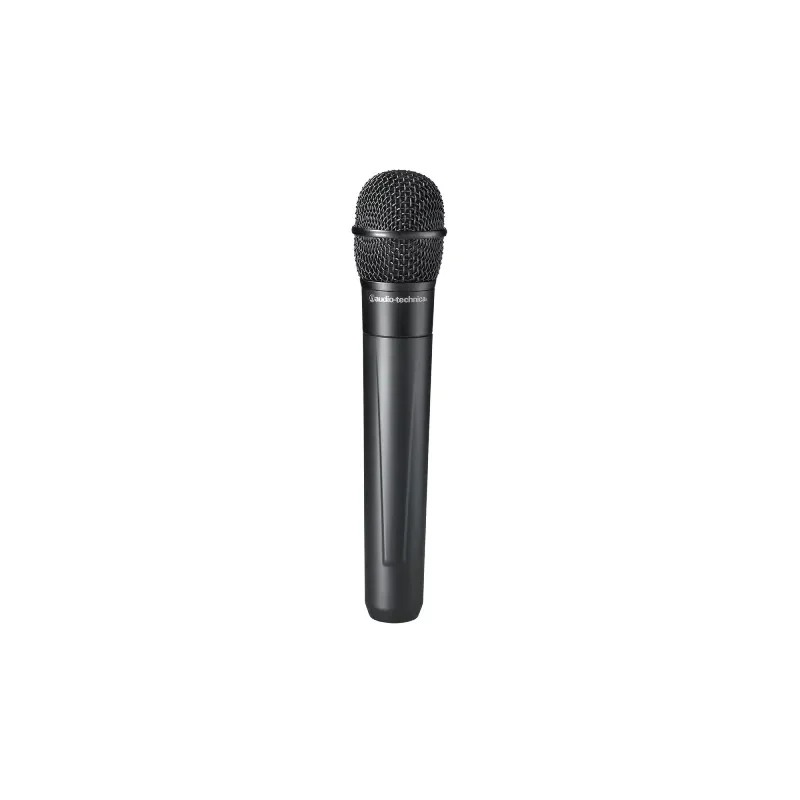

| Handheld Transmitter |
| RF Power Output |
High: 30 mW; Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions |
Following federal and national regulations |
| Microphone Element |
Dynamic cardioid |
| Battery Type |
Two 1.5V AA alkaline (not included)
or two 1.2V AA NiMH (not included)Recharging power for NiMH batteries (with ATW-CHG2)
U.S./Canada/Latin America: 3.2 V DC, 230 mA x2
Other world areas: 3.2 V DC, 320 mA x2 |
| Battery Life |
High: 7 hours (alkaline)
Low: 9 hours (alkaline)
Depending on battery type and use pattern. |
| Dimensions |
232.0 mm (9.13″) long,
48.0 mm (1.89″) diameter |
| Net Weight |
252 g (8.9 oz), without batteries |
| Accessories Included |
AT8456a Quiet-Flex™ stand clamp |
| Body Pack |
| RF Power Output |
High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Battery Life |
High: 7 hours (alkaline)
Low: 9 hours (alkaline)
Depending on battery type and use pattern. |
| Battery Type |
Two 1.5V AA alkaline (not included)
or two 1.2V AA NiMH (not included)Recharging power for NiMH batteries (with ATW-CHG2)
U.S./Canada/Latin America: 3.2 V DC, 230 mA x2
Other world areas: 3.2 V DC, 320 mA x2 |
| Dimensions |
66.0 mm (2.60″) W x
22.5 mm (0.89″) D x
92.3 mm (3.63″) H |
| Input Connections |
Four-pin Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V |
| Net Weight |
81 g (2.9 oz), without batteries |
| Spurious Emissions |
Following federal and national regulations |

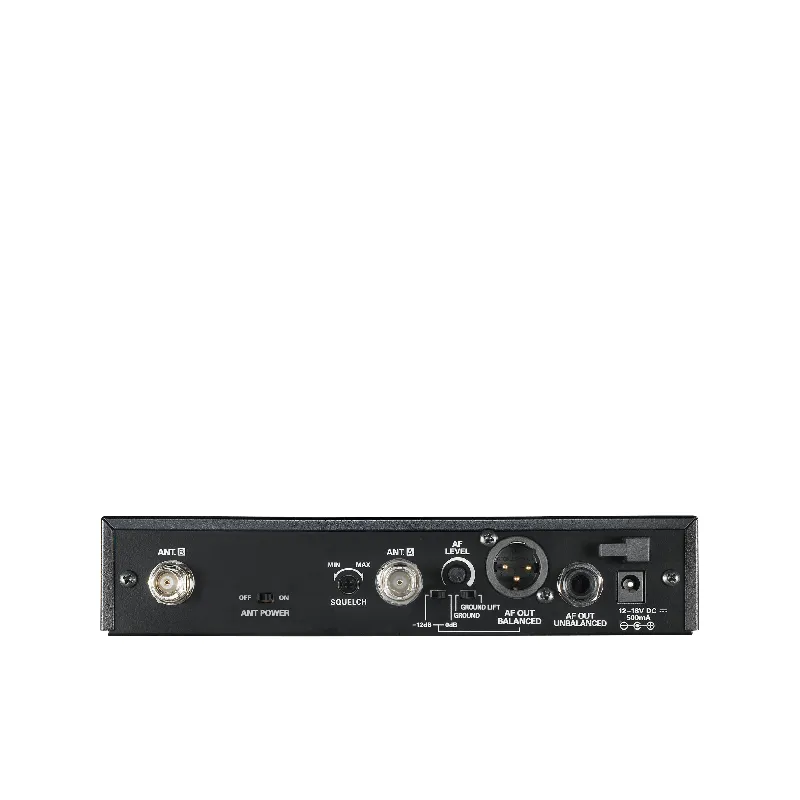

| Receiver |
| Receiving System |
True diversity |
| Image Rejection |
60 dB nominal, 55 dB minimum |
| RF Sensitivity |
20 dBuV at 60 dB S/N ratio
(50 ohms termination) |
| Antenna Input |
BNC-type, 50 ohms
Bias voltage 12V DC, 60 mA, each |
| Power Requirements |
12-18V DC, 500 mA |
| Dimensions |
210.0 mm (8.27″) W x
162.2 mm (6.39″) D x
44.0 mm (1.73″) H
Not including BNC connectors or feet. |
| Weight |
1.0 kg (35.3 oz), without accessories |
| Accessories Included |
Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
ADDITIONAL RECEIVER SPECS
Maximum Output Level:
XLR, balanced: +9 dBV
¼” (6.3 mm), unbalanced: +4 dBV
Balanced Audio Output Attenuator:
Two position switch: 0 / -12 dB |
