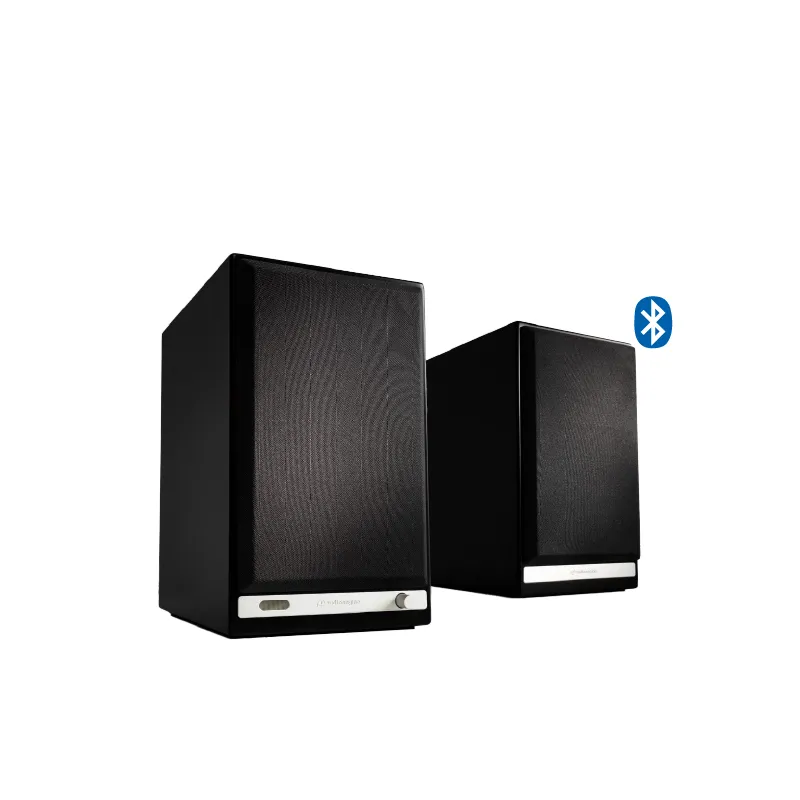

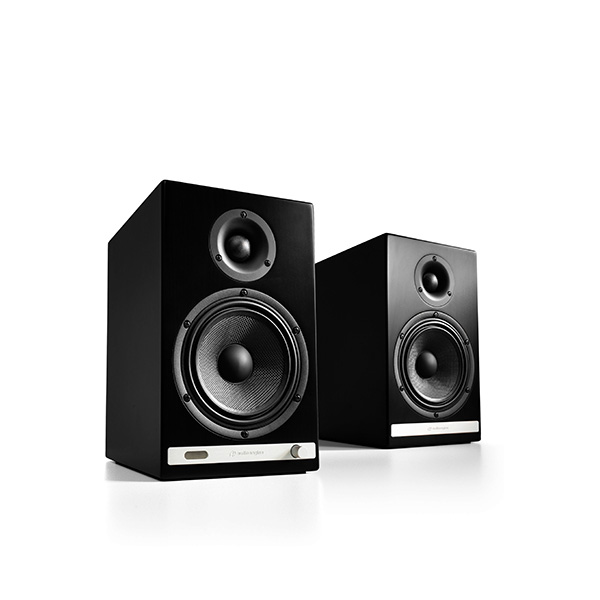

AUDIOENGINE HD6 WIRELESS ลำโพงฟังเพลงไร้สาย 5.5 นิ้ว 150 วัตต์ มีแอมป์ในตัว คลาส A/B เชื่อมต่อการทำงานด้วยระบบบลูทูธ

General Specifications

• Speaker type
  2.0 powered bookshelf-style speaker system featuring wireless and digital optical inputs

• Power output
  150W peak power total (50W RMS, 75W peak per channel)

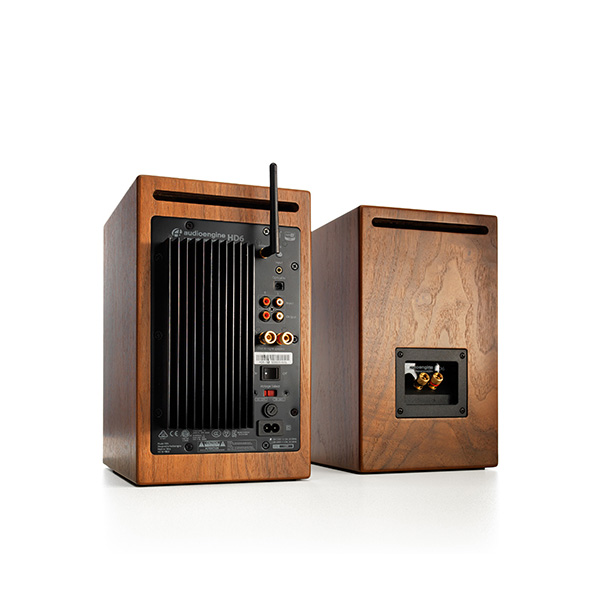

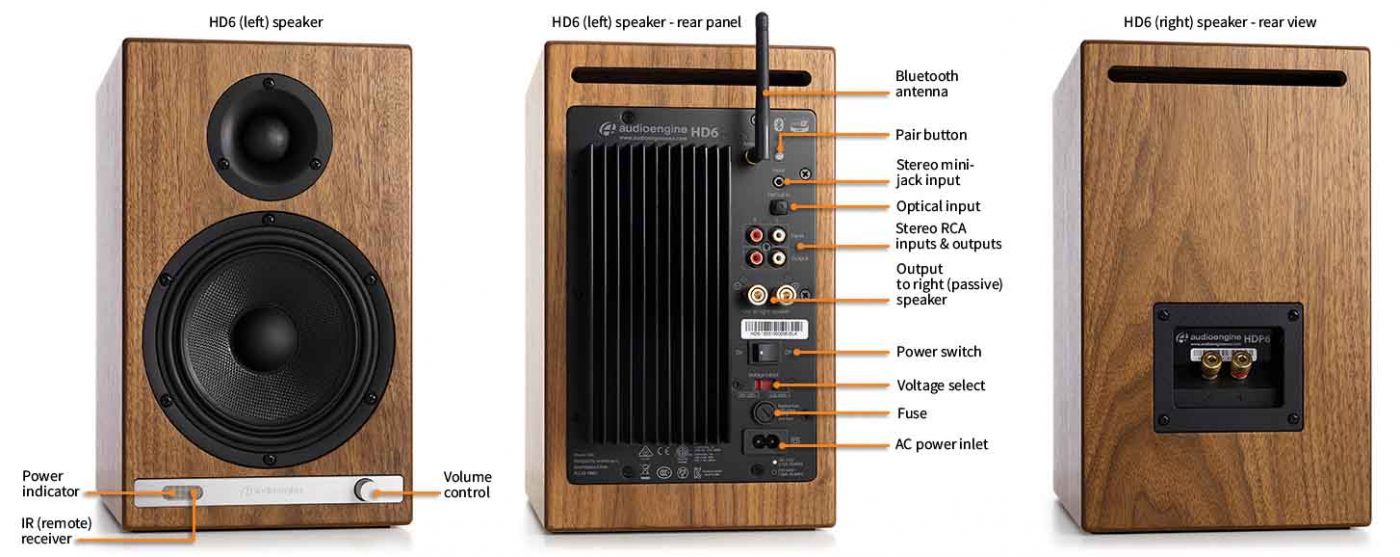

• Inputs
  3.5mm mini-jack, RCA L/R, digital optical (SPDIF,) Bluetooth aptX

• Outputs
  Variable line-out w/2.0V RMS max output, 47ohm output impedance

• Input voltages
  115/240V, 50/60Hz manually-switchable

• Amplifier type
  Analog dual-class A/B monolithic

• Drivers
  5.5″ Kevlar woofers, 1″ silk dome tweeters

• SNR
  >95dB (typical A-weighted)

• THD+N
  <0.05% at all power settings

• Crosstalk
  -50dB

• Frequency response
  50Hz-22kHz +/-1.5dB

• Analog input impedance
  48Kohms unbalanced (mini-jack and RCA inputs)

• Protection
  Output current limiting, thermal over-temperature, power on/off transient protection, replaceable external main fuse

BLUETOOTH SPECIFICATIONS

• Internal D/A converter
  AKM AK4396

• Input bit depth
  24-bits upsampled

• Bluetooth receiver type
  Bluetooth 5.0 audio

• Supported codecs
  aptX HD, aptX, AAC, SBC

• Wireless operation range
  Up to 100ft (30m) typical

• Input data rate
  Determined by Bluetooth

• Wireless latency
  ~30 milliseconds (ms)

OPTICAL SPECIFICATIONS

• Internal D/A converter
  AKM AK4396

• Input bit depth
  up to 24-bits native

• Input data rate
  up to 192KS/s native

SPEAKER DIMENSIONS (HXWXD)

• Left speaker (powered)
  Dimensions: 11.75″ (30cm) x 7.25″ (18.5cm) x 10″ (25cm)
  Weight: 17.5 lbs (8kg)

• Right speaker (passive)
  Dimensions: 11.75″ (30cm) x 7.25″ (18.5cm) x 10″ (25cm)
  Weight: 12.5 lbs (5.5kg)

SHIPPING BOX

• Dimensions: 17″ (43cm) x 20″ (51cm) x 15″ (38cm)
  Total weight: 33.5 lbs (15kg)

POWER CONSUMPTION

• Idle: 10W
  Mute: 6W
  Sleep: 4W

ENVIRONMENTAL REQUIREMENTS

• Idle: 10W
  Mute: 6W
  Sleep: 4W

CUSTOM COMPONENTS

• Audioengine designs and manufactures our own speaker drivers and other critical components. In other words, HD6 is not a box-built system with off-the-shelf parts, but includes custom-designed components constructed to our specifications. What we do not fabricate directly inside our factories we made to our specific designs parts such as circuit boards, transformers, magnets, and wiring harnesses, for example.

EFFICIENT INTEGRATED DESIGN

• The speaker cabinets, drivers, innovative bass port designs, amplifiers, and passive crossovers are all critically tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires less power than passive speakers and a separate integrated amplifier or similar A/V components. We build all this goodness into the left speaker cabinet to make it super-easy to connect your smartphone, tablet, computer, TV, network player or any other audio product.

BUILT-IN B1 AND D1

• We have taken features from two of our best-selling products, the B1 aptX Bluetooth Receiver and the D1 24-bit DAC, and combined some of this circuitry with advanced speaker components to achieve a complete high-end analog and digital audio system.

HIGH-QUALITY BLUETOOTH AUDIO

• The Bluetooth built into the HD6 powered speakers features aptX coding which is an advanced Bluetooth audio codec with very impressive sound. And even if your phone or tablet does not have aptX, the HD6 Bluetooth solution is backwards-compatible with SBC and AAC codecs, so you can wirelessly stream music from any Bluetooth-enabled device and still enjoy all your music. High-fidelity Bluetooth aptX that really works and sounds great. Her is why:

  Extended wireless range Most Bluetooth implementations have very limited range, typically within just one room. But with careful signal management circuitry and antenna tuning, we offer a superior solution that has up to 3 times the range of standard Bluetooth for multi-room use, with no degradation in audio quality.

  AK4396A DAC, widely known for its low-noise and high-fidelity. The optical input configures the AK4396A as a bit-perfect 24-bit DAC, which will process sample rates up to 192kHz natively. But for Bluetooth the AK4396A is used as an upsampling DAC and will pad all bit depths to 24-bits, achieving a higher signal-to-noise ratio and lower noise floor. Due to the high signal-to-noise specs of the AK4396A, the fact that digital signal is upsampled to 24-bits as well as the added benefit of onboard triple redundancy power source conversion and filtering, the HD6 Bluetooth implementation presents impressive low noise and low distortion characteristics with a noticeable improvement over other Bluetooth devices.

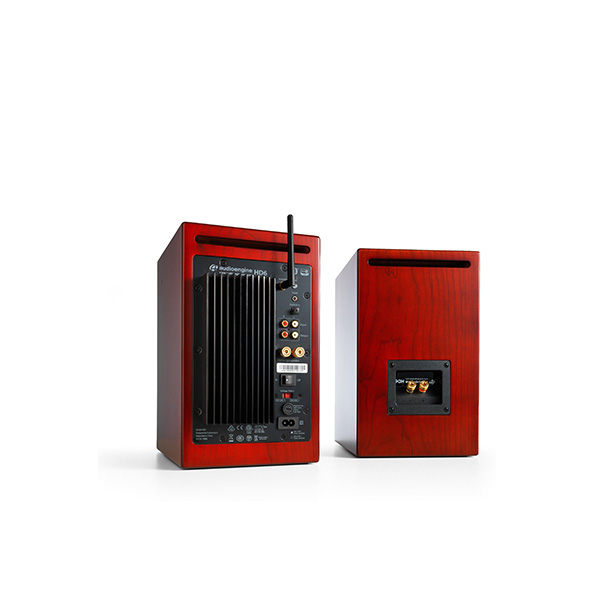

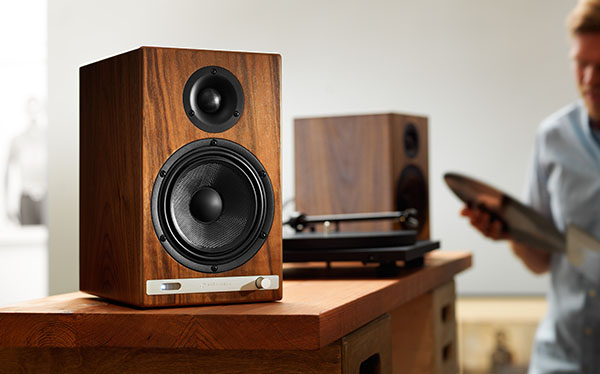

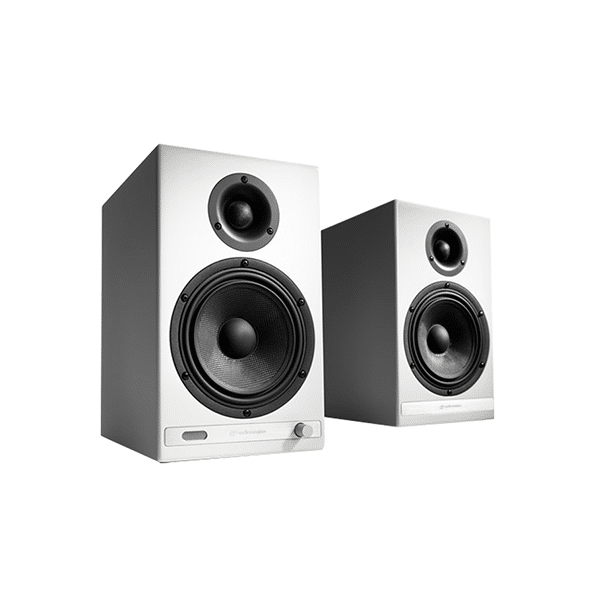

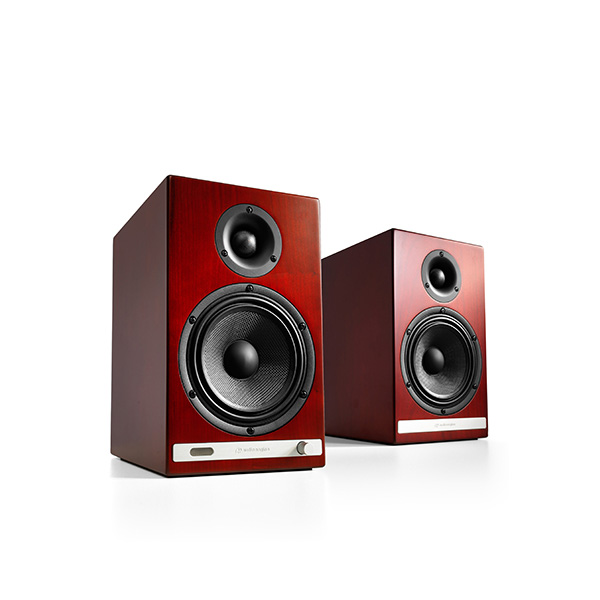

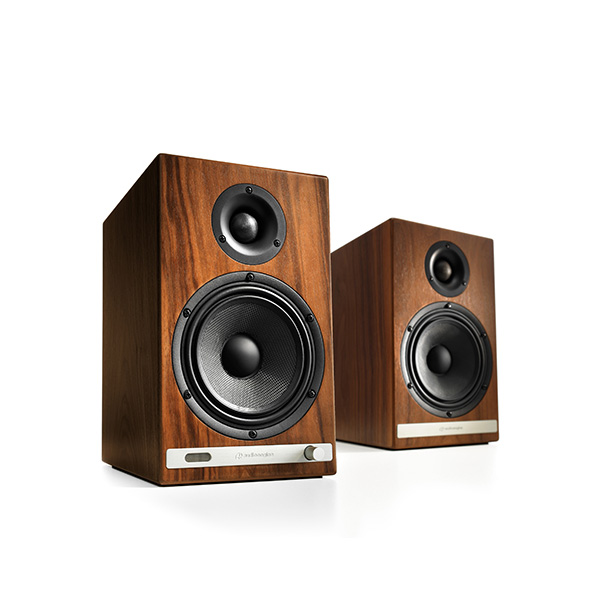

FURNITURE-GRADE FINISHES

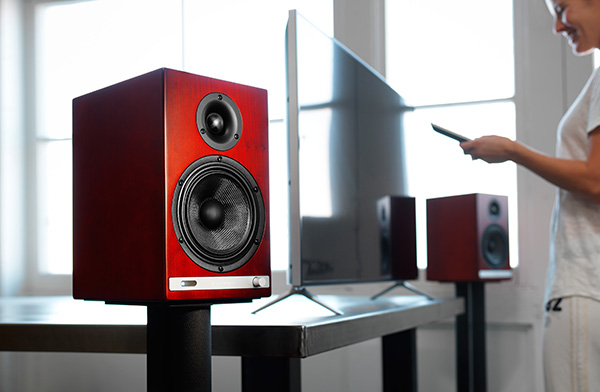

• HD6 cabinets are available in several handsome finishes, including walnut and cherry veneers as well as satin black paint, offering a wide choice for complementing room furnishings. Also included are detachable grills that add further aesthetic advantages as they are firmly held in place with hidden neodymium magnets for a clean look.

AMPLIFIER DESIGN

• The amplifiers in powered Audioengine speakers are located in the left speaker and are a conservatively-rated class A/B analog monoblock design. This is a more traditional speaker/amplifier marriage which provides excellent quality audio and greater flexibility. All circuit boards for the power and preamp sections are vertically mounted for maximum mechanical shock protection.

DRIVER DESIGNS

• Audioengine uses audiophile-quality, ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives very smooth response. The woofers are Kevlar woven glass aramid composite with rubber surrounds. Kevlar is obviously very strong, which means the woofer retains its shape when being driven at high levels. The HD6 woofers are housed in cast aluminum frames which provide high rigidity and increased heat dispersion.

POWER TRANSFORMERS

• Power transformers are critical to to high-quality audio performance, especially in the low-end and again, no off-the-shelf parts. Audioengine uses gapless core toroidal transformers which have a tighter radiated magnetic field, translating to lower noise. They are lighter than standard, lower-cost transformers and also generate less heat.

SHIELDING

• Both of HD6 speaker drivers are directly magnetically-shielded.
